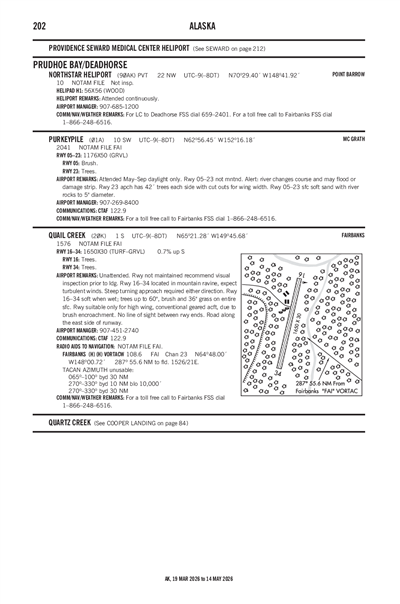

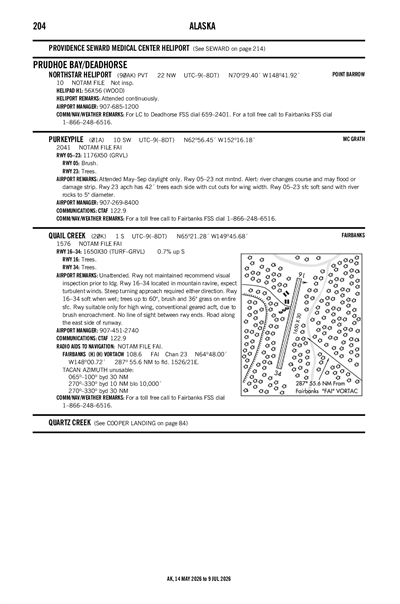

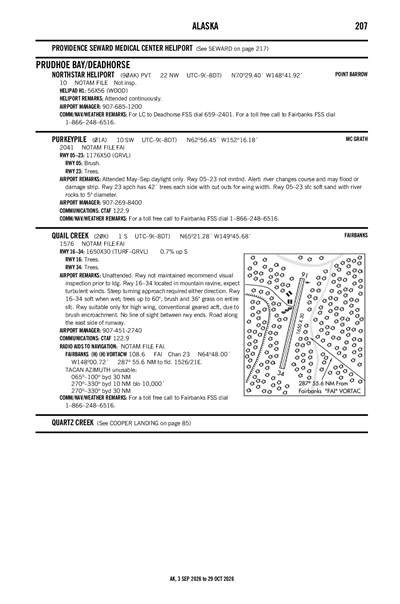

PURKEYPILE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

01A
PURKEYPILE
PublicPUB

10 miles SW of PURKEYPILE, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
62° 56' 27"N 152° 16' 11"W
2041' MSL
3041' MSL
24E
None Listed
FAIRBANKS (FAI)
MC GRATH
ANCHORAGE (ZAN)
5/16/24-6/13/24
No METAR is available for this location.
Add Your Business

01A FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

No TAF is available for this location.
01A
No NOTAM Available
No
MAY-SEPT DALGT ONLY
STATE OF AK DPT NAT RESRCS
550 W. 7TH AVE., STE 1070
ANCHORAGE, AK 99501-3579
Phone: 907-269-8600
MGR DNR SOUTHCENTRAL REG OFC
550 W. 7TH AVE. STE 900C
ANCHORAGE, AK 99501-3577
Phone: 907-269-8503
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
FAI
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
2
0
0
0
0
0
None
None
None
None
None

Runway 05/23

1176 ft. x 50 ft.
GRAVEL
Poor
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 70°250°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 62° 56' 25"N 62° 56' 29"N
Longitude 152° 16' 23"W 152° 15' 59"W
Elevation 2,034' 2,041'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-4BE ALERT: RIVER CHANGES COURSE AND MAY FLOOD OR DAMAGE STRIP.
A110-5APCH TO RY 23 HAS TREES 42 FT TALL ON EACH SIDE WITH CUT OUTS FOR WING WIDTH.
PURKEYPILE (IATA: 01A) is a public airport located in PURKEYPILE, AK.
