iFlightPlanner



...

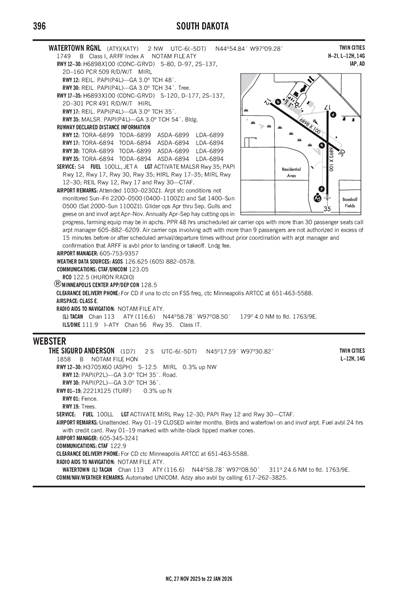

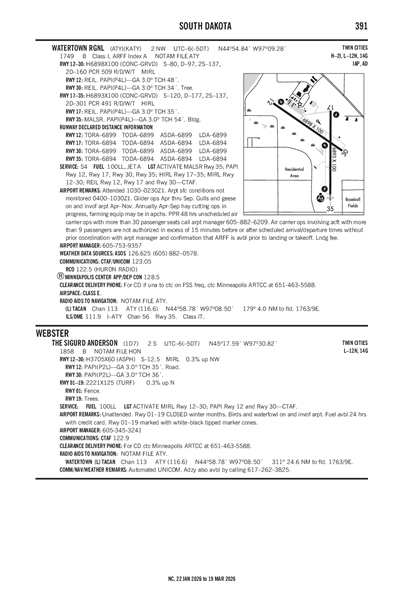

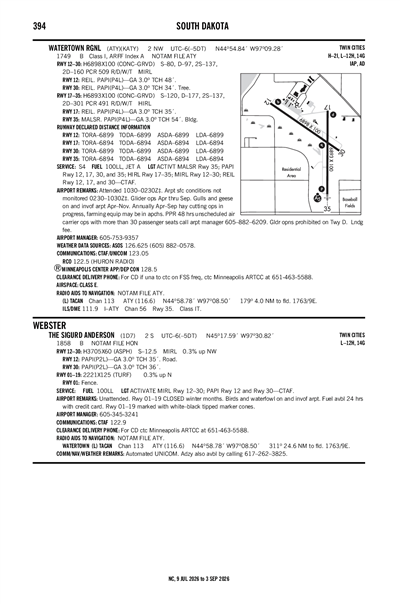

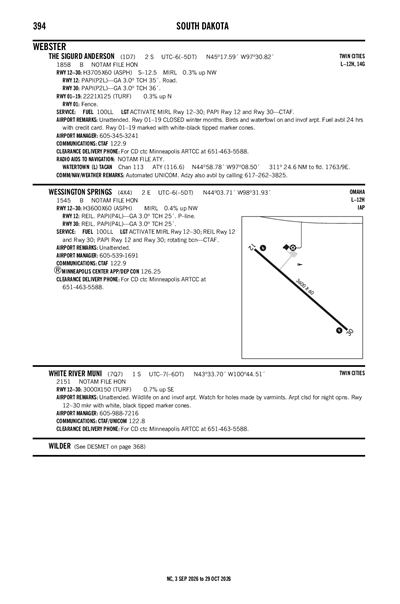

THE SIGURD ANDERSON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1D7
THE SIGURD ANDERSON
PublicPUB

2 miles S of WEBSTER, SD
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 17' 35"N 97° 30' 49"W
1858' MSL
2858' MSL
07E
None Listed
HURON (HON)
TWIN CITIES
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KATY (28nm) VFR
5:53 AM CDT
Clear
10sm
59°F
53°F
29.84"Hg
150° 11kts
AO2 SLP096 T01500117 $
KATY 021053Z AUTO 15011KT 10SM CLR 15/12 A2984 RMK AO2 SLP096 T01500117 $
Add Your Business

1D7 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KATY (28nm)
Sun, 6/2 6:28 AM CDT
Sun, 6/2 7:00 AM CDT - Mon, 6/3 7:00 AM CDT
VFR
7:00 AM CDT - 11:00 AM CDT
Thunderstorm in vicinity
Broken 14,000'
6sm
160° 8kts
VFR
11:00 AM CDT - 9:30 PM CDT
Broken 9,000'
6sm
170° 16kts
Gusts 24kts
VFR
9:30 PM CDT - 12:00 AM CDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 5,000'
6sm
230° 9kts
MVFR
12:00 AM CDT - 1:00 AM CDT
Showers in vicinity
Broken 2,600'
6sm
210° 7kts
MVFR
1:00 AM CDT - 7:00 AM CDT
Broken 1,900'
6sm
200° 6kts
KATY 021128Z 0212/0312 16008KT P6SM VCTS BKN140CB
   FM021600 17016G24KT P6SM BKN090
   FM030230 23009KT 6SM -SHRA VCTS BKN050CB
   FM030500 21007KT P6SM VCSH BKN026
   FM030600 20006KT P6SM BKN019
1D7
Domestic
5/30/240933Z !HON 05/101 1D7 OBST TOWER LGT (ASR 1040461) 450447.70N0973013.60W (12.8NM S 1D7) 2123.0FT (240.2FT AGL) U/S 2405300933-2409270933
No
UNATNDD
CITY OF WEBSTER
PO BOX 539
WEBSTER, SD 57274
Phone: 605-345-3241
CITY OF WEBSTER
PO BOX 539
WEBSTER, SD 57274
Phone: 605-345-3241
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
HON
--
ACTVT MIRL RWY 12/30; PAPI RWY 12 & 30 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
8
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 01/19

2221 ft. x 125 ft.
TURF
Good
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 5°185°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 45° 17' 26"N 45° 17' 48"N
Longitude 97° 31' 02"W 97° 30' 59"W
Elevation 1,851' 1,858'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12/30

3705 ft. x 60 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 123°303°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 17' 44"N 45° 17' 24"N
Longitude 97° 31' 04"W 97° 30' 20"W
Elevation 1,857' 1,845'
Threshold Crossing Height 35 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RY 19 +4' FENCE 306' FM THR; 17 ROAD 340' FM THR.
A110-2BIRDS AND WATERFOWL ON AND INVOF ARPT.
A110-5FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
THE SIGURD ANDERSON (IATA: 1D7) is a public airport located in WEBSTER, SD.
