DALLAS CBD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

49T
DALLAS CBD
PublicPUB

0 miles N of DALLAS, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 46' 18"N 96° 48' 07"W
480' MSL
1480' MSL
06E
None Listed
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
5/16/24-6/13/24
KDAL (4nm) IFR
5:35 AM CDT
Broken 25,000'
Broken 900'
10sm
69°F
67°F
29.93"Hg
130° 5kts
AO2 T02060194 $
KDAL 021035Z 13005KT 10SM BKN009 BKN250 21/19 A2993 RMK AO2 T02060194 $
Add Your Business

49T FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

AWOS-3

AWOS-3
214-670-1243
 135.425

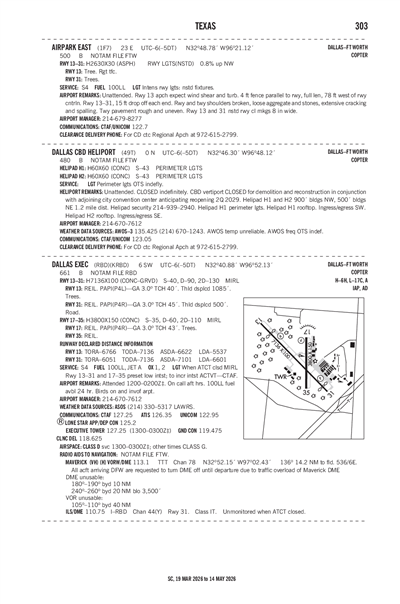

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KDAL (4nm)
Sun, 6/2 5:13 AM CDT
Sun, 6/2 5:00 AM CDT - Mon, 6/3 1:00 AM CDT
VFR
5:00 AM CDT - 6:00 AM CDT
Broken 25,000'
Few 1,200'
6sm
120° 4kts
MVFR
6:00 AM CDT - 1:00 PM CDT
Broken 1,200'
6sm
140° 4kts
IFR
Temporary 6:00 AM CDT - 9:00 AM CDT
Broken 800'
N/A
Calm
VFR
1:00 PM CDT - 5:00 PM CDT
Broken 3,500'
6sm
160° 9kts
VFR
5:00 PM CDT - 8:00 PM CDT
Thunderstorm in vicinity
Scattered 4,500'
6sm
150° 10kts
VFR
8:00 PM CDT - 1:00 AM CDT
Broken 25,000'
Scattered 12,000'
6sm
140° 10kts
KDAL 021013Z 0210/0306 12004KT P6SM FEW012 BKN250
   FM021100 14004KT P6SM BKN012
   TEMPO 0211/0214 BKN008
   FM021800 16009KT P6SM BKN035
   FM022200 15010KT P6SM VCTS SCT045CB
   FM030100 14010KT P6SM SCT120 BKN250
49T
Domestic
5/29/241851Z !FTW 05/060 49T OBST TOWER LGT (ASR 1048397) 324618.00N0964801.00W (0.1NM E 49T) 521.0FT (104.0FT AGL) U/S 2405291851-2406140400
5/28/242228Z !FTW 05/003 49T OBST TOWER LGT (ASR 1275480) 324620.50N0964638.20W (1.3NM E 49T) 750.3FT (300.9FT AGL) U/S 2405282228-2406282359
4/4/242156Z !FTW 04/104 49T OBST TOWER LGT (ASR 1016551) 324105.00N0964360.00W (6.2NM SSE 49T) 524.9FT (125.0FT AGL) U/S 2404042156-2408312359
No
UNATNDD
CITY OF DALLAS
801 S LAMAR
DALLAS, TX 75202
Phone: 214-670-4338
RAFAEL GARZA JR.
5303 CHALLENGER DRIVE
DALLAS, TX 75237
Phone: 214-670-7612
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
PERIMETER LGTS OTS INDEFLY.
N/A
Yes - Lighted
No
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
None

Runway H1

60 ft. x 60 ft.
CONC
Excellent
NONE
PERI

43,000lbs
--
--
--
  Runway H1 Runway
True Heading 86°266°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 32° 46' 17"N N/A
Longitude 96° 48' 08"W N/A
Elevation 480' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

60 ft. x 60 ft.
CONC
Excellent
NONE
PERI

43,000lbs
--
--
--
  Runway H2 Runway
True Heading 86°266°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 32° 46' 19"N N/A
Longitude 96° 48' 07"W N/A
Elevation 480' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC REGIONAL APCH AT 972-615-2799.
A110-2HELIPORT PHYSICAL ADDRESS 801 S. LAMAR, DALLAS, TX.
A110-3HELIPAD SECURITY 214-939-2940.
DALLAS CBD (IATA: 49T) is a public heliport located in DALLAS, TX.
