6M2

HORSESHOE BEND

PublicPUB

1 miles NE of HORSESHOE BEND, AR

View on Map

Status

Operational

Coordinates

36° 13' 17"N 91° 45' 20"W

Elevation

782' MSL

Pattern Alt

1782' MSL

Mag Variation

00E

Fuel

100LL

FSS

JONESBORO (JBR)

Sectional

KANSAS CITY

ARTCC

MEMPHIS (ZME)

Data Effective

5/16/24-6/13/24

K42A (10nm) VFR

6:55 AM CDT RAW

Clear

Viz

9sm

Temp

63°F

Dew

63°F

Pres

30.00"Hg

Wind

Calm

RMK

AO2

K42A 021155Z AUTO 00000KT 9SM CLR 17/17 A3000 RMK AO2

Add Your Business

6M2 FBOs

Promote Listing

Horseshoe Bend Municipal

UNICOM: 122.8

Phone: (870) 670-5113

0 Reviews (Read | Sign In To Write)

As of 5/27	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.75
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.8 CTAF 122.8

No communication frequencies available for this airport.

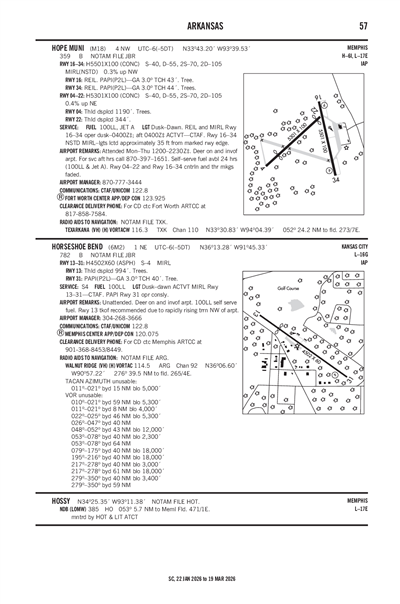

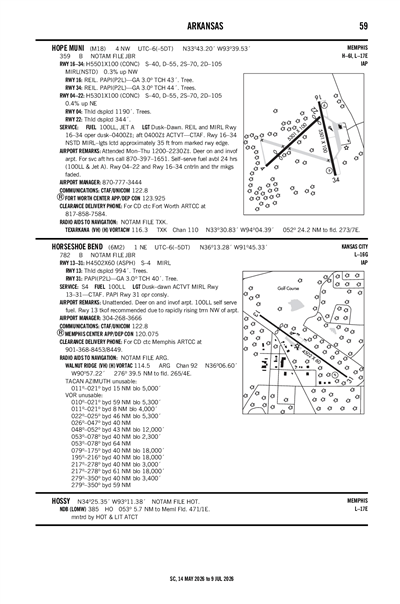

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

RNAV (GPS)-A

Terminal Area Forecast

KBPK (36nm)

RAW

Reported

Sun, 6/2 6:20 AM CDT

Valid

Sun, 6/2 7:00 AM CDT - Mon, 6/3 7:00 AM CDT

IFR

7:00 AM CDT - 10:00 AM CDT

Mist

Scattered 100'

Viz

2sm

Wind

VRB° 4kts

LIFR

Temporary 7:00 AM CDT - 9:00 AM CDT

Fog

Obscured

Viz

0.5sm

Wind

Calm

VFR

10:00 AM CDT - 4:00 PM CDT

Scattered 25,000'

Viz

6sm

Wind

150° 5kts

VFR

4:00 PM CDT - 8:00 PM CDT

Broken 25,000'
Scattered 5,000'

Viz

6sm

Wind

170° 7kts

VFR

8:00 PM CDT - 1:00 AM CDT

Broken 25,000'

Viz

6sm

Wind

160° 4kts

MVFR

1:00 AM CDT - 7:00 AM CDT

Mist

Broken 10,000'
Scattered 6,000'

Viz

5sm

Wind

160° 6kts

KBPK 021120Z 0212/0312 VRB04KT 2SM BR SCT001
   TEMPO 0212/0214 1/2SM FG VV001
   FM021500 15005KT P6SM SCT250
   FM022100 17007KT P6SM SCT050 BKN250
   FM030100 16004KT P6SM BKN250
   FM030600 16006KT 5SM BR SCT060 BKN100

6M2

Domestic
4/24/240626Z	!JBR 04/381 6M2 OBST TOWER LGT (ASR 1247596) 361315.90N0915539.70W (8.4NM W 6M2) 1068.9FT (255.9FT AGL) U/S 2404240626-2406080625

ATC Tower

Attendance

UNATNDD

Owner

CITY OF HORSEHOE BEND
CITY HALL - 704 W COMMERCE
HORSESHOE BEND, AR 72512
Phone: 870-670-5113

Manager

ERIC SECRETAN
704 W COMMERCE
HORSESHOE BEND, AR 72512
Phone: 304-268-3666

FSS

JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF

NOTAM

JBR

Light Schedule

Lights

DUSK-DAWN ACTVT MIRL RWY 13/31 - CTAF. PAPI RWY 31 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 13/31

Dimensions

4502 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

4,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	125°	305°
Traffic Pattern	Left	Left
Markings	BSC	NPI
Markings Condition	GOOD	GOOD
Latitude	36° 13' 30"N	36° 13' 04"N
Longitude	91° 45' 42"W	91° 44' 57"W
Elevation	782'	777'
Threshold Crossing Height	--	40 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-2	RWY 13 TKOF RCMDD DUE TO RAPIDLY RISING TRRN NW OF ARPT.
A110-3	DEER ON & INVOF ARPT.
A110-5	FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.

HORSESHOE BEND (IATA: 6M2) is a public airport located in HORSESHOE BEND, AR.
