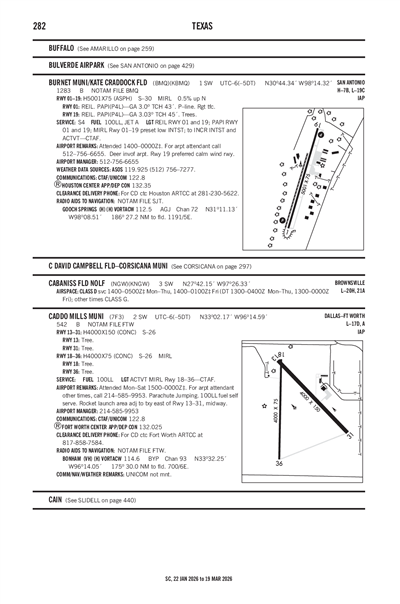

CADDO MILLS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7F3
CADDO MILLS MUNI
PublicPUB

2 miles SW of CADDO MILLS, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 02' 10"N 96° 14' 35"W
542' MSL
1542' MSL
06E
None Listed
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
5/16/24-6/13/24
KGVT (9nm) VFR
5:15 AM CDT
Clear
10sm
65°F
32°F
29.94"Hg
100° 3kts
AO2 TSNO T0181////
KGVT 021015Z AUTO 10003KT 10SM CLR 18/ A2994 RMK AO2 TSNO T0181////
Add Your Business

7F3 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDAL (32nm)
Sun, 6/2 5:13 AM CDT
Sun, 6/2 5:00 AM CDT - Mon, 6/3 1:00 AM CDT
VFR
5:00 AM CDT - 6:00 AM CDT
Broken 25,000'
Few 1,200'
6sm
120° 4kts
MVFR
6:00 AM CDT - 1:00 PM CDT
Broken 1,200'
6sm
140° 4kts
IFR
Temporary 6:00 AM CDT - 9:00 AM CDT
Broken 800'
N/A
Calm
VFR
1:00 PM CDT - 5:00 PM CDT
Broken 3,500'
6sm
160° 9kts
VFR
5:00 PM CDT - 8:00 PM CDT
Thunderstorm in vicinity
Scattered 4,500'
6sm
150° 10kts
VFR
8:00 PM CDT - 1:00 AM CDT
Broken 25,000'
Scattered 12,000'
6sm
140° 10kts
KDAL 021013Z 0210/0306 12004KT P6SM FEW012 BKN250
   FM021100 14004KT P6SM BKN012
   TEMPO 0211/0214 BKN008
   FM021800 16009KT P6SM BKN035
   FM022200 15010KT P6SM VCTS SCT045CB
   FM030100 14010KT P6SM SCT120 BKN250
7F3
Domestic
5/31/240411Z !FTW 05/162 7F3 OBST TOWER LGT (ASR 1209570) 330857.40N0961736.50W (7.2NM NNW 7F3) 948.8FT (312.0FT AGL) U/S 2405310411-2409280411
5/29/241758Z !FTW 05/058 7F3 RWY 13/31 WIP CONST ADJ 2405291758-2408312359
5/21/240518Z !FTW 05/609 7F3 OBST TOWER LGT (ASR 1208897) 330104.20N0961217.20W (2.2NM ESE 7F3) 755.9FT (253.9FT AGL) U/S 2405210518-2406050418
FDC
3/21/231122Z !FDC 3/0228 7F3 ODP CADDO MILLS MUNI, CADDO MILLS, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG-A...
TAKEOFF OBSTACLE NOTES: RWY 31, TRANSMISSION LINES, BEGINNING 2076 FT FROM DER, BEGINNING 258FT LEFT OF CENTERLINE, UP TO 65 AGL/ UP TO 605 MSL (2021-ASW-20374 THRU 20376-OE), (2022-ASW-5596/5597-OE), TRANSMISSION LINES, BEGINNING 2114FT FROM DER, BEGINNING 41FT RIGHT OF CENTERLINE, 55AGL/UP TO 605 MSL (2021-ASW-23070 THRU 23073-OE), (2022-ASW-5589-OE). RWY 36, TRANSMISSION LINES, BEGINNING 2128FT FROM DER, BEGINNING 613FT LEFT OF CENTERLINE, UP TO 60 AGL/UP TO 610 MSL (20368 THRU 20370-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2303211122-2503211122EST
No
MON-SAT 0900-1800
FOR ATTENDANT OTHER TIMES; CALL 214-585-9953.
CITY OF CADDO MILLS
PO BOX 490
CADDO MILLS, TX 75135
Phone: 903-527-3116
PHIL EATON
PO BOX 490
CADDO MILLS, TX 75135
Phone: 214-585-9953
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
ACTVT MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
27
0
0
0
0
0
None
None
None
None
Parachute Jump Activity

Runway 13/31

4000 ft. x 150 ft.
CONC
Good
NONE


26,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 136°316°
Traffic Pattern Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 33° 02' 27"N 33° 01' 59"N
Longitude 96° 14' 44"W 96° 14' 11"W
Elevation 542' 537'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

4000 ft. x 75 ft.
CONC
Good
NONE
MED

26,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 33° 02' 28"N 33° 01' 48"N
Longitude 96° 14' 42"W 96° 14' 43"W
Elevation 541' 535'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-7RAMP ON EAST SIDE OF 13/31 IN POOR COND.
A110-8ROCKET LAUNCH AREA ADJ TO TXY EAST OF RWY 13/31, MIDWAY.
A110-9FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
CADDO MILLS MUNI (IATA: 7F3) is a public airport located in CADDO MILLS, TX.
