GILLIAM - MC CONNELL AIRFIELD - Airport Diagram

BQ1

GILLIAM - MC CONNELL AIRFIELD

PublicPUB

1 miles SW of CARTHAGE, NC

View on Map

Status

Operational

Coordinates

35° 20' 30"N 79° 26' 13"W

Elevation

445' MSL

Pattern Alt

1445' MSL

Mag Variation

07W

Fuel

None Listed

FSS

RALEIGH (RDU)

Sectional

CHARLOTTE

ARTCC

WASHINGTON (ZDC)

Data Effective

5/16/24-6/13/24

KSOP (7nm) VFR

4:56 AM EDT RAW

Clear

Viz

10sm

Temp

66°F

Dew

59°F

Pres

30.15"Hg

Wind

210° 5kts

RMK

AO2 SLP212 T01890150 55007

KSOP 020856Z AUTO 21005KT 10SM CLR 19/15 A3015 RMK AO2 SLP212 T01890150 55007

Add Your Business

BQ1 FBOs

Promote Listing

Gilliam McConnell Airfield

Phone: (910) 695-5216

Other: (910) 947-2918

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM -- CTAF 122.9

No communication frequencies available for this airport.

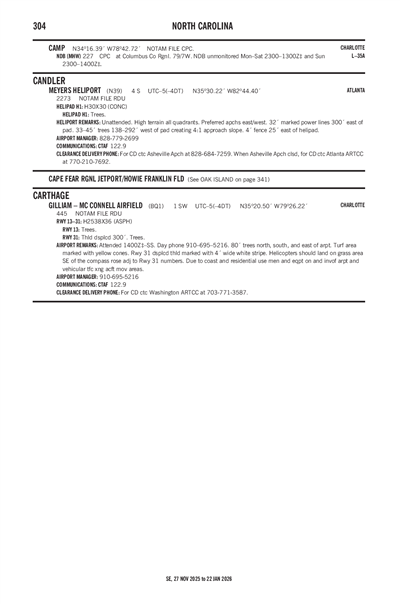

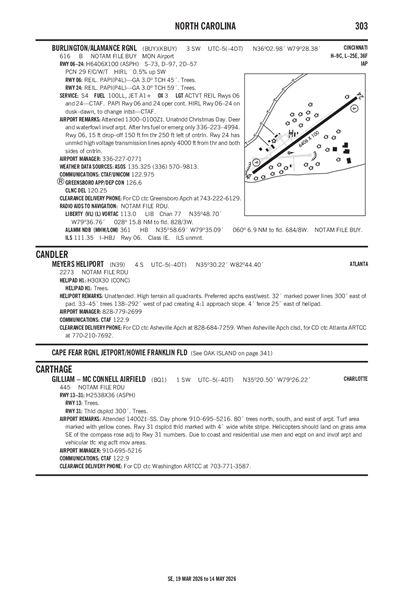

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

No Documents

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

No Documents

Terminal Area Forecast

KFBG (28nm)

RAW

Reported

Sun, 6/2 5:00 AM EDT

Valid

Sun, 6/2 5:00 AM EDT - Mon, 6/3 11:00 AM EDT

VFR

5:00 AM EDT - 10:00 AM EDT

Broken 19,000'

Viz

6sm

Pres

30.12"Hg

Wind

190° 4kts

VFR

Becoming 10:00 AM EDT - 11:00 PM EDT

Broken 4,000'
Few 2,500'

Viz

6sm

Pres

30.15"Hg

Wind

180° 12kts

MVFR

Becoming 11:00 PM EDT - 5:00 AM EDT

Light Showers and Rain

Overcast 4,500'
Broken 3,000'

Viz

4.97sm

Pres

30.06"Hg

Wind

190° 12kts

Gusts 18kts

MVFR

Becoming 5:00 AM EDT - 11:00 AM EDT

Overcast 4,500'
Broken 3,000'

Viz

6sm

Pres

30.03"Hg

Wind

230° 9kts

TAF KFBG 020900Z 0209/0315 19004KT 9999 BKN190 QNH3012INS
   BECMG 0214/0215 18012KT 9999 FEW025 BKN040 QNH3014INS
   BECMG 0303/0304 19012G18KT 8000 -SHRA BKN030 OVC045 QNH3006INS
   BECMG 0309/0310 23009KT 9999 NSW BKN030 OVC045 QNH3002INS TX28/0217Z TN19/0209Z

BQ1

Domestic
5/30/242115Z	!RDU 05/409 BQ1 OBST TOWER LGT (ASR 1003509) 352437.30N0792918.60W (4.8NM NNW BQ1) 631.9FT (254.9FT AGL) U/S 2405302115-2408312359

ATC Tower

Attendance

0900-SS

Owner

S. ROLAND GILLIAM
802 MCREYNOLDS STREET
CARTHAGE, NC 28327
Phone: 910-695-5216

Manager

S. ROLAND GILLIAM
194 GILLIAM-MC CONNELL ROAD
CARTHAGE, NC 28327
Phone: 910-695-5216

FSS

RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF

NOTAM

RDU

Light Schedule

Lights

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Avionics

Runway 13/31

Dimensions

2538 ft. x 36 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	Not Listed	Not Listed
Traffic Pattern		Left
Markings	NRS	NRS
Markings Condition	FAIR	FAIR
Latitude	N/A	N/A
Longitude	N/A	N/A
Elevation	--	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	80+ FT TREES NORTH, SOUTH, & EAST OF ARPT.
A110-3	TURF AREA MKD WITH YELLOW CONES
A110-4	HELICOPTERS SHOULD LAND ON GRASS AREA SE OF THE COMPASS ROSE ADJ TO RWY 31 NRS.
A110-5	FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.

GILLIAM - MC CONNELL AIRFIELD (IATA: BQ1) is a public airport located in CARTHAGE, NC.
