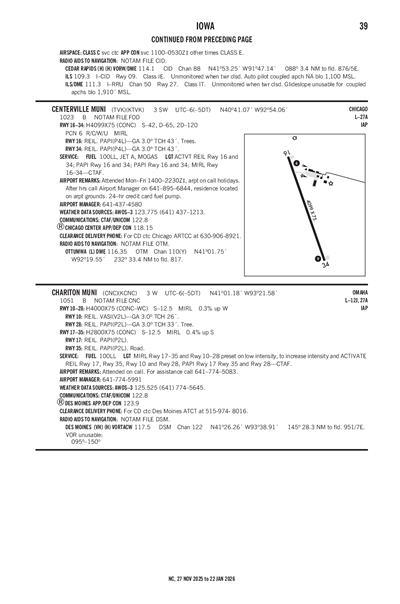

CHARITON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCNC
CHARITON MUNI
PublicPUB

3 miles W of CHARITON, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 01' 11"N 93° 21' 35"W
1050' MSL
2050' MSL
03E
100LL
FORT DODGE (FOD)
OMAHA
CHICAGO (ZAU)
5/16/24-6/13/24
KCNC VFR
5:15 AM CDT
No Clouds
10sm
61°F
61°F
29.95"Hg
150° 5kts
AO2
KCNC 021015Z AUTO 15005KT 10SM 16/16 A2995 RMK AO2
Add Your Business

KCNC FBOs

Promote Listing
Chariton Municipal Airport
UNICOM: 122.8
Phone: (641) 774-2599
Other: (641) 774-5991
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.35
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
641-774-5645
 125.525

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDSM (34nm)
Sun, 6/2 12:20 AM CDT
Sun, 6/2 1:00 AM CDT - Mon, 6/3 1:00 AM CDT
VFR
1:00 AM CDT - 8:00 AM CDT
Scattered 25,000'
6sm
VRB° 3kts
VFR
8:00 AM CDT - 1:00 PM CDT
Broken 20,000'
6sm
140° 7kts
VFR
1:00 PM CDT - 8:00 PM CDT
Broken 15,000'
Scattered 8,000'
6sm
150° 12kts
Gusts 18kts
VFR
8:00 PM CDT - 1:00 AM CDT
Broken 8,000'
Scattered 5,000'
6sm
150° 10kts
KDSM 020520Z 0206/0306 VRB03KT P6SM SCT250
   FM021300 14007KT P6SM BKN200
   FM021800 15012G18KT P6SM SCT080 BKN150
   FM030100 15010KT P6SM SCT050 BKN080
KCNC
Domestic
5/23/242104Z !CNC 05/010 CNC RWY 28 PAPI U/S 2405232104-2407021400
5/23/242104Z !CNC 05/009 CNC RWY 10 PAPI U/S 2405232104-2407021400
5/23/242104Z !CNC 05/008 CNC RWY 28 VASI U/S 2405232104-2407021400
5/23/242104Z !CNC 05/007 CNC RWY 10 VASI U/S 2405232104-2407021400
5/23/242104Z !CNC 05/006 CNC RWY 35 RENL U/S 2405232104-2407021400
5/23/242104Z !CNC 05/005 CNC RWY 28 RWY END ID LGT U/S 2405232104-2407021400
5/23/242104Z !CNC 05/004 CNC RWY 35 RWY END ID LGT U/S 2405232104-2407021400
5/23/242104Z !CNC 05/003 CNC RWY 17 RWY END ID LGT U/S 2405232104-2407021400
5/7/241419Z !CNC 05/001 CNC OBST TOWER LGT (ASR 1288047) 410456.90N0931443.30W (6.4NM NE CNC) 1324.1FT (310.0FT AGL) U/S 2405071419-2408072359
4/11/241151Z !CNC 04/002 CNC OBST TOWER LGT (ASR 1250816) 405216.70N0932949.40W (10.9NM SW CNC) 1350.7FT (259.8FT AGL) U/S 2404111151-2406112359
FDC
8/29/221336Z !FDC 2/8204 CNC IAP CHARITON MUNI, CHARITON, IA.
RNAV (GPS) RWY 17, AMDT 1B...
LNAV MDA 1420/HAT 369 ALL CATS. POLE, 1166 MSL, 1.17 NM NORTH OF APCH END RWY 17 (2021-ACE-8036-OE).
2208291336-2408291336EST
No
ON CALL
FOR ASSISTANCE CALL 641-774-5083.
CITY OF CHARITON
115 SOUTH MAIN
CHARITON, IA 50049
Phone: 641-774-5991
LAURA LIEGOIS
115 SOUTH MAIN
CHARITON, IA 50049
Phone: 641-774-5991
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
CNC
--
MIRL RYS 17/35 & 10/28 PRESET ON LOW INTST; TO INCR INTST & ACTVT REIL RYS 17; 35; 10 & 28; PAPI RYS 17; 35 & 28 - CTAF.
N/A
Yes - Lighted
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
8
1
0
0
0
0
None
None
None
None
None

Runway 10/28

4000 ft. x 75 ft.
CONC
Good
WC
MED

12,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 102°282°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 41° 01' 15"N 41° 01' 07"N
Longitude 93° 21' 48"W 93° 20' 57"W
Elevation 1,046' 1,034'
Threshold Crossing Height 26 ft. AGL 33 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

2800 ft. x 75 ft.
CONC
Good
NONE
MED

12,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 41° 01' 24"N 41° 00' 57"N
Longitude 93° 21' 52"W 93° 21' 52"W
Elevation 1,038' 1,050'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC DES MOINES ATCT AT 515-974- 8016.
CHARITON MUNI (ICAO: KCNC, IATA: CNC) is a public airport located in CHARITON, IA.
