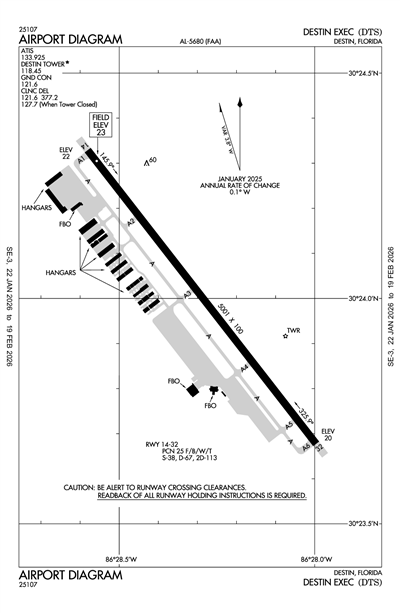

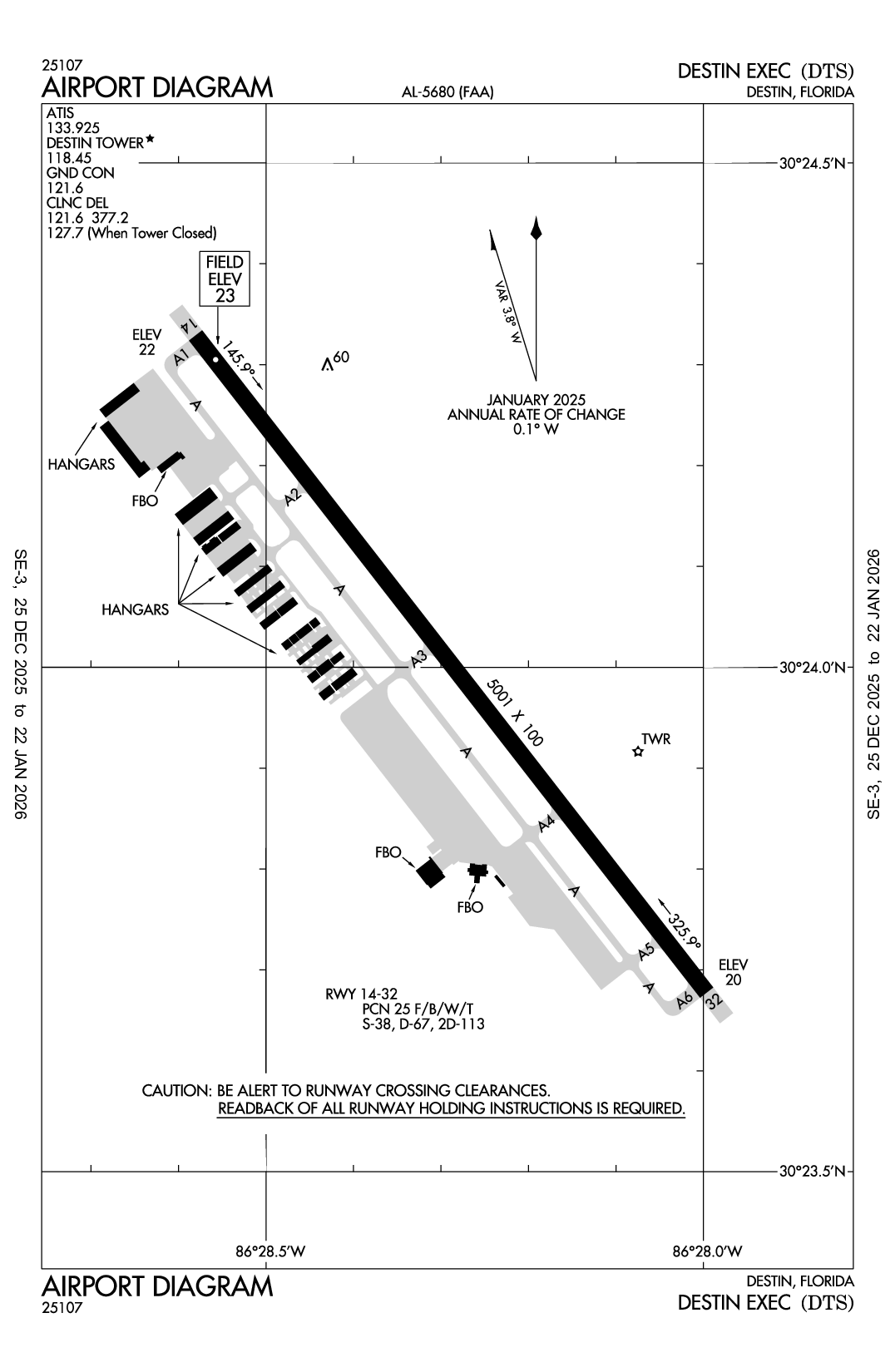

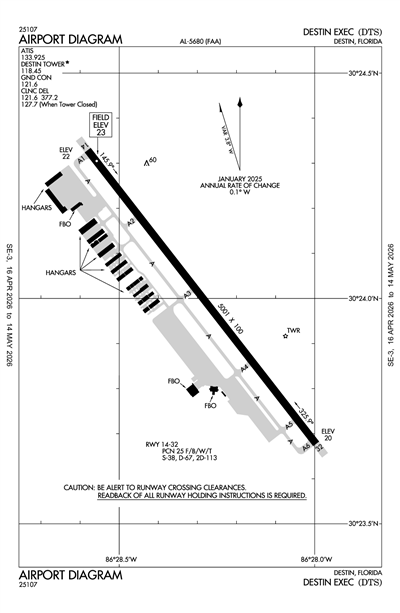

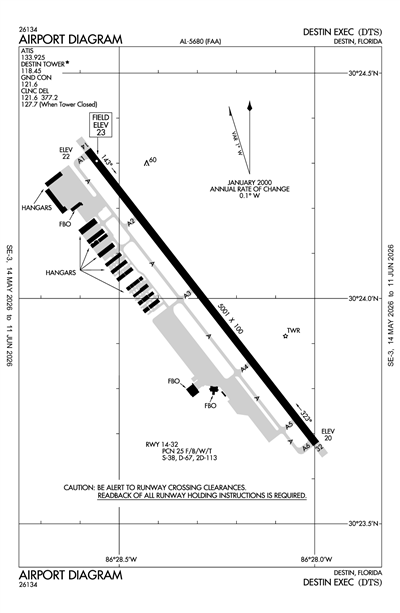

DESTIN EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDTS
DESTIN EXEC
PublicPUB

1 miles E of DESTIN, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 24' 00"N 86° 28' 17"W
23' MSL
1023' MSL
01W
JET A, 100LL
GAINESVILLE (GNV)
NEW ORLEANS
JACKSONVILLE (ZJX)
5/16/24-6/13/24
KDTS VFR
4:53 AM CDT
Clear
10sm
71°F
70°F
30.02"Hg
080° 3kts
AO2 SLP164 T02170211 $
KDTS 020953Z AUTO 08003KT 10SM CLR 22/21 A3002 RMK AO2 SLP164 T02170211 $
Add Your Business

KDTS FBOs

Promote Listing
Atlantic Aviation
UNICOM: 123.075
Phone: (850) 424-6890
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/25
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.32 7.70
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 118.45

ATIS

ATIS
Hours: 24 HRS
 133.925

ASOS

ASOS
850-654-7128
 133.925

Clearance Delivery

CD/P
 121.6

Ground

GND/P
 121.6

Tower

LCL/P
 118.45

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KVPS (6nm)
Sun, 6/2 4:00 AM CDT
Sun, 6/2 4:00 AM CDT - Mon, 6/3 10:00 AM CDT
MVFR
4:00 AM CDT - 6:00 AM CDT
Broken 2,500'
Scattered 1,500'
6sm
30.00"Hg
160° 9kts
MVFR
Becoming 6:00 AM CDT - 10:00 PM CDT
Light Showers and Rain
Overcast 2,000'
Broken 1,500'
4.97sm
30.00"Hg
180° 12kts
IFR
Temporary 1:00 PM CDT - 5:00 PM CDT
Light Thunderstorm and Rain
Broken 1,000'
2.98sm
VRB° 25kts
Gusts 35kts
MVFR
Becoming 10:00 PM CDT - 7:00 AM CDT
Overcast 4,000'
Broken 2,000'
6sm
29.97"Hg
100° 10kts
VFR
Becoming 7:00 AM CDT - 10:00 AM CDT
Overcast 8,000'
Broken 4,000'
6sm
29.97"Hg
150° 9kts
TAF KVPS 020900Z 0209/0315 16009KT 9999 SCT015 BKN025 QNH3000INS
   BECMG 0211/0212 18012KT 8000 -SHRA BKN015 OVC020 QNH2999INS
   TEMPO 0218/0222 VRB25G35KT 4800 -TSRA BKN010CB
   BECMG 0303/0304 10010KT 9999 NSW BKN020 OVC040 QNH2996INS
   BECMG 0312/0313 15009KT 9999 BKN040 OVC080 QNH2998INS TX27/0221Z TN20/0209Z
KDTS
Domestic
6/6/240300Z !DTS 05/022 DTS AIRSPACE PYROTECHNIC DEMONSTRATION WI AN AREA DEFINED AS 1.0NM RADIUS OF 302334N0863047W (1.89 NM SW DTS) SFC -400FT AGL 2406060300-2406060330
6/3/240245Z !DTS 05/023 DTS AIRSPACE PYROTECHNIC DEMONSTRATION WI AN AREA DEFINED AS 1NM RADIUS OF 302329N0863050W (2.24NM SW DTS) SFC-400FT AGL 2406030245-2406030330
5/19/241617Z !DTS 05/013 DTS OBST NUMEROUS LGT POLES (ASN UNKNOWN) 302352N0862820W (1800FT NW APCH RWY 32) 75FT (75FT AGL) U/S 2405191617-2406192359
5/19/241542Z !DTS 05/011 DTS TWY A2 HLDG PSN SIGN LGT U/S 2405191542-2406162359
4/9/241855Z !DTS 04/004 DTS AD AP BIRDS ACT MIGRATORY
2404091855-2409302359
3/13/242108Z !DTS 03/012 DTS OBST TOWER LGT (ASR 1232573) 302315.40N0861350.10W (12.5NM E DTS) 315.9FT (309.1FT AGL) U/S 2403132108-2407112108
FDC
9/18/231757Z !FDC 3/1506 DTS IAP DESTIN EXEC, DESTIN, FL.
RNAV (GPS) RWY 32, AMDT 1C...
APT ELEVATION 23. TDZE 22.
LP HAT 418 ALL CATS, LNAV HAT 518 ALL CATS.
CIRCLING CATS A/B HAA 557, CATS C/D HAA 657.
2309181757-2505181757EST
9/18/231757Z !FDC 3/1505 DTS IAP DESTIN EXEC, DESTIN, FL.
RNAV (GPS) RWY 14, AMDT 2C...
APT ELEVATION 23. TDZE 23.
LPV DA 273 ALL CATS, LNAV/VNAV DA 368 ALL CATS, LNAV HAT 437 ALL CATS.
CIRCLING CATS A/B HAA 557, CATS C/D HAA 657.
2309181757-2505181757EST
Yes
0600-2200
OKALOOSA CO
BOARD OF COMMISSIONERS, 101 EAST JAMES LEE BOULEVARD
CRESTVIEW, FL 32536
Phone: 850-689-5000
TRACY STAGE
1701 STATE ROAD 85 NORTH
EGLIN AFB, FL 32542-1413
Phone: 850-651-7160
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
DTS
--
ACTVT PAPI RWY 14 & 32; HIRL RWY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
54
14
21
6
0
0
Major
Major
High Pressure
High & Low Pressure
Avionics
Pilot Instruction
Aircraft Rental

Runway 14/32

5001 ft. x 100 ft.
ASPH
Good
NONE
HIGH
25 /F/B/W/T
38,000lbs
67,000lbs
113,000lbs
--
  Runway 14 Runway 32
True Heading 142°322°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 24' 20"N 30° 23' 41"N
Longitude 86° 28' 35"W 86° 27' 60"W
Elevation 22' 21'
Threshold Crossing Height 43 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2EXERCISE VIGILANCE DUE TO CLOSE PROXIMITY TO EGLIN AFB LCTD 6 NM NW.
A110-3ALL ACFT CTC EGLIN CD ON 127.7 FOR ATC DEP INSTR PRIOR TO TKOF WHEN TWR CLSD.
A110-4WHEN TWR CLSD; IFR ACFT RMN ON GND & CTC DEP CTL FOR CLIMB OUT INSTR & IFR RLS.
A110-5ARPT COND UNMON.
A110-6PARASAILING & BANNER TOWING WI 5 NM.
A110-7CAUTION: MEN & EQUIP ON & INVOF SAFETY AREA.
DESTIN EXEC (ICAO: KDTS, IATA: DTS) is a public airport located in DESTIN, FL.
