KLVM

MISSION FLD

PublicPUB

5 miles E of LIVINGSTON, MT

View on Map

Status

Operational

Coordinates

45° 41' 58"N 110° 26' 53"W

Elevation

4659' MSL

Pattern Alt

5659' MSL

Mag Variation

15E

Fuel

JET A, 100LL

FSS

GREAT FALLS (GTF)

Sectional

GREAT FALLS

ARTCC

SALT LAKE CITY (ZLC)

Data Effective

5/16/24-6/13/24

KLVM VFR

4:53 AM MDT RAW

Broken 9,500'
Scattered 8,000'
Scattered 6,500'

Viz

10sm

Temp

49°F

Dew

43°F

Pres

29.86"Hg

Wind

260° 6kts

RMK

AO2 RAB19E28 SLP078 P0000 T00940061

KLVM 021053Z AUTO 26006KT 10SM SCT065 SCT080 BKN095 09/06 A2986 RMK AO2 RAB19E28 SLP078 P0000 T00940061

Add Your Business

KLVM FBOs

Yellowstone Air Service

UNICOM: 123.0

Phone: (406) 222-6504

0 Reviews (Read | Sign In To Write)

Other

As of 5/29	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.15
Full Serve	7.50	6.42	6.80

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 123.0 CTAF 123.0

ASOS

406-222-2338

135.275

FAA A/FD Pages

FAA A/FD Page

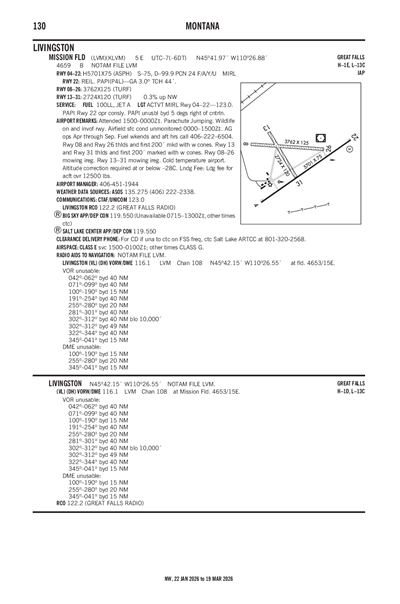

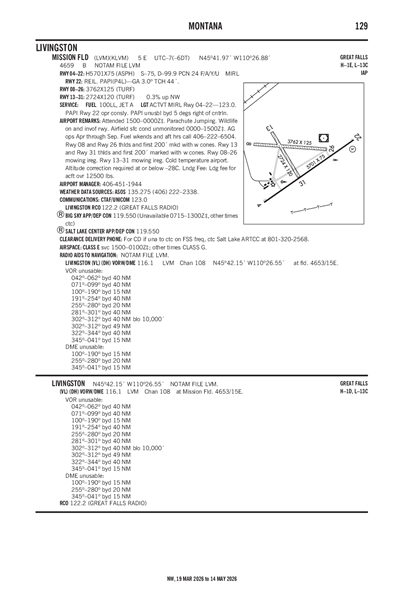

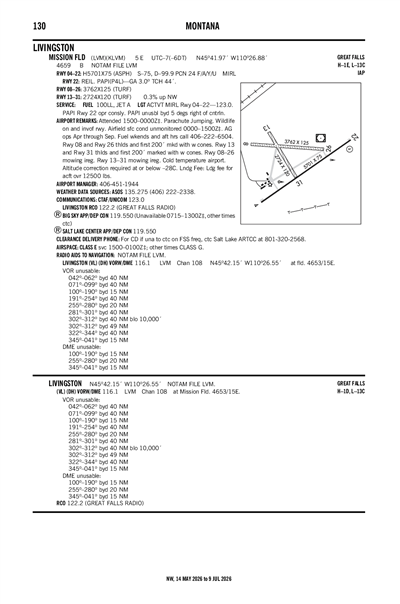

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

LIVINGSTON TWO (OBSTACLE)

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KLVM

RAW

Reported

Sun, 6/2 5:24 AM MDT

Valid

Sun, 6/2 6:00 AM MDT - Mon, 6/3 6:00 AM MDT

VFR

6:00 AM MDT - 11:00 AM MDT

Showers in vicinity

Broken 7,000'
Few 4,000'

Viz

6sm

Wind

270° 11kts

VFR

11:00 AM MDT - 8:00 PM MDT

Showers in vicinity

Broken 10,000'
Scattered 7,000'

Viz

6sm

Wind

260° 12kts

Gusts 18kts

VFR

8:00 PM MDT - 3:00 AM MDT

Broken 8,000'

Viz

6sm

Wind

250° 10kts

VFR

3:00 AM MDT - 6:00 AM MDT

Broken 10,000'

Viz

6sm

Wind

240° 17kts

KLVM 021124Z 0212/0312 27011KT P6SM VCSH FEW040 BKN070
   FM021700 26012G18KT P6SM VCSH SCT070 BKN100
   FM030200 25010KT P6SM BKN080
   FM030900 24017KT P6SM BKN100

KLVM

Domestic
4/18/240426Z	!LVM 04/005 LVM OBST TOWER LGT (ASR 1003717) 454021.00N1103224.00W (4.2NM WSW LVM) 4404.5FT (205.1FT AGL) U/S 2404180426-2408182359

ATC Tower

Attendance

0800-1700

Owner

LIVINGSTON CITY PARK CO
COUNTY BLDG, 414 E CALLENDER
LIVINGSTON, MT 59047
Phone: 406-222-4106

Manager

PAUL LYMAN
COUNTY BLDG, 414 E CALLENDER
LIVINGSTON, MT 59047
Phone: 406-451-1944

FSS

GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF

NOTAM

LVM

Light Schedule

Lights

ACTIVATE MIRL RY 04/22 - 123.0.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting
Air Ambulance
Charter Service
Pilot Instruction
Annual Surveying

Runway 04/22

Dimensions

5701 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

24 /F/A/Y/U

Single Wheel

75,000lbs

Double Wheel

100,000lbs

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	54°	234°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	45° 41' 36"N	45° 42' 09"N
Longitude	110° 27' 18"W	110° 26' 13"W
Elevation	4,650'	4,646'
Threshold Crossing Height	--	44 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights		Yes

Runway 08/26

Dimensions

3762 ft. x 125 ft.

Surface Type

TURF

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 08	Runway 26
True Heading	93°	273°
Traffic Pattern	Left	Left
Markings	NSTD	NSTD
Markings Condition	GOOD	GOOD
Latitude	45° 42' 05"N	45° 42' 04"N
Longitude	110° 27' 23"W	110° 26' 30"W
Elevation	4,659'	4,650'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

Dimensions

2724 ft. x 120 ft.

Surface Type

TURF

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	147°	327°
Traffic Pattern	Left	Left
Markings	NSTD	NSTD
Markings Condition	GOOD	GOOD
Latitude	45° 42' 12"N	45° 41' 49"N
Longitude	110° 27' 14"W	110° 26' 53"W
Elevation	4,659'	4,652'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	RWY 31 MTN 1 MILE AT 23:1 RATIO.
A110-3	WILDLIFE ON & INVOF ARPT.
A110-4	AG OPS APR THROUGH SEP.
A110-5	FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A110-6	COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -29C.
A110-7	PAPI RWY 22 OPR CONSLY.

MISSION FLD (ICAO: KLVM, IATA: LVM) is a public airport located in LIVINGSTON, MT.
