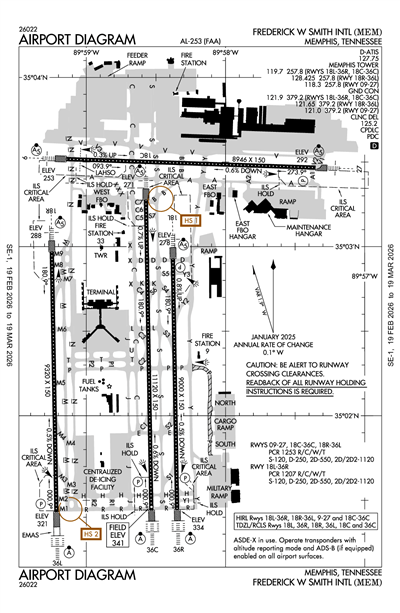

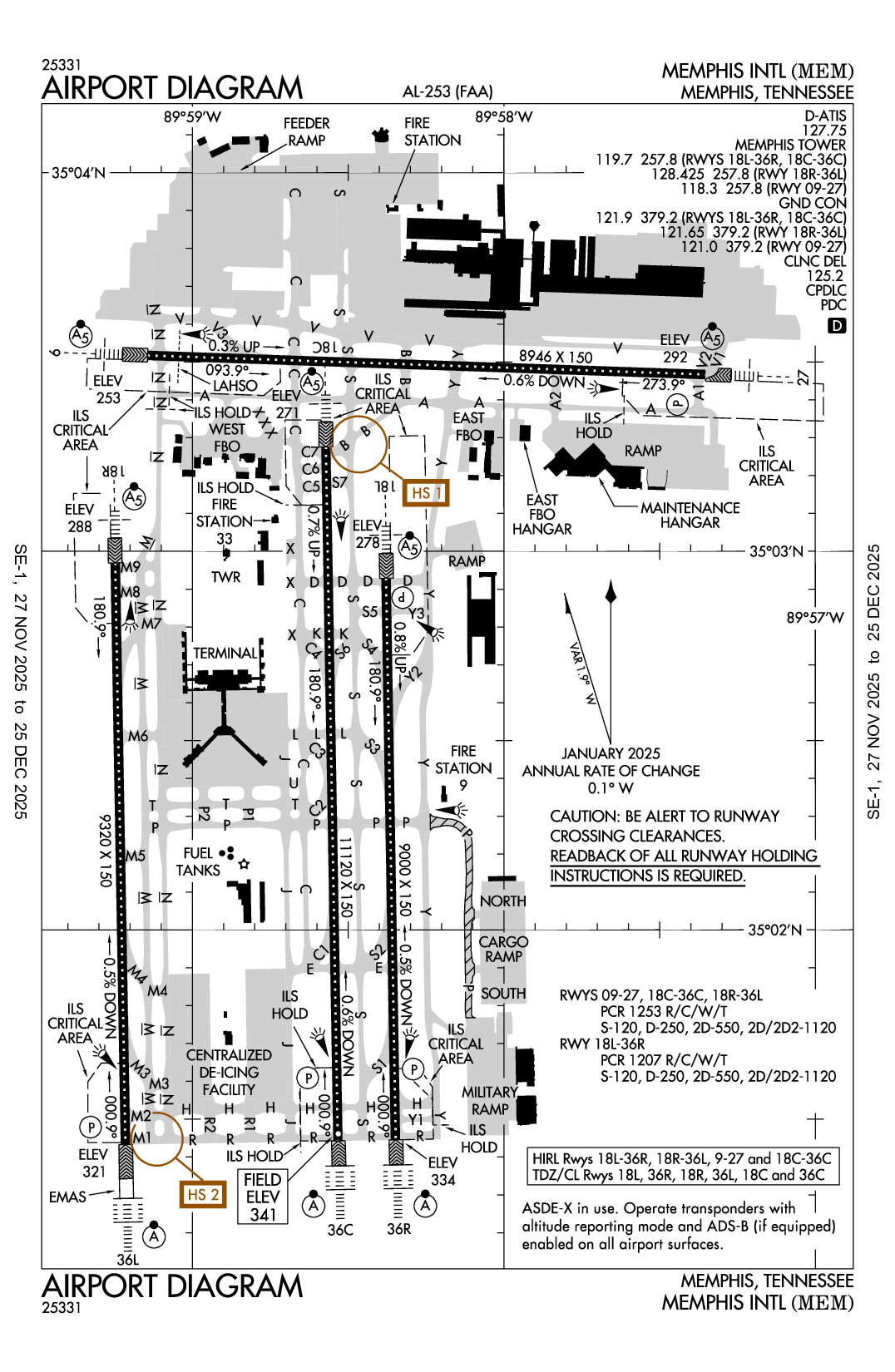

MEMPHIS INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMEM
MEMPHIS INTL
PublicPUB

3 miles S of MEMPHIS, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 02' 33"N 89° 58' 36"W
341' MSL
1341' MSL
01W
JET A, JET A (FSII), JET A+, CILI, 100LL
JACKSON (MKL)
MEMPHIS
MEMPHIS (ZME)
5/16/24-6/13/24
KMEM VFR
6:54 AM CDT
Scattered 25,000'
Scattered 9,000'
Few 4,000'
10sm
72°F
68°F
29.99"Hg
150° 3kts
AO2 SLP151 70003 T02220200 10222 20200 51011
KMEM 021154Z 15003KT 10SM FEW040 SCT090 SCT250 22/20 A2999 RMK AO2 SLP151 70003 T02220200 10222 20200 51011
Add Your Business

KMEM FBOs

Promote Listing
Wilson Air Center
UNICOM: 129.275
Phone: (901) 345-2992
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.35 6.80 6.86
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
UNICOM: 129.875
Phone: (901) 345-4700
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/31
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.33 6.77
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
 127.75

ASOS

ASOS
901-842-8483
 127.75

Clearance Delivery

CD PRE TAXI CLNC
 125.2

Emergency

EMERG
 121.5

Ground

GND/P
RWY 09/27
 121.0
GND/P
RWY 18R/36L
 121.65
GND/P
RWY 18L/36R, 18C/36C
 121.9

Tower

LCL/P
RWY 09/27
 118.3
LCL/P
RWY 18L/36R, 18C/36C
 119.7
LCL/P
RWY 18R/36L
 128.425

Other

ANG COMD POST
 138.1

Terminal Area Forecast

KMEM
Sun, 6/2 6:24 AM CDT
Sun, 6/2 7:00 AM CDT - Mon, 6/3 1:00 PM CDT
VFR
7:00 AM CDT - 8:00 AM CDT
Thunderstorm in vicinity
Scattered 4,500'
6sm
200° 4kts
VFR
8:00 AM CDT - 7:00 PM CDT
Showers in vicinity
Few 5,000'
6sm
250° 6kts
VFR
7:00 PM CDT - 1:00 PM CDT
Scattered 5,000'
6sm
180° 5kts
KMEM 021124Z 0212/0318 20004KT P6SM VCTS SCT045CB
   FM021300 25006KT P6SM VCSH FEW050
   FM030000 18005KT P6SM SCT050
KMEM
Domestic
6/5/241300Z !MEM 05/440 MEM NAV ILS RWY 36C U/S 2406051300-2406052000
6/5/241300Z !MEM 05/439 MEM NAV ILS RWY 18C U/S 2406051300-2406052000
6/4/241300Z !MEM 06/003 MEM AIRSPACE UAS WI AN AREA DEFINED AS 350348N0895700W
(1.8NM NE MEM) TO 350343N0895706W (1.7NM NE MEM) TO 350333N0895700W
(1.7NM NE MEM) TO 350327N0895701W (1.6NM NE MEM) TO 350308N0895707W
(1.4NM ENE MEM) TO 350310N0895759W (0.8NM NE MEM) TO 350323N0895759W
(1.0NM NNE MEM) TO 350321N0895711W (1.4NM ENE MEM) TO
350323N0895707W (1.5NM ENE MEM) TO 350328N0895705W (1.5NM NE MEM) TO
350333N0895706W (1.6NM NE MEM) TO 350335N0895826W (1.0NM N MEM) TO
350338N0895838W (1.1NM N MEM) TO 350338N0895918W (1.2NM NNW MEM) TO
350406N0895901W (1.6NM NNW MEM) TO 350426N0895907W (1.9NM NNW MEM)
TO 350424N0895731W (2.1NM NNE MEM) TO 350400N0895727W (1.7NM NE MEM)
TO 350400N0895715W (1.8NM NE MEM) TO 350404N0895715W (1.9NM NE MEM)
TO 350404N0895700W (2.0NM NE MEM) TO POINT OF ORIGIN SFC-150FT AGL
TUE-WED 1300-2100 2406041300-2406052100
6/4/241300Z !MEM 05/438 MEM NAV ILS RWY 36C U/S 2406041300-2406042000
6/4/241300Z !MEM 05/437 MEM NAV ILS RWY 18C U/S 2406041300-2406042000
6/4/240400Z !MEM 06/004 MEM COM REMOTE COM OUTLET 122.2 U/S 2406040400-2406041000
6/3/241300Z !MEM 05/488 MEM TWY N WIP SPRAYING, LANDSCAPING 2406031300-2406031930
6/3/241300Z !MEM 05/487 MEM TWY C BTN TWY V AND FEDEX RAMP CLSD 2406031300-2406031930
6/3/241300Z !MEM 05/486 MEM TWY V BTN TWY S AND GATE 452 CLSD 2406031300-2406031930
6/3/241300Z !MEM 05/485 MEM TWY B BTN TWY V AND RWY 09/27, TWY Y BTN TWY V AND RWY 09/27 CLSD 2406031300-2406031930
6/3/241300Z !MEM 05/484 MEM TWY M, M1, M2, M3, M4, M5, M6, M7, M8, M9, TWY N BTN TWY P AND TWY R, TWY H BTN TWY N AND TWY R2, TWY R BTN TWY N AND TWY R2 CLSD 2406031300-2406031930
6/3/241300Z !MEM 05/483 MEM RWY 18R/36L CLSD 2406031300-2406031930
6/3/241300Z !MEM 05/449 MEM NAV ILS RWY 18R U/S 2406031300-2406032000
6/3/241300Z !MEM 05/448 MEM NAV ILS RWY 36L U/S 2406031300-2406032000
6/3/240500Z !MEM 06/001 MEM SVC SMR U/S 2406030500-2406072100
6/2/241900Z !MEM 05/472 MEM SVC TAR/SSR U/S 2406021900-2406022100
6/2/241130Z !MEM 05/482 MEM TWY N BTN TWY P AND TWY M4, TWY M4 BTN TWY M AND TWY N CLSD 2406021130-2406021900
6/2/240524Z !MEM 06/010 MEM APRON ALL FICON WET OBS AT 2406020524. 2406020524-2406030524
6/2/240524Z !MEM 06/009 MEM TWY ALL FICON WET OBS AT 2406020524. 2406020524-2406030524
6/2/240523Z !MEM 06/008 MEM RWY 27 FICON 5/5/5 100 PCT WET OBS AT 2406020523. 2406020523-2406030523
6/2/240522Z !MEM 06/007 MEM RWY 18R FICON 5/5/5 100 PCT WET OBS AT 2406020522. 2406020522-2406030522
6/2/240522Z !MEM 06/006 MEM RWY 18C FICON 5/5/5 100 PCT WET OBS AT 2406020522. 2406020522-2406030522
6/2/240513Z !MEM 06/005 MEM RWY 18L FICON 5/5/5 100 PCT WET OBS AT 2406020513. 2406020513-2406030513
5/31/241429Z !MEM 05/473 MEM APRON SIGNATURE RAMP WIP CONST 2405311429-2411152300
5/29/241852Z !MEM 05/441 MEM TWY P HLDG PSN SIGN NORTHWEST SIDE FOR RWY 18L/36R OBSC 2405291852-2406141930
5/29/241813Z !MEM 05/436 MEM TWY N EDGE MARKINGS BTN TWY P AND TWY M4 WEST SIDE REMOVED 2405291813-2406302300
5/29/241118Z !MEM 05/431 MEM RWY 27 RTHL U/S 2405291118-2406052000EST
5/27/240753Z !MEM 05/410 MEM APRON TXL C CL LGT U/S 2405270753-2406112359
5/27/240753Z !MEM 05/409 MEM TWY C CL LGT BTN RWY 09/27 AND FEDEX RAMP U/S 2405270753-2406112359
5/25/240841Z !MEM 05/397 MEM OBST TOWER LGT (ASR 1053137) 345800.00N0900356.00W (6.3NM SW MEM) 525.9FT (215.9FT AGL) U/S 2405250841-2406240001
5/23/241317Z !MEM 05/374 MEM RWY 36L SEQUENCED FLG LGT U/S 2405231317-2406062000EST
5/23/241300Z !MEM 05/373 MEM RWY 18R RAI LGT U/S 2405231300-2406042000EST
5/21/242012Z !MEM 05/337 MEM APRON TERMINAL RAMP NE 1000FT CLSD BARRICADED 2405212012-2409302300
5/18/241833Z !MEM 05/317 MEM TWY N EDGE MARKINGS BTN TWY M2 AND TWY M3 WEST SIDE REMOVED 2405181833-2406242300
5/18/241829Z !MEM 05/316 MEM TWY N EDGE MARKINGS BTN TWY M3 AND TWY M4 WEST SIDE REMOVED 2405181829-2406242300
5/16/241922Z !MEM 05/268 MEM TWY N DIRECTION MARKINGS FOR CENTRALIZED DEICING FAC WEST PAD NOT STD 2405161922-2406162300
5/16/241642Z !MEM 05/266 MEM TWY A GEOGRAPHIC PSN MARKINGS BTN TWY C AND TWY S NOT STD 2405161642-2406172300
5/6/242200Z !MEM 05/046 MEM TWY A BTN TWY N AND TWY C CLSD 2405062200-2411152300
5/6/241200Z !MEM 05/050 MEM APRON SIGNATURE RAMP NORTH ENTRANCE/EXIT CLSD 2405061200-2411152300
5/6/241130Z !MEM 05/004 MEM NAV ILS RWY 09 GP U/S 2405061130-2411152200
4/19/241300Z !MEM 04/229 MEM OBST CRANE (ASN 2023-ASO-565-NRA) 350415N0895805W (1.8NM NNE MEM) 432FT (175FT AGL) FLAGGED DLY 1300-2300 2404191300-2408092300
3/25/241850Z !MEM 03/325 MEM OBST TOWER LGT (ASR 1043770) 350213.40N0900440.60W (5.0NM W MEM) 477.7FT (238.8FT AGL) U/S 2403251850-2406230400
12/27/231715Z !MEM 12/122 MEM AD AP ALL SAFETY AREA NOT STD GRADING 2312271715-2407272359
FDC
5/16/240500Z !FDC 4/1633 MEM STAR
MEMPHIS INTL, MEMPHIS TN...
BLUZZ FOUR ARRIVAL (RNAV STAR)...CROSS BLUZZ AT OR BELOW FL230
2405160500-2410300459
5/7/241600Z !FDC 4/9660 MEM STAR MEMPHIS INTL, MEMPHIS TN...BLUZZ FOUR ARRIVAL
(RNAV STAR) DESCEND VIA MACH NUMBER UNTIL TRANSITION TO 290 KT
2405071600-2410300459
4/5/242006Z !FDC 4/7496 MEM IAP MEMPHIS INTL, MEMPHIS, TN.
RNAV (RNP) Y RWY 18L, ORIG-D...
RNP 0.30 DA* 748/HAT 447 ALL CATS. TEMPORARY CRANES 384 MSL BEGINNING 1.3NM NW OF RWY 18L (2023-ASO-556/557-NRA).
2404052006-2406122006EST
6/29/230201Z !FDC 3/8456 MEM IAP MEMPHIS INTL, MEMPHIS, TN.
ILS RWY 36C (CAT II - III), AMDT 3F ...
ILS RWY 36L (CAT II - III), AMDT 14E ...
ILS RWY 36R (CAT II - III), AMDT 3D ...
PROCEDURE NA EXC FOR RDO ALTIMETER TOLERANT ACFT AND ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVE 2023-10-02 AND 5G C-BAND DOMESTIC NOTICES. 2306290201-2506290152EST
4/25/231118Z !FDC 3/6562 MEM IAP MEMPHIS INTL, MEMPHIS, TN.
ILS OR LOC RWY 18L, AMDT 2D...
BRYSN FIX MINIMUMS: S-LOC 18L MDA 680/HAT 379 ALL CATS, VIS CAT C RVR 3500. VDP AT I-EXS 2.7 DME; DISTANCE VDP TO THLD 1.0NM. CHANGE NOTE TO READ: FOR INOP ALS, INCREASE S-ILS 18L CAT E VISIBILITY TO RVR 4000, S-LOC 18L CAT E VISIBILITY TO 1 3/4 SM, BRYSN FIX MINIMUMS, INCREASE S-LOC 18L CATS C/D/E VISIBILITY TO RVR 5500. TEMPORARY CRANES 432 MSL BEGINNING 1.3NM N OF RWY 18L (2023-ASO-558 THRU 565-NRA).
2304251118-2408161118EST
4/25/231118Z !FDC 3/6561 MEM IAP MEMPHIS INTL, MEMPHIS, TN.
RNAV (RNP) Y RWY 18C, ORIG-E...
RNP 0.30* DA 725/HAT 435 ALL CATS, VIS ALL CATS RVR 4000. TEMPORARY CRANES 432 MSL BEGINNING 5929FT NE OF RWY 18C (2023-ASO-558 THRU 565-NRA).
2304251118-2408161118EST
Yes
ALL
MEMPHIS SHELBY CNTY ARPT AUTH
2491 WINCHESTER RD.
MEMPHIS, TN 38116-3856
Phone: 901-922-8000
TERRY BLUE
2491 WINCHESTER RD., SUITE 113
MEMPHIS, TN 38116-3856
Phone: 901-922-8000
JACKSON FSS (MKL)
Toll Free: 1-800-WX-BRIEF
MEM
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
15
7
43
0
8
0
Major
Major
None
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Aircraft Rental
Aircraft Sales

Runway 09/27

8946 ft. x 150 ft.
CONC
Good
GRVD
HIGH
92 /R/B/W/T
125,000lbs
178,000lbs
602,000lbs
870,000lbs
  Runway 09 Runway 27
True Heading 92°272°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 03' 31"N 35° 03' 28"N
Longitude 89° 59' 09"W 89° 57' 21"W
Elevation 253' 292'
Threshold Crossing Height -- 69 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 18C/36C

11120 ft. x 150 ft.
CONC
Good
GRVD
HIGH
82 /R/C/W/T
125,000lbs
210,000lbs
458,000lbs
873,000lbs
  Runway 18C Runway 36C
True Heading 179°359°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 03' 17"N 35° 01' 27"N
Longitude 89° 58' 34"W 89° 58' 32"W
Elevation 271' 341'
Threshold Crossing Height -- 71 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 18L/36R

9000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
82 /R/C/W/T
125,000lbs
210,000lbs
458,000lbs
873,000lbs
  Runway 18L Runway 36R
True Heading 179°359°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 02' 56"N 35° 01' 27"N
Longitude 89° 58' 23"W 89° 58' 21"W
Elevation 278' 334'
Threshold Crossing Height 73 ft. AGL 69 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 18R/36L

9320 ft. x 150 ft.
CONC
Good
GRVD
HIGH
82 /R/C/W/T
125,000lbs
210,000lbs
458,000lbs
873,000lbs
  Runway 18R Runway 36L
True Heading 179°359°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 02' 58"N 35° 01' 26"N
Longitude 89° 59' 15"W 89° 59' 13"W
Elevation 288' 321'
Threshold Crossing Height -- 73 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-21TWY N NORTH OF TWY V, TWY C NORTH OF TWY V, TWY S NORTH OF TWY V AND TWY V WEST OF TWY N DESIGNATED AS NON-MOVEMENT AREAS.
A110-22LRG & HVY EBND ACFT ON TWY V FOR RWY 27 HOLD SHORT AT MNM THRUST AREA SIGN.
A110-25PPR FOR TAXI CLNC ON TWY N NORTH OF TWY V, TWY S NORTH TWY V & TWY C NORTH OF TWY V - FEDEX RAMP ATCT 131.5.
A110-28TWY V BTN SPOT 7W & RWY 27 RSTR TO ACFT WITH WINGSPAN OF 171 FT 6 IN OR LESS.
A110-31TWY V BTN TWY S & Y RSTR TO ACFT WITH TAIL HEIGHT 65 FT 10 IN OR LESS.
A110-32ANG-PPR DSN 726-7131/7505, C901-291-7131/7505. MIL RAMP OPS 1230-0430Z++ MON-FRI; CLSD ALTN MON & HOL. MIL RAMP CLSD OUTSIDE OF PUB HR WITHOUT OG/CC APVL DSN 726-7557, C901-291-7557. TSNT ACFT MAINT NOT AVBL. REFUEL SVC FOR OTR THAN C17 ACFT RQR QUALIFIED CREW CHIEF OR CREWMEMBERS. NON-C17 ACFT SUPPORT PRVDD BY CONTRACT FBO ON FLD. SECURITY AVBL 24 HRS, DSN 726-7101, C901-291-7101. COMD POST DSN 726-7148/7311/7312, C901-291-7148/7311/7312. OPR 1230-0430Z++ MON-FRI, CLSD ALTN MON AND HOL DUE TO ALTN WORK SCHED. AFLD MGR DOES NOT ISSUE OR STORE COMSEC FOR TRAN CRES. TMPRY STOR OF CLASSIFIED MATERIALS UP TO TOP SECRET AT COMD POST.
A110-33CTC RAMP CONTROL 121.8 FOR ENTRY ON ANG RAMP. ANG FREQS 138.95 353.45. AFT HR CTC COMMAND POST - DSN 726-7148; C901-291-7311/7312 OR SECURITY FORCES - DSN 726-7101; C901-291-7101/7133.
A110-34HOLD SHORT INSTRN READ BACK RQR.
A110-38BASH PHASE II APR-MAY & AUG-OCT; CURRENT BIRD WATCH COND NOT ON ATIS.
A110-39ASDE-X IN USE. OPR PARROT WITH ALT RPRTG MODE & ADS-B ENABLED ON ARPT SFCS.
A110-4ANG RAMP OFFL BUS ONLY; PPR - V966-8131. TSNT ACFT RQR FOLLOW ME ASSIST ENTERING ANG RAMP.
A110-40PPR FOR TAXI CLNC FM N & S CARGO RAMP PRKG - 121.9.
A110-41COMMUNICATIONS-ANG COMD POST: RADIO CALL GRACELAND OPS.
A110-43NOISE ABATEMENT PROC IN EFCT. SUCCESSIVE AND/OR SIMUL DEP APVD ON RWY 36L-18R & RWY 36C-18C OR RWY 36L-18R & RWY 36R-18L WITH COURSE DVRGNC NO LATER THAN 2.27 NM FROM RWY END.
A110-44ANG: PPR 24 HR PN RQR; OFFL BUS ONLY.
A110-45AIRCRAFT WITH WINGSPANS GREATER THAN 118 FEET RESTRICTED FROM TAXIING ON TWY J NORTH OF TWY U.
A110-46ANG-ATIS INFO RPRTS BIRD ACT H24.
A110-5HELI OPS TO/FM TRML BLDG NA.
A110-51MIL: MIL RAMP OPS AT REDUCED ARFF, DOWNGRADED TO YELLOW.
A110-53TWY N BTN TWY M & TWY M7 CLSD TO WINGSPAN MORE THAN 171.5 FT EXC TAX SPEED LESS THAN 15 MPH.
A110-54MEM AD AP ALL SAFETY AREA NOT STD GRADING.
A110-6BIRDS INVOF ARPT.
MEMPHIS INTL (ICAO: KMEM, IATA: MEM) is a public airport located in MEMPHIS, TN.
