KOTH

SOUTHWEST OREGON RGNL

PublicPUB

1 miles NW of NORTH BEND, OR

View on Map

Status

Operational

Coordinates

43° 25' 01"N 124° 14' 49"W

Elevation

17' MSL

Pattern Alt

1017' MSL

Mag Variation

15E

Fuel

JET A, 100LL

FSS

MC MINNVILLE (MMV)

Sectional

KLAMATH FALLS

ARTCC

SEATTLE (ZSE)

Data Effective

5/16/24-6/13/24

KOTH IFR

4:56 AM PDT RAW

Overcast 600'

Viz

9sm

Temp

55°F

Dew

54°F

Pres

29.97"Hg

Wind

180° 6kts

RMK

AO2 SLP148 T01280122 10133 20128 58013

KOTH 021156Z AUTO 18006KT 9SM OVC006 13/12 A2997 RMK AO2 SLP148 T01280122 10133 20128 58013

Add Your Business

KOTH FBOs

Promote Listing

Coos Aviation

Phone: (541) 756-5181

0 Reviews (Read | Sign In To Write)

Titan

As of 5/28	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	7.35	6.50	6.70

Fuel Notes

Prices include tax

Your Information

Business

UNICOM -- CTAF 118.45

AWOS-3PT

541-756-0135

135.075

Ground

GND/P

127.1

Tower

LCL/P

118.45

FAA A/FD Pages

FAA A/FD Page

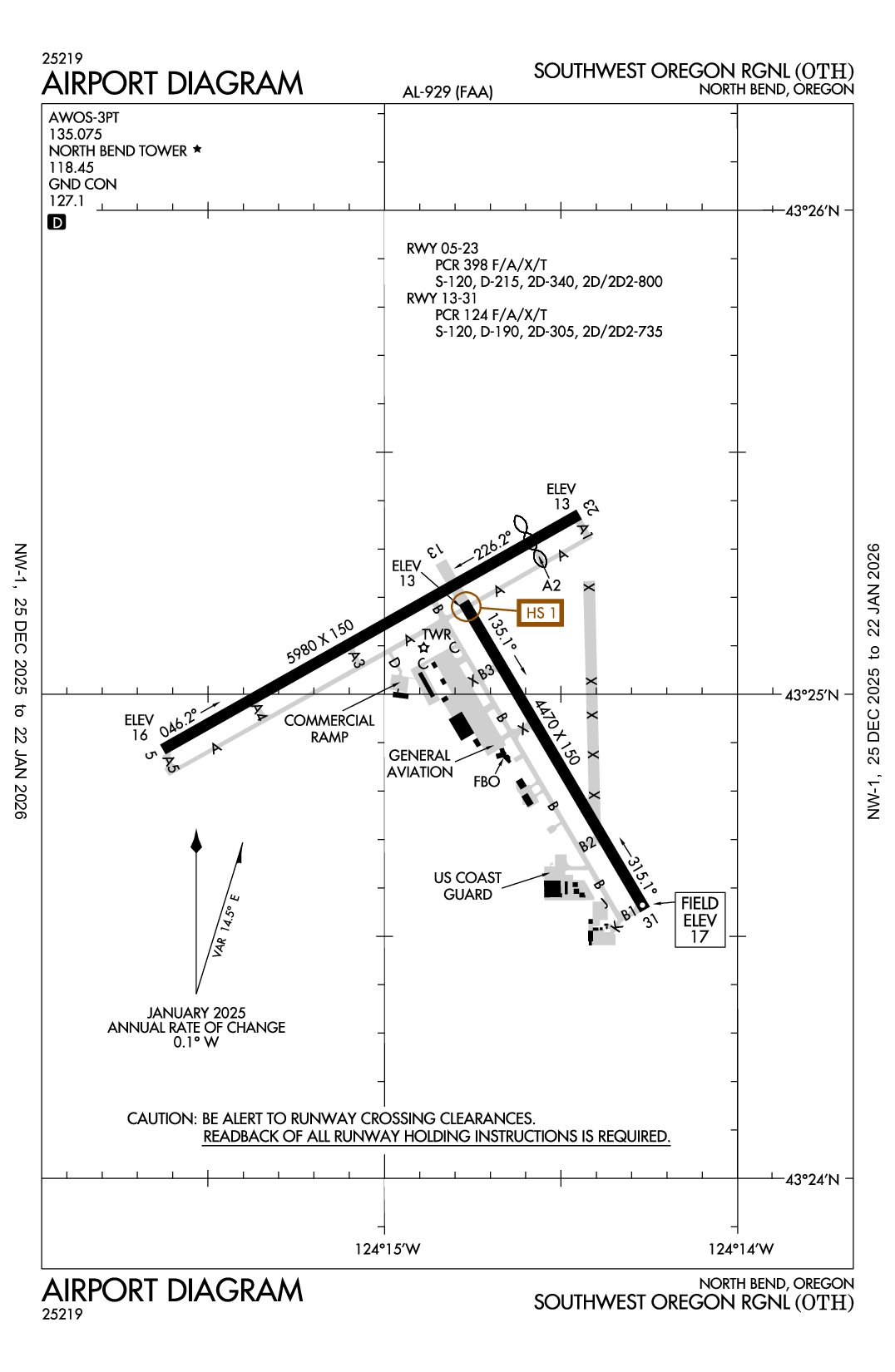

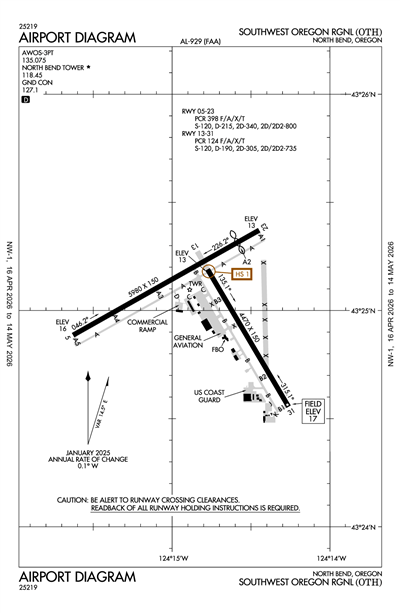

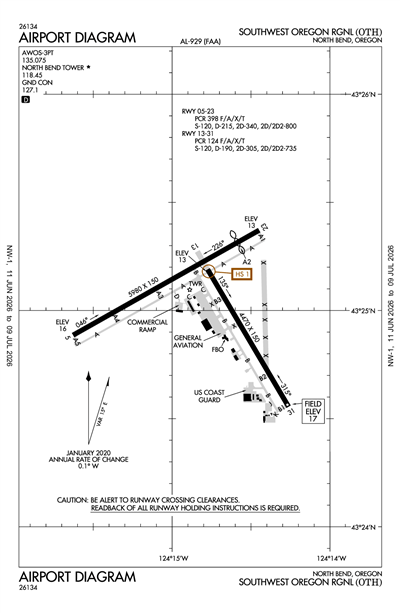

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

NORTH BEND SEVEN

Hotspot

HOT SPOT

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KOTH

RAW

Reported

Sun, 6/2 4:58 AM PDT

Valid

Sun, 6/2 5:00 AM PDT - Mon, 6/3 5:00 AM PDT

IFR

5:00 AM PDT - 8:00 AM PDT

Overcast 600'

Viz

6sm

Wind

200° 5kts

MVFR

8:00 AM PDT - 11:00 AM PDT

Showers in vicinity

Overcast 3,000'
Broken 1,500'

Viz

6sm

Wind

170° 10kts

Shear 210° 40kts @ 2000'

MVFR

11:00 AM PDT - 9:00 PM PDT

Light Rain

Overcast 2,000'
Broken 1,000'

Viz

6sm

Wind

200° 15kts

Gusts 25kts

MVFR

9:00 PM PDT - 12:00 AM PDT

Light Showers and Rain

Broken 1,500'

Viz

6sm

Wind

210° 10kts

MVFR

12:00 AM PDT - 5:00 AM PDT

Light Rain

Broken 1,000'

Viz

6sm

Wind

240° 12kts

Gusts 18kts

KOTH 021158Z 0212/0312 20005KT P6SM OVC006
   FM021500 17010KT P6SM VCSH BKN015 OVC030 WS020/21040KT
   FM021800 20015G25KT P6SM -RA BKN010 OVC020
   FM030400 21010KT P6SM -SHRA BKN015
   FM030700 24012G18KT P6SM -RA BKN010

KOTH

Domestic
6/2/240404Z	!OTH 06/002 OTH RWY 13 FICON 5/5/5 100 PCT WET OBS AT 2406020404. 2406020404-2406030404
6/2/240403Z	!OTH 06/001 OTH RWY 05 FICON 5/5/5 100 PCT WET OBS AT 2406020403. 2406020403-2406030403
5/29/241913Z	!OTH 05/027 OTH COM REMOTE TRANS/REC 122.4 U/S 2405291913-2406072000EST
2/2/241801Z	!OTH 02/005 OTH NAV ILS RWY 05 EMIRE LOM U/S 2402021801-2412182000
FDC
11/17/231654Z	!FDC 3/3516 OTH IAP SOUTHWEST OREGON RGNL, NORTH BEND, OR. ILS OR LOC RWY 5, AMDT 8A... S-LOC 5 NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. MISSED APPROACH: CLIMB TO 600 THEN CLIMBING LEFT TURN TO 2000 ON HEADING 340 AND ON OTH VOR/DME R-301 TO YICBU/OTH 8.00 DME AND HOLD (DME REQUIRED)., EMIRE (OT) LOM OUT OF SERVICE. 2311171654-2511151654EST

ATC Tower

Yes

Attendance

0500-2100
SVC AVBL 0800-1700, FOR SVC AFT HRS CALL (541) 756-5181.

Owner

COOS COUNTY AIRPORT DISTRICT
1100 AIRPORT LANE, FLOOR 3
NORTH BEND, OR 97459-2079
Phone: 541-756-8500

Manager

RODGER CRADDOCK
1100 AIRPORT LANE, FLOOR 3
NORTH BEND, OR 97459-2079
Phone: 541-756-8531

FSS

MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF

NOTAM

OTH

Light Schedule

Lights

WHEN ATCT CLSD, ACTVT MALSR RWY 05; REIL RWYS 13, 23, 31; MIRL RWY 13/31; HIRL 05/23 - CTAF. PAPI RWY 05 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

Dimensions

5980 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

62 /F/B/W/T

Single Wheel

120,000lbs

Double Wheel

215,000lbs

Double Tandem

340,000lbs

Dual Dbl Tand

800,000lbs

	Runway 05	Runway 23
True Heading	61°	241°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	FAIR	FAIR
Latitude	43° 24' 53"N	43° 25' 22"N
Longitude	124° 15' 38"W	124° 14' 28"W
Elevation	16'	13'
Threshold Crossing Height	51 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	P4R	--
Approach Lights	MALSR
Centerline Lights
Runway End Identifier Lights	No	Yes

Runway 13/31

Dimensions

4470 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

55 /F/C/W/T

Single Wheel

120,000lbs

Double Wheel

190,000lbs

Double Tandem

305,000lbs

Dual Dbl Tand

735,000lbs

	Runway 13	Runway 31
True Heading	150°	330°
Traffic Pattern	Left	Right
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	43° 25' 11"N	43° 24' 33"N
Longitude	124° 14' 46"W	124° 14' 16"W
Elevation	13'	17'
Threshold Crossing Height	--	50 ft. AGL
Visual Glide Path Angle	--	4°
Visual Slope Indicator	--	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	SHIP CHNL XS RWY 05 APRX 2/3 MI FM THLD; XS RWY 13 & RWY 23 APRX 1000 FT TO 1700 FT FM THLD; MAST HGTS TO 144 FT.
A110-2	MIGRATORY FLOCKS OF WATERFOWL ON & INVOF ARPT.
A110-3	ALL ACFT SUBJECTED TO ARPT USAGE FEES.
A110-4	PAEW INVOF RYS AND TWYS 0730-1530.
A110-5	TWY A3 CLSD TO ACFT OVER 60,000 LBS INDEFLY.
A110-6	FOR CD IF UNA TO CTC ON FSS FREQ, CTC SEATTLE ARTCC AT 253-351-3694.

SOUTHWEST OREGON RGNL (ICAO: KOTH, IATA: OTH) is a public airport located in NORTH BEND, OR.
