S20
GOLDENDALE
Public
PUB
1 miles NW of GOLDENDALE, WA
View on
Map
Status
Operational
Coordinates
45° 49' 55"N
120° 50' 43"W
Elevation
1678' MSL
Pattern Alt
2678' MSL
Mag Variation
19E
Fuel
None Listed
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
5/16/24-6/13/24
KDLS (19nm)
VFR
1:53 AM PDT
RAW
Broken 12,000'
Viz
10sm
Temp
63°F
Dew
51°F
Pres
29.86"Hg
Wind
310° 6kts
RMK
AO2 SLP111 T01720106 55003
KDLS 020853Z AUTO 31006KT 10SM BKN120 17/11 A2986 RMK AO2 SLP111 T01720106 55003
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
S20 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

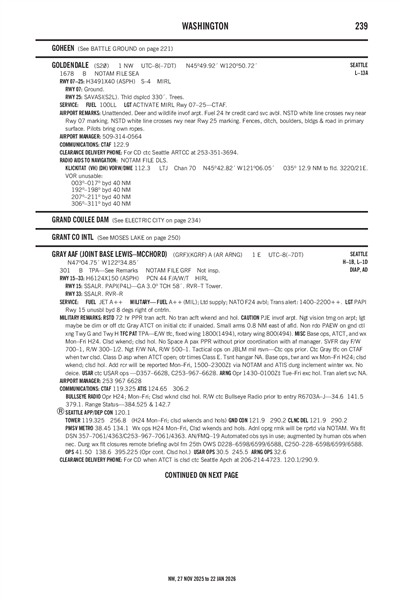

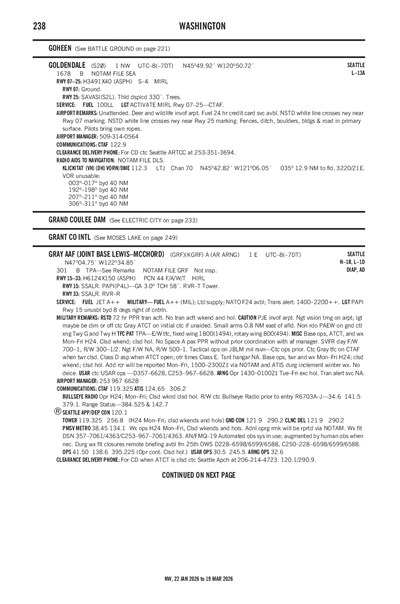

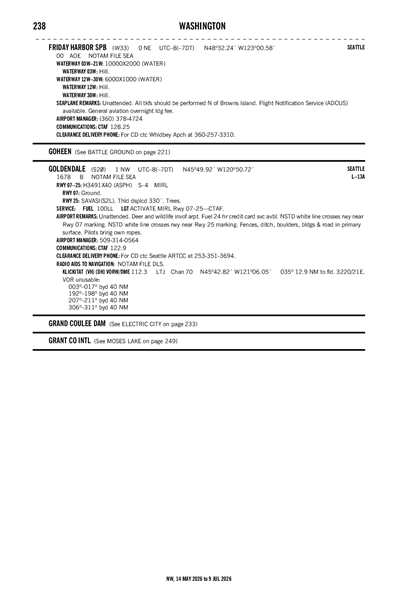

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KDLS (19nm)
RAW
Reported
Sat, 6/1 10:20 PM PDT
Valid
Sat, 6/1 11:00 PM PDT - Sun, 6/2 11:00 PM PDT
VFR
11:00 PM PDT - 8:00 AM PDT
Broken 15,000'
Viz
6sm
Wind
290° 10kts
VFR
8:00 AM PDT - 11:00 AM PDT
Overcast 5,000'
Viz
6sm
Wind
320° 6kts
VFR
11:00 AM PDT - 11:00 PM PDT
Light Rain
Overcast 5,000'
Viz
6sm
Wind
320° 8kts
MVFR
Temporary
6:00 PM PDT - 10:00 PM PDT
Light Rain
Overcast 5,000'
Viz
4sm
Wind
Calm
KDLS 020520Z 0206/0306 29010KT P6SM BKN150
FM021500 32006KT P6SM OVC050
FM021800 32008KT 6SM -RA OVC050
TEMPO 0301/0305 4SM -RA OVC050
S20
No NOTAM Available
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF GOLDENDALE
1103 SOUTH COLUMBUS, P.O. BOX 69
GOLDENDALE, WA 98620
Phone: 509-773-3771
Manager
PAT MUNYAN
1103 SOUTH COLUMBUS, P.O. BOX 69
GOLDENDALE, WA 98620
Phone: (509) 261-9442
FSS
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
NOTAM
SEA
Light Schedule
--
Lights
ACTIVATE MIRL RWY 07/25 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
9
# Multi Engine
1
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 07/25
Dimensions
3491 ft. x 40 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
4,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 07
Runway 25
True Heading
89°
269°
Traffic Pattern
Left
Left
Markings
NSTD
NSTD
Markings Condition
GOOD
GOOD
Latitude
45° 49' 55"N
45° 49' 56"N
Longitude
120° 51' 08"W
120° 50' 18"W
Elevation
--
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
S2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3
FENCES, DITCH, BOULDERS, BLDGS & ROAD IN PRIMARY SURFACE.
A110-4
DEER AND WILDLIFE INVOF ARPT.
A110-5
FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A110-6
FUEL 24 HR CREDIT CARD SVC AVBL.
GOLDENDALE (IATA: S20) is a public airport located in GOLDENDALE, WA.
