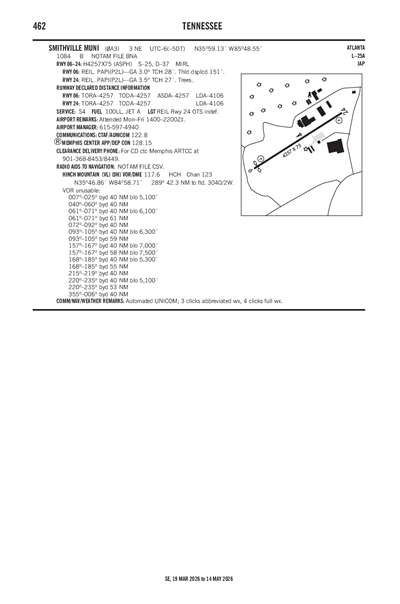

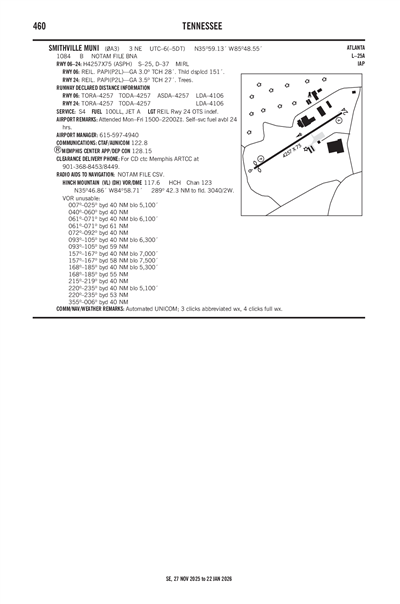

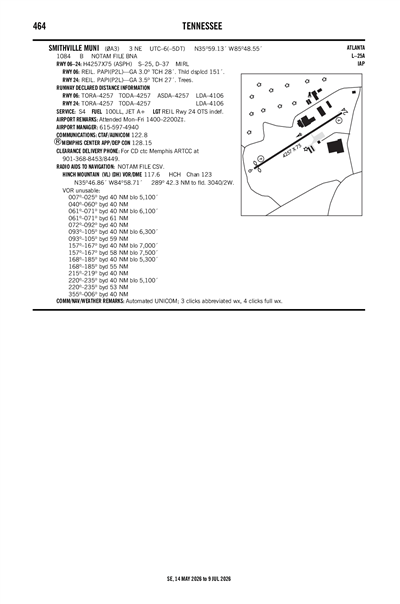

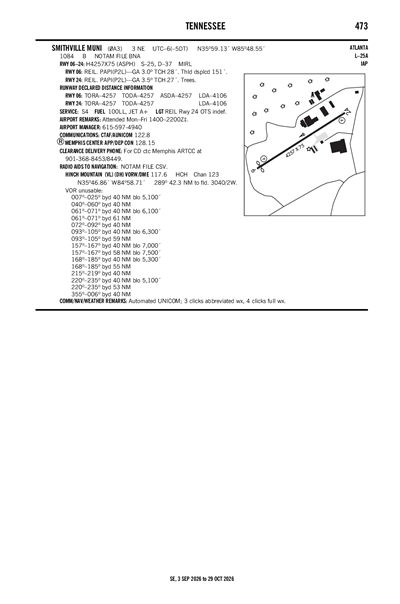

SMITHVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

0A3
SMITHVILLE MUNI
PublicPUB

3 miles NE of SMITHVILLE, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 59' 08"N 85° 48' 33"W
1084' MSL
2084' MSL
04W
Jet A, 100LL
NASHVILLE (BNA)
ATLANTA
MEMPHIS (ZME)
5/16/24-6/13/24
KSRB (14nm) MVFR
11:35 PM CDT
Mist
Overcast 1,400'
Scattered 700'
4sm
66°F
66°F
29.84"Hg
Calm
AO2
KSRB 180435Z AUTO 00000KT 4SM BR SCT007 OVC014 19/19 A2984 RMK AO2
List Your Business

0A3 FBOs, Flight Schools and Ground Support

Smithville Municipal Airport
Freq: 122.8
Phone: (615) 597-4940
Other: (615) 464-8625
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.05 3.99
Full Serve

0A3 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

0A3 Hotels

No hotels are listed for this airport.

0A3 Restaurants

No restaurants are listed for this airport.

0A3 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSRB (14nm)
Fri, 5/17 10:55 PM CDT
Fri, 5/17 11:00 PM CDT - Sat, 5/18 7:00 PM CDT
IFR
11:00 PM CDT - 1:00 AM CDT
Overcast 1,600'
Broken 900'
6sm
140° 3kts
IFR
1:00 AM CDT - 10:00 AM CDT
Mist and Showers in vicinity
Overcast 800'
3sm
Calm
LIFR
Temporary 5:00 AM CDT - 8:00 AM CDT
Mist
Overcast 400'
1sm
Calm
MVFR
10:00 AM CDT - 1:00 PM CDT
Showers in vicinity
Overcast 1,500'
6sm
350° 3kts
MVFR
1:00 PM CDT - 7:00 PM CDT
Broken 3,000'
Broken 1,500'
6sm
330° 3kts
MVFR
Temporary 3:00 PM CDT - 5:00 PM CDT
Light Thunderstorm and Rain
Overcast 1,500'
5sm
Calm
KSRB 180355Z 1804/1824 14003KT P6SM BKN009 OVC016
   FM180600 00000KT 3SM BR VCSH OVC008
   TEMPO 1810/1813 1SM BR OVC004
   FM181500 35003KT P6SM VCSH OVC015
   FM181800 33003KT P6SM BKN015 BKN030
   TEMPO 1820/1822 5SM -TSRA OVC015CB
0A3
Domestic
5/16/242033Z !BNA 05/477 0A3 OBST TOWER LGT (ASR 1233146) 355742.20N0853855.30W (7.9NM E 0A3) 1303.1FT (265.1FT AGL) U/S 2405162033-2409132033
5/14/240605Z !BNA 05/421 0A3 OBST TOWER LGT (ASR 1277721) 360037.70N0855828.00W (8.1NM W 0A3) 1174.2FT (305.1FT AGL) U/S 2405140605-2409110605
5/10/241946Z !BNA 05/382 0A3 OBST TOWER LGT (ASR 1223711) 360929.70N0855300.90W (10.9NM NNW 0A3) 810.0FT (253.9FT AGL) U/S 2405101946-2406090001
5/7/240109Z !BNA 05/139 0A3 OBST TOWER LGT (ASR 1243117) 355757.50N0854727.40W (1.5NM SE 0A3) 1311.0FT (263.1FT AGL) U/S 2405070109-2405220009
5/1/240046Z !BNA 05/001 0A3 OBST TOWER LGT (ASR 1043491) 355904.00N0854648.50W (1.4NM E 0A3) 1287.7FT (217.8FT AGL) U/S 2405010046-2406150045
4/24/240506Z !BNA 04/458 0A3 OBST TOWER LGT (ASN 2023-ASO-25696-OE) 355217N0853650W (11.6NM SE 0A3) 1285FT (368FT AGL) U/S 2404240506-2405240001
No
MON - FRI 0900-1600
CITY OF SMITHVILLE
CITY HALL, 104 EAST MAIN STREET
SMITHVILLE, TN 37166
Phone: 615-489-5338
CITY OF SMITHVILLE
338 AIRPORT LN
SMITHVILLE, TN 37166
Phone: 615-597-4940
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
15
2
0
0
0
0
Major
Major
None
None
None

Runway 06/24

4257 ft. x 75 ft.
ASPH
Excellent
NONE
MED

25,000lbs
37,000lbs
--
--
  Runway 06 Runway 24
True Heading 58°238°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 58' 56"N 35° 59' 19"N
Longitude 85° 48' 55"W 85° 48' 11"W
Elevation 1,079' 1,084'
Threshold Crossing Height 28 ft. AGL 27 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
SMITHVILLE MUNI (IATA: 0A3) is a public airport located in SMITHVILLE, TN.
