16G
SENECA COUNTY
Public
PUB
2 miles SW of TIFFIN, OH
View on
Map
Status
Operational
Coordinates
41° 05' 39"N
83° 12' 45"W
Elevation
786' MSL
Pattern Alt
1786' MSL
Mag Variation
05W
Fuel
Jet A+, 100LL
FSS
CLEVELAND (CLE)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
5/16/24-6/13/24
KS24 (15nm)
VFR
12:17 AM EDT
RAW
Clear
Viz
10sm
Temp
66°F
Dew
66°F
Pres
29.84"Hg
Wind
Calm
RMK
AO2
KS24 180417Z AUTO 00000KT 10SM CLR 19/19 A2984 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
16G FBOs, Flight Schools and Ground Support
Promote Listing
Tiffin Aire
Freq: 123.0
Phone: (419) 447-4263
0 Reviews
(
Read
|
Sign In To Write
)
Phillips 66
As of
5/15
100LL
Jet
A
Jet
A+
Mogas
UL94
Self Serve
Full Serve
5.41
5.10
16G Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
16G Hotels
No hotels are listed for this airport.
16G Restaurants
No restaurants are listed for this airport.
16G Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
123.0
CTAF
123.0
AWOS-3
AWOS-3
419-443-1043
127.175

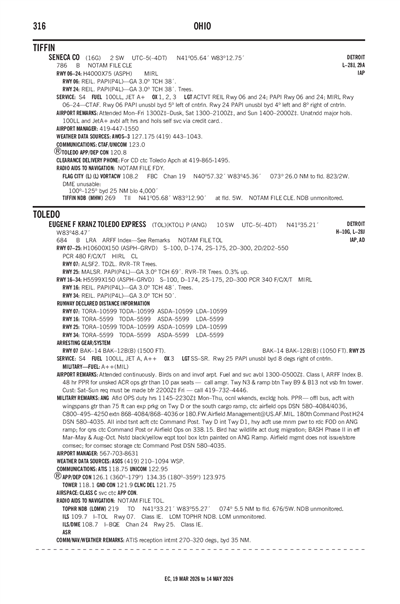

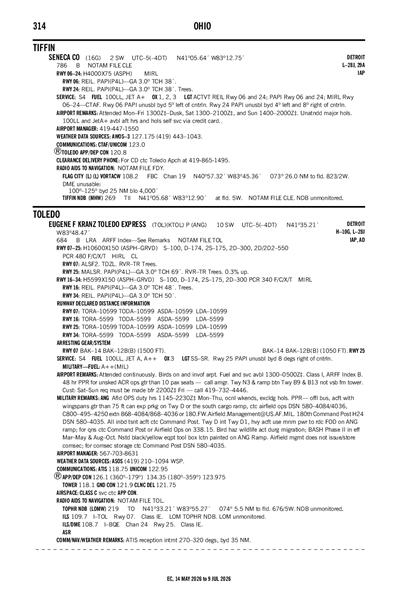

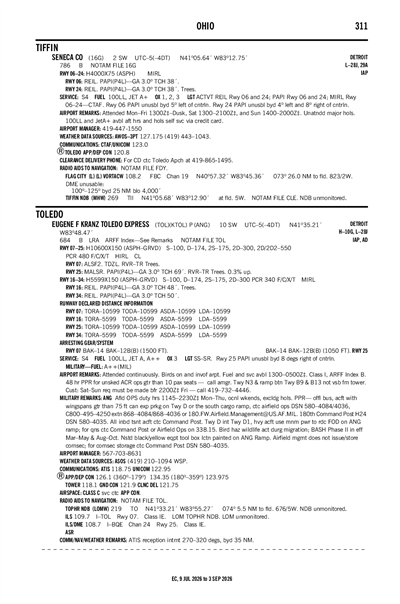

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
NDB RWY 24
RNAV (GPS) RWY 06
RNAV (GPS) RWY 24
VOR RWY 06
Terminal Area Forecast
KFDY (21nm)
RAW
Reported
Fri, 5/17 7:20 PM EDT
Valid
Fri, 5/17 8:00 PM EDT - Sat, 5/18 8:00 PM EDT
VFR
8:00 PM EDT - 4:00 AM EDT
Scattered 25,000'
Few 3,000'
Viz
6sm
Wind
VRB° 3kts
MVFR
4:00 AM EDT - 6:00 AM EDT
Mist
Broken 2,000'
Scattered 300'
Viz
3sm
Wind
VRB° 2kts
LIFR
6:00 AM EDT - 10:00 AM EDT
Mist
Broken 300'
Viz
1sm
Wind
VRB° 2kts
LIFR
Temporary
6:00 AM EDT - 9:00 AM EDT
Fog
Broken 300'
Viz
0.5sm
Wind
Calm
MVFR
10:00 AM EDT - 11:00 AM EDT
Mist
Broken 1,500'
Few 500'
Viz
3sm
Wind
VRB° 5kts
VFR
11:00 AM EDT - 8:00 PM EDT
Scattered 5,000'
Viz
6sm
Wind
VRB° 5kts
KFDY 172320Z 1800/1824 VRB03KT P6SM FEW030 SCT250
FM180800 VRB02KT 3SM BR SCT003 BKN020
FM181000 VRB02KT 1SM BR BKN003
TEMPO 1810/1813 1/2SM FG BKN003
FM181400 VRB05KT 3SM BR FEW005 BKN015
FM181500 VRB05KT P6SM SCT050
16G
Domestic
5/15/24
1430Z
!CLE 05/390 16G AIRSPACE SEE ZOB 05/389 UAS 2405151430-2405202359
4/20/24
0904Z
!CLE 04/547 16G OBST TOWER LGT (ASR 1014837) 410119.90N0832142.50W (8.0NM WSW 16G) 1134.8FT (278.9FT AGL) U/S 2404200904-2406040903
ATC Tower
No
Attendance
0800-DUSK
UNATNDD MAJOR HOLS.
Owner
SENECA COUNTY COMMISSIONERS
81 JEFFERSON ST
TIFFIN, OH 44883
Phone: 419-447-4550
Manager
ANDREW NEWMAN
1778 W US HIGHWAY 224
TIFFIN, OH 44883-8820
Phone: 419-447-4263
FSS
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
NOTAM
CLE
Light Schedule
--
Lights
ACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24; MIRL RWY 06/24 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
22
# Multi Engine
10
# Jets
1
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
High Pressure
Bulk Oxygen
High & Low Pressure
Other Services
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Runway 06/24
Dimensions
4000 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 06
Runway 24
True Heading
56°
236°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
41° 05' 28"N
41° 05' 49"N
Longitude
83° 13' 07"W
83° 12' 23"W
Elevation
786'
781'
Threshold Crossing Height
38 ft. AGL
38 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
Yes
Yes
A110-4
FOR CD CTC TOLEDO APCH AT 419-865-1495.
SENECA COUNTY (IATA: 16G) is a public airport located in TIFFIN, OH.
