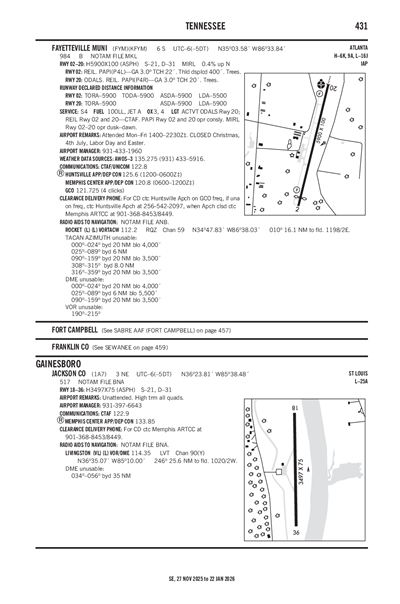

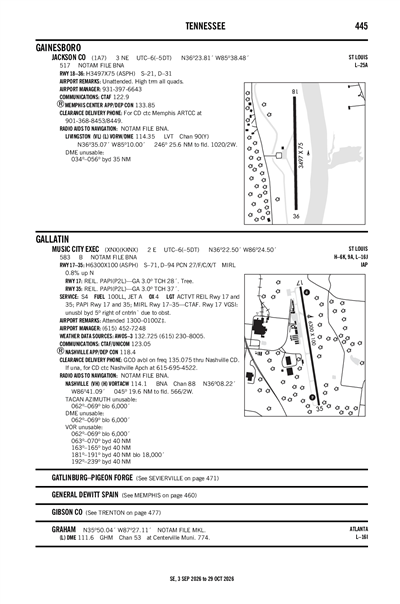

JACKSON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1A7
JACKSON COUNTY
PublicPUB

3 miles NE of GAINESBORO, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 23' 49"N 85° 38' 29"W
517' MSL
1517' MSL
02W
None Listed
NASHVILLE (BNA)
ST LOUIS
MEMPHIS (ZME)
5/16/24-6/13/24
K8A3 (16nm) LIFR
3:15 AM CDT
Mist
Overcast 200'
1.25sm
64°F
64°F
29.85"Hg
Calm
A01
K8A3 180815Z AUTO 00000KT 1 1/4SM BR OVC002 18/18 A2985 RMK A01
List Your Business

1A7 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

1A7 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

1A7 Hotels

No hotels are listed for this airport.

1A7 Restaurants

No restaurants are listed for this airport.

1A7 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KSRB (21nm)
Sat, 5/18 12:21 AM CDT
Sat, 5/18 1:00 AM CDT - Sun, 5/19 1:00 AM CDT
IFR
1:00 AM CDT - 10:00 AM CDT
Mist
Broken 500'
5sm
Calm
LIFR
Temporary 5:00 AM CDT - 8:00 AM CDT
Mist
Overcast 400'
1sm
Calm
MVFR
10:00 AM CDT - 1:00 PM CDT
Showers in vicinity
Overcast 1,500'
6sm
350° 3kts
MVFR
1:00 PM CDT - 9:00 PM CDT
Light Showers and Rain
Broken 3,000'
6sm
330° 3kts
MVFR
Temporary 3:00 PM CDT - 5:00 PM CDT
Light Thunderstorm and Rain
Overcast 1,500'
5sm
Calm
VFR
9:00 PM CDT - 1:00 AM CDT
Broken 3,500'
6sm
020° 3kts
KSRB 180521Z 1806/1906 00000KT 5SM BR BKN005
   TEMPO 1810/1813 1SM BR OVC004
   FM181500 35003KT P6SM VCSH OVC015
   FM181800 33003KT P6SM -SHRA BKN030
   TEMPO 1820/1822 5SM -TSRA OVC015CB
   FM190200 02003KT P6SM BKN035
1A7
Domestic
5/6/240706Z !BNA 05/105 1A7 OBST TOWER LGT (ASR 1266447) 361445.50N0853602.80W (9.2NM SSE 1A7) 1269.7FT (259.8FT AGL) U/S 2405060706-2408092359
No
UNATNDD
JACKSON COUNTY
PO BOX 617
GAINESBORO, TN 38562
Phone: 931-268-9888
JIM YOUNG
153 WARD LANE
GAINESBORO, TN 38562
Phone: 931-397-6643
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
--
N/A
Yes
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
17
0
0
0
0
0
None
None
None
None
None

Runway 18/36

3497 ft. x 75 ft.
ASPH
Good
NONE


21,000lbs
31,000lbs
--
--
  Runway 18 Runway 36
True Heading 182°2°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 24' 06"N 36° 23' 31"N
Longitude 85° 38' 28"W 85° 38' 30"W
Elevation 517' 517'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1HIGH TRRN ALL QUADS.
A110-2FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
JACKSON COUNTY (IATA: 1A7) is a public airport located in GAINESBORO, TN.
