iFlightPlanner



...

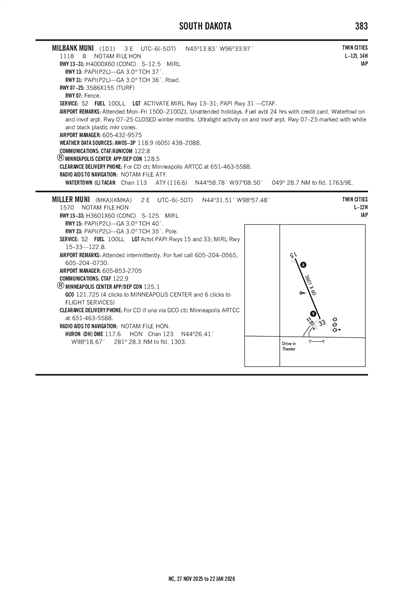

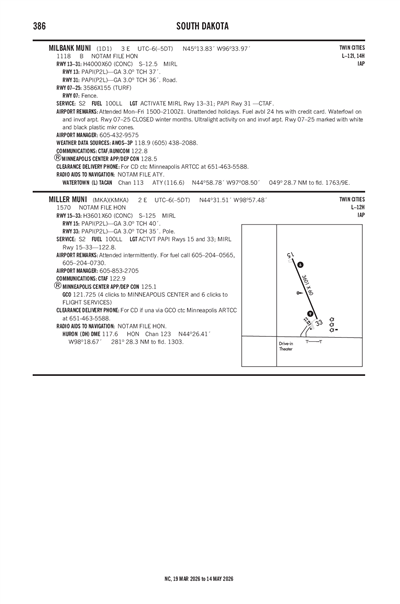

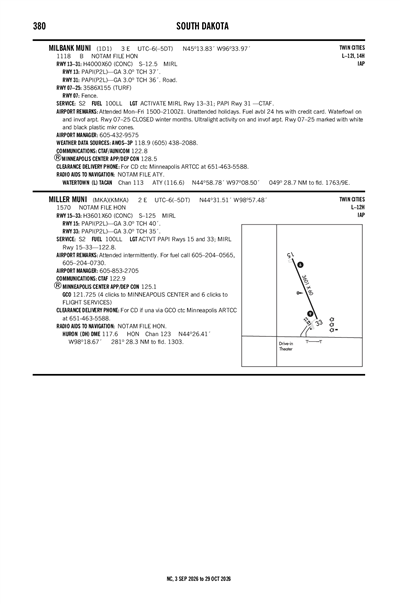

MILBANK MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1D1
MILBANK MUNI
PublicPUB

3 miles E of MILBANK, SD
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 13' 50"N 96° 33' 58"W
1118' MSL
2118' MSL
05E
100LL
HURON (HON)
TWIN CITIES
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
K1D1 VFR
1:15 AM CDT
Clear
10sm
73°F
54°F
29.46"Hg
290° 10kts
Gusts 16kts
AO2
K1D1 180615Z AUTO 29010G16KT 10SM CLR 23/12 A2946 RMK AO2
List Your Business

1D1 FBOs, Flight Schools and Ground Support

Promote Listing
Milbank Municipal Airport
Freq: 122.8
Phone: (605) 432-4800
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/17
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.40
Full Serve

1D1 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

1D1 Hotels

No hotels are listed for this airport.

1D1 Restaurants

No restaurants are listed for this airport.

1D1 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
605-438-2088
 118.9

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KATY (32nm)
Sat, 5/18 1:10 AM CDT
Sat, 5/18 1:00 AM CDT - Sun, 5/19 1:00 AM CDT
VFR
1:00 AM CDT - 4:00 AM CDT
Sky Clear
6sm
180° 21kts
Gusts 36kts
Shear 200° 50kts @ 2000'
VFR
4:00 AM CDT - 5:00 AM CDT
Scattered 22,000'
Few 2,500'
6sm
190° 17kts
Gusts 25kts
Shear 230° 30kts @ 2000'
VFR
5:00 AM CDT - 6:00 AM CDT
Few 23,000'
Few 2,200'
6sm
230° 17kts
Gusts 24kts
VFR
6:00 AM CDT - 7:00 AM CDT
Few 19,000'
Few 800'
6sm
290° 17kts
Gusts 25kts
VFR
7:00 AM CDT - 8:00 PM CDT
Scattered 8,000'
Few 700'
6sm
310° 20kts
Gusts 31kts
VFR
8:00 PM CDT - 1:00 AM CDT
Sky Clear
6sm
270° 9kts
KATY 180610Z 1806/1906 18021G36KT P6SM SKC WS020/20050KT
   FM180900 19017G25KT P6SM FEW025 SCT220 WS020/23030KT
   FM181000 23017G24KT P6SM FEW022 FEW230
   FM181100 29017G25KT P6SM FEW008 FEW190
   FM181200 31020G31KT P6SM FEW007 SCT080
   FM190100 27009KT P6SM SKC
1D1
Domestic
2/8/241429Z !HON 02/024 1D1 RWY 31 PAPI UNUSABLE 2402081429-2408082111EST
FDC
3/18/241625Z !FDC 4/8402 1D1 IAP MILBANK MUNI, MILBANK, SD.
RNAV (GPS) RWY 31, ORIG-B...
TAA LEFT BASE 042/18 CW 132/18 TO LUZOL (IAF) MINIMUM ALTITUDE 3600.
2403181625-2603182359EST
9/29/231202Z !FDC 3/7533 1D1 ODP MILBANK MUNI, MILBANK, SD.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKE-OFF MINIMUMS RWY 25, STANDARD WITH A MINIMUM CLIMB OF 207 FEET PER NM TO 1900, OR 1000-3 FOR CLIMB IN VISUAL CONDITIONS.
ALL OTHER DATA REMAINS AS PUBLISHED. 2309291202-2509291202EST
7/25/221507Z !FDC 2/7905 1D1 IAP MILBANK MUNI, MILBANK, SD.
RNAV (GPS) RWY 31, ORIG-B...
DISREGARD NOTE: DESCENT ANGLE 3.00/TCH 40.
PROFILE NOTE: VISUAL SEGMENT - OBSTACLES.
2207251507-2407201506EST
No
MON-FRI 0900-1500
UNATNDD HOLS.
CITY OF MILBANK
1001 E 4TH AVE, SUITE 301
MILBANK, SD 57252
Phone: 605-432-9575
STEVE PENDERGRASS
1001 E. 4TH AVE., #301
MILBANK, SD 57252-6034
Phone: 605-432-9575
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
HON
--
ACTVT MIRL RY 13/31 & PAPI RY 31 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
13
0
0
0
0
0
Minor
Minor
None
None
Crop Dusting

Runway 07/25

3586 ft. x 155 ft.
TURF
Good
NONE


--
--
--
--
  Runway 07 Runway 25
True Heading 71°251°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 45° 13' 38"N 45° 13' 49"N
Longitude 96° 34' 26"W 96° 33' 39"W
Elevation 1,112' 1,113'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

4000 ft. x 60 ft.
CONC
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 137°317°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 14' 10"N 45° 13' 41"N
Longitude 96° 34' 13"W 96° 33' 35"W
Elevation 1,114' 1,115'
Threshold Crossing Height 37 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RY 31 +4' FENCE 600' FM THR & 10' R FM CNTRLN & 350' FM THR & 250' R FM CNTRLN.
A110-2RY 13 +4' FENCE 450' FM THR.
A110-3ULTRALIGHT ACT ON AND INVOF ARPT.
A110-4WATERFOWL ON AND INVOF ARPT.
A110-5FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
MILBANK MUNI (IATA: 1D1) is a public airport located in MILBANK, SD.
