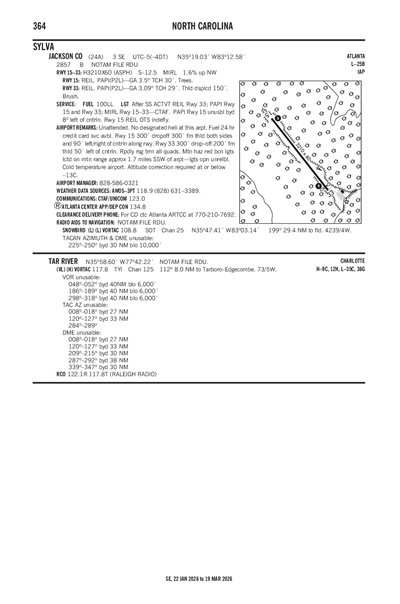

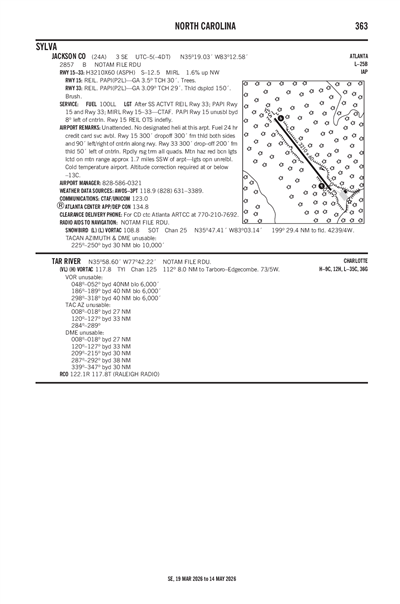

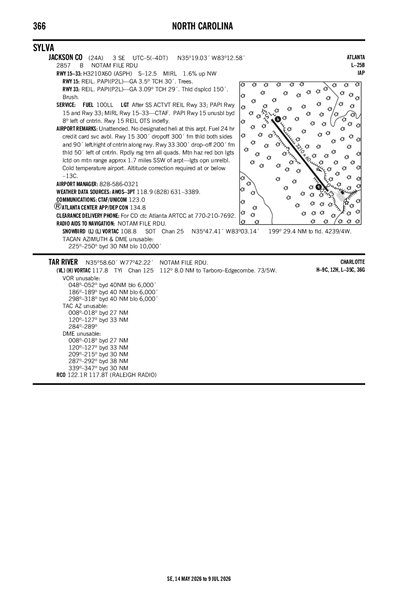

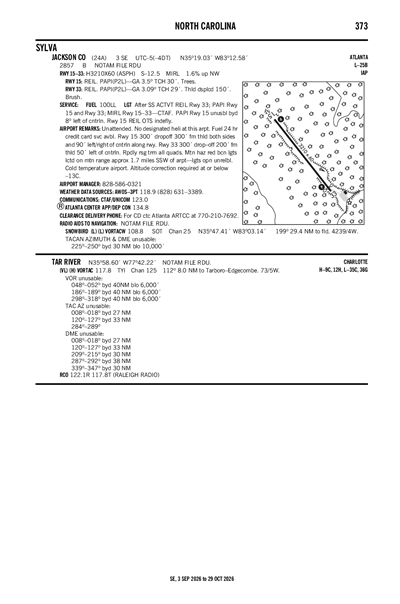

JACKSON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

24A
JACKSON COUNTY
PublicPUB

3 miles SE of SYLVA, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 19' 02"N 83° 12' 35"W
2857' MSL
3857' MSL
05W
100LL
RALEIGH (RDU)
ATLANTA
ATLANTA (ZTL)
5/16/24-6/13/24
K24A MVFR
1:05 AM EDT
Rain and Mist
Overcast 1,300'
5sm
61°F
60°F
29.94"Hg
Calm
AO2 LTG DSNT SE T01590155
K24A 180505Z AUTO 00000KT 5SM RA BR OVC013 16/16 A2994 RMK AO2 LTG DSNT SE T01590155
List Your Business

24A FBOs, Flight Schools and Ground Support

Promote Listing
Jackson County Airport
Freq: 123.0
Phone: (828) 586-0321
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.95
Full Serve

24A Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

24A Hotels

No hotels are listed for this airport.

24A Restaurants

No restaurants are listed for this airport.

24A Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
828-631-3389
 118.9

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAVL (34nm)
Sat, 5/18 12:12 AM EDT
Sat, 5/18 12:00 AM EDT - Sat, 5/18 8:00 PM EDT
MVFR
12:00 AM EDT - 3:00 AM EDT
Showers in vicinity
Overcast 3,000'
Broken 1,200'
6sm
160° 5kts
IFR
3:00 AM EDT - 9:00 AM EDT
Mist
Broken 800'
3sm
VRB° 2kts
MVFR
9:00 AM EDT - 2:00 PM EDT
Mist
Broken 1,500'
6sm
Calm
VFR
2:00 PM EDT - 8:00 PM EDT
Broken 5,000'
6sm
250° 3kts
MVFR
2:00 PM EDT - 8:00 PM EDT
Thunderstorm and Rain and Mist
Overcast 2,000'
4sm
Calm
KAVL 180412Z 1804/1824 16005KT P6SM VCSH BKN012 OVC030
   FM180700 VRB02KT 3SM BR BKN008
   FM181300 00000KT 6SM BR BKN015
   FM181800 25003KT P6SM BKN050
   PROB30 1818/1824 4SM TSRA BR OVC020CB
24A
No NOTAM Available
No
UNATNDD
JACKSON CO ARPT AUTHORITY
401 GRINDSTAFF COVE RD, SUITE A-207
SYLVA, NC 28779
Phone: 828-631-2295
JIM ROWELL
401 GRINDSTAFF COVE RD, SUITE A-207
SYLVA, NC 28779
Phone: 828-586-0321
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
AFTER SS ACTVT REIL RWY 33; PAPI RWY 15 & 33; MIRL RWY 15/33 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
12
0
0
0
0
0
None
None
None
None
None

Runway 15/33

3210 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 15 Runway 33
True Heading 142°322°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 19' 14"N 35° 18' 49"N
Longitude 83° 12' 47"W 83° 12' 23"W
Elevation 2,857' 2,807'
Threshold Crossing Height 30 ft. AGL 29 ft. AGL
Visual Glide Path Angle 3.5° 3.09°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10NO DSGND HELI AT THIS ARPT - ARPT MASTER RECORD INCORRECTLY DESIGNATES H1 EXISTS.
A110-4MTN HAZ RED BCN LGTS LCTD ON MTN RANGE APPROX 1.7 MILES SSW OF ARPT - LGTS OPN UNRELBL.
A110-5RWY 15 300 FT DROP-OFF 300 FT FM THLD BOTH SIDES AND 90 FT LEFT/RIGHT OF CNTRLN ALONG RWY.
A110-6RWY 33 300 FT DROP-OFF 200 FT FM THLD 50 FT LEFT OF CNTRLN.
A110-7RPDLY RSG TRRN ALL QUADS.
A110-8FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A110-9COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -14C.
JACKSON COUNTY (IATA: 24A) is a public airport located in SYLVA, NC.
