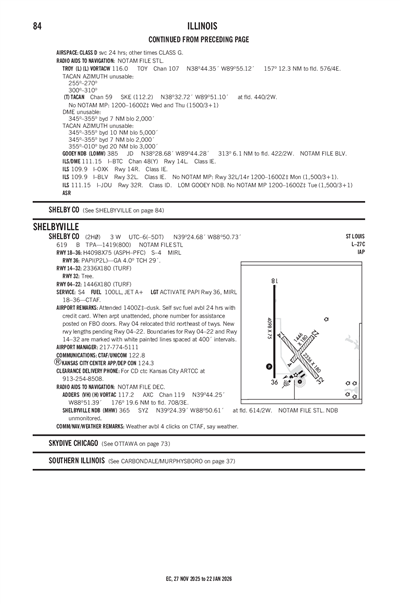

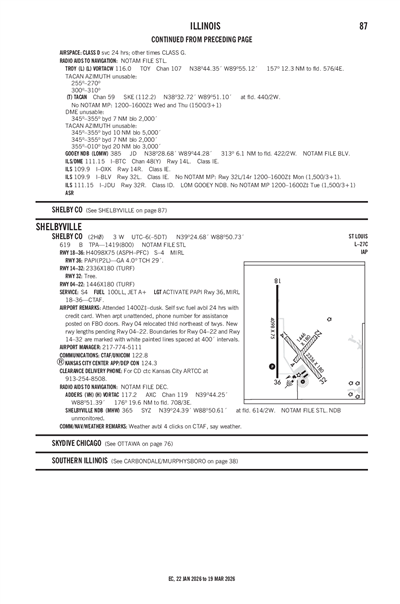

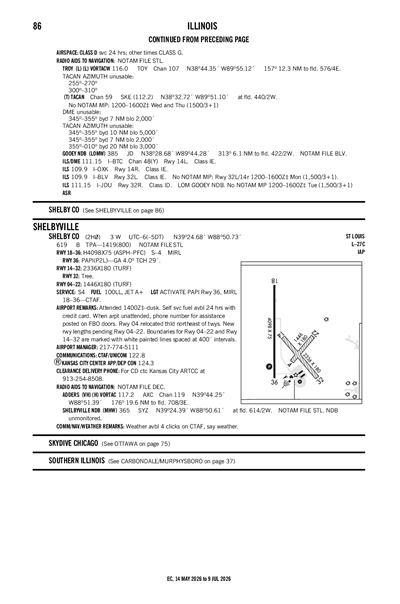

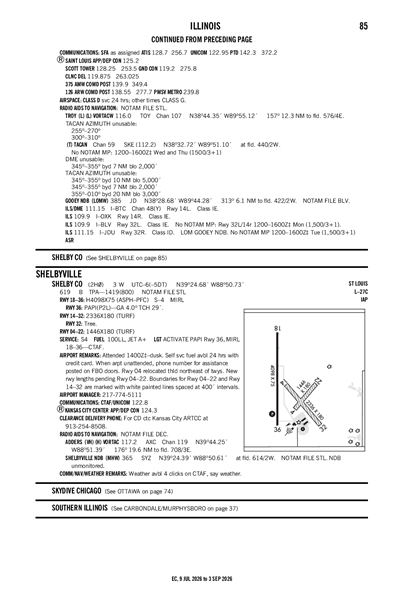

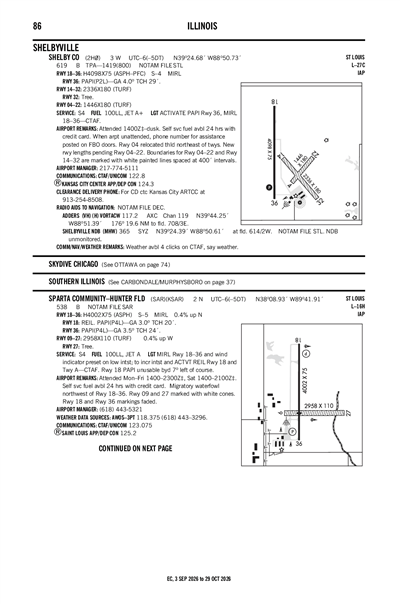

SHELBY COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

2H0
SHELBY COUNTY
PublicPUB

3 miles W of SHELBYVILLE, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 24' 41"N 88° 50' 44"W
619' MSL
1419' MSL
02W
Jet A+, 100LL
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
5/16/24-6/13/24
KTAZ (24nm) VFR
1:35 AM CDT
Clear
10sm
63°F
62°F
29.82"Hg
260° 3kts
AO2 T01700164
KTAZ 180635Z AUTO 26003KT 10SM CLR 17/16 A2982 RMK AO2 T01700164
List Your Business

2H0 FBOs, Flight Schools and Ground Support

Promote Listing
Shelby County Airport
Freq: 122.8
Phone: (217) 774-5111
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/26
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.35 5.99
Full Serve

2H0 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

2H0 Hotels

No hotels are listed for this airport.

2H0 Restaurants

No restaurants are listed for this airport.

2H0 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDEC (25nm)
Sat, 5/18 12:20 AM CDT
Sat, 5/18 1:00 AM CDT - Sun, 5/19 1:00 AM CDT
VFR
1:00 AM CDT - 9:00 AM CDT
Scattered 10,000'
6sm
VRB° 4kts
MVFR
Temporary 5:00 AM CDT - 7:00 AM CDT
Mist
No Clouds
3sm
Calm
VFR
9:00 AM CDT - 7:00 PM CDT
Scattered 2,500'
6sm
190° 6kts
VFR
7:00 PM CDT - 1:00 AM CDT
Scattered 25,000'
6sm
210° 5kts
KDEC 180520Z 1806/1906 VRB04KT P6SM SCT100
   TEMPO 1810/1812 3SM BR
   FM181400 19006KT P6SM SCT025
   FM190000 21005KT P6SM SCT250
2H0
Domestic
5/9/240142Z !STL 05/171 2H0 OBST TOWER LGT (ASR 1005599) 393112.80N0884307.00W (8.8NM NE 2H0) 974.7FT (315.9FT AGL) U/S 2405090142-2409060142
5/4/241948Z !STL 05/084 2H0 OBST TOWER LGT (ASR 1310871) 392301.00N0890552.00W (11.8NM W 2H0) 968FT (267FT AGL) U/S 2405041948-2406181947
4/25/241836Z !STL 04/505 2H0 OBST TOWER LGT (ASR 1057132) 393639.00N0884132.00W (14.0NM NNE 2H0) 1211.9FT (557.1FT AGL) U/S 2404251836-2405252359
4/24/241131Z !STL 04/458 2H0 OBST TOWER LGT (ASR 1009648) 391955.00N0883601.00W (12.34NM ESE 2H0) 918FT (280FT AGL) U/S 2404241131-2405242300
No
0800-DUSK
SHELBY CO ARPT & LNDG CMSN.
PO BOX 174
ASSUMPTION, IL 62510
Phone: 217-774-5111
SCOTT JEFSON
1147 N 1915 EAST ROAD
SHELBYVILLE, IL 62565
Phone: 217-774-5111
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
STL
--
ACTVT PAPI RWY 36; MIRL 18/36 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
21
0
0
0
0
0
Major
Major
None
None
None

Runway 04/22

1446 ft. x 180 ft.
TURF
Good
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 40°220°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 39° 24' 32"N 39° 24' 43"N
Longitude 88° 50' 41"W 88° 50' 29"W
Elevation 615' 613'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 14/32

2336 ft. x 180 ft.
TURF
Good
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading 140°320°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 39° 24' 43"N 39° 24' 25"N
Longitude 88° 50' 46"W 88° 50' 27"W
Elevation 617' 613'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 18/36

4098 ft. x 75 ft.
ASPH
Good
PFC
MED

4,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 25' 06"N 39° 24' 25"N
Longitude 88° 50' 51"W 88° 50' 51"W
Elevation 618' 618'
Threshold Crossing Height -- 29 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2BOUNDARIES FOR RYS 4/22 & 14/32 ARE MARKED WITH WHITE PAINTED TIRES SPACED AT 400 FT INTERVALS.
A110-3RY 4 RELOCATED THLD NE OF TWYS. NEW RY LENGTHS PENDING RY 4/22.
A110-4WHEN ARPT UNATNDD, PHONE NR FOR ASSISTANCE POSTED ON FBO DOORS.
A110-5FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
SHELBY COUNTY (IATA: 2H0) is a public airport located in SHELBYVILLE, IL.
