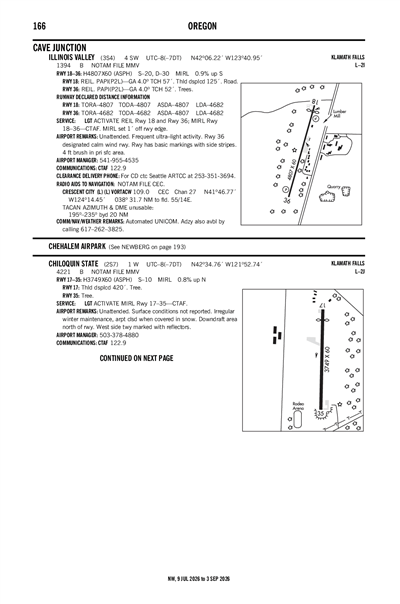

CHILOQUIN STATE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

2S7
CHILOQUIN STATE
PublicPUB

1 miles W of CHILOQUIN, OR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 34' 46"N 121° 52' 44"W
4221' MSL
5221' MSL
18E
None Listed
MC MINNVILLE (MMV)
KLAMATH FALLS
SEATTLE (ZSE)
5/16/24-6/13/24
KLMT (27nm) VFR
7:53 PM PDT
Clear
10sm
65°F
36°F
30.00"Hg
310° 9kts
AO2 SLP131 LAST T01830022 55003
KLMT 180253Z 31009KT 10SM CLR 18/02 A3000 RMK AO2 SLP131 LAST T01830022 55003
List Your Business

2S7 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

2S7 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

2S7 Hotels

No hotels are listed for this airport.

2S7 Restaurants

No restaurants are listed for this airport.

2S7 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KLMT (27nm)
Fri, 5/17 4:57 PM PDT
Fri, 5/17 5:00 PM PDT - Sat, 5/18 5:00 PM PDT
VFR
5:00 PM PDT - 9:00 PM PDT
Sky Clear
6sm
320° 13kts
VFR
9:00 PM PDT - 5:00 PM PDT
Sky Clear
6sm
310° 6kts
KLMT 172357Z 1800/1824 32013KT P6SM SKC
   FM180400 31006KT P6SM SKC
2S7
Domestic
5/17/241500Z !MMV 05/137 2S7 AIRSPACE SEE ZSE 05/295 UAS 2405171500-2405180300
5/4/241108Z !MMV 05/034 2S7 OBST TOWER LGT (ASR 1251594) 423519.70N1215357.60W (1.1NM WNW 2S7) 4889.8FT (113.8FT AGL) U/S 2405041108-2405191008
5/2/241214Z !MMV 05/018 2S7 OBST TOWER LGT (ASR 1268527) 423522.80N1215359.90W (1.1NM NW 2S7) 4883.9FT (126.0FT AGL) U/S 2405021214-2406161213
4/11/240500Z !MMV 04/075 2S7 OBST TOWER LGT (ASR 1216406) 425102.20N1214928.50W (16.6NM NE 2S7) 4792.7FT (249.0FT AGL) U/S 2404110500-2408090500
No
UNATNDD
OREGON DEPT. OF AVIATION
3040 25TH ST, SE
SALEM, OR 97302-1125
Phone: 503-378-4880
STATE AIRPORTS MGR
3040 25TH ST, SE
SALEM, OR 97302-1125
Phone: 503-378-4880
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
MMV
--
PILOT CONTROL LIGHTING (PCL) TO ACTVT MIRL RY 17/35 - CTAF.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
7
0
0
0
0
0
None
None
None
None
None

Runway 17/35

3749 ft. x 60 ft.
ASPH
Good
NONE
MED

10,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 186°6°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 35' 04"N 42° 34' 27"N
Longitude 121° 52' 42"W 121° 52' 47"W
Elevation 4,220' 4,192'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2DOWNDRAFT AREA NORTH OF RY.
A110-4IREG WINTER MAINTENANCE; ARPT CLSD WHEN COVERED IN SNOW.
A110-5WEST SIDE TWY MARKED WITH REFLECTORS.
A110-6SURFACE CONDITIONS NOT REPORTED.
A110-7FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
CHILOQUIN STATE (IATA: 2S7) is a public airport located in CHILOQUIN, OR.
