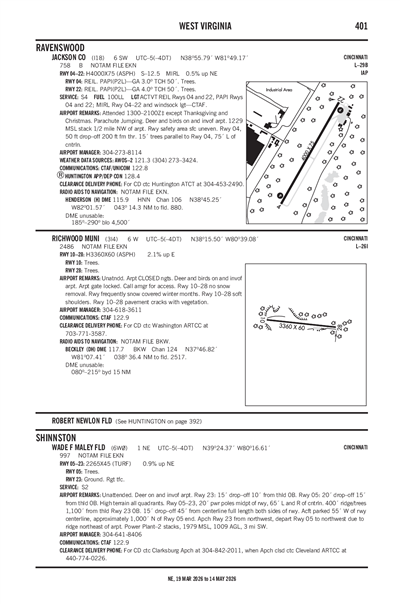

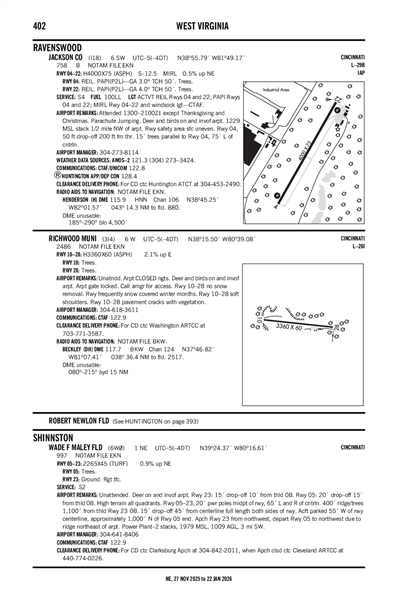

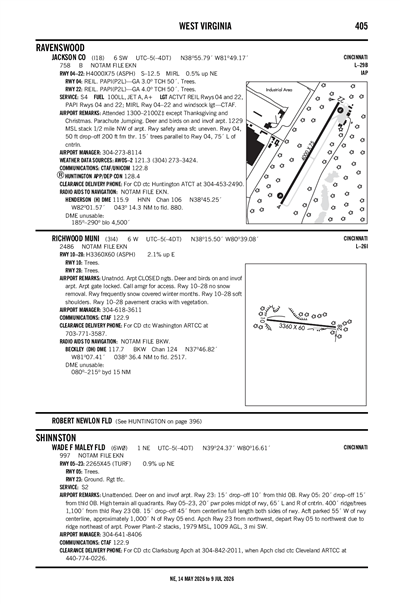

RICHWOOD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3I4
RICHWOOD MUNI
PublicPUB

6 miles W of RICHWOOD, WV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 15' 30"N 80° 39' 05"W
2486' MSL
3486' MSL
06W
None Listed
ELKINS (EKN)
CINCINNATI
WASHINGTON (ZDC)
5/16/24-6/13/24
K48I (26nm) MVFR
2:15 AM EDT
Heavy Rain
Overcast 9,000'
Broken 4,100'
Scattered 2,900'
3sm
61°F
59°F
29.90"Hg
Calm
AO2
K48I 180615Z AUTO 00000KT 3SM +RA SCT029 BKN041 OVC090 16/15 A2990 RMK AO2
List Your Business

3I4 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

3I4 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

3I4 Hotels

No hotels are listed for this airport.

3I4 Restaurants

No restaurants are listed for this airport.

3I4 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KLWB (27nm)
Sat, 5/18 1:21 AM EDT
Sat, 5/18 2:00 AM EDT - Sun, 5/19 2:00 AM EDT
MVFR
2:00 AM EDT - 4:00 AM EDT
Light Showers and Rain and Mist
Overcast 1,500'
5sm
VRB° 3kts
IFR
Temporary 2:00 AM EDT - 4:00 AM EDT
Light Showers and Rain and Mist
Overcast 500'
4sm
Calm
LIFR
4:00 AM EDT - 10:00 AM EDT
Mist
Overcast 300'
3sm
VRB° 3kts
LIFR
Temporary 4:00 AM EDT - 8:00 AM EDT
Light Rain and Mist
Overcast 100'
1sm
Calm
MVFR
10:00 AM EDT - 1:00 PM EDT
Broken 1,500'
6sm
VRB° 2kts
MVFR
1:00 PM EDT - 7:00 PM EDT
Thunderstorm in vicinity
Broken 2,500'
6sm
VRB° 3kts
MVFR
7:00 PM EDT - 10:00 PM EDT
Broken 2,500'
6sm
VRB° 3kts
IFR
10:00 PM EDT - 2:00 AM EDT
Overcast 500'
6sm
VRB° 3kts
KLWB 180521Z 1806/1906 VRB03KT 5SM -SHRA BR OVC015
   TEMPO 1806/1808 4SM -SHRA BR OVC005
   FM180800 VRB03KT 3SM BR OVC003
   TEMPO 1808/1812 1SM -RA BR OVC001
   FM181400 VRB02KT P6SM BKN015
   FM181700 VRB03KT P6SM VCTS BKN025CB
   FM182300 VRB03KT P6SM BKN025
   FM190200 VRB03KT P6SM OVC005
3I4
Domestic
5/18/240517Z !EKN 05/100 3I4 OBST TOWER LGT (ASR 1273601) 381306.90N0804123.20W (3.0NM SW 3I4) 3127.6FT (364.8FT AGL) U/S 2405180517-2407182359
5/18/240505Z !EKN 05/098 3I4 OBST TOWER LGT (ASR 1033488) 381327.00N0804130.50W (2.8NM SW 3I4) 2916.7FT (221.8FT AGL) U/S 2405180505-2409150505
5/7/242321Z !EKN 05/040 3I4 OBST TOWER LGT (ASR 1291446) 381335.60N0803659.90W (2.5NM SE 3I4) 3208.0FT (306.1FT AGL) U/S 2405072321-2409042321
4/26/240900Z !EKN 04/236 3I4 OBST TOWER LGT (ASR 1309084) 380653.69N0803548.76W (9.0NM SSE 3I4) 4472FT (350FT AGL) U/S 2404260900-2405272359EST
No
UNATNDD
CITY OF RICHWOOD
6 WHITE AVE
RICHWOOD, WV 26261
Phone: 304-846-2596
BOB JOHNSON
RICHWOOD AIRPORT AUTHORITY, 6 WHITE AVE
RICHWOOD, WV 26261
Phone: 304-618-3611
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
EKN
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
1
0
0
0
0
0
None
None
None
None
None

Runway 10/28

3360 ft. x 60 ft.
ASPH
Poor
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading 96°276°
Traffic Pattern Left Left
Markings BSC
Markings Condition FAIR FAIR
Latitude 38° 15' 32"N 38° 15' 28"N
Longitude 80° 39' 26"W 80° 38' 44"W
Elevation 2,416' 2,486'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 10/28 NO SNOW REMOVAL. RWY FREQUENTLY SNOW COVERED WINTER MONTHS.
A110-3DEER & BIRDS ON & INVOF ARPT.
A110-4ARPT CLSD NIGHTS.
A110-6ARPT PHYS. ADDR. 3437 AIRPORT RD. RICHWOOD, WV.
A110-7FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A110-8ARPT GATE LOCKED. CALL AMGR FOR ACCESS.
RICHWOOD MUNI (IATA: 3I4) is a public airport located in RICHWOOD, WV.
