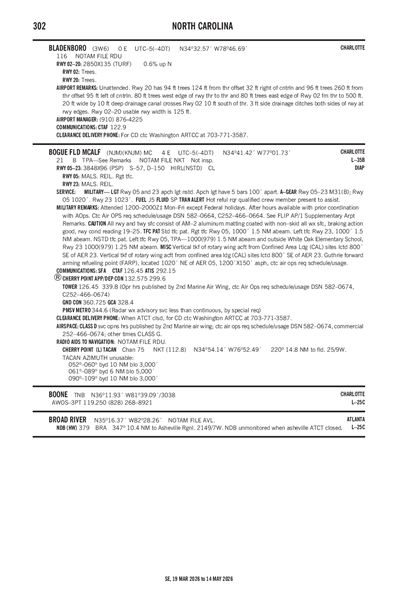

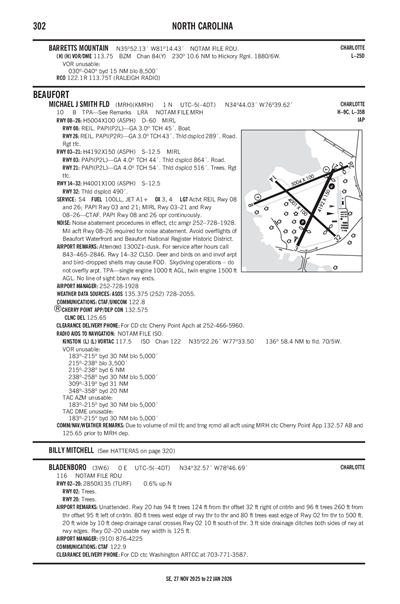

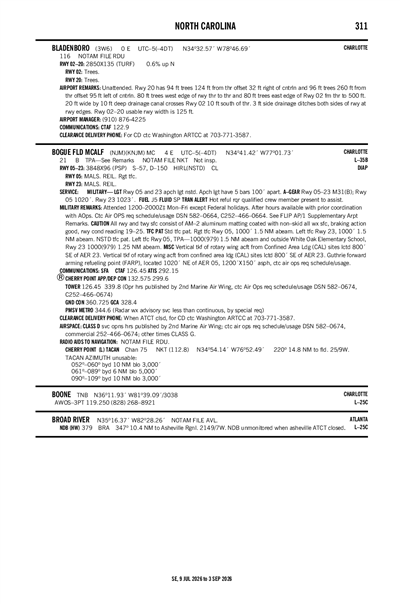

BLADENBORO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3W6
BLADENBORO
PublicPUB

0 miles E of BLADENBORO, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 32' 34"N 78° 46' 41"W
116' MSL
1116' MSL
07W
None Listed
RALEIGH (RDU)
CHARLOTTE
WASHINGTON (ZDC)
5/16/24-6/13/24
KEYF (11nm) MVFR
1:50 AM EDT
Overcast 2,000'
Broken 1,400'
Broken 1,000'
10sm
71°F
69°F
29.89"Hg
170° 5kts
AO2 T02190207 10247 20215
KEYF 180550Z AUTO 17005KT 10SM BKN010 BKN014 OVC020 22/21 A2989 RMK AO2 T02190207 10247 20215
List Your Business

3W6 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

3W6 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

3W6 Hotels

No hotels are listed for this airport.

3W6 Restaurants

No restaurants are listed for this airport.

3W6 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KLBT (14nm)
Sat, 5/18 1:37 AM EDT
Sat, 5/18 2:00 AM EDT - Sun, 5/19 2:00 AM EDT
MVFR
2:00 AM EDT - 6:00 AM EDT
Showers in vicinity
Broken 2,200'
6sm
190° 4kts
MVFR
6:00 AM EDT - 10:00 AM EDT
Showers in vicinity
Broken 1,000'
6sm
VRB° 3kts
MVFR
10:00 AM EDT - 3:00 PM EDT
Light Showers and Rain
Broken 1,500'
6sm
230° 6kts
VFR
3:00 PM EDT - 8:00 PM EDT
Thunderstorm in vicinity
Broken 4,500'
6sm
220° 7kts
VFR
8:00 PM EDT - 2:00 AM EDT
Light Showers and Rain
Broken 5,000'
6sm
VRB° 3kts
KLBT 180537Z 1806/1906 19004KT P6SM VCSH BKN022
   FM181000 VRB03KT P6SM VCSH BKN010
   FM181400 23006KT P6SM -SHRA BKN015
   FM181900 22007KT P6SM VCTS BKN045CB
   FM190000 VRB03KT P6SM -SHRA BKN050
3W6
Domestic
5/13/241034Z !RDU 05/161 3W6 OBST TOWER LGT (ASR 1250479) 343731.30N0784817.90W (5.1NM NNW 3W6) 457.0FT (357.0FT AGL) U/S 2405131034-2409101034
No
UNATNDD
REYNOLD HESTER
PO BOX 125
BLADENBORO, NC 28320
Phone: 910-876-4225
REYNOLD HESTER
13442 N.C. 131
BLADENBORO, NC 28320-8906
Phone: (910) 876-4225
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
--
N/A
Yes
No
No
Tie-Down
No
5
0
0
0
0
0
None
None
None
None
None

Runway 02/20

2850 ft. x 135 ft.
TURF
Good
NONE


--
--
--
--
  Runway 02 Runway 20
True Heading 19°199°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 34° 32' 21"N 34° 32' 48"N
Longitude 78° 46' 47"W 78° 46' 36"W
Elevation 100' 116'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 20 HAS 94 FT TREES 124 FT FROM THR OFFSET 32 FT RIGHT OF CNTRLN AND 96 FT TREES 260 FT FROM THR OFFSET 95 FT LEFT OF CNTRLN.
A110-380 FT TREES WEST EDGE OF RWY THR TO THR & 80 FT TREES EAST EDGE OF RWY 02 FM THR TO 500 FT.
A110-420 FT WIDE BY 10 FT DEEP DRAINAGE CANAL CROSSES RWY 02 10 FT SOUTH OF THR.
A110-53 FT SIDE DRAINAGE DITCHES BOTH SIDES OF RWY AT RWY EDGES.
A110-6FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
BLADENBORO (IATA: 3W6) is a public airport located in BLADENBORO, NC.
