WINTERSET MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3Y3
WINTERSET MUNI
PublicPUB

2 miles N of WINTERSET, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 21' 46"N 94° 01' 16"W
1116' MSL
1916' MSL
02E
Jet A, 100LL
FORT DODGE (FOD)
OMAHA
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KDSM (20nm) VFR
9:54 PM CDT
Few 25,000'
10sm
72°F
54°F
29.72"Hg
150° 6kts
AO2 SLP059 T02220122 53010
KDSM 180254Z 15006KT 10SM FEW250 22/12 A2972 RMK AO2 SLP059 T02220122 53010
List Your Business

3Y3 FBOs, Flight Schools and Ground Support

Winterset Aviation
Freq: 122.7
Phone: (515) 462-1811
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/1
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.15
Full Serve 5.50

3Y3 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

3Y3 Hotels

No hotels are listed for this airport.

3Y3 Restaurants

No restaurants are listed for this airport.

3Y3 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

No communication frequencies available for this airport.

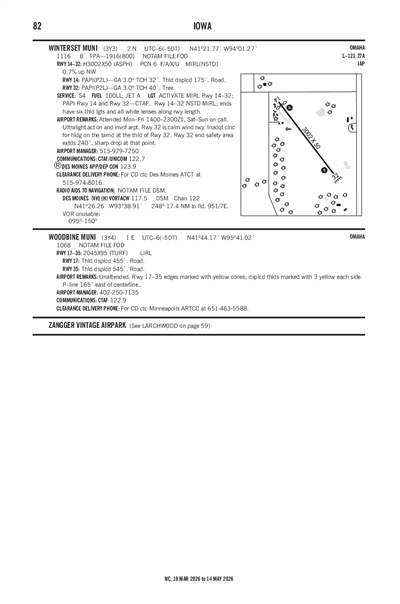

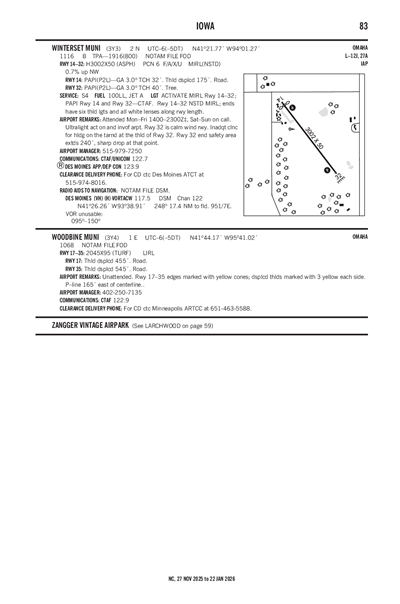

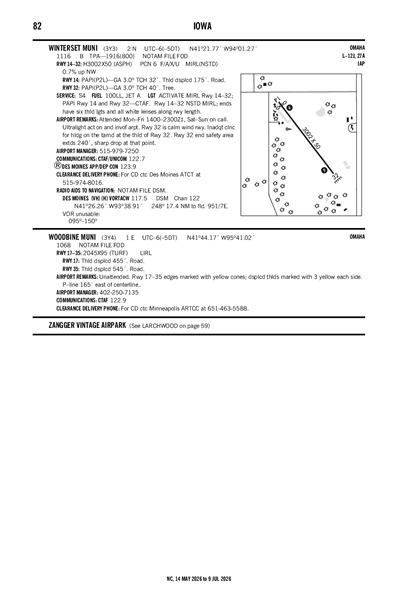

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDSM (20nm)
Fri, 5/17 6:20 PM CDT
Fri, 5/17 7:00 PM CDT - Sat, 5/18 7:00 PM CDT
VFR
7:00 PM CDT - 8:00 AM CDT
Sky Clear
6sm
180° 12kts
VFR
8:00 AM CDT - 1:00 PM CDT
Few 25,000'
6sm
200° 10kts
VFR
1:00 PM CDT - 3:00 PM CDT
Scattered 25,000'
6sm
220° 11kts
Gusts 19kts
VFR
3:00 PM CDT - 7:00 PM CDT
Scattered 20,000'
6sm
240° 11kts
Gusts 20kts
KDSM 172320Z 1800/1824 18012KT P6SM SKC
   FM181300 20010KT P6SM FEW250
   FM181800 22011G19KT P6SM SCT250
   FM182000 24011G20KT P6SM SCT200
3Y3
Domestic
5/9/240232Z !FOD 05/062 3Y3 OBST TOWER LGT (ASR 1017087) 411838.00N0940519.00W (4.4NM SW 3Y3) 1564.0FT (415.0FT AGL) U/S 2405090232-2408312359
5/4/240818Z !FOD 05/032 3Y3 OBST TOWER LGT (ASN 2022-ACE-95-OE) 413235N0940136W (10.8NM N 3Y3) 1251FT (225FT AGL) U/S 2405040818-2406180817
4/17/241001Z !FOD 04/110 3Y3 OBST TOWER LGT (ASR 1204751) 413043.40N0940453.50W (9.4NM NNW 3Y3) 1440.0FT (363.8FT AGL) U/S 2404171001-2408151001
4/13/242057Z !FOD 04/084 3Y3 OBST TOWER LGT (ASR 1273727) 410846.20N0940246.60W (13.1NM S 3Y3) 1524.0FT (310.0FT AGL) U/S 2404132057-2407311159
FDC
4/13/231957Z !FDC 3/1634 3Y3 IAP WINTERSET MUNI, WINTERSET, IA.
RNAV (GPS) RWY 32, AMDT 1B...
TAA STRAIGHT-IN 231/30 CW 051/30 TO STRAIGHT-IN 231/6 CW 051/6 (NOPT) MINIMUM ALTITUDE 3200. TAA STRAIGHT-IN 231/6 CW 051/6 TO JUNUG (IF/IAF) MINIMUM ALTITUDE 3000. TAA 051/30 CW 231/30 TO 051/6 CW 231/6 MINIMUM ALTITUDE 3200. TAA 051/6 CW 231/6 TO JUNUG (IF/IAF) MINIMUM ALTITUDE 3000.
2304131957-2504131957EST
4/13/231717Z !FDC 3/1492 3Y3 ODP WINTERSET MUNI, WINTERSET, IA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
IN ADDITION TO PUBLISHED TAKEOFF OBSTACLE NOTES, ADD THE FOLLOWING:
RWY 14: TOWER 1.5 NM FROM DER, 1474 FT RIGHT OF CENTERLINE, 208 FT AGL/1329 FT MSL. 2304131717-2504131717EST
No
MON-FRI 0800-1700
SAT-SUN ON CALL
WNTRSET ARPT AUTH
3405 NORTH 8TH AVENUE
WINTERSET, IA 50273
Phone: 515-205-9919
AARON ARMSTRONG
3405 NORTH 8TH AVE
WINTERSET, IA 50273
Phone: 515-205-9919
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
FOD
--
ACTVT MIRL RY 14/32 & PAPI RYS 14 & 32 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
21
2
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 14/32

3002 ft. x 50 ft.
ASPH
Good
NONE
NSTD
6 /F/A/X/U
--
--
--
--
  Runway 14 Runway 32
True Heading 143°323°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 21' 58"N 41° 21' 34"N
Longitude 94° 01' 28"W 94° 01' 04"W
Elevation 1,116' 1,094'
Threshold Crossing Height 32 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ULTRALIGHT ACT ON & INVOF ARPT.
A110-2RWY 32 END SAFETY AREA EXTDS 240 FT; SHARP DROP AT THAT POINT.
A110-3INADQT CLNC FOR HLDG ON THE TARND AT THE THR OF RWY 32.
A110-5RWY 32 IS CALM WIND RWY.
A110-6FOR CD CTC DES MOINES ATCT AT 515-974-8016.
WINTERSET MUNI (IATA: 3Y3) is a public airport located in WINTERSET, IA.
