41N
BRACEVILLE
Public
PUB
2 miles N of NEWTON FALLS, OH
View on
Map
Status
Operational
Coordinates
41° 12' 40"N
80° 58' 09"W
Elevation
900' MSL
Pattern Alt
1900' MSL
Mag Variation
07W
Fuel
None Listed
FSS
CLEVELAND (CLE)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
5/16/24-6/13/24
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
41N FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
41N Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
41N Hotels
No hotels are listed for this airport.
41N Restaurants
No restaurants are listed for this airport.
41N Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
No communication frequencies available for this airport.

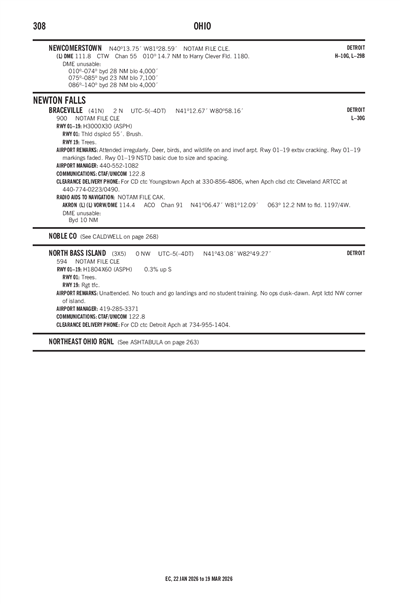

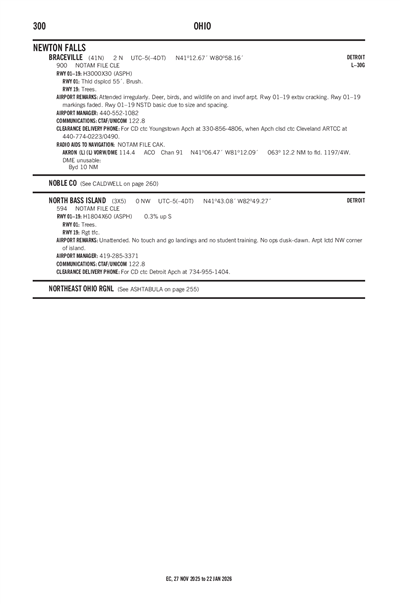

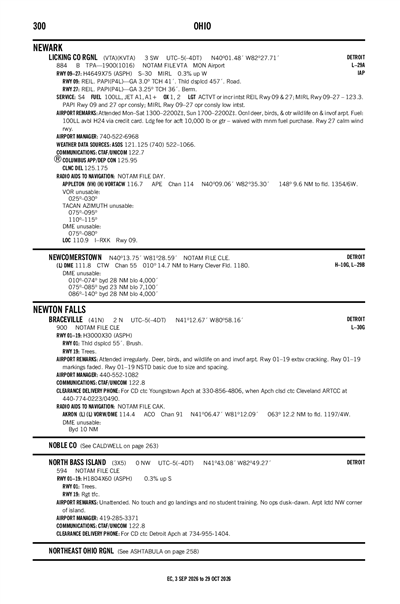

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KYNG (14nm)
RAW
Reported
Fri, 5/17 11:04 PM EDT
Valid
Fri, 5/17 11:00 PM EDT - Sat, 5/18 8:00 PM EDT
MVFR
11:00 PM EDT - 12:00 AM EDT
Broken 2,000'
Viz
6sm
Wind
VRB° 3kts
MVFR
12:00 AM EDT - 2:00 AM EDT
Mist
Broken 2,000'
Scattered 500'
Viz
3sm
Wind
VRB° 2kts
IFR
2:00 AM EDT - 10:00 AM EDT
Mist
Broken 500'
Scattered 200'
Viz
1sm
Wind
VRB° 2kts
LIFR
Temporary
5:00 AM EDT - 9:00 AM EDT
Fog
Broken 200'
Viz
0.5sm
Wind
Calm
IFR
10:00 AM EDT - 12:00 PM EDT
Mist
Broken 500'
Scattered 200'
Viz
3sm
Wind
VRB° 5kts
MVFR
12:00 PM EDT - 2:00 PM EDT
Broken 1,500'
Few 500'
Viz
6sm
Wind
VRB° 5kts
VFR
2:00 PM EDT - 8:00 PM EDT
Few 3,000'
Viz
6sm
Wind
VRB° 5kts
KYNG 180304Z 1803/1824 VRB03KT P6SM BKN020
FM180400 VRB02KT 3SM BR SCT005 BKN020
FM180600 VRB02KT 1SM BR SCT002 BKN005
TEMPO 1809/1813 1/2SM FG BKN002
FM181400 VRB05KT 3SM BR SCT002 BKN005
FM181600 VRB05KT P6SM FEW005 BKN015
FM181800 VRB05KT P6SM FEW030
41N
Domestic
4/26/24
1851Z
!CLE 04/662 41N OBST TOWER LGT (ASR 1014188) 410930.90N0805335.10W (4.6NM SE 41N) 1193.2FT (224.1FT AGL) U/S 2404261851-2408241851
4/21/24
1824Z
!CLE 04/558 41N OBST TOWER LGT (ASR 1225402) 411420.60N0810037.70W (2.5NM NW 41N) 1193.2FT (261.2FT AGL) U/S 2404211824-2406051823
ATC Tower
No
Attendance
IREG
Owner
BRACEVILLE AIRPORT LLC
4720 STATE ROUTE 5
NEWTON FALLS, OH 44444-9540
Phone: 440-552-1082
Manager
DAN CLARKE
4560 STEWART PL
COLUMBUS, OH 43214-2531
Phone: 440-552-1082
FSS
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
NOTAM
CLE
Light Schedule
--
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
None
Int'l Operations
No
# Single Engine
7
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
4
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 01/19
Dimensions
3000 ft. x 30 ft.
Surface Type
ASPH
Surface Cond
Poor
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 01
Runway 19
True Heading
Not Listed
Not Listed
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
FAIR
FAIR
Latitude
N/A
N/A
Longitude
N/A
N/A
Elevation
--
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
FOR CD CTC YOUNGSTOWN APCH AT 330-856-4806, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0490.
A110-2
DEER, BIRDS, & WILDLIFE ON & INVOF ARPT.
BRACEVILLE (IATA: 41N) is a public airport located in NEWTON FALLS, OH.
