4U9
DELL FLIGHT STRIP
Public
PUB
1 miles NW of DELL, MT
View on
Map
Status
Operational
Coordinates
44° 44' 09"N
112° 43' 11"W
Elevation
6007' MSL
Pattern Alt
7007' MSL
Mag Variation
16E
Fuel
None Listed
FSS
GREAT FALLS (GTF)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
5/16/24-6/13/24
KDLN (32nm)
VFR
8:53 PM MDT
RAW
Clear
Viz
10sm
Temp
42°F
Dew
15°F
Pres
29.96"Hg
Wind
330° 10kts
RMK
AO2 PK WND 34028/0210 SLP121 T00561094 53052 $
KDLN 180253Z AUTO 33010KT 10SM CLR 06/M09 A2996 RMK AO2 PK WND 34028/0210 SLP121 T00561094 53052 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
4U9 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
4U9 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
4U9 Hotels
No hotels are listed for this airport.
4U9 Restaurants
No restaurants are listed for this airport.
4U9 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.
FAA A/FD Pages
FAA A/FD Page

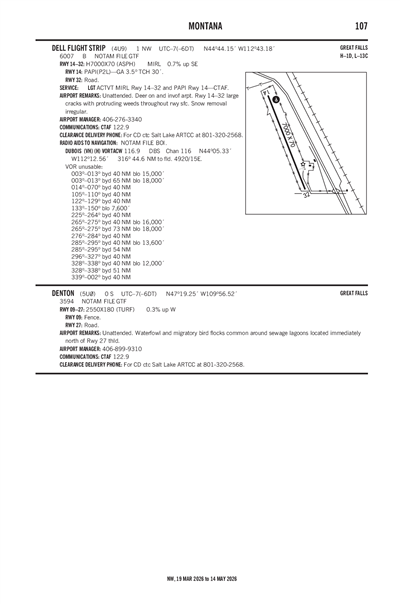

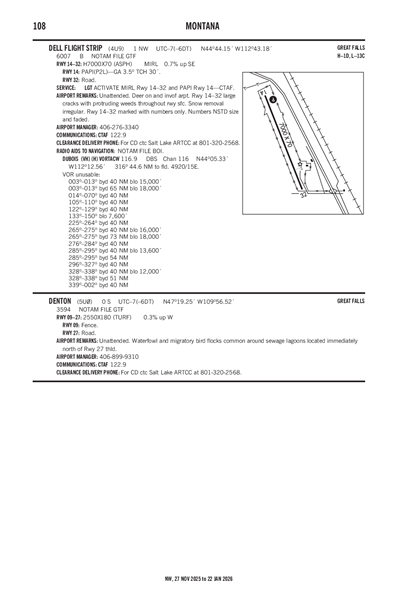

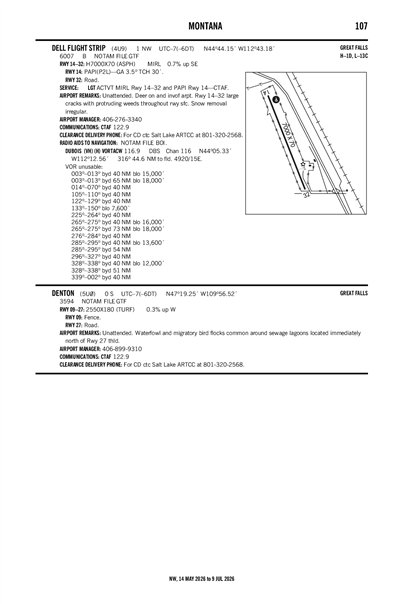

Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KSMN (55nm)
RAW
Reported
Fri, 5/17 8:16 PM MDT
Valid
Fri, 5/17 8:00 PM MDT - Sat, 5/18 6:00 PM MDT
VFR
8:00 PM MDT - 9:00 PM MDT
Scattered 10,000'
Viz
6sm
Wind
360° 15kts
Gusts 25kts
VFR
9:00 PM MDT - 1:00 AM MDT
Scattered 10,000'
Viz
6sm
Wind
350° 11kts
VFR
1:00 AM MDT - 1:00 PM MDT
Sky Clear
Viz
6sm
Wind
VRB° 6kts
VFR
1:00 PM MDT - 6:00 PM MDT
Few 15,000'
Viz
6sm
Wind
300° 12kts
KSMN 180216Z 1802/1824 36015G25KT P6SM SCT100
FM180300 35011KT P6SM SCT100
FM180700 VRB06KT P6SM SKC
FM181900 30012KT P6SM FEW150
4U9
Domestic
4/30/24
1749Z
!GTF 04/205 4U9 AD AP
CLSD
TO NGT OPS 2404301749-2407012350
3/23/24
1749Z
!GTF 03/294 4U9 OBST TOWER LGT (ASR 1237605) 443329.00N1121714.00W (21.3NM ESE 4U9) 7248.0FT (210.0FT AGL) U/S 2403231749-2407211749
ATC Tower
No
Attendance
UNATNDD
Owner
MONTANA AERONAUTICS DIVISION
PO BOX 200507
HELENA, MT 59620-0507
Phone: 406-444-2506
Manager
TIM CONWAY
BOX 200507
HELENA, MT 59620-0507
Phone: 406-444-2506
FSS
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
NOTAM
GTF
Light Schedule
--
Lights
ACTVT MIRL RY 14/32 & PAPI RY 14 - CTAF.
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
2
# Multi Engine
0
# Jets
1
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 14/32
Dimensions
7000 ft. x 70 ft.
Surface Type
ASPH
Surface Cond
Poor
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 14
Runway 32
True Heading
159°
339°
Traffic Pattern
Left
Left
Markings
NSTD
NSTD
Markings Condition
FAIR
FAIR
Latitude
44° 44' 41"N
44° 43' 36"N
Longitude
112° 43' 28"W
112° 42' 54"W
Elevation
5,958'
6,007'
Threshold Crossing Height
30 ft. AGL
--
Visual Glide Path Angle
3.5°
--
Visual Slope Indicator
P2L
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
SNOW REMOVAL IRREGULAR.
A110-2
DEER ON & INVOF ARPT.
A110-3
FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
DELL FLIGHT STRIP (IATA: 4U9) is a public airport located in DELL, MT.
