MADISONVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

51R
MADISONVILLE MUNI
PublicPUB

3 miles SW of MADISONVILLE, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 54' 46"N 95° 57' 07"W
287' MSL
1287' MSL
07E
Jet A, 100LL
MONTGOMERY COUNTY (CXO)
HOUSTON
HOUSTON (ZHU)
5/16/24-6/13/24
KUTS (21nm) VFR
10:53 PM CDT
Clear
10sm
69°F
67°F
29.81"Hg
230° 3kts
AO2 SLP092 T02060194
KUTS 180353Z AUTO 23003KT 10SM CLR 21/19 A2981 RMK AO2 SLP092 T02060194
List Your Business

51R FBOs, Flight Schools and Ground Support

Promote Listing
Madisonville Municipal Airport
Freq: 122.9
Phone: (936) 348-2748
No Rating Available
0 Reviews (Read | Sign In To Write)

51R Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

51R Hotels

No hotels are listed for this airport.

51R Restaurants

No restaurants are listed for this airport.

51R Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

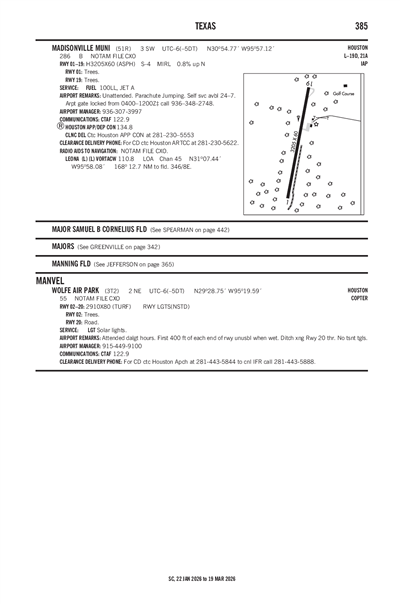

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KUTS (21nm)
Fri, 5/17 6:39 PM CDT
Fri, 5/17 7:00 PM CDT - Sat, 5/18 7:00 PM CDT
VFR
7:00 PM CDT - 6:00 AM CDT
Overcast 15,000'
Scattered 3,000'
6sm
VRB° 3kts
MVFR
6:00 AM CDT - 9:00 AM CDT
Mist
Scattered 500'
4sm
VRB° 3kts
LIFR
Temporary 6:00 AM CDT - 9:00 AM CDT
Mist
Broken 300'
1sm
Calm
VFR
9:00 AM CDT - 7:00 PM CDT
Scattered 700'
6sm
VRB° 3kts
KUTS 172339Z 1800/1824 VRB03KT P6SM SCT030 OVC150
   FM181100 VRB03KT 4SM BR SCT005
   TEMPO 1811/1814 1SM BR BKN003
   FM181400 VRB03KT P6SM SCT007
51R
Domestic
5/16/242034Z !CXO 05/607 51R OBST TOWER LGT (ASR 1295576) 303948.40N0955817.90W (14.9NM S 51R) 632.9FT (319.9FT AGL) U/S 2405162034-2406141600
5/15/240429Z !CXO 05/556 51R OBST TOWER LGT (ASR 1266728) 304027.20N0955850.20W (14.3NM S 51R) 565.9FT (260.2FT AGL) U/S 2405150429-2409120429
5/14/240436Z !CXO 05/513 51R OBST TOWER LGT (ASR 1047294) 311305.00N0955926.00W (18.3NM N 51R) 673.9FT (270.0FT AGL) U/S 2405140436-2405290336
5/13/241419Z !CXO 05/467 51R AD AP 100LL FUEL NOT AVBL 2405131419-2405272359
5/10/240300Z !CXO 05/386 51R OBST TOWER LGT (ASR 1283452) 311617.50N0960758.50W (23.3NM NNW 51R) 832.7FT (286.7FT AGL) U/S 2405100300-2409070300
5/6/241715Z !CXO 05/266 51R OBST TOWER LGT (ASR 1213212) 305436.30N0960631.90W (8.1NM W 51R) 854.0FT (500.0FT AGL) U/S 2405061715-2408040400
5/2/241300Z !CXO 05/071 51R OBST TOWER LGT (ASR 1055281) 305944.70N0960650.80W (9.7NM WNW 51R) 789.0FT (413.1FT AGL) U/S 2405021300-2407310400
5/1/240504Z !CXO 05/006 51R OBST TOWER LGT (ASR 1022026) 310640.00N0955709.00W (11.8NM NE 51R) 820.2FT (498.7FT AGL) U/S 2405010504-2405310001
4/20/242010Z !CXO 04/582 51R OBST TOWER LGT (ASN 2018-ASW-12997-OE) 304641N0960432W (10.3NM SW 51R) 653FT (322FT AGL) U/S 2404202010-2406042009
4/11/240700Z !CXO 04/332 51R OBST TOWER LGT (ASR 1050027) 311324.60N0955913.60W (18.6NM N 51R) 813.0FT (423.9FT AGL) U/S 2404110700-2407100400
3/26/241725Z !CXO 03/697 51R OBST TOWER LGT (ASR 1215660) 304626.40N0955630.10W (8.3NM S 51R) 634.8FT (307.1FT AGL) U/S 2403261725-2406240400
2/27/241645Z !CXO 02/654 51R OBST TOWER LGT (ASR 1044955) 305657.90N0960449.00W (7.0NM WNW 51R) 650.9FT (256.9FT AGL) U/S 2402271645-2405280500
1/17/241504Z !CXO 01/466 51R RWY 18/36 CHANGED TO RWY 01/19 2401171504-2506302359
FDC
1/26/241913Z !FDC 4/8473 51R ODP MADISONVILLE MUNI, MADISONVILLE, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
CHANGE ALL REFERENCES TO RWY 18 TO RWY 19.
CHANGE ALL REFERENCES TO RWY 36 TO RWY 1.
ALL OTHER DATA REMAINS AS PUBLISHED. 2401261913-2601261913EST
1/26/241913Z !FDC 4/8472 51R IAP MADISONVILLE MUNI, MADISONVILLE, TX.
RNAV (GPS) RWY 18, ORIG-C...
RNAV (GPS) RWY 36, ORIG-B...
VOR/DME RWY 18, AMDT 2C...
CHANGE ALL REFERENCES TO RWY 36 TO RWY 1.
CHANGE ALL REFERENCES TO RWY 18 TO RWY 19.
2401261913-2601261913EST
No
UNATNDD
CITY OF MADISONVILLE
210 W. COTTONWOOD
MADISONVILLE, TX 77864
Phone: 936-348-2748
FABRICE KABONA
210 W. COTTONWOOD
MADISONVILLE, TX 77864
Phone: 936-755-0371
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
CXO
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
3
0
0
0
0
0
None
None
None
None
Pilot Instruction
Parachute Jump Activity

Runway 18/36

3202 ft. x 50 ft.
ASPH
Excellent
NONE
MED

4,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 190°10°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 55' 02"N 30° 54' 31"N
Longitude 95° 57' 04"W 95° 57' 10"W
Elevation 287' 260'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-4AIRPORT GATE LOCKED FROM 2200-0600 CALL 936-348-2748.
A110-5SELF SVC AVBL 24/7.
A110-7FOR CD CTC HOUSTON ARTCC AT 281-230-5622.
MADISONVILLE MUNI (IATA: 51R) is a public airport located in MADISONVILLE, TX.
