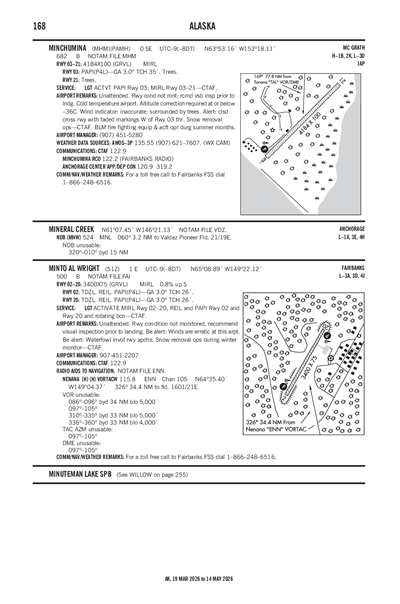

MINTO AL WRIGHT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

51Z
MINTO AL WRIGHT
PublicPUB

1 miles E of MINTO, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
65° 08' 53"N 149° 22' 07"W
500' MSL
1500' MSL
27E
None Listed
FAIRBANKS (FAI)
FAIRBANKS
ANCHORAGE (ZAN)
5/16/24-6/13/24
PANN (37nm) VFR
8:53 PM AKDT
Few 7,000'
10sm
60°F
32°F
29.95"Hg
VRB° 6kts
AO2 SLP149 T01560000 TSNO
PANN 180453Z AUTO VRB06KT 10SM FEW070 16/00 A2995 RMK AO2 SLP149 T01560000 TSNO
List Your Business

51Z FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

51Z Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

51Z Hotels

No hotels are listed for this airport.

51Z Restaurants

No restaurants are listed for this airport.

51Z Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PAFA (43nm)
Fri, 5/17 5:43 PM AKDT
Fri, 5/17 6:00 PM AKDT - Sat, 5/18 10:00 PM AKDT
VFR
6:00 PM AKDT - 8:00 PM AKDT
Broken 20,000'
Few 10,000'
6sm
250° 12kts
VFR
8:00 PM AKDT - 2:00 PM AKDT
Broken 12,000'
Few 9,000'
6sm
260° 7kts
VFR
2:00 PM AKDT - 10:00 PM AKDT
Broken 12,000'
Scattered 7,000'
6sm
160° 10kts
Gusts 20kts
PAFA 180143Z 1802/1906 25012KT P6SM FEW100 BKN200
   FM180400 26007KT P6SM FEW090 BKN120
   FM182200 16010G20KT P6SM SCT070 BKN120
51Z
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER ROAD
FAIRBANKS, AK 99709
Phone: 907-451-2200
JEFF RUSSELL
2301 PEGER ROAD
FAIRBANKS, AK 99709
Phone: 907-451-2207
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
FAI
--
ACTVT MIRL RY 02/20; PAPI & REIL RYS 02 & 20 - CTAF.
ACTVT ROTG BCN- CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 02/20

3400 ft. x 75 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 02 Runway 20
True Heading 42°222°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 65° 08' 41"N 65° 09' 06"N
Longitude 149° 22' 34"W 149° 21' 40"W
Elevation 500' 473'
Threshold Crossing Height 26 ft. AGL 26 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BE ALERT: WINDS ARE ERRATIC AT THIS ARPT.
A110-2RY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-3SNOW REMOVAL OPNS DURING WINTER MONITOR - CTAF.
A110-4WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-5BE ALERT: WATERFOWL INVOF RY APCHS.
MINTO AL WRIGHT (IATA: 51Z) is a public airport located in MINTO, AK.
