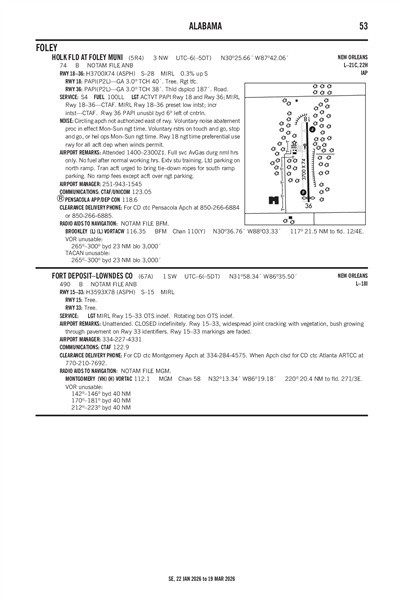

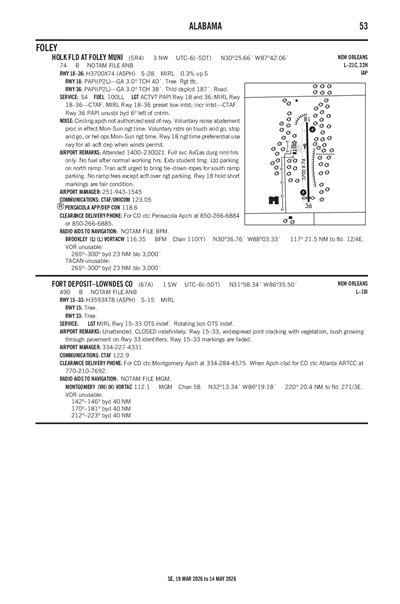

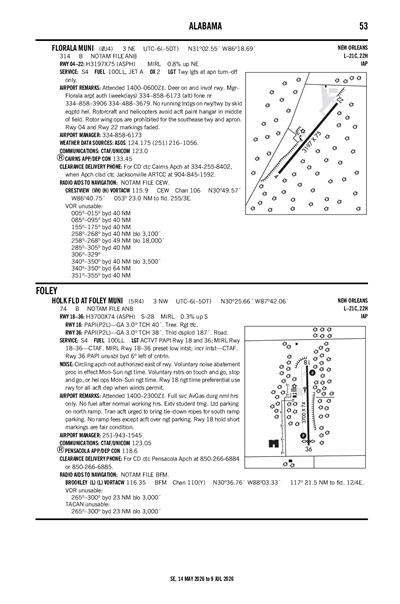

FOLEY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5R4
FOLEY MUNI
PublicPUB

3 miles NW of FOLEY, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 25' 40"N 87° 42' 03"W
74' MSL
1074' MSL
02W
100LL
ANNISTON (ANB)
NEW ORLEANS
JACKSONVILLE (ZJX)
5/16/24-6/13/24
KJKA (8nm) MVFR
10:35 PM CDT
Broken 2,400'
Few 800'
7sm
79°F
79°F
29.83"Hg
190° 6kts
AO2
KJKA 180335Z AUTO 19006KT 7SM FEW008 BKN024 26/26 A2983 RMK AO2
List Your Business

5R4 FBOs, Flight Schools and Ground Support

Promote Listing
Lightning Aviation
Freq: 123.05
Phone: (251) 943-5214
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 4/26
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.85
Full Serve 5.80

5R4 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

5R4 Hotels

No hotels are listed for this airport.

5R4 Restaurants

No restaurants are listed for this airport.

5R4 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KJKA (8nm)
Fri, 5/17 6:33 PM CDT
Fri, 5/17 7:00 PM CDT - Sat, 5/18 7:00 PM CDT
MVFR
7:00 PM CDT - 8:00 PM CDT
Showers in vicinity
Broken 5,000'
Broken 3,000'
Broken 2,500'
6sm
200° 8kts
MVFR
8:00 PM CDT - 4:00 AM CDT
Showers in vicinity
Broken 1,500'
6sm
200° 10kts
MVFR
4:00 AM CDT - 10:00 AM CDT
Thunderstorm and Rain and Mist
Broken 1,500'
3sm
280° 7kts
MVFR
10:00 AM CDT - 3:00 PM CDT
Thunderstorm and Rain and Mist
Broken 1,000'
3sm
290° 8kts
MVFR
3:00 PM CDT - 7:00 PM CDT
Thunderstorm in vicinity
Broken 2,500'
6sm
200° 10kts
KJKA 172333Z 1800/1824 20008KT P6SM VCSH BKN025 BKN030 BKN050
   FM180100 20010KT P6SM VCSH BKN015
   FM180900 28007KT 3SM TSRA BR BKN015CB
   FM181500 29008KT 3SM TSRA BR BKN010CB
   FM182000 20010KT P6SM VCTS BKN025CB
5R4
Domestic
5/14/241300Z !ANB 05/497 5R4 AIRSPACE SEE NUN 05/002 UAS DLY 1300-2359 2405141300-2405212359
5/14/240540Z !ANB 05/630 5R4 OBST TOWER LGT (ASR 1050018) 303730.20N0873853.80W (12.2NM NNE 5R4) 663.4FT (519.7FT AGL) U/S 2405140540-2406142300
5/13/242048Z !ANB 05/620 5R4 OBST TOWER LGT (ASR 1030889) 303516.70N0873312.70W (12.4NM NE 5R4) 1637.1FT (1501.0FT AGL) U/S 2405132048-2407132359
5/10/240913Z !ANB 05/459 5R4 OBST TOWER LGT (ASR 1032438) 302431.70N0874617.50W (3.9NM WSW 5R4) 302.8FT (254.9FT AGL) U/S 2405100913-2409070913
5/7/240353Z !ANB 05/191 5R4 OBST TOWER LGT (ASR 1064671) 303641.00N0873626.40W (12.1NM NNE 5R4) 2000.0FT (1894.0FT AGL) U/S 2405070353-2406210345
5/6/240513Z !ANB 05/164 5R4 OBST 5R4 OBS TOWER LGT (ASR 1308597) 303829.40N0874218.00W (12.85NM N 5R4) 629FT (465FT AGL) U/S 2405060513-2406200513
4/22/241834Z !ANB 04/696 5R4 OBST TOWER LGT (ASR 1209317) 303153.00N0873244.00W (10.3NM NE 5R4) 604.0FT (499.0FT AGL) U/S 2404221834-2406212359
2/16/240158Z !ANB 02/481 5R4 OBST TOWER LGT (ASR 1065469) 303160.00N0873150.00W (11.0NM NE 5R4) 545.6FT (421.9FT AGL) U/S 2402160158-2406162359
No
0800-1700
CITY OF FOLEY
P.O. BOX 1750
FOLEY, AL 36536
Phone: 251-943-1545
RACHEL KEITH
510 AIRPORT DR
FOLEY, AL 36535
Phone: 251-943-1545
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF. MIRL RWY 18/36 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
30
3
0
6
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 18/36

3700 ft. x 74 ft.
ASPH
Good
NONE
MED

28,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 25' 58"N 30° 25' 21"N
Longitude 87° 42' 03"W 87° 42' 03"W
Elevation 63' 74'
Threshold Crossing Height 40 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2EXTSV STUDENT TRNG.
A110-3CIRCLING APCH NA EAST OF RWY. VOLUNTARY NOISE ABATEMENT PROC IN EFCT MON-SUN NGT TIME. VOLUNTARY RSTRS ON TOUCH AND GO, STOP AND GO, OR HEL OPS MON-SUN NGT TIME. RWY 18 NGT TIME PREFERENTIAL USE RWY FOR ALL ACFT DEP WHEN WINDS PERMIT.
A110-4LTD PRKG ON NORTH RAMP. TSNT ACFT URGED TO BRING TIE-DOWN ROPES FOR SOUTH RAMP PKNG. NO RAMP FEES EXCP ACFT OVER NGT PRKG.
A110-5FOR CD CTC PENSACOLA APCH AT 850-266-6884 OR 850-266-6885.
FOLEY MUNI (IATA: 5R4) is a public airport located in FOLEY, AL.
