5Y3
GUTZMER'S TWIN OAKS
Public
PUB
1 miles NW of WHITEWATER, WI
View on
Map
Status
Operational
Coordinates
42° 51' 13"N
88° 45' 35"W
Elevation
821' MSL
Pattern Alt
1621' MSL
Mag Variation
00E
Fuel
None Listed
FSS
GREEN BAY (GRB)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
5/16/24-6/13/24
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
5Y3 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
5Y3 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
5Y3 Hotels
No hotels are listed for this airport.
5Y3 Restaurants
No restaurants are listed for this airport.
5Y3 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

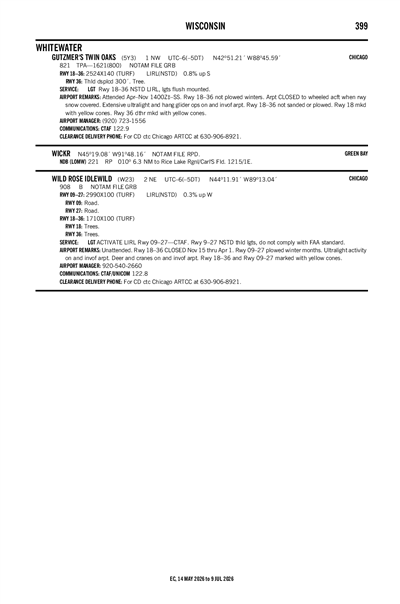

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KJVL (19nm)
RAW
Reported
Fri, 5/17 9:52 PM CDT
Valid
Fri, 5/17 10:00 PM CDT - Sat, 5/18 7:00 PM CDT
VFR
10:00 PM CDT - 4:00 AM CDT
Sky Clear
Viz
6sm
Wind
130° 5kts
VFR
4:00 AM CDT - 9:00 AM CDT
Few 24,000'
Viz
6sm
Wind
VRB° 3kts
VFR
9:00 AM CDT - 11:00 AM CDT
Sky Clear
Viz
6sm
Wind
190° 7kts
VFR
11:00 AM CDT - 7:00 PM CDT
Sky Clear
Viz
6sm
Wind
200° 10kts
KJVL 180252Z 1803/1824 13005KT P6SM SKC
FM180900 VRB03KT P6SM FEW240
FM181400 19007KT P6SM SKC
FM181600 20010KT P6SM SKC
5Y3
Domestic
4/26/24
0544Z
!GRB 04/558 5Y3 OBST TOWER LGT (ASR 1324585) 425046.20N0885249.60W (5.33NM W 5Y3) 1209FT (307FT AGL) U/S 2404260544-2406100544
4/22/24
2133Z
!GRB 04/494 5Y3 OBST TOWER LGT (ASR 1325300) 424429.80N0885316.80W (8.76NM SW 5Y3) 1256FT (304FT AGL) U/S 2404222133-2406062133
2/23/24
1555Z
!GRB 02/312 5Y3 OBST TOWER LGT (ASR 1324313) 425108.30N0884340.60W (1.41NM E 5Y3) 1025FT (224FT AGL) U/S 2402231555-2405232359
ATC Tower
No
Attendance
APR-NOV 0800-SS
Owner
COLDSPRING AIRPORT LLC
N1190 COUNTY ROAD N
WHITEWATER, WI 53190
Phone: (920) 723-1556
Manager
MARCUS TINCHER
532 W MAIN ST
WHITEWATER, WI 53190
Phone: (920) 723-1556
FSS
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
NOTAM
GRB
Light Schedule
Sunset to Sunrise
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
2
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
2
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 18/36
Dimensions
2523 ft. x 140 ft.
Surface Type
TURF
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
NSTD
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 18
Runway 36
True Heading
180°
360°
Traffic Pattern
Left
Left
Markings
Markings Condition
Latitude
42° 51' 25"N
42° 51' 00"N
Longitude
88° 45' 35"W
88° 45' 35"W
Elevation
801'
821'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
A110-1
RY 18/36 NOT PLOWED WINTERS. CLSD TO WHEELED ACFT WHEN RY SNOW COVERED.
A110-4
EXTENSIVE ULTRALIGHT & HANG GLDR OPNS ON & INVOF.
A110-5
FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
GUTZMER'S TWIN OAKS (IATA: 5Y3) is a public airport located in WHITEWATER, WI.
