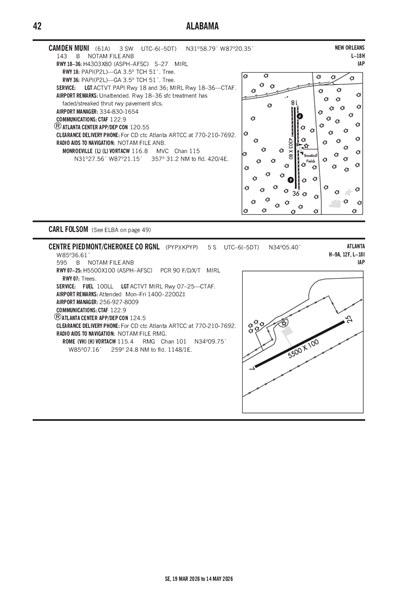

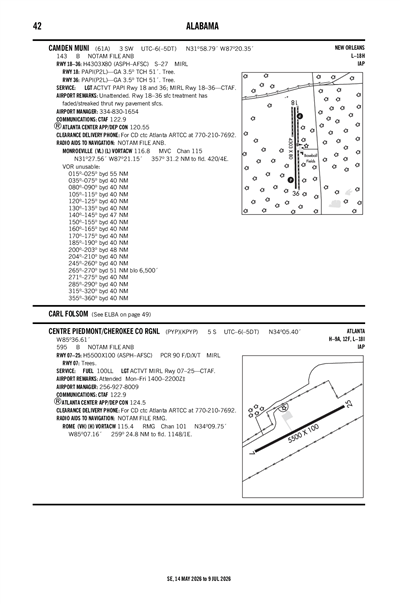

CAMDEN MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

61A
CAMDEN MUNI
PublicPUB

3 miles SW of CAMDEN, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 58' 47"N 87° 20' 21"W
143' MSL
1143' MSL
03W
None Listed
ANNISTON (ANB)
NEW ORLEANS
ATLANTA (ZTL)
5/16/24-6/13/24
KSEM (28nm) IFR
12:35 AM CDT
Overcast 800'
10sm
70°F
70°F
29.89"Hg
250° 4kts
AO2
KSEM 180535Z AUTO 25004KT 10SM OVC008 21/21 A2989 RMK AO2
List Your Business

61A FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

61A Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

61A Hotels

No hotels are listed for this airport.

61A Restaurants

No restaurants are listed for this airport.

61A Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMGM (51nm)
Sat, 5/18 12:31 AM CDT
Sat, 5/18 1:00 AM CDT - Sun, 5/19 1:00 AM CDT
MVFR
1:00 AM CDT - 3:00 AM CDT
Overcast 4,000'
Broken 1,100'
6sm
130° 7kts
MVFR
3:00 AM CDT - 10:00 AM CDT
Showers and Rain and Mist
Overcast 1,000'
6sm
VRB° 3kts
MVFR
10:00 AM CDT - 1:00 PM CDT
Overcast 1,800'
6sm
190° 5kts
MVFR
10:00 AM CDT - 1:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 1,500'
4sm
Calm
MVFR
1:00 PM CDT - 3:00 PM CDT
Overcast 2,300'
6sm
200° 6kts
MVFR
1:00 PM CDT - 3:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 1,500'
4sm
Calm
VFR
3:00 PM CDT - 1:00 AM CDT
Broken 4,000'
6sm
210° 6kts
MVFR
3:00 PM CDT - 9:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 2,500'
4sm
Calm
KMGM 180531Z 1806/1906 13007KT P6SM BKN011 OVC040
   FM180800 VRB03KT 6SM SHRA BR OVC010
   FM181500 19005KT P6SM OVC018
   PROB30 1815/1818 4SM TSRA BR OVC015CB
   FM181800 20006KT P6SM OVC023
   PROB30 1818/1820 4SM TSRA BR OVC015CB
   FM182000 21006KT P6SM BKN040
   PROB30 1820/1902 4SM TSRA BR OVC025CB
61A
Domestic
5/17/242019Z !ANB 05/739 61A OBST TOWER LGT (ASR 1320354) 320425.90N0871747.70W (6.1NM NNE 61A) 489FT (265FT AGL) U/S 2405172019-2406012300
5/17/242001Z !ANB 05/738 61A OBST TOWER LGT (ASR 1320117) 320548.24N0871839.94W (7.2NM NNE 61A) 514FT (332FT AGL) U/S 2405172001-2407012001
5/13/240423Z !ANB 05/555 61A OBST TOWER LGT (ASR 1274478) 320224.20N0874015.00W (17.3NM WNW 61A) 517.1FT (304.1FT AGL) U/S 2405130423-2405280323
5/10/240704Z !ANB 05/407 61A OBST TOWER LGT (ASR 1272975) 315755.20N0872845.60W (7.2NM W 61A) 403.5FT (299.9FT AGL) U/S 2405100704-2405250604
5/10/240210Z !ANB 05/340 61A OBST TOWER LGT (ASR 1052062) 320344.00N0870833.00W (11.3NM ENE 61A) 549.2FT (261.2FT AGL) U/S 2405100210-2409070210
5/7/240508Z !ANB 05/196 61A OBST TOWER LGT (ASR 1274579) 320652.10N0873919.20W (17.9NM WNW 61A) 603.7FT (309.7FT AGL) U/S 2405070508-2405220408
5/1/241358Z !ANB 05/026 61A OBST TOWER LGT (ASR 1052064) 314413.00N0871119.00W (16.3NM SSE 61A) 557.1FT (261.2FT AGL) U/S 2405011358-2407312359
4/24/241133Z !ANB 04/732 61A OBST TOWER LGT (ASR 1303557) 315019.03N0872138.88W (8.5NM S 61A) 587FT (420FT AGL) U/S 2404241133-2405242300
4/10/241927Z !ANB 04/288 61A OBST TOWER LGT (ASN 2019-ASO-19181-OE) 321204N0872649W (14.2NM NNW 61A) 606FT (365FT AGL) U/S 2404101927-2405251915
No
UNATNDD
CITY OF CAMDEN
108 WATER STREET
CAMDEN, AL 36726
Phone: 334-456-1044
RILEY WILKERSON
108 WATER STREET
CAMDEN, AL 36726
Phone: 334-830-1654
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
3
0
0
0
0
0
None
None
None
None
None

Runway 18/36

4303 ft. x 80 ft.
ASPH
Fair
AFSC
MED

27,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 59' 08"N 31° 58' 26"N
Longitude 87° 20' 21"W 87° 20' 20"W
Elevation 143' 142'
Threshold Crossing Height 51 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
CAMDEN MUNI (IATA: 61A) is a public airport located in CAMDEN, AL.
