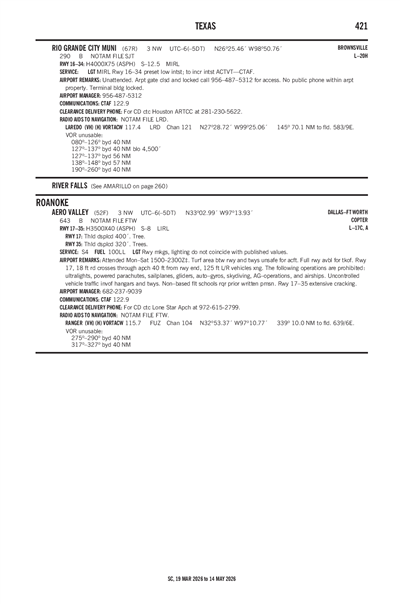

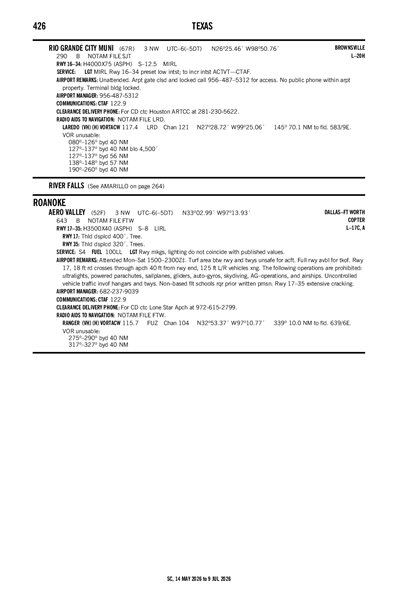

RIO GRANDE CITY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

67R
RIO GRANDE CITY MUNI
PublicPUB

3 miles NW of RIO GRANDE CITY, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
26° 25' 27"N 98° 50' 46"W
290' MSL
1290' MSL
07E
None Listed
SAN ANGELO (SJT)
BROWNSVILLE
HOUSTON (ZHU)
5/16/24-6/13/24
KMFE (36nm) MVFR
12:53 AM CDT
Overcast 1,300'
10sm
79°F
72°F
29.83"Hg
360° 11kts
AO2 SLP100 T02610222 10294 20261 403110222 53023
KMFE 180553Z AUTO 36011KT 10SM OVC013 26/22 A2983 RMK AO2 SLP100 T02610222 10294 20261 403110222 53023
List Your Business

67R FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

67R Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

67R Hotels

No hotels are listed for this airport.

67R Restaurants

No restaurants are listed for this airport.

67R Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KMFE (36nm)
Sat, 5/18 12:23 AM CDT
Sat, 5/18 1:00 AM CDT - Sun, 5/19 1:00 AM CDT
MVFR
1:00 AM CDT - 3:00 AM CDT
Overcast 1,500'
6sm
VRB° 4kts
MVFR
3:00 AM CDT - 7:00 AM CDT
Haze
Broken 2,000'
5sm
Calm
MVFR
7:00 AM CDT - 2:00 PM CDT
Haze and Mist
Broken 4,500'
Scattered 1,500'
5sm
Calm
VFR
2:00 PM CDT - 1:00 AM CDT
Few 25,000'
6sm
VRB° 4kts
KMFE 180523Z 1806/1906 VRB04KT P6SM OVC015
   FM180800 00000KT 5SM HZ BKN020
   FM181200 00000KT 5SM HZ BR SCT015 BKN045
   FM181900 VRB04KT P6SM FEW250
67R
Domestic
5/17/241829Z !SJT 05/348 67R OBST TOWER LGT (ASR 1309032) 262000.08N0984229.83W (9.2NM SE 67R) 509FT (310FT AGL) U/S 2405171829-2406012300
5/17/241220Z !SJT 05/341 67R OBST TOWER LGT (ASR 1247107) 264240.10N0985511.00W (17.5NM NNW 67R) 667.0FT (310.0FT AGL) U/S 2405171220-2408150400
5/17/241220Z !SJT 05/340 67R OBST TOWER LGT (ASR 1242877) 264058.90N0984627.20W (15.8NM NNE 67R) 777.9FT (305.8FT AGL) U/S 2405171220-2408150400
5/17/241220Z !SJT 05/339 67R OBST TOWER LGT (ASR 1242876) 263542.20N0985208.30W (10.2NM N 67R) 578.7FT (256.9FT AGL) U/S 2405171220-2408150400
4/11/241918Z !SJT 04/184 67R OBST TOWER LGT (ASR 1250794) 264543.10N0985048.20W (20.0NM NE 67R) 791.0FT (271.0FT AGL) U/S 2404111918-2407312359
3/26/241801Z !SJT 03/322 67R OBST TOWER LGT (ASR 1050597) 264213.00N0983943.00W (19.4NM NNE 67R) 1018.0FT (490.2FT AGL) U/S 2403261801-2406240400
12/28/231952Z !SJT 12/377 67R OBST MOORED BALLOON WI AN AREA DEFINED AS 1NM RADIUS OF 262810N0990257W (10.2NM W 67R) 3374FT (3000FT AGL) FLAGGED AND LGTD 2312281952-2412312359
No
UNATNDD
CITY OF RIO GRANDE CITY
5332 E. US-83
RIO GRANDE CITY, TX 78582
Phone: 956-487-0672
MANUEL M. MUNIZ
5332 E. US-83
RIO GRANDE CITY, TX 78582
Phone: 956-487-5312
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
MIRL RWY 16/34 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
0
0
0
1
0
0
None
None
None
None
None

Runway 16/34

4000 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 162°342°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 26° 25' 42"N 26° 25' 05"N
Longitude 98° 50' 52"W 98° 50' 38"W
Elevation 290' 273'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ARPT GATE CLSD AND LOCKED CALL 956-487-5312 FOR ACCESS. NO PUBLIC PHONE WITHIN ARPT PROPERTY. TERMINAL BLDG LOCKED.
A110-2FOR CD CTC HOUSTON ARTCC AT 281-230-5622.
RIO GRANDE CITY MUNI (IATA: 67R) is a public airport located in RIO GRANDE CITY, TX.
