7K7
GRAHAM FLD
Public
PUB
1 miles N of NORTH SIOUX CITY, SD
View on
Map
Status
Operational
Coordinates
42° 32' 22"N
96° 29' 05"W
Elevation
1107' MSL
Pattern Alt
2107' MSL
Mag Variation
07E
Fuel
Jet A, 100LL
FSS
HURON (HON)
Sectional
OMAHA
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/16/24-6/13/24
KSUX (10nm)
VFR
11:52 PM CDT
RAW
Clear
Viz
10sm
Temp
72°F
Dew
52°F
Pres
29.60"Hg
Wind
150° 12kts
RMK
AO2 SLP015 T02220111
KSUX 180452Z 15012KT 10SM CLR 22/11 A2960 RMK AO2 SLP015 T02220111
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
7K7 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
7K7 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
7K7 Hotels
No hotels are listed for this airport.
7K7 Restaurants
No restaurants are listed for this airport.
7K7 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

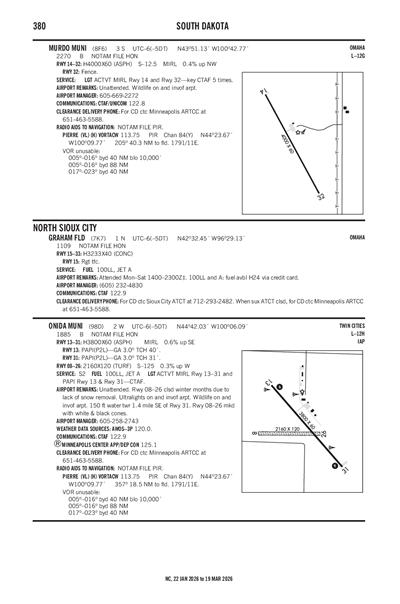

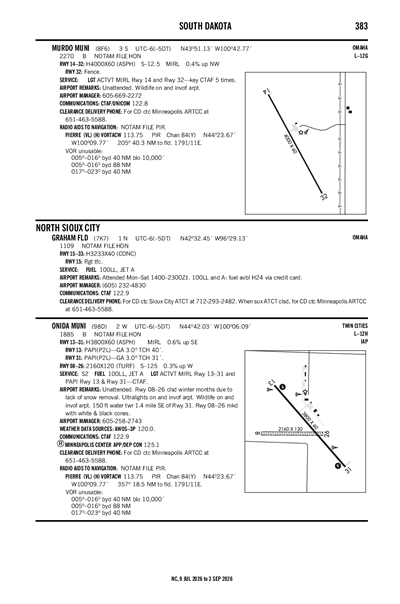

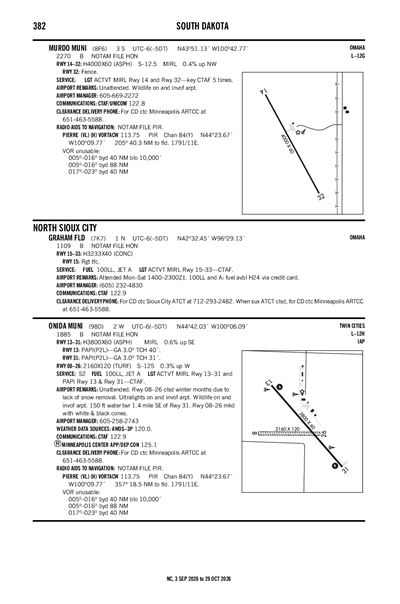

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KSUX (10nm)
RAW
Reported
Sat, 5/18 12:20 AM CDT
Valid
Sat, 5/18 1:00 AM CDT - Sun, 5/19 1:00 AM CDT
VFR
1:00 AM CDT - 8:00 AM CDT
Sky Clear
Viz
6sm
Wind
170° 13kts
Gusts 22kts
Shear 200° 45kts @ 2000'
VFR
8:00 AM CDT - 9:00 AM CDT
Scattered 15,000'
Viz
6sm
Wind
240° 13kts
Gusts 23kts
VFR
9:00 AM CDT - 11:00 AM CDT
Scattered 16,000'
Viz
6sm
Wind
300° 16kts
Gusts 26kts
VFR
11:00 AM CDT - 6:00 PM CDT
Few 25,000'
Viz
6sm
Wind
320° 18kts
Gusts 24kts
VFR
6:00 PM CDT - 11:00 PM CDT
Sky Clear
Viz
6sm
Wind
320° 11kts
Gusts 16kts
VFR
11:00 PM CDT - 1:00 AM CDT
Sky Clear
Viz
6sm
Wind
VRB° 3kts
KSUX 180520Z 1806/1906 17013G22KT P6SM SKC WS020/20045KT
FM181300 24013G23KT P6SM SCT150
FM181400 30016G26KT P6SM SCT160
FM181600 32018G24KT P6SM FEW250
FM182300 32011G16KT P6SM SKC
FM190400 VRB03KT P6SM SKC
7K7
Domestic
5/6/24
0437Z
!HON 05/015 7K7 OBST TOWER LGT (ASR 1216758) 423435.80N0964242.00W (10.3NM WNW 7K7) 1637.1FT (264.1FT AGL) U/S 2405060437-2405210337
5/3/24
1756Z
!HON 05/007 7K7 RWY 15/33 WIP CONST ADJ 2405031756-2406012359
ATC Tower
No
Attendance
ATNDD MON - SAT 0800 - 1700
Owner
MC COOK INDUSTRIES
PO BOX 158
NORTH SIOUX CITY, SD 57049
Phone: (605) 232-4830
Manager
STEPHEN F JONES
PO BOX 158
NORTH SIOUX CITY, SD 57049
Phone: (605) 232-4830
FSS
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
NOTAM
HON
Light Schedule
--
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
8
# Multi Engine
2
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Pilot Instruction
Runway 15/33
Dimensions
5300 ft. x 100 ft.
Surface Type
CONC TURF
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 15
Runway 33
True Heading
157°
337°
Traffic Pattern
Right
Left
Markings
NRS
NRS
Markings Condition
FAIR
FAIR
Latitude
42° 32' 46"N
42° 31' 58"N
Longitude
96° 29' 19"W
96° 28' 52"W
Elevation
1,107'
1,107'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
No
No
A110-2
FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
GRAHAM FLD (IATA: 7K7) is a public airport located in NORTH SIOUX CITY, SD.
