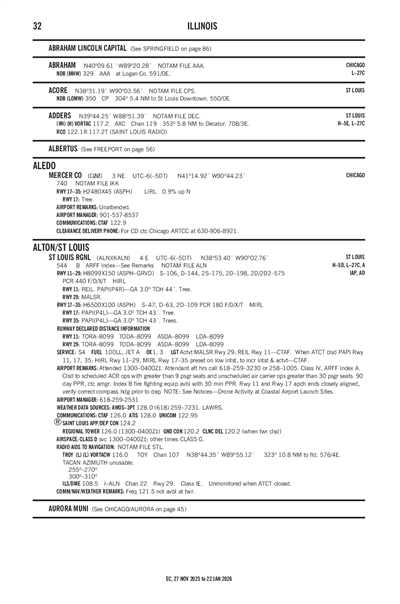

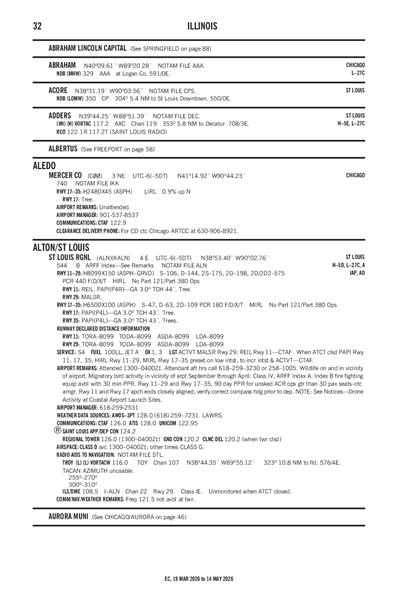

MERCER COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

C00
MERCER COUNTY
PublicPUB

3 miles NE of ALEDO, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 14' 55"N 90° 44' 14"W
740' MSL
1740' MSL
02E
None Listed
KANKAKEE (IKK)
CHICAGO
CHICAGO (ZAU)
5/16/24-6/13/24
KMLI (15nm) VFR
12:52 AM CDT
Clear
10sm
59°F
55°F
29.77"Hg
Calm
AO2 SLP077 T01500128 10261 20150 402830117 51005
KMLI 180552Z AUTO 00000KT 10SM CLR 15/13 A2977 RMK AO2 SLP077 T01500128 10261 20150 402830117 51005
List Your Business

C00 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

C00 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

C00 Hotels

No hotels are listed for this airport.

C00 Restaurants

No restaurants are listed for this airport.

C00 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KMLI (15nm)
Sat, 5/18 12:20 AM CDT
Sat, 5/18 1:00 AM CDT - Sun, 5/19 1:00 AM CDT
VFR
1:00 AM CDT - 1:00 PM CDT
Sky Clear
6sm
190° 7kts
VFR
1:00 PM CDT - 12:00 AM CDT
Few 5,000'
6sm
220° 9kts
VFR
12:00 AM CDT - 1:00 AM CDT
Scattered 9,000'
6sm
320° 6kts
KMLI 180520Z 1806/1906 19007KT P6SM SKC
   FM181800 22009KT P6SM FEW050
   FM190500 32006KT P6SM SCT090
C00
Domestic
5/17/240801Z !IKK 05/147 C00 OBST TOWER LGT (ASR 1009505) 411840.00N0904403.00W (3.8NM NE C00) 1168.0FT (357.9FT AGL) U/S 2405170801-2406132359
5/14/240433Z !IKK 05/120 C00 OBST TOWER LGT (ASR 1263702) 411202.20N0903329.10W (8.6NM ESE C00) 1051.8FT (254.9FT AGL) U/S 2405140433-2409110433
5/8/240534Z !IKK 05/074 C00 OBST TOWER LGT (ASR 1308410) 411123.96N0903530.48W (7.4NM ESE C00) 1024FT (247FT AGL) U/S 2405080534-2406082300
5/4/241715Z !IKK 05/039 C00 OBST TOWER LGT (ASN 2018-AGL-17546-OE) 411124N0903530W (7.4NM ESE C00) 1024FT (247FT AGL) U/S 2405041715-2406181715
5/4/240834Z !IKK 05/036 C00 OBST TOWER LGT (ASR 1200487) 411559.10N0904538.50W (1.5NM NW C00) 991.5FT (240.2FT AGL) U/S 2405040834-2406030001
No
UNATNDD
MIDWEST CUSTOM AG AVIATION
255 SCHILLING BLVD, SUITE 210
COLLIERVILLE, TN 61231
Phone: 309-582-5445
JEFF ELMORE
1276 HWY 94
ALEDO, IL 61231
Phone: 901-537-8537
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
IKK
Sunset to Sunrise
--
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
3
0
0
0
0
0
None
None
None
None
None

Runway 17/35

2480 ft. x 45 ft.
ASPH
Good
NONE
LOW

--
--
--
--
  Runway 17 Runway 35
True Heading 175°355°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 15' 08"N 41° 14' 43"N
Longitude 90° 44' 15"W 90° 44' 12"W
Elevation 742' 719'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
MERCER COUNTY (IATA: C00) is a public airport located in ALEDO, IL.
