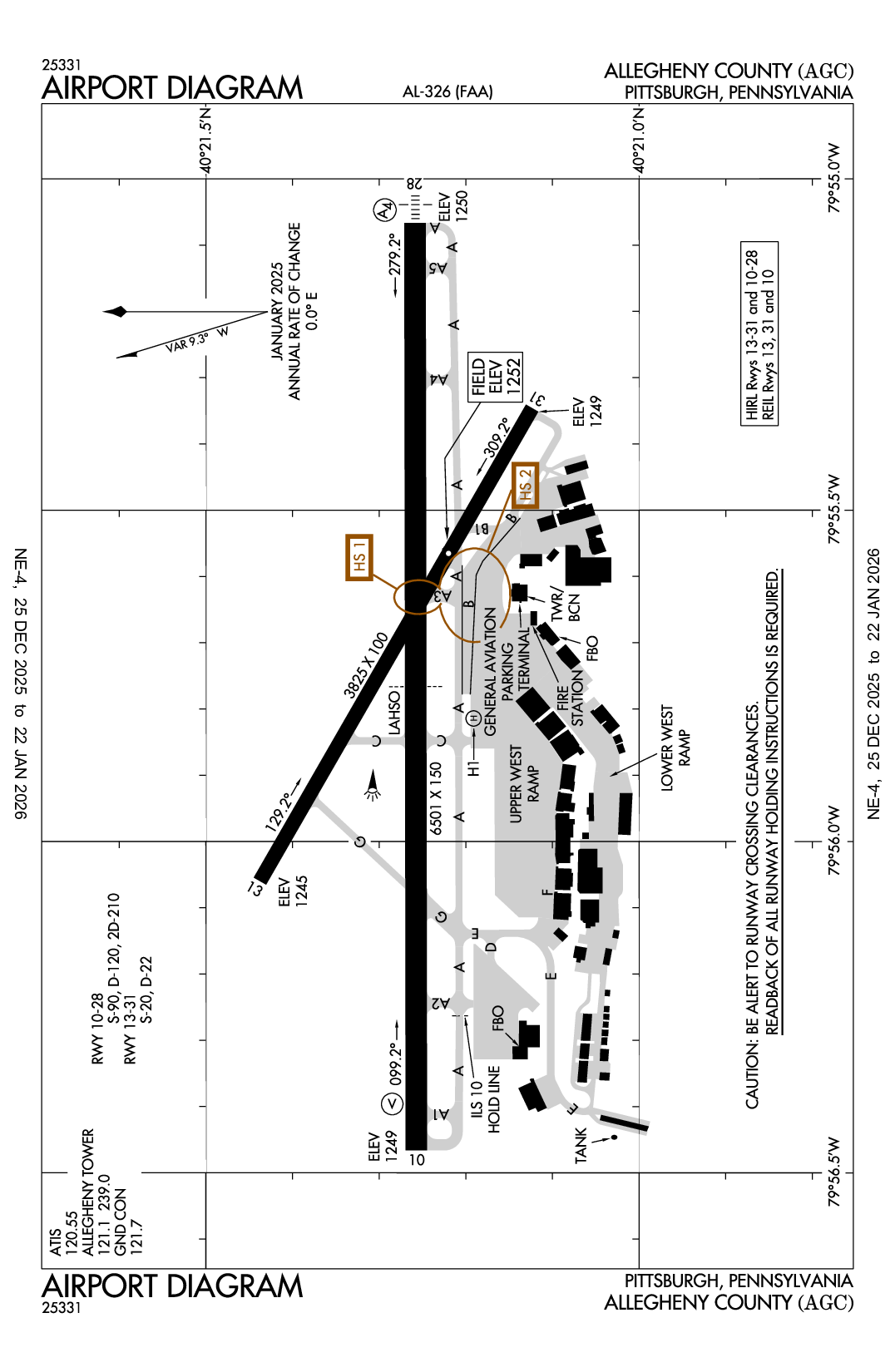

ALLEGHENY COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAGC
ALLEGHENY COUNTY
PublicPUB

4 miles SE of PITTSBURGH, PA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 21' 16"N 79° 55' 45"W
1252' MSL
2252' MSL
09W
Jet A, Jet A+, 100LL
ALTOONA (AOO)
DETROIT
CLEVELAND (ZOB)
5/16/24-6/13/24
KAGC VFR
10:53 PM EDT
Overcast 9,500'
Scattered 5,500'
7sm
64°F
61°F
29.89"Hg
170° 5kts
AO2 RAB24E53 SLP120 P0001 60001 T01780161 53005
KAGC 180253Z 17005KT 7SM SCT055 OVC095 18/16 A2989 RMK AO2 RAB24E53 SLP120 P0001 60001 T01780161 53005
List Your Business

KAGC FBOs, Flight Schools and Ground Support

Atlantic Aviation
Freq: 128.95
Phone: (412) 267-8000
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/27
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.64 6.80
Promote Listing
Corporate Air
Freq: 129.95
Phone: (412) 469-6800
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 4/27
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.90 5.81 5.88

KAGC Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KAGC Hotels

No hotels are listed for this airport.

KAGC Restaurants

No restaurants are listed for this airport.

KAGC Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
 120.55

ASOS

ASOS
412-466-8968
 120.55

Ground

GND/P
 121.7

Tower

LCL/P
 121.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAGC
Fri, 5/17 7:20 PM EDT
Fri, 5/17 8:00 PM EDT - Sat, 5/18 8:00 PM EDT
VFR
8:00 PM EDT - 11:00 PM EDT
Broken 10,000'
6sm
190° 5kts
MVFR
11:00 PM EDT - 3:00 AM EDT
Broken 2,500'
6sm
180° 6kts
MVFR
3:00 AM EDT - 1:00 PM EDT
Overcast 1,000'
6sm
190° 6kts
IFR
Temporary 5:00 AM EDT - 9:00 AM EDT
Mist
Broken 800'
3sm
Calm
VFR
1:00 PM EDT - 8:00 PM EDT
Broken 3,500'
6sm
350° 6kts
KAGC 172320Z 1800/1824 19005KT P6SM BKN100
   FM180300 18006KT P6SM BKN025
   FM180700 19006KT P6SM OVC010
   TEMPO 1809/1813 3SM BR BKN008
   FM181700 35006KT P6SM BKN035
KAGC
Domestic
5/20/240200Z !AGC 05/089 AGC TWY A1, A2, A4, A5 CLSD DLY 0200-1000 2405200200-2405241000
5/20/240200Z !AGC 05/088 AGC TWY A EAST OF RWY 31 CLSD DLY 0200-1000 2405200200-2405241000
5/20/240200Z !AGC 05/084 AGC TWY A WEST TWY A2 CLSD DLY 0200-1000 2405200200-2405241000
5/17/241421Z !AGC 05/093 AGC RWY 31 FICON 5/5/5 100 PCT WET OBS AT 2405171421. 2405171421-2405181421
5/17/241420Z !AGC 05/092 AGC RWY 28 FICON 5/5/5 100 PCT WET OBS AT 2405171420. 2405171420-2405181420
5/14/241414Z !AGC 05/063 AGC NAV ILS RWY 10 LOC U/S 2405141414-2405222000EST
5/13/241100Z !AGC 05/049 AGC OBST CRANE (ASN UNKNOWN) 402132N0795523W (.42NM NW APCH END RWY 28)
1232FT (125FT AGL) FLAGGED DLY 1100-2030 2405131100-2407312030
5/9/242310Z !AGC 05/039 AGC OBST TOWER LGT (ASR 1034045) 403033.00N0800022.00W (9.9NM NNW AGC) 1424.9FT (249.0FT AGL) U/S 2405092310-2406232309
5/8/240200Z !AGC 05/029 AGC RWY 28 RVR U/S WED THU FRI MON TUE 0200-1000 2405080200-2406211000
5/8/240200Z !AGC 05/028 AGC RWY 10 RWY END ID LGT U/S WED THU FRI MON TUE 0200-1000 2405080200-2406211000
5/8/240200Z !AGC 05/027 AGC RWY 10 VASI U/S WED THU FRI MON TUE 0200-1000 2405080200-2406231000
5/8/240200Z !AGC 05/026 AGC RWY 28 ALS U/S WED THU FRI MON TUE 0200-1000 2405080200-2406231000
5/8/240200Z !AGC 05/025 AGC NAV ILS RWY 10 U/S WED THU FRI MON TUE 0200-1000 2405080200-2406211000
5/8/240200Z !AGC 05/024 AGC NAV ILS RWY 28 U/S WED THU FRI MON TUE 0200-1000 2405080200-2406231000
5/6/241100Z !AGC 05/017 AGC OBST CRANE (ASN UNKNOWN) 402023N0795500W (.875NM SSE APCH END RWY 28)
1148FT (140FT AGL) FLAGGED MON-FRI 1100-2030 2405061100-2407052030
5/4/242303Z !AGC 05/016 AGC OBST TOWER LGT (ASR 1032235) 402748.00N0800015.00W (7.4NM NNW AGC) 2046.9FT (846.8FT AGL) U/S 2405042303-2409012303
4/29/240200Z !AGC 04/104 AGC RWY 10/28 CLSD MON-FRI 0200-1000 2404290200-2406241000
4/26/241142Z !AGC 04/103 AGC TWY A EAST OF TWY A3 LGTS HIGH INTST ON CONS 2404261142-2405262200
4/26/240635Z !AGC 04/101 AGC OBST TOWER LGT (ASR 1028562) 402819.20N0795939.60W (7.7NM NNW AGC) 2048.9FT (863.8FT AGL) U/S 2404260635-2407250400
4/23/241229Z !AGC 04/085 AGC NAV ILS RWY 10 NOT MNT 2404231229-2406072000EST
4/11/242345Z !AGC 04/030 AGC OBST TOWER LGT (ASR 1025877) 402455.10N0800217.70W (6.1NM NW AGC) 1716.9FT (477.0FT AGL) U/S 2404112345-2407100400
3/21/240622Z !AGC 03/058 AGC RWY 28 RAI LGT U/S 2403210622-2410012000EST
2/23/240410Z !AGC 02/076 AGC OBST TOWER LGT (ASR 1026012) 402622.00N0800240.20W (7.3NM NW AGC) 1516.1FT (421.9FT AGL) U/S 2402230410-2405220500
10/15/211324Z !AGC 10/014 AGC APRON MAIN TERMINAL RAMP PRKG 12HR PPR 412-759-7897 2110151324-PERM
FDC
4/26/241310Z !FDC 4/5659 AGC IAP ALLEGHENY COUNTY, PITTSBURGH, PA.
ILS OR LOC RWY 28, AMDT 29D...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGC VOR OUT OF SERVICE. 2404261310-2406261310EST
4/26/241310Z !FDC 4/5649 AGC IAP ALLEGHENY COUNTY, PITTSBURGH, PA.
ILS OR LOC RWY 10, AMDT 7A...
MISSED APPROACH: CLIMB TO 2000 THEN CLIMBING RIGHT TURN TO 3000 ON HEADING 279 AND EWC VOR/DME R-187 TO HYETO INT AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGC VOR OUT OF SERVICE. 2404261310-2406261310EST
2/29/241631Z !FDC 4/1220 AGC IAP ALLEGHENY COUNTY, PITTSBURGH, PA.
ILS OR LOC RWY 28, AMDT 29D...
ADD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 1900.
2402291631-2602281631EST
Yes
ALL
ALLEGHENY CO ARPT AUTHORITY
PO BOX 12370
PITTSBURGH, PA 15231-0370
Phone: 412-472-3500
LANCE BAGNOFF
12 ALLEGHENY COUNTY AIRPORT
WEST MIFFLIN, PA 15122-2656
Phone: (412) 466-4327
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
AGC
--
ATC-CTL
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
41
8
21
1
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction

Runway 10/28

6501 ft. x 150 ft.
CONC
Good
GRVD
HIGH

90,000lbs
120,000lbs
210,000lbs
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 21' 15"N 40° 21' 16"N
Longitude 79° 56' 28"W 79° 55' 04"W
Elevation 1,249' 1,250'
Threshold Crossing Height 47 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator V4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 13/31

3825 ft. x 100 ft.
CONC
Good
GRVD
HIGH

20,000lbs
22,000lbs
--
--
  Runway 13 Runway 31
True Heading 120°300°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 21' 26"N 40° 21' 07"N
Longitude 79° 56' 04"W 79° 55' 21"W
Elevation 1,245' 1,249'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

47 ft. x 45 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3BIRDS & DEER ON & INVOF ARPT.
ALLEGHENY COUNTY (ICAO: KAGC, IATA: AGC) is a public airport located in PITTSBURGH, PA.
