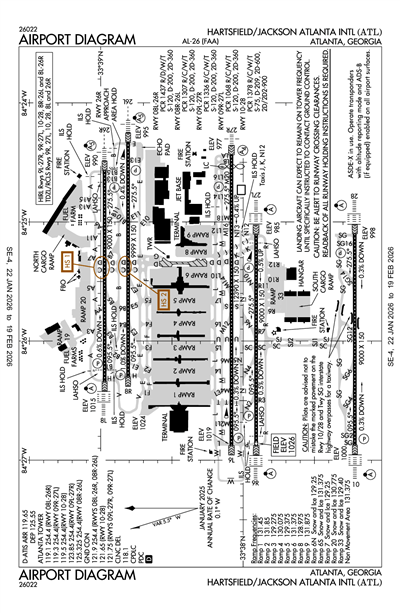

HARTSFIELD - JACKSON ATLANTA INTL - Airport Diagram

KATL

HARTSFIELD - JACKSON ATLANTA INTL

PublicPUB

7 miles S of ATLANTA, GA

View on Map

Status

Operational

Coordinates

33° 38' 12"N 84° 25' 40"W

Elevation

1026' MSL

Pattern Alt

2026' MSL

Mag Variation

05W

Fuel

Jet A, 100LL, 100

FSS

MACON (MCN)

Sectional

ATLANTA

ARTCC

ATLANTA (ZTL)

Data Effective

5/16/24-6/13/24

KATL MVFR

2:02 AM EDT RAW

Overcast 1,200'
Scattered 800'

Viz

10sm

Temp

69°F

Dew

65°F

Pres

29.89"Hg

Wind

180° 5kts

RMK

AO2 CIG 010V014 T02060183

KATL 180602Z 18005KT 10SM SCT008 OVC012 21/18 A2989 RMK AO2 CIG 010V014 T02060183

List Your Business

KATL FBOs, Flight Schools and Ground Support

Promote Listing

Signature Aviation

Freq: 131.5

Phone: (404) 761-1960

0 Reviews (Read | Sign In To Write)

Independent

As of 5/17	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve
Full Serve	8.05	10.15

KATL Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KATL Hotels

No hotels are listed for this airport.

KATL Restaurants

No restaurants are listed for this airport.

KATL Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 122.95 CTAF --

ATIS

D-ATIS ARR	119.65
D-ATIS DEP	125.55

Clearance Delivery

CD/P

118.1

Emergency

EMERG

121.5

Ground

GND/P RWY 10/28	121.65
GND/P RWY 09L/27R, 09R/27L	121.75
GND/P RWY 08L/26R, 08R/26L	121.9

Tower

LCL/P RWY 08L/26R	119.1
LCL/P RWY 09R/27L	119.3
LCL/P RWY 10/28	119.5
LCL/P RWY 09L/27R	123.85
LCL/P RWY 08R/26L	125.325

Other

PRM RWY 08L/26R, 08R/26L	126.9
PRM RWY 09L/27R, 09R/27L	132.55
PRM RWY 10/28	133.425
RAMP CTL RAMP 8	128.97
RAMP CTL RAMP 7 SNOW AND ICE	129.25
RAMP CTL RAMP 6N SNOW AND ICE	129.25
RAMP CTL RAMP 3	129.27
RAMP CTL RAMP 5	129.37
RAMP CTL RAMP 33 SNOW AND ICE	129.4
RAMP CTL RAMP 4	130.07
RAMP CTL RAMP 20 SNOW AND ICE	130.775
RAMP CTL NON MOVEMENT AREA	131.37
RAMP CTL RAMP 6	131.37
RAMP CTL RAMP 6S SNOW AND ICE	131.375
RAMP CTL RAMP 1	131.45
RAMP CTL RAMP 2	131.85
RAMP CTL RAMP 9	131.87

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

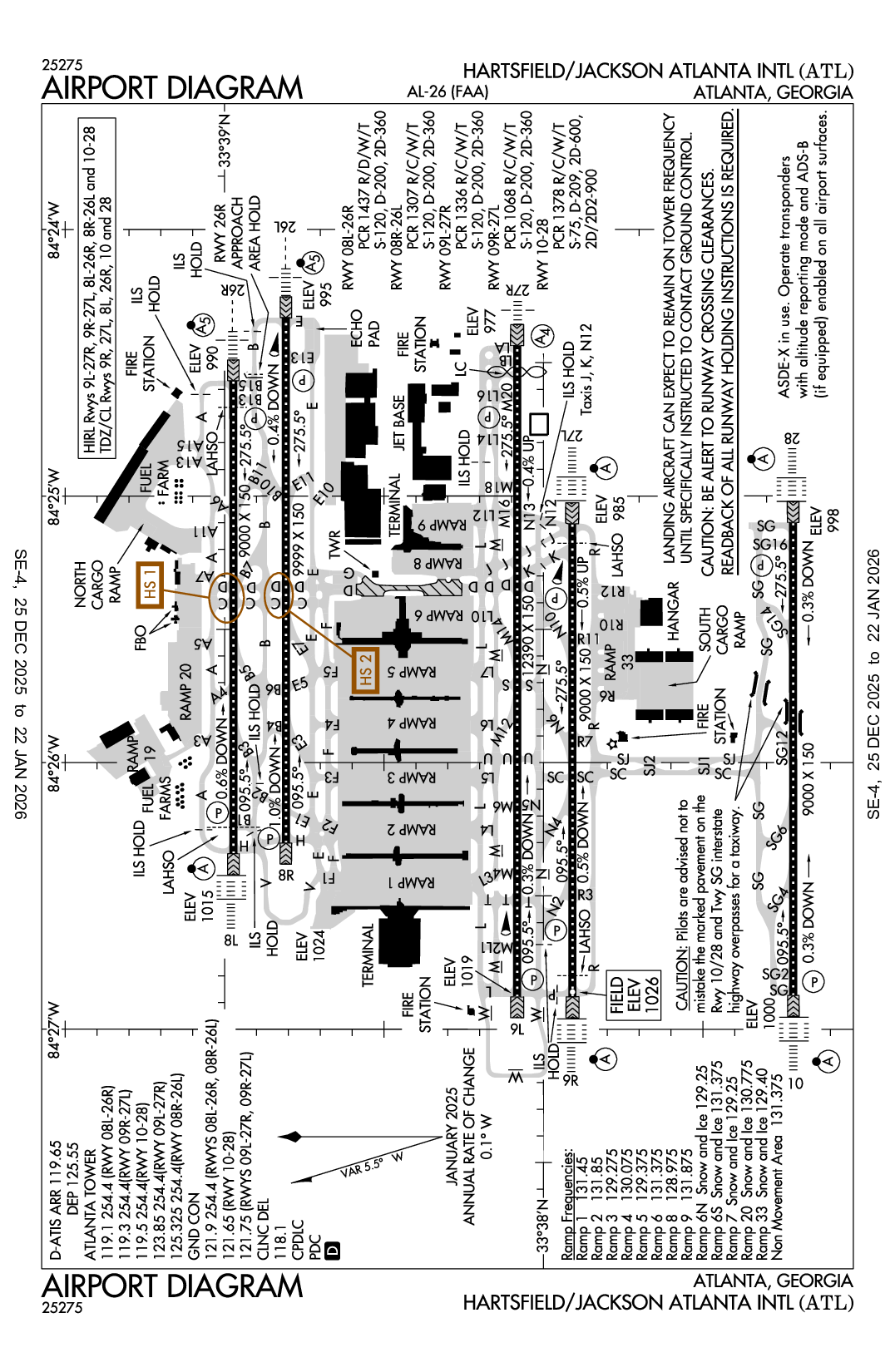

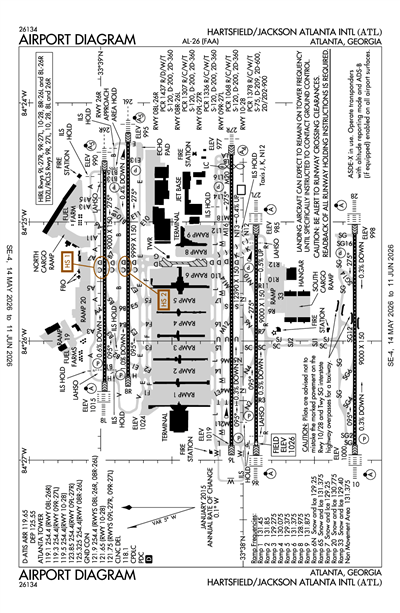

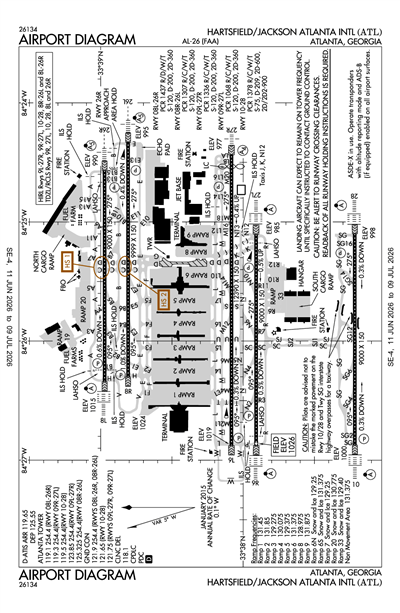

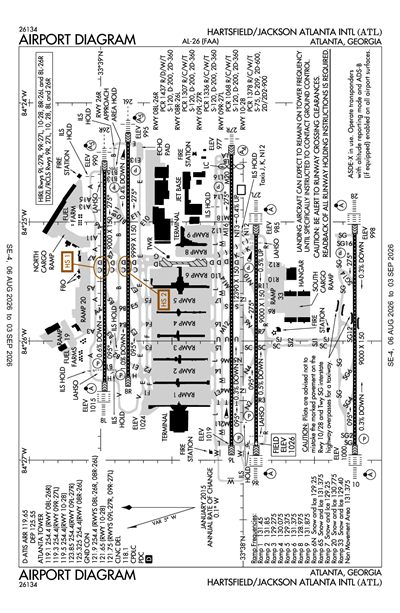

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

Hotspot

HOT SPOT

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KATL

RAW

Reported

Sat, 5/18 1:31 AM EDT

Valid

Sat, 5/18 2:00 AM EDT - Sun, 5/19 8:00 AM EDT

IFR

2:00 AM EDT - 4:00 AM EDT

Broken 900'

Viz

6sm

Wind

190° 4kts

IFR

4:00 AM EDT - 9:00 AM EDT

Light Showers and Rain and Mist

Broken 600'

Viz

5sm

Wind

210° 4kts

IFR

9:00 AM EDT - 11:00 AM EDT

Broken 800'

Viz

6sm

Wind

230° 5kts

MVFR

11:00 AM EDT - 2:00 PM EDT

Showers in vicinity

Broken 1,500'
Scattered 800'

Viz

6sm

Wind

250° 6kts

VFR

2:00 PM EDT - 2:00 AM EDT

Showers in vicinity

Broken 3,500'

Viz

6sm

Wind

230° 7kts

MVFR

4:00 PM EDT - 10:00 PM EDT

Thunderstorm and Rain

Broken 1,500'

Viz

4sm

Wind

Calm

MVFR

2:00 AM EDT - 8:00 AM EDT

Broken 2,000'
Scattered 1,200'

Viz

6sm

Wind

290° 5kts

KATL 180531Z 1806/1912 19004KT P6SM BKN009
   FM180800 21004KT 5SM -SHRA BR BKN006
   FM181300 23005KT P6SM BKN008
   FM181500 25006KT P6SM VCSH SCT008 BKN015
   FM181800 23007KT P6SM VCSH BKN035
   PROB30 1820/1902 4SM TSRA BKN015CB
   FM190600 29005KT P6SM SCT012 BKN020

KATL

Domestic
5/20/240400Z	!ATL 05/355 ATL RWY 09L/27R CLSD 2405200400-2405201030
5/20/240330Z	!ATL 05/357 ATL RWY 10/28 CLSD 2405200330-2405201030
5/20/240100Z	!ATL 05/356 ATL RWY 09R/27L CLSD 2405200100-2405201030
5/19/240400Z	!ATL 05/354 ATL RWY 09L/27R CLSD 2405190400-2405191030
5/18/241515Z	!ATL 05/358 ATL AIRSPACE SEE FDC 4/6134 ZTL 91.141 VIP TFR 2405181515-2405191645
5/18/240713Z	!ATL 05/372 ATL RWY 26L FICON 5/5/5 100 PCT WET OBS AT 2405180713. 2405180713-2405190713
5/18/240712Z	!ATL 05/371 ATL RWY 26R FICON 5/5/5 100 PCT WET OBS AT 2405180712. 2405180712-2405190712
5/18/240712Z	!ATL 05/370 ATL RWY 27L FICON 5/5/5 100 PCT WET OBS AT 2405180711. 2405180712-2405190712
5/18/240711Z	!ATL 05/369 ATL RWY 28 FICON 5/5/5 100 PCT WET OBS AT 2405180521. 2405180711-2405190711
5/18/240409Z	!ATL 05/367 ATL APRON NUMBER 2 SOUTHWEST RAMP CLSD 2405180409-2405181030
5/18/240400Z	!ATL 05/365 ATL TWY L WEST OF NUMBER 2 RAMP CLSD 2405180400-2405181030
5/18/240400Z	!ATL 05/364 ATL APRON NUMBER 1 SOUTH RAMP ACCESS CLSD 2405180400-2405181030
5/18/240400Z	!ATL 05/363 ATL TWY W CLSD 2405180400-2405181030
5/18/240400Z	!ATL 05/361 ATL TWY M WEST OF TWY U CLSD 2405180400-2405181030
5/18/240400Z	!ATL 05/360 ATL TWY M BTN TWY L7 AND TWY M16 CLSD 2405180400-2405181030
5/18/240400Z	!ATL 05/359 ATL TWY L, M CLSD EAST OF NUMBER 9 RAMP 2405180400-2405181030
5/18/240400Z	!ATL 05/353 ATL RWY 09L/27R CLSD 2405180400-2405181030
5/17/241417Z	!ATL 05/352 ATL TWY N6 HLDG PSN MARKINGS FOR RWY 09R/27L OBSC 2405171417-2407311030
5/17/241413Z	!ATL 05/351 ATL TWY N6 CL MARKINGS AT RWY 09R/27L OBSC 2405171413-2407311030
5/17/241117Z	!ATL 05/348 ATL TWY M EDGE MARKINGS BTN TWY L7 AND TWY M18 NOT STD 2405171117-2405201030
5/17/241111Z	!ATL 05/347 ATL TWY M2 HLDG PSN MARKINGS FOR RWY 09L/27R NOT STD 2405171111-2405201030
5/16/241922Z	!ATL 05/332 ATL TWY A11 EDGE MARKINGS WEST SIDE OBSC 2405161922-2407012200
5/16/241430Z	!ATL 05/330 ATL TWY A7 CLSD 2405161430-2408312200
5/15/240932Z	!ATL 05/306 ATL TWY F BTN TWY F3 AND TWY F4 CLSD TO ACFT WINGSPAN MORE THAN 214FT 2405150932-2405211030
5/15/240900Z	!ATL 05/305 ATL APRON NUMBER 3 NORTHEAST RAMP CLSD 2405150900-2405211030
5/14/241912Z	!ATL 05/288 ATL OBST TOWER LGT (ASR 1230833) 334050.00N0842322.00W (3.3NM NE ATL) 1207.0FT (311.4FT AGL) U/S 2405141912-2406142359
5/13/241130Z	!ATL 05/260 ATL TWY N BTN TWY S AND TWY N10 CLSD 2405131130-2405201030
5/13/240742Z	!ATL 05/261 ATL TWY D SFC PAINTED HLDG PSN SIGNS FOR RWY 09L/27R NORTHWEST SIDE NOT STD 2405130742-2405201030
5/8/241712Z	!ATL 05/161 ATL NAV ILS RWY 09L U/S 2405081712-2406282000
5/8/240130Z	!ATL 05/158 ATL OBST TOWER LGT (ASR 1206253) 334440.90N0842135.70W (7.4NM NNE ATL) 2049.2FT (1080.1FT AGL) U/S 2405080130-2406220115
5/5/241608Z	!ATL 05/108 ATL OBST TOWER LGT (ASR 1020083) 333945.40N0842227.10W (3.1NM ENE ATL) 1158.1FT (250.0FT AGL) U/S 2405051608-2405210400
5/1/241115Z	!ATL 05/020 ATL RWY 09L RVRR U/S 2405011115-2409012359EST
5/1/241115Z	!ATL 05/019 ATL RWY 27R RVRT U/S 2405011115-2409012359EST
5/1/241103Z	!ATL 05/017 ATL NAV ILS RWY 09L DME UNUSABLE 2405011103-2409012359EST
5/1/240544Z	!ATL 05/014 ATL NAV ILS RWY 27R U/S 2405010544-2409012359EST
4/24/241921Z	!ATL 04/436 ATL TWY D BTN TWY A AND GA RAMP CLSD 2404241921-2408151200
4/22/241754Z	!ATL 04/398 ATL TWY N2 CL MARKINGS AT RWY 09R/27L LEAD OFF LINE OBSC 2404221754-2407011030
4/22/241706Z	!ATL 04/397 ATL TWY L10 GEOGRAPHIC PSN MARKINGS AT TWY L @ RAMP 8 SOUTH OBSC 2404221706-2407011030
4/22/241706Z	!ATL 04/396 ATL TWY D GEOGRAPHIC PSN MARKINGS 100FT SOUTH RAMP 8 WEST OBSC 2404221706-2407011030
4/22/241652Z	!ATL 04/395 ATL TWY E5 SFC PAINTED HLDG PSN SIGNS WEST SIDE OBSC 2404221652-2407011030
4/22/241649Z	!ATL 04/394 ATL TWY C SFC PAINTED HLDG PSN SIGNS FOR RWY 08R/26L NORTH SIDE OBSC 2404221649-2407011030
4/22/241647Z	!ATL 04/393 ATL TWY D CL MARKINGS AT TWY D AT RAMP 6 EAST OBSC 2404221647-2407011030
4/22/241643Z	!ATL 04/392 ATL TWY D CL MARKINGS BTN TXL D AND TWY L OBSC 2404221643-2407011030
4/22/241638Z	!ATL 04/391 ATL TWY D CL MARKINGS BTN TWY M AND TWY N OBSC 2404221638-2407011030
4/22/241545Z	!ATL 04/385 ATL TWY L CL MARKINGS BTN NUMBER 3 SOUTH RAMP ACCESS AND TWY L5 EAST SIDE OBSC 2404221545-2407011030
4/22/241539Z	!ATL 04/384 ATL TWY LC CL MARKINGS FOR RWY 09L/27R OBSC 2404221539-2407011030
4/22/241537Z	!ATL 04/383 ATL TWY M2 CL MARKINGS FOR RWY 09L/27R OBSC 2404221537-2407011030
4/22/241534Z	!ATL 04/382 ATL TWY S CL MARKINGS BTN TWY N AND TWY M OBSC 2404221534-2407011030
4/22/241527Z	!ATL 04/380 ATL TWY E10 CL MARKINGS OBSC 2404221527-2407011030
4/22/241516Z	!ATL 04/379 ATL TWY R7 CL MARKINGS AT RWY 9R/27L WEST SIDE OBSC 2404221516-2407011030
4/22/241342Z	!ATL 04/375 ATL AD AP WINDCONE FOR RWY 10 U/S 2404221342-2406302100
4/18/241505Z	!ATL 04/285 ATL RWY 28 1000FT DIST REMAINING SIGN LEFT SIDE MISSING 2404181505-2406181500
4/18/241503Z	!ATL 04/284 ATL RWY 10 8000FT DIST REMAINING SIGN RIGHT SIDE MISSING 2404181503-2406181500
4/3/241000Z	!ATL 04/044 ATL NAV ILS RWY 10 GP U/S 2404031000-2408302030
3/27/241030Z	!ATL 03/420 ATL NAV ATL GSU (ATLANTA) DME U/S 2403271030-2409272359
3/20/241728Z	!ATL 03/298 ATL OBST TOWER LGT (ASN 2021-ASO-7363-OE) 333224N0842504W (5.8NM S ATL) 1085FT (148FT AGL) U/S 2403201728-2406192359
2/21/241405Z	!ATL 02/292 ATL OBST CRANE (ASN 2023-ASO-8460-NRA) 333838N0842548W (0.5NM NNW ATL) 1184FT (180FT AGL) FLAGGED AND LGTD 2402211405-2405312200
2/8/241600Z	!ATL 02/104 ATL AIRSPACE CONTROLLED BURN WI AN AREA DEFINED AS .5NM RADIUS OF ATL SFC-2000FT AGL THU 1600-2000 2402081600-2410312000
10/9/231459Z	!ATL 10/131 ATL APRON NUMBER 6 NORTH RAMP CLSD N OF GATE E33 2310091459-2410311200
FDC
5/2/241822Z	!FDC 4/7803 ATL IAP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. ILS OR LOC RWY 9L, AMDT 11... S-ILS 9L DA 1444/HAT 425 ALL CATS, VIS ALL CATS 1 1/4. S-LOC 9L MDA 1580/HAT 561 ALL CATS, VIS CATS C/D 1 5/8. SIDESTEP 9R MDA 1580/HAT 554 ALL CATS, VIS CATS C/D 1 5/8. VDP AT I-HZK 3.3 DME; DISTANCE VDP TO THLD 1.5NM. INOP TABLE DOES NOT APPLY TO SIDESTEP 9R CAT C. FOR INOP ALS TO RWY 9R, INCREASE SIDESTEP 9R CAT D VISIBILITY TO 2 SM. TEMPORARY CRANES 1302 MSL BEGINNING 2131FT NE OF RWY 9L (2023-ASO-5502 THRU 5505-NRA). TEMPORARY CRANE 1240 MSL 1067FT NW OF RWY 9L (2023-ASO-3166-NRA). 2405021822-2407121822EST
5/2/241822Z	!FDC 4/7801 ATL IAP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. RNAV (GPS) RWY 09L, AMDT 4D... LPV DA 1444/HAT 425 ALL CATS, VIS ALL CATS 1 1/4. LNAV/VNAV DA 1513/HAT 494 ALL CATS, VIS ALL CATS 1 3/8. LNAV MDA 1620/HAT 601 ALL CATS, VIS CATS C/D 1 3/4. VDP 1.7 NM TO RW09L. TEMPORARY CRANES 1302 MSL BEGINNING 2131FT NE OF RWY 9L (2023-ASO-5502 THRU 5505-NRA). TEMPORARY CRANE 1240 MSL 2552FT N OF RWY 9L (2023-ASO-3161-NRA). TEMPORARY CRANE 1240 MSL 1067FT NW OF RWY 9L (2023-ASO-3166-NRA). 2405021822-2407121822EST
5/2/241822Z	!FDC 4/7800 ATL ODP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8... ADD TAKEOFF OBSTACLE NOTES: RWY 26L, TEMPORARY CRANE, 998FT FROM DER, 524FT LEFT OF CENTERLINE, 45FT AGL/1065FT MSL (2020-ASO-6421-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2405021822-2407121822EST
4/12/241226Z	!FDC 4/0138 ATL IAP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. RNAV (GPS) Y RWY 08L, AMDT 4A... LNAV/VNAV DA 1488/HAT 473 ALL CATS, VIS ALL CATS RVR 5000. LNAV MDA 1580/HAT 565 ALL CATS, VIS CATS C/D 1 1/4. VDP 1.6 NM TO RW08L. CHANGE NOTE TO READ: FOR INOP ALSF-2, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 1 3/8 MILES, AND LNAV CATS C/D VISIBILITY TO 1 5/8 MILES. TEMPORARY CRANES 1302 MSL BEGINNING 4154FT S OF RWY 8L (2023-ASO-5502 THRU 5505-NRA). TEMPORARY CRANE 1240 MSL 4393FT SW OF RWY 8L (2023-ASO-3161-NRA). 2404121226-2406151226EST
4/12/241226Z	!FDC 4/0137 ATL IAP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. RNAV (GPS) RWY 8R, AMDT 4A... LNAV MDA 1620/HAT 596 ALL CATS, VIS CATS C/D 1 3/4. VDP 1.7 NM TO RW08R. TEMPORARY CRANES 1302 MSL BEGINNING 3236FT S OF RWY 8R (2023-ASO-5502 THRU 5505-NRA). TEMPORARY CRANE 1240 MSL 3981FT SW OF RWY 8R (2023-ASO-3161-NRA). 2404121226-2406151226EST
3/25/241139Z	!FDC 4/1081 ATL IAP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. RNAV (GPS) PRM RWY 9R, ORIG-A... LNAV/VNAV DA 1513/HAT 487 ALL CATS, VIS ALL CATS RVR 5000. FOR INOP ALS, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 1 3/8 SM. TEMPORARY CRANES 1302 MSL BEGINNING 2866FT NE OF RWY 9R (2023-ASO-5502 THRU 5505-NRA). TEMPORARY CRANE 1240 MSL 3585FT N OF RWY 9R (2023-ASO-3161-NRA). TEMPORARY CRANE 1240 MSL 2055FT N OF RWY 9R (2023-ASO-3166-NRA). 2403251139-2701151139EST
3/25/241139Z	!FDC 4/1079 ATL IAP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. RNAV (GPS) RWY 9R, AMDT 4B... LNAV/VNAV DA 1513/HAT 487 ALL CATS, VIS ALL CATS RVR 5000. LNAV MDA 1620/HAT 594 ALL CATS, VIS CATS C/D 1 1/4. VDP 1.6 NM TO RW09R. FOR INOP ALS, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 1 3/8 SM. TEMPORARY CRANES 1302 MSL BEGINNING 2866FT NE OF RWY 9R (2023-ASO-5502 THRU 5505-NRA). TEMPORARY CRANE 1240 MSL 3585FT N OF RWY 9R (2023-ASO-3161-NRA). TEMPORARY CRANE 1240 MSL 2055FT N OF RWY 9R (2023-ASO-3166-NRA). 2403251139-2701151139EST
1/25/241407Z	!FDC 4/7862 ATL IAP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. ILS RWY 08L (SA CAT I), AMDT 6 ... ILS RWY 09R (SA CAT I), AMDT 20 ... ILS RWY 27L (SA CAT I), AMDT 19 ... ILS RWY 28 (SA CAT I), AMDT 5 ... ILS RWY 26R (SA CAT I - II), AMDT 8 ... ILS RWY 27L (CAT II), AMDT 19 ... ILS RWY 28 (CAT II), AMDT 5 ... ILS RWY 08L (CAT II - III), AMDT 6 ... ILS RWY 09R (CAT II - III), AMDT 20 ... ILS RWY 10 (SA CAT I), AMDT 5C ... ILS RWY 10 (CAT II - III), AMDT 5C ... PROCEDURE NA EXC FOR RDO ALTIMETER TOLERANT ACFT AND ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVE 2023-10-02 AND 5G C-BAND DOMESTIC NOTICE. 2401251407-2601251407EST
1/19/242028Z	!FDC 4/5857 ATL IAP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. ILS RWY 10 (CAT II-III), AMDT 5B ... ILS PRM RWY 10 (CAT II-III), AMDT 5 ... NOTE: LOCALIZER NOT SUITABLE FOR ELECTRONIC ROLLOUT GUIDANCE. 2401192028-2601202023EST
10/2/231921Z	!FDC 3/8655 ATL IAP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. RNAV (RNP) Z RWY 10, AMDT 1... VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 69). 2310021921-2510021921EST
10/2/231921Z	!FDC 3/8653 ATL IAP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. RNAV (RNP) Z RWY 28, AMDT 1... VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 72). 2310021921-2510021921EST
10/2/231921Z	!FDC 3/8652 ATL IAP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. RNAV (RNP) Z RWY 26R, AMDT 1... FOR INOPERATIVE ALS, INCREASE RNP 0.30 DA ALL CATS VISIBILITY TO RVR 6000. 2310021921-2510021921EST
7/7/231709Z	!FDC 3/2951 ATL IAP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. ILS PRM RWY 08L (SA CAT I), AMDT 3 ... ILS PRM RWY 09R (SA CAT I), AMDT 3 ... ILS PRM RWY 10 (SA CAT I), AMDT 5 ... ILS PRM RWY 27L (SA CAT I), AMDT 4 ... ILS PRM RWY 28 (SA CAT I), AMDT 5 ... ILS PRM RWY 26R (SA CAT I - II), AMDT 4 ... ILS PRM RWY 08L (CAT II - III), AMDT 3 ... ILS PRM RWY 09R (CAT II - III), AMDT 3 ... ILS PRM RWY 10 (CAT II - III), AMDT 5 ... ILS PRM RWY 28 (CAT II), AMDT 5 ... ILS PRM RWY 27L (CAT II), AMDT 4 ... PROCEDURE NA EXC FOR RDO ALTIMETER TOLERANT ACFT AND ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVE 2023-10-02 AND 5G C-BAND DOMESTIC NOTICE. 2307071704-2507071709EST 2307071709-2507071709EST
4/20/231236Z	!FDC 3/4685 ATL IAP HARTSFIELD - JACKSON ATLANTA INTL, ATLANTA, GA. ILS OR LOC RWY 27R, AMDT 8... PROCEDURE NA. 2304201236-2504181236EST

ATC Tower

Yes

Attendance

ALL

Owner

CITY OF ATLANTA
CITY HALL
ATLANTA, GA 30303
Phone: 404-330-6000

Manager

BALRAM BHEODARI
PO BOX 20509
ATLANTA, GA 30320
Phone: 404-530-6600

FSS

MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF

NOTAM

ATL

Light Schedule

Lights

Beacon

N/A
ROTG BCN LCTD S OF TWY R7, N OF TWY SJ2 NR FIRE STATION.

Wind Indicator

Yes

Segmented Cir.

Landing Fee

Yes

Parking

Hangar

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

High & Low Pressure

Other Services

Air Ambulance
Cargo Handling
Charter Service

Runway 08L/26R

Dimensions

9000 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

105/R/B/W/T

Single Wheel

120,000lbs

Double Wheel

200,000lbs

Double Tandem

360,000lbs

Dual Dbl Tand

	Runway 08L	Runway 26R
True Heading	90°	270°
Traffic Pattern
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	33° 38' 58"N	33° 38' 58"N
Longitude	84° 26' 20"W	84° 24' 34"W
Elevation	1,015'	990'
Threshold Crossing Height	70 ft. AGL	69 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	ALSF2	MALSR
Centerline Lights	Yes	Yes
Runway End Identifier Lights

Runway 08R/26L

Dimensions

9999 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

74 /R/A/W/T

Single Wheel

120,000lbs

Double Wheel

200,000lbs

Double Tandem

360,000lbs

Dual Dbl Tand

	Runway 08R	Runway 26L
True Heading	90°	270°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	33° 38' 48"N	33° 38' 48"N
Longitude	84° 26' 18"W	84° 24' 20"W
Elevation	1,024'	995'
Threshold Crossing Height	67 ft. AGL	63 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights	Yes	Yes
Runway End Identifier Lights

Runway 09L/27R

Dimensions

12390 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

62 /R/A/W/T

Single Wheel

120,000lbs

Double Wheel

200,000lbs

Double Tandem

360,000lbs

Dual Dbl Tand

	Runway 09L	Runway 27R
True Heading	90°	270°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	33° 38' 05"N	33° 38' 05"N
Longitude	84° 26' 53"W	84° 24' 26"W
Elevation	1,019'	977'
Threshold Crossing Height	71 ft. AGL	72 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4R
Approach Lights		MALS
Centerline Lights	Yes	Yes
Runway End Identifier Lights

Runway 09R/27L

Dimensions

9000 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

68 /R/A/W/T

Single Wheel

120,000lbs

Double Wheel

200,000lbs

Double Tandem

360,000lbs

Dual Dbl Tand

	Runway 09R	Runway 27L
True Heading	90°	270°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	33° 37' 55"N	33° 37' 55"N
Longitude	84° 26' 53"W	84° 25' 06"W
Elevation	1,026'	985'
Threshold Crossing Height	70 ft. AGL	79 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4R
Approach Lights	ALSF2	ALSF2
Centerline Lights	Yes	Yes
Runway End Identifier Lights

Runway 10/28

Dimensions

9000 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

74 /R/A/W/T

Single Wheel

75,000lbs

Double Wheel

209,000lbs

Double Tandem

600,000lbs

Dual Dbl Tand

900,000lbs

	Runway 10	Runway 28
True Heading	90°	270°
Traffic Pattern	Right
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	33° 37' 13"N	33° 37' 13"N
Longitude	84° 26' 52"W	84° 25' 06"W
Elevation	1,000'	998'
Threshold Crossing Height	69 ft. AGL	72 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4R
Approach Lights	ALSF2	ALSF2
Centerline Lights	Yes	Yes
Runway End Identifier Lights

A110-11	ALL RWYS, TOUCH AND GO OPERATIONS, LOW APPROACHES, AND PRACTICE INSTRUMENT APPROACHES NOT PERMITTED.
A110-12	GROUP VI ACFT (LOCKHEED GALAXY C-5; ANTONOV AN-124 & AN-125) WITH A WINGSPAN OF GREATER THAN 214 FT ARE RESTRICTED FM USING TWY F EAST OF RAMP 5 NORTH AND WEST OF TWY D.
A110-14	ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.
A110-15	ACFT WITH WINGSPAN GREATER THAN 171 FT ARE RSTRD FROM USING TWY V. ACFT WITH WINGSPAN GREATER THAN 171 FT ARE REQUIRED TO USE TAXI SPEEDS LESS THAN 15 MPH WHEN PASSING ACFT WITH WINGSPAN GREATER THAN 214FT ON TXWY L/M (EAST OF L7).
A110-16	RWY 9L DEPARTURES CAN EXPECT INTERSECTION DEPARTURE FM M2 WITH RWY REMAINING 11,440 FT (TORA/TODA) AND 10,780 (ASDA).
A110-17	ALL ACFT WITH WINGSPANS GREATER THAN 214 FT ARE REQUIRED TO USE TAXI SPEEDS NOT GREATER THAN 15 MPH ON TWYS A, L, M, AND SJ.
A110-18	WHEN ACFT WITH WINGSPANS GREATER THAN 214 FT ARE PRESENT ON THE FIELD, ALL OTHER ACFT MUST ADHERE TO THE TWY CENTERLINE ON TWYS L AND M, TWYS E AND F, AND TWYS SC AND SJ BETWEEN SG AND R DUE TO SEPARATION BETWEEN THE PARALLEL TWYS.
A110-20	TWO ACFT WITH WINGSPANS GTR THAN 225 FT MAY NOT TAXI SIMUL ON ADJ PARL TWYS L/M EXCP WEST OF L7 AT SPEEDS LESS THAN 15 MPH.
A110-21	NO ACFT WITH WINGSPAN GREATER THAN 213 FT MAY PASS ANOTHER ACFT WITH WINGSPAN GREATER THAN OR EQUAL TO 225 FT ON TWY L/M EAST OF L7.
A110-22	NO ACFT WITH WINGSPAN GTR THAN 225 FT MAY TAXI ON TWY M BTN L14 AND L16, TWY N BTN P AND SC, AND TWY N BTN U AND K.
A110-23	ACFT WITH WINGSPAN GTR THAN 171 FT AND/OR TAIL HGT GTR THAN 45 FT ARE RSTD FROM USING TWY W. DURG TWY W OPNS RWY 27R INTXN DEPS FROM TWY LB OR TWY LC CAN EXPC THE FLWG DSTCS WITH RWY RMNG: FROM TWY LB 11,040 FT (TORA/TODA) AND 12,140 FT (ASDA); FROM TWY LC 10,810 FT (TODA/TODA) AND 11,910 FT (ASDA). ACFT MAY REQ THE FULL LEN OF RWY 27R FOR DEP UPON INITIAL CTC WITH ATC.
A110-24	BIRD ACT ON AND INVOF ARPT.
A110-25	MARKINGS PRLY OBSC ON RWY 08L/26R, RWY 09R/27L, AND RWY 10/28 DUE TO RUBBER BUILD-UP.
A110-26	ACFT SHOULD NOT EXCT THE ACUTE ANGLED TWY TURN EBND TO NBND FROM TWY N TO TWY J.
A110-3	BE ALERT TO RWY CROSSING CLEARANCES. READBACK OF ALL RWY HOLDING INSTRUCTIONS IS REQUIRED.
A110-7	PREFERENTIAL RWY USE IN EFFECT, EXPECT TO USE RWYS 08R/26L, 09L/27R FOR DEPS; RWYS 08L/26R, 09R/27L ARE USED PRIMARILY FOR ARRIVALS.
A110-8	RUNUPS ARE PERMITTED AT VARIOUS SITES; COORD USE OF CITY FACS, MOVEMENT AREAS, ALLOWABLE NON-MOVEMENT AREAS WITH DEPT OF AVN OPNS, 404-787-6095; AND COORD THE USE OF THE AIRLINES FACS WITH THEM.
A110-9	NOISE & OPNS MONITORING SYSTEM (NOMS) PROGRAM IN EFFECT; CALL THE ATLANTA DEPT OF AVIATION 770-43-NOISE OR 770-436-6473 FOR MORE INFO.

HARTSFIELD - JACKSON ATLANTA INTL (ICAO: KATL, IATA: ATL) is a public airport located in ATLANTA, GA.

iFlightPlanner

KATL

HARTSFIELD - JACKSON ATLANTA INTL

PublicPUB

KATL FBOs, Flight Schools and Ground Support

KATL Ground Transportation (Taxi, Limo, Car Service)

KATL Hotels

KATL Restaurants

KATL Other Airport-Related Businesses

Send Message to Airport Company

Enter your information and message below.

ATIS

Clearance Delivery

Emergency

Ground

Tower

Other

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

Runway 08L/26R

Runway 08R/26L

Runway 09L/27R

Runway 09R/27L

Runway 10/28

iFlightPlanner

KATL HARTSFIELD - JACKSON ATLANTA INTL PublicPUB

KATL FBOs, Flight Schools and Ground Support

KATL Ground Transportation (Taxi, Limo, Car Service)

KATL Hotels

KATL Restaurants

KATL Other Airport-Related Businesses

Send Message to Airport Company Enter your information and message below.

ATIS

Clearance Delivery

Emergency

Ground

Tower

Other

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

Runway 08L/26R

Runway 08R/26L

Runway 09L/27R

Runway 09R/27L

Runway 10/28

KATL

HARTSFIELD - JACKSON ATLANTA INTL

PublicPUB

Send Message to Airport Company

Enter your information and message below.
