iFlightPlanner



...

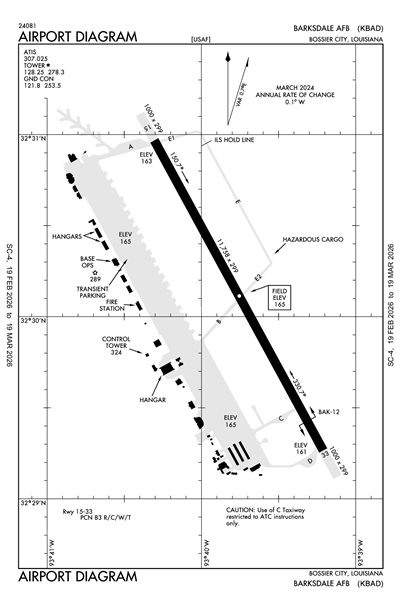

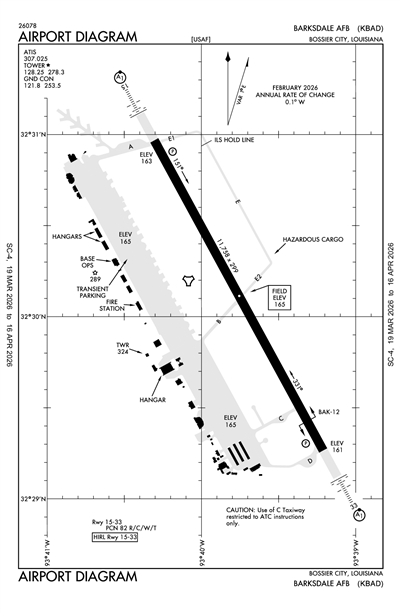

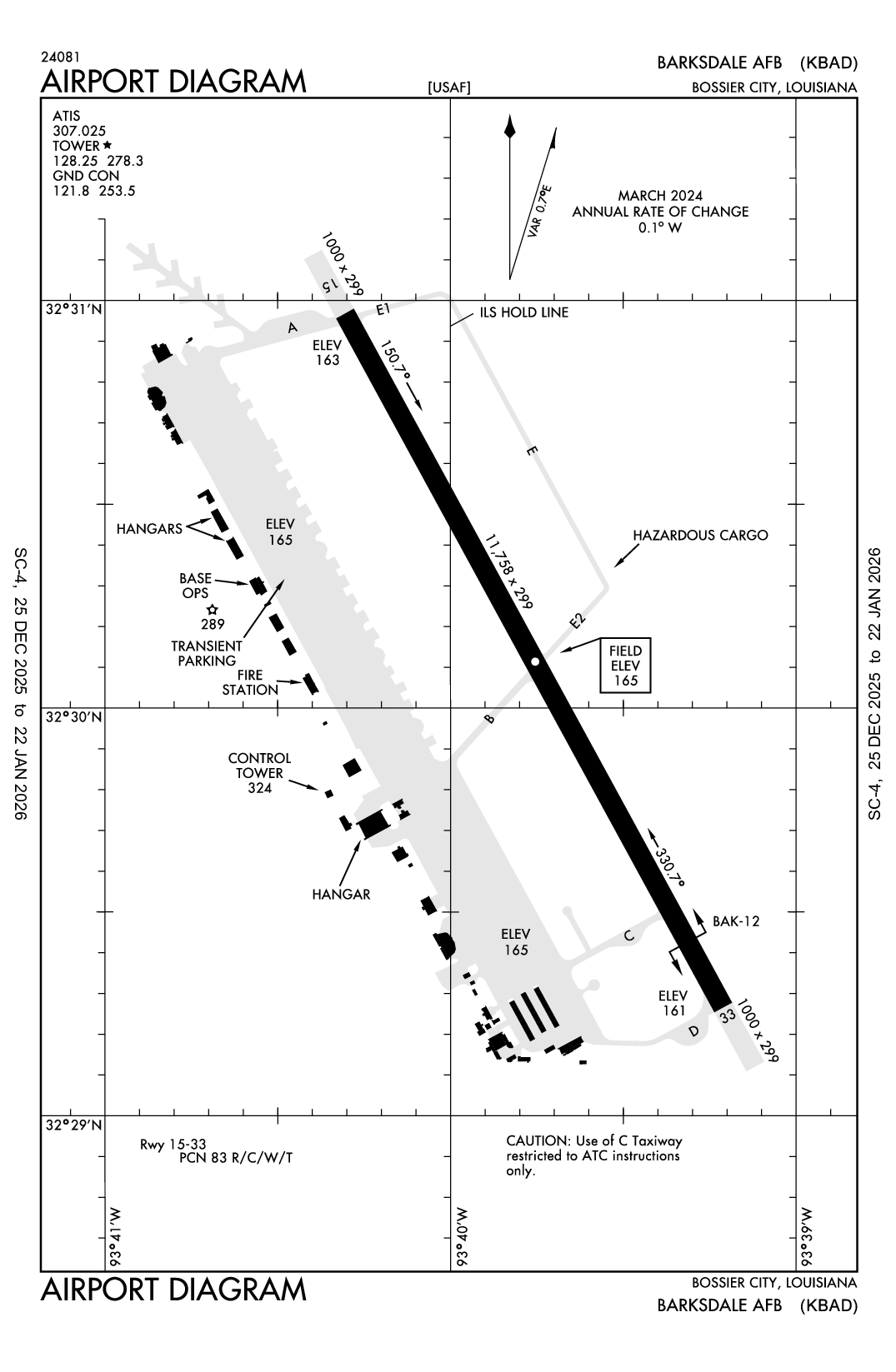

BARKSDALE AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBAD
BARKSDALE AFB
PrivatePVT

3 miles E of BOSSIER CITY, LA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 30' 07"N 93° 39' 45"W
165' MSL
1165' MSL
02E
Jet A+, CILI
DE RIDDER (DRI)
MEMPHIS
FORT WORTH (ZFW)
5/16/24-6/13/24
KBAD VFR
10:55 PM CDT
Clear
10sm
70°F
66°F
29.78"Hg
150° 6kts
AO2 SLP087 T02100191 $
KBAD 180355Z AUTO 15006KT 10SM CLR 21/19 A2978 RMK AO2 SLP087 T02100191 $
List Your Business

KBAD FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KBAD Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KBAD Hotels

No hotels are listed for this airport.

KBAD Restaurants

No restaurants are listed for this airport.

KBAD Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Approach/Departure

APCH/P DEP/P
320-152
 123.75
APCH/P DEP/P IC
153-319
 119.9

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 128.25

Other

CLASS C
153-319
 119.9
CLASS C
320-152
 123.75

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBAD
Fri, 5/17 4:57 PM CDT
Fri, 5/17 4:00 PM CDT - Sat, 5/18 9:00 PM CDT
VFR
4:00 PM CDT - 9:00 PM CDT
Broken 4,000'
6sm
29.73"Hg
VRB° 5kts
TAF AMD KBAD 172157Z 1721/1902 VRB05KT 9999 BKN040 QNH2974INS TX28/1721Z TN18/1812Z LAST NO AMDS AFT 1722 NEXT 2012
KBAD
Domestic
5/16/240300Z !DRI 05/372 BAD COM REMOTE TRANS/REC 119.9, 123.75, 350.2, 360.725 U/S 2405160300-2405241100EST
Military
5/17/242200Z AERODROME CLOSED
5/17/241955Z M0364/24 NOTAMC M0360/24
5/17/241954Z M0363/24 NOTAMC M0359/24
5/17/241413Z M0361/24 NOTAMC M0358/24
5/16/240730Z M0357/24 NOTAMC M0351/24
5/16/240452Z M0356/24 NOTAMC M0353/24
5/16/240443Z M0355/24 NOTAMC M0352/24
5/16/240343Z TWY B DIRECTIONAL SIGN SOUTH OF TWY ON RWY NOT ILLUMINATED.
5/15/241510Z 33 ILS UNSERVICEABLE
5/14/241931Z RWY 33 WIND SENSOR UNSERVICEABLE
4/19/241935Z OBSTRUCTION LIGHTS OTS ON OBSTACLE LOCATED 1300 FT EAST OF RWY 33 APPROACH END
4/17/241700Z OBSTACLE TOWER 322943N0934025W (0.68073NM SOUTHWEST KBAD) 357.98FT MSL NOT LGTD, OBST PENETRATES INNER HORIZONTAL SURFACE BY 42.98FT.
4/2/241502Z !KBAD M0249/24 BAD AD BIRD ACTIVITY PHASE II IN EFFECT 2404021502-2405312359
4/2/240517Z PARKING SPOT SITE 15 RESTRICTED TO PUSHBACK PARKING ONLY, NOSE IN PARKING NOT AUTHORIZED.
Yes
ALL
USAF
BARKSDALE AFB
SHREVEPORT, LA 71110
BASE COMMANDER
BARKSDALE AFB
SHREVEPORT, LA 71110
Phone: 318-456-3226
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
DRI
Sunset to Sunrise
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
2
0
Major
Major
None
Low Pressure
Cargo Handling

Runway 15/33

11758 ft. x 299 ft.

PEM
NONE
HIGH
83 /R/C/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading 151°331°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 30' 58"N 32° 29' 16"N
Longitude 93° 40' 18"W 93° 39' 13"W
Elevation 163' 161'
Threshold Crossing Height 53 ft. AGL 50 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-12RSTD: TWYS E & E1 UNLGTD & USABLE FOR DAYLT VFR ONLY.
A110-18BEARING STRENGTH RWY 15-33: ST175, AUW800
A110-19A-GEAR - BAK-12B AVBL UPON REQ 1 HR PRIOR. W SIDE A-GEAR MRK PERM REMOVED. MP EVERY THIRD FRI FR 1200-1400Z++.
A110-20JASU - 1(MA-1A) 7(A/M32A-86) 1(A/M32A-95) 1(A/M32A-60).
A110-22FLUID - W SP PRESAIR LHOX LOX.
A110-23OIL - O-132-133-148-156 JOAP.
A110-24TRAN ALERT - NO PRIORITY BASIS. EXP SVC DELAYS OF 2 HR OR MORE. LTD FLEET SVC AVBL. POTABLE WATER UNAVBL.
A110-25RSTD: 180 DEG TURNS FOR C135 AND HVY ACFT ARE AUTH IN THE FIRST 750 FT RWY 15 AND THE FIRST 1000 FT RWY 33.
A110-27RSTD: PPR ISSUED UP TO 7 DAYS PRIOR TO ARR. PPR GOOD FOR +/- 15 MIN PPR TIME. COORD OF PPR OUTSIDE OF BLOCK TIME BY FONE IS RQR OR PPR NR WILL BE CONSIDERED CNL.
A110-28TFC PAT - RECTANGULAR 1200 FT, OVERHEAD 1700 FT. VFR COPTER ENTER TFC PAT AT 700 FT FM E AND 1000 FT FM W. OVFT OF MUNITIONS STOR AREA E-NE OF FLD NOT AUTH.
A110-29MISC: ACFT WITH DV CTC PTD OR COMD POST AT LEAST 20 MIN PRIOR TO ETA.
A110-3RSTD: TRAN ACFT WITH ORDNANCE NOT AUTH.
A110-31RSTD: TRNG FOR TRAN AIRCREWS WILL NOT BE PERMS TO INTERFERE WITH LCL ACFT OPR. NON-AFGSC ACFT MAY BE SUBJECTED TO LESS THAN RQR QUANTITY-DISTANCE SEPARATION DUE MUNITIONS OPR. AIRCREWS SHOULD EXER APPROPRIATE RISK MANAGEMENT IN DETERMINING AFLD SUITABILITY. ALL TRAN AIRCREWS MUST RPT TO BASE OPS.
A110-32CAUTION - LGT ACFT AND PRCHT OPS INVOF SHREVEPORT DOWNTOWN 3.3 NM NW DUR FINAL APCH RWY 15 AND DEP RWY 33.
A110-38SERVICE - TRAN ALERT: TRAN MAINT SVC HR 1400-0100Z++ MON-FRI; 1400-2400Z++ SAT-SUN; CLSD HOL.
A110-40SERVICE-LGT: RWY 15 ALSF-1 NSTD CONFIGN - DIST FM THR LGT TO PRE-THR LGT IS 128 FT; PRE-THR LGT TO TERM BAR IS 128 FT.
A110-42MISC: NSTD SPACING OF 150 FT BTN RWY 15 & 33 OVERRUN MRKS.
A110-45ALL TRANS AIRCREWS MUST REPORT TO AIRFIELD OPS.
A110-46RSTD: TWY C UNLGTD, OPEN TO ALL ACFT FOR DAYTIME OPS ONLY EXE FOR B-52.
A110-48MISC: USAF AFLD MGMT PERS DO NOT DETERMINE/RPT A RWY COND CODE (RWYCC) NOR ISSUE FAA FORMATTED FLD COND NOTAM (FICON).
A110-50MISC: AFLD OPS UNA TO ISSUE COMSEC AND HAS NO STORAGE CAPABILITY.
A110-51OPR 1200Z-0630Z++MON-FRI 1400Z-2200Z++WKENDS; CLSD AFGSC FAMILY DAYS AND FED HOL.
A110-52WX DSN 781-3136 OR C318-456-3136.
BARKSDALE AFB (ICAO: KBAD, IATA: BAD) is a private airport located in BOSSIER CITY, LA.
