iFlightPlanner



...

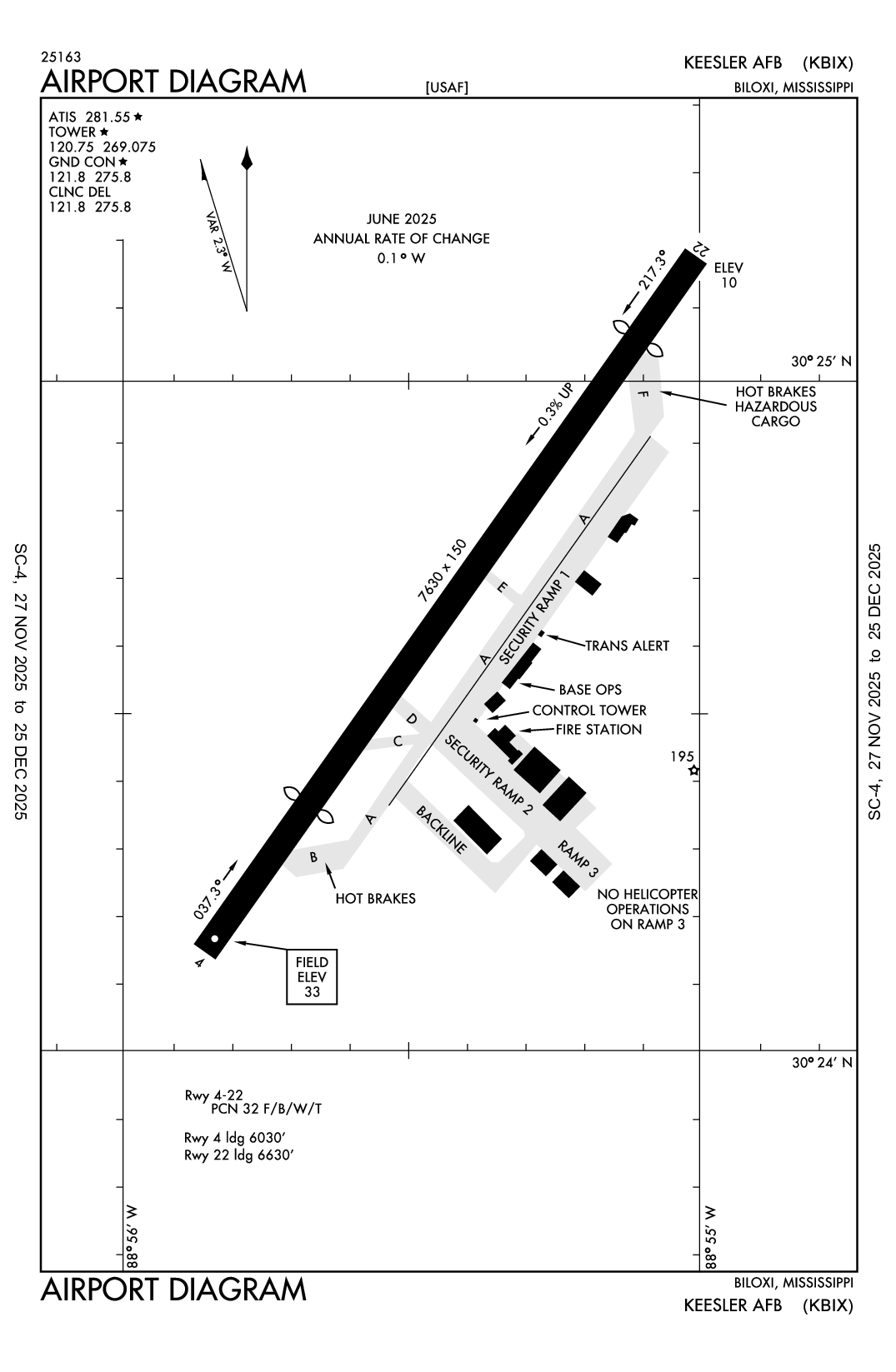

KEESLER AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBIX
KEESLER AFB
PrivatePVT

0 miles W of BILOXI, MS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 24' 38"N 88° 55' 28"W
33' MSL
1033' MSL
02W
Jet A+, CILI
GREENWOOD (GWO)
NEW ORLEANS
HOUSTON (ZHU)
5/16/24-6/13/24
KBIX IFR
2:56 AM CDT
Light Rain and Mist
Overcast 4,700'
Broken 2,400'
Broken 1,300'
Broken 800'
6sm
79°F
77°F
29.83"Hg
Calm
AO2 RAB56 CIG 008V025 SLP104
KBIX 180756Z AUTO 00000KT 6SM -RA BR BKN008 BKN013 BKN024 OVC047 26/25 A2983 RMK AO2 RAB56 CIG 008V025 SLP104
List Your Business

KBIX FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KBIX Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KBIX Hotels

No hotels are listed for this airport.

KBIX Restaurants

No restaurants are listed for this airport.

KBIX Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Clearance Delivery

CD/P
 121.8

Ground

GND/P
 121.8

Tower

LCL/P
 120.75

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBIX
Fri, 5/17 9:00 PM CDT
Fri, 5/17 9:00 PM CDT - Sun, 5/19 3:00 AM CDT
IFR
9:00 PM CDT - 11:00 PM CDT
Mist
Broken 1,800'
Broken 900'
5.59sm
29.73"Hg
220° 10kts
Gusts 18kts
MVFR
Becoming 11:00 PM CDT - 12:00 AM CDT
Thunderstorm in vicinity
Broken 2,000'
Broken 1,000'
6sm
29.73"Hg
240° 12kts
Gusts 22kts
IFR
Becoming 12:00 AM CDT - 6:00 AM CDT
Light Thunderstorm and Rain
Overcast 2,000'
Broken 900'
2.98sm
29.68"Hg
230° 15kts
Gusts 30kts
LIFR
Temporary 1:00 AM CDT - 5:00 AM CDT
Heavy Thunderstorm and Rain and Fog
Overcast 1,200'
Broken 500'
0.25sm
VRB° 30kts
Gusts 50kts
IFR
Becoming 6:00 AM CDT - 1:00 PM CDT
Rain
Overcast 1,500'
Broken 700'
1.99sm
29.79"Hg
280° 15kts
Gusts 25kts
VFR
Becoming 1:00 PM CDT - 3:00 AM CDT
Scattered 2,500'
6sm
29.82"Hg
VRB° 6kts
TAF KBIX 180200Z 1802/1908 22010G18KT 9000 BR BKN009 BKN018 QNH2974INS
   BECMG 1804/1805 24012G22KT 9999 VCTS BKN010CB BKN020 QNH2972INS
   BECMG 1805/1806 23015G30KT 4800 -TSRA BKN009CB OVC020 QNH2968INS
   TEMPO 1806/1810 VRB30G50KT 0400 +TSRA FG BKN005CB OVC012
   BECMG 1811/1812 28015G25KT 3200 RA BKN007 OVC015 QNH2978INS
   BECMG 1818/1819 VRB06KT 9999 NSW SCT025 QNH2981INS TX27/1820Z TN23/1812Z LAST NO AMDS AFT 1904 NEXT 2110
KBIX
Military
5/18/240107Z M0245/24 NOTAMC M0243/24
5/15/241946Z M0239/24 NOTAMC M0237/24
4/18/241712Z AERODROME SPOTS 11 THRU 14 CLOSED AND BARRICADED
4/17/241325Z !KBIX M0177/24 BIX TWY A CLSD BETWEEN SPOTS 11 THRU 13 2404171325-2406282359
4/17/241316Z !KBIX M0175/24 BIX TWY E CLSD 2404171316-2406282359
Yes
MON-FRI 1400-0500Z++
SAT-SUN 1700-2300Z++
OPR 1400- 0500Z++ MON-FRI, CLSD HOL; WEEKEND HRS: UNIT TRNG ASSEMBLY (UTA) WEEKENDS NORMALLY FIRST WEEKEND OF MONTH, SAT 1700-2300Z++, SUN 1630-0500Z++. ALL NON-UTA WEEKENDS AFLD WILL BE CLSD BUT AVBL TO OPEN WITH PRIOR COORD; CTC AMOPS DSN 597-2120.
USAF
HQ TECH TRNG CTR, KEESLER AFB
BILOXI, MS 39534
CHIEF OF AFLD MANAGEMENT
HQ TECH TRNG CTR, KEESLER AFB
BILOXI, MS 39534
Phone: 228-377-2123
GREENWOOD FSS (GWO)
Toll Free: 1-800-WX-BRIEF
BIX
Sunset to Sunrise
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
Low Pressure
Cargo Handling

Runway 04/22

7630 ft. x 150 ft.

PEM
NONE
HIGH
32 /F/B/W/T
--
--
--
--
  Runway 04 Runway 22
True Heading 35°215°
Traffic Pattern Left Right
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 30° 24' 07"N 30° 25' 08"N
Longitude 88° 55' 53"W 88° 55' 03"W
Elevation 33' 10'
Threshold Crossing Height 48 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-10MISC: HNGR SPACE NOT AVBL FOR SVR WX. COMSEC MATERIALS ARE NOT AVBL.
A110-13JASU: 1(MA-1A); 3(A/M32-86A).
A110-15FLUID: SP PRESAIR LPOX LOX.
A110-16OIL: 0-148-156.
A110-21CAUTION: GS ANT 250 FT W OF CNTRLN & 1050 FT FROM AER 22.
A110-23MISC: RWY 04 AVBL TKOF 6632' FR KEY-HOLE; RWY 22 AVBL TKOF 6034' FR KEY-HOLE. SEE US TRML LO ARPT SKETCH FOR NSTD RWY 04/22 CONFIGURATION.
A110-24MISC: RWY 04 DISPL THLD DIMENSIONS AND SFC - 1ST 200 FT IS CONCRETE, NEXT 800 FT MID 75 FT IS CONCRETE OUTER WITH 37.5 FT NON-WT BRG ASPHALT EDGE EA SIDE, AND REMAINING 598 FT X 150 FT IS CONCRETE.
A110-25MISC: RWY 22 DISPL THLD DIMENSIONS AND SFC - 1ST 200 X 150 IS CONCRETE, NEXT 800 X 75 IS CONCRETE WITH 37.5' NON-WT BRG ASPHALT EDGE EA SIDE.
A110-26MISC: VIP ACFT CTC PTD 372.2 15 MIN PRIOR TO LDG WITH FIRM CHOCK TIME. DURG OPR HRS LIFEGUARD/MEDEVAC/SAR/MSN ESSENTIAL ACFT CTC AFLD MGMT. OPS DSN 597-2120, C228-377-21210, 1 HR PRIOR TO ARR FOR PROPER COORD, DUR NON-OPR HRS CTC COMD POST DSN 597-4330, C228-377-4330 1 HR PRIOR TO REQ AFLD BE OPEN.
A110-27MISC: CLASS D AIRSPACE EFF 1400-0500Z++ MON-FRI, 1700-2300Z++ SAT AND SUN, CLSD HOL, UNIT TRNG ASSEMBLIES 1900-0500Z++ SUN.
A110-28403 WG AFRC - C130/WC130 ACFT OPR WKD.
A110-31CAUTION: RWY EDGE LGTS PAST THRESHOLDS GREATER THAN 10' FROM FULL STRENGTH PAVEMENT. SPOT 24/25 (TWY B AND F) LIGHT-ALLS USED WHEN C-17 PARK DURG HRS OF DARKNESS AND INCLEMENT WX.
A110-33CAUTION; RWY HAZ MEN OR EQUIP OPERATING RANDOMLY TO INCLUDE WITHIN 100' OF RWY DLY.
A110-34CAUTION: LARGE FRAME AND HEAVY ACFT WILL MAKE 180-DEGREE TURNS ON CONCRETE PORTION OF RWY.
A110-35HELICOPTER TFC PAT 500 FT MSL
A110-4BASH PHASE II IN EFF 1 JUN - 30 SEP; EXP HEAVIER BIRD ACT SR-SS.
A110-41PPR ALL ACFT, PPR ALL ACFT AFTER TRAN MAINT OPR CTC AFLD MGMT OPS AT DSN 597-2120.
A110-42RSC/RCR NOT RPT DUR PUBL AFLD CLSD TIMES.
A110-45SERVICE-LGT: NSTD RWY EDGE & TWY LGTS; SVRL LGTS GTR THAN 200 FT DIST APART ON RWY, SVRL MISSING TWY EXIT LGTS.
A110-47TRAN ALERT: TRAN MAINT OPR 1400-2300++ MON-FRI. OT WITH PRIOR COORDINATION; CTC AFLD MGMT OPS DSN 597-2120.
A110-48CAUTION: NVD TRNG 0200-0400Z++ TUE AND THU.
A110-49SVC-LGT: RWY 04 REIL OTS.
A110-5RSTD: PPR ALL TRAN ACFT; CTC AFLD MGMT DSN 597-2120. TWY E 50 FT WID. ACFT RINSE FAC (BIRD BATH) TWY C AVBL TO C130 & LRGR. NO HOP ON RAMP 3. AIR CREWS CTC GND PRIOR TO ACFT ENG START. ALL C130 OR LRGR MUST FACE N ON TWY B FOR MAINT RUNS OR ENG RUN-UPS. PILOTS WILL AVOID FLYING OVR USAF MEDICAL CNTR LCTD ON BACK BAY 1 NM E OF RWY & VA HOSPITAL ON BACK BAY 1 NM W OF RWY.
A110-8TRAN ACFT RON MUST ARR BY 2100Z++ MON-FRI BY 2200Z++ SUN.
A110-9CAUTION: MARINA TREES HINDER WIND, LO WIND SPEED ON RWY 22 WHEN WIND DIR FROM 280-340. DUR AUGMENTATION/BACK UP; LTD WX OBSN TO E AND VIS MKR BYD 1 SM ONLY AVBL IN THE W TO N SECTOR, NIGHT FLOOD LGT HINDER CLOUD AND VIS OBSN, AND CEIL FRE 100-200 FT LO THAN OBSN ON RWY 22 APCH FROM NOV-MAR.
KEESLER AFB (ICAO: KBIX, IATA: BIX) is a private airport located in BILOXI, MS.
