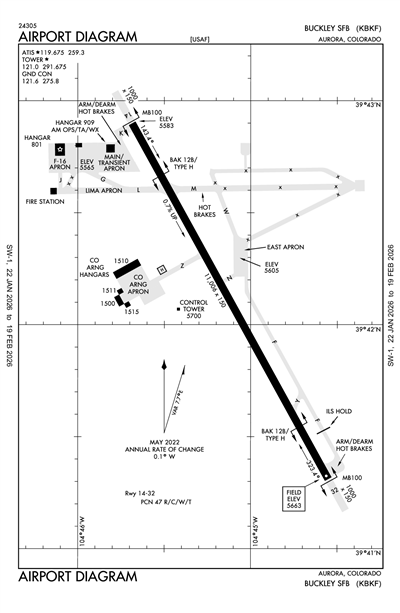

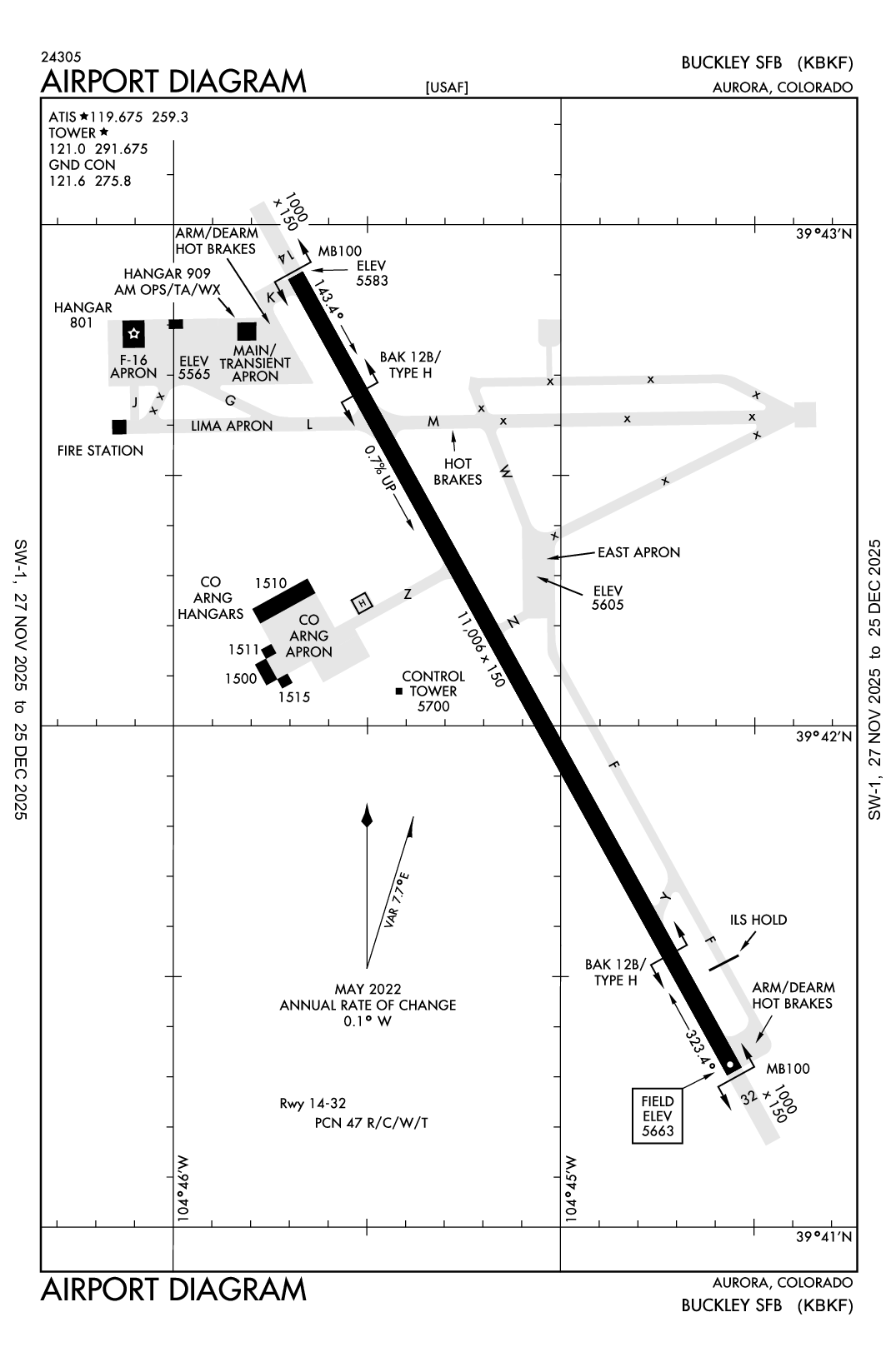

BUCKLEY SPACE FORCE BASE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBKF
BUCKLEY SPACE FORCE BASE
PrivatePVT

0 miles N of AURORA, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 42' 06"N 104° 45' 07"W
5663' MSL
6663' MSL
08E
Jet A+, CILI
DENVER (DEN)
DENVER
DENVER (ZDV)
5/16/24-6/13/24
KBKF VFR
12:58 AM MDT
Scattered 14,000'
10sm
58°F
33°F
29.89"Hg
250° 6kts
AO2A SLP048 T01450003 402710097
KBKF 180658Z 25006KT 10SM SCT140 15/00 A2989 RMK AO2A SLP048 T01450003 402710097
List Your Business

KBKF FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KBKF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KBKF Hotels

No hotels are listed for this airport.

KBKF Restaurants

No restaurants are listed for this airport.

KBKF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
 119.675

Emergency

EMERG
 121.5

Ground

GND/P
 121.6

Tower

LCL/P
 121.0

Other

ARNG OPS
ARNG OPS-OUTLAW
 32.5
ARNG OPS
ARNG OPS-OUTLAW
 149.1

Terminal Area Forecast

KBKF
Fri, 5/17 7:00 PM MDT
Fri, 5/17 7:00 PM MDT - Sun, 5/19 1:00 AM MDT
VFR
7:00 PM MDT - 9:00 AM MDT
Broken 13,000'
6sm
29.70"Hg
VRB° 6kts
VFR
Becoming 9:00 AM MDT - 3:00 PM MDT
Sky Clear
6sm
29.76"Hg
130° 10kts
VFR
Becoming 3:00 PM MDT - 8:00 PM MDT
Light Rain
Broken 8,000'
Few 3,000'
5.59sm
29.85"Hg
160° 15kts
MVFR
Becoming 8:00 PM MDT - 1:00 AM MDT
Light Showers and Rain
Overcast 9,500'
Broken 6,500'
Few 4,500'
4.97sm
29.88"Hg
190° 6kts
TAF KBKF 180100Z 1801/1907 VRB06KT 9999 BKN130 QNH2971INS
   BECMG 1815/1816 13010KT 9999 SKC QNH2977INS
   BECMG 1821/1822 16015KT 9000 -RA FEW030 BKN080 QNH2985INS
   BECMG 1902/1903 19006KT 8000 -SHRA FEW045 BKN065 OVC095 QNH2988INS TX27/1822Z TN08/1811Z
KBKF
FDC
5/16/241738Z !FDC 4/5450 BKF SID BUCKLEY SPACE FORCE BASE, AURORA, CO.
ROCKIES SIX DEPARTURE...
DEPARTURE PROCEDURE NA.
2405161738-2412261738EST
Military
5/20/241230Z RWY 14/32 : OFFICIAL BUSINESS ONLY. RWY 14/32 IS OPEN AND USABLE EAST OF CENTERLINE, WITH DIMENSIONS 75 FT BY 11,006FT FROM 1230Z-0430Z (0630L-2230L). PERSONNEL AND EQUIPMENT PERFORMING RUBBER REMOVAL AND PAINTING WILL BE IN EFFECT WEST OF CENTERLINE DURING THIS TIME
5/19/241230Z RWY 14/32 : OFFICIAL BUSINESS ONLY. RWY 14/32 IS OPEN AND USABLE EAST OF CENTERLINE, WITH DIMENSIONS 75 FT BY 11,006 FT FROM 1230Z-0430Z (0630L-2230L). PERSONNEL AND EQUIPMENT PERFORMING RUBBER REMOVAL AND PAINTING WILL BE IN EFFECT WEST OF CENTERLINE DURING THIS TIME
5/18/241230Z RWY 14/32 : OFFICIAL BUSINESS ONLY. RWY 14/32 IS OPEN AND USABLE, WEST OF CENTERLINE WITH DIMENSIONS 75 FT BY 11,006 FT FROM 1230Z-0430Z (0630L-2230L). PERSONNEL AND EQUIPMENT PERFORMING RUBBER REMOVAL AND PAINTING WILL BE IN EFFECT EAST OF CENTERLINE DURING THIS TIME
5/17/242308Z M0340/24 NOTAMC M0311/24
5/16/242359Z !KBKF M0338/24 BKF AERODROME OFFICIAL BUSINESS ONLY 2405162359-2405202200
5/16/242158Z M0336/24 NOTAMC M0334/24
5/16/241255Z M0333/24 NOTAMC M0329/24
5/16/241111Z M0332/24 NOTAMC M0331/24
5/15/241754Z M0330/24 NOTAMC M0328/24
5/1/242127Z AERODROME 3 OBSTN LGTS OUT OF SERVICE 1,023 FT EAST OF RWY 14/32 APPROXIMATELY MIDFIELD ATOP STADIUM LGTS NEAR EAST APRON
5/1/242124Z AERODROME TWO OBSTN LGTS ATOP RADOMES UNSERVICEABLE 1525 FT EAST OF RWY 32 THRESHOLD
4/5/242136Z CO ARNG APRON OBSTN LGT OUT OF SERVICE APPROXIMATELY 2500 FT WEST OF RWY 14/32 AT MIDFIELD
3/26/241417Z !KBKF V0005/24 BKF AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC/DME RWY 32, INCREASE CAT E CIRCLING MINIMUMS 6440-2¾ 777 (800-2¾) 2403261417-2406212359
3/26/241417Z !KBKF V0004/24 BKF AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED HI-ILS LOC/DME RWY 32 INCREASE CAT E CIRCLING MINIMUMS 6440-2¾ 777 (800-2¾) 2403261417-2406212359
3/26/241417Z !KBKF V0003/24 BKF AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED HI-TACAN RWY 32 INCREASE CAT E CIRCLING MINIMUMS 6440-2¾ 777 (800-2¾) 2403261417-2406212359
3/26/241416Z !KBKF V0002/24 BKF AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 32 INCREASE CAT E CIRCLING MINIMUMS 6440-2¾ 777 (800-2¾) 2403261416-2406212359
3/26/241416Z !KBKF V0001/24 BKF AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED HI-TACAN RWY 14 INCREASE CAT E CIRCLING MINIMUMS 6440-2¾ 777 (800-2¾) 2403261416-2406212359
3/23/241110Z !KBKF M0225/24 BKF RWY 32 ALS U/S USE NO-LIGHT APPROACH MINIMA 2403231110-2406142359
Yes
TUE-SAT 0630-2230
SUN-MON 0800-1600
USAF LICENSED TO COANG
BUCKLEY ANGB
AURORA, CO 80011
CHIEF AIRFIELD MANAGEMENT
HQCOANG DET 1/CC BUCKLEY ANGB
AURORA, CO 80011
Phone: 720-847-9650
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
Sunset to Sunrise
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
6
0
Major
Major
High & Low Pressure
High & Low Pressure
Cargo Handling

Runway 14/32

11006 ft. x 150 ft.

PEM
NONE
HIGH
40 /R/B/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 151°331°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition
Latitude 39° 42' 54"N 39° 41' 19"N
Longitude 104° 45' 41"W 104° 44' 33"W
Elevation 5,583' 5,663'
Threshold Crossing Height 40 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-11OIL - O-148 SOAP-AVBL 1315-2400Z++ TUE-FRI.
A110-17BEARING STRENGTH RWY 14-32: T140, ST175, TT280
A110-18FLUID - SP PRESAIR LOX LHOX, LHNIT, DE-ICE AVBL.
A110-20JASU - 1(A/M32A-86) 2(AM32A-60A) 2(AM32A-95)
A110-22FIRST 3836 FT RWY 14, FIRST 1710 FT RWY 32 CONC; MIDDLE 5460 FT RWY 14-32 ASPHALT. FOUR ENG ACFT TAXI WITH INBOARD ENG ONLY PRIOR TO DEP/AFTER LDG FOR FOD CTL.
A110-23LGT - RWY 32 ILS GS/RPI AND PAPI GS/RRP NOT COINCIDENTAL.
A110-24TFC PAT - RWY 32 LEFT TFC, RWY 14 RGT TFC, OVERHEAD 7200 FT. FTR ACFT EXP CLSD TFC AND OVERHEAD PAT E OF BUCKLEY FOR NOISE AVOIDANCE.
A110-25LARGE/HVY ACFT REQ U-TURN ON RWY, MAKE LEFT TURNS AT RWY END ON THE CONCRETE PORTION. AVOID OVFT RADAR DOMES NW RWY 14-32.
A110-26LDG ILLUSION EXISTS ON SHORT FINAL RWY 14. TERRAIN RISES SHORT OF THLD THEN DESCENDS FOR 2000 FT CREATING ILLUSION OF ACFT BEING HI ON FINAL AND EXCESSIVE GND RUSH. EXTRA CAUTION SHOULD BE USED DUR NGT LDG.
A110-3RSTD - PPR FOR ALL ACFT EXC BASE-ASGN, DSN 847-9650/9651/9652 C720-847-9650/9651/9652; MIN 24 HR NTC REQ AND NO MORE THAN 7 DAYS PRIOR TO ARR. TRAN ACFT VFR PAT WORK LTD TO SINGLE PRACTICE APCH FOLLOWED BY FULL STOP LDG. MULTIPLE VFR PRACTICE APCH UNAUTHD FOR ACFT NOT LDG BUCKLEY AFB. TRAN ACFT MAY BE REQ TO FLY STR-IN FULL STOP. C5,C-17,KC10, F4,EA6, F14 ACFT START RUN-UP 300 FT DOWN RWY PRIOR TO TKOF TO PREVENT ASPHALT AND LGT SYS DAMAGE.
A110-30RSTD:TWY L IS CLSD TO ALL TRANSIENTS.
A110-33CLASS D AIRSPACE EFF CONT.
A110-35UNLGT OBST SW OF RWY 32.
A110-37ARNG OPS: OPS DSN 250-1623/20, C720-250-1623/20.
A110-39FOR NML DAY-TO-DAY OPS, ACFT OTHER THAN F-16S MAY BE HELD ON THE TRANS APRON OR OTHER TWY/APRON WAITING FOR WG ASGN ACFT TO CLEAR THE ARM/DEARM AREA.
A110-40CAUTION: HI FOD POTENTIAL ON TWY M EAST OF TWY W DUE TO PAVEMENT BREAKUP.
A110-42A-GEAR: BAK-12B(B)/TYPE-H A-G STD CONFIGURATION IS DEP END CABLE IN RAISED POSN FOR LCL ASGN F-16 ACFT DEP; ALL OT IN LOWERED POSN.
A110-43RSTD: AFLD LTD TO BASE ASGN ACFT ONLY FR 0530-1330Z++ TUE-SAT AND 2300-1500Z++ SUN AND MON.
A110-44AERODROME CONST AREA W SIDE RWY 32 THLD APRX 500 FEET FR EDGE OF RWY; NON-FRANGIBLE CONC SCRAPS LCTD IN VCNTY.
A110-45RSTD: ACFT MUST ADHERE TO PPR ARR BLOCK +/- 30 MIN OF SKED LDG.
A110-46CSTMS/AG/IMG: SVC LTD TO 140TH WG ACFT AND AMC ACFT SUPPORTING 140TH WG MSN ONLY.
A110-47TRAN ALERT: OPR 1330-0400Z++ TUE-SAT, 1500-2300Z++ SUN-MON. ACFT DEICING EQUIP NOT AVBL.
A110-48BASE OPS OPR H24.
A110-5CAUTION - HI MID-AIR COLLISION POTENTIAL, EXTREME VIGILANCE RQR. HVY BIRD ACT DUR PEAK MIGRATION PERIODS (BASH PHASE II MAR-MAY AND OCT-NOV) MAY POSE A POTENTIAL HAZ TO ACFT, ESPECIALLY DUR MORNING/EVENING HRS. ALL OTHER MONTHS PHASE I. CTC ATIS OR PTD FOR CURRENT BWC. POSSIBLE CROSSWIND HAZARD RWY 14/32.UNLGTD FENCE AROUND AIRFIELD.
A110-6CAUTION: HVY COML TFC ON DENVER INTL RY 35 ILS CRS BTN 6500 FT & 12,000 FT 2 NM E OF BUCKLEY. HVY UNCTL GA TFC FM CENTENNIAL 9 NM SW. TFC IS CONCENTRATED FR SFC TO 10,000 FT S, SE AND E OF BUCKLEY CLASS D AIRSPACE.
BUCKLEY SPACE FORCE BASE (ICAO: KBKF, IATA: BKF) is a private airport located in AURORA, CO.
