JOHNSON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBYG
JOHNSON COUNTY
PublicPUB

3 miles NW of BUFFALO, WY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 22' 52"N 106° 43' 18"W
4970' MSL
5970' MSL
12E
Jet A, 100LL
CASPER (CPR)
CHEYENNE
SALT LAKE CITY (ZLC)
5/16/24-6/13/24
KBYG VFR
11:53 PM MDT
Few 2,600'
Few 2,000'
10sm
37°F
35°F
29.91"Hg
340° 17kts
Gusts 25kts
AO2 PK WND 35040/0535 RAB18E34 SLP094 P0000 60000 T00280017 10189 20028 51044
KBYG 180553Z AUTO 34017G25KT 10SM FEW020 FEW026 03/02 A2991 RMK AO2 PK WND 35040/0535 RAB18E34 SLP094 P0000 60000 T00280017 10189 20028 51044
List Your Business

KBYG FBOs, Flight Schools and Ground Support

Promote Listing
Johnson County Aviation
Freq: 122.8
Phone: (469) 522-2568
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.75
Full Serve 6.75

KBYG Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KBYG Hotels

No hotels are listed for this airport.

KBYG Restaurants

No restaurants are listed for this airport.

KBYG Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
307-684-2558
 135.425

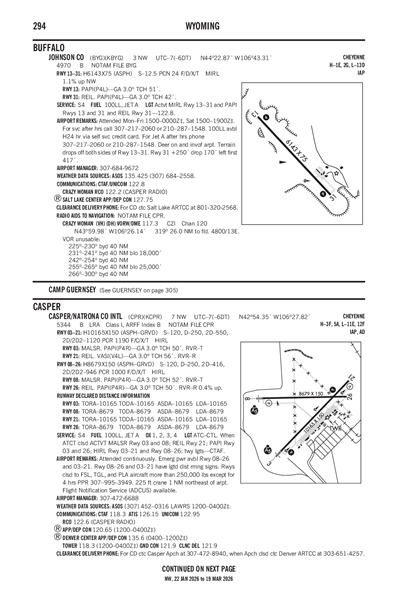

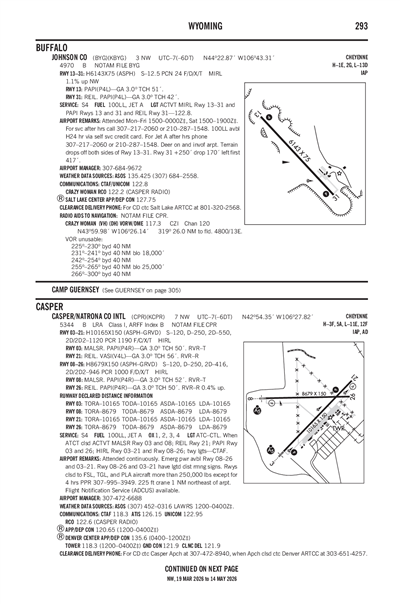

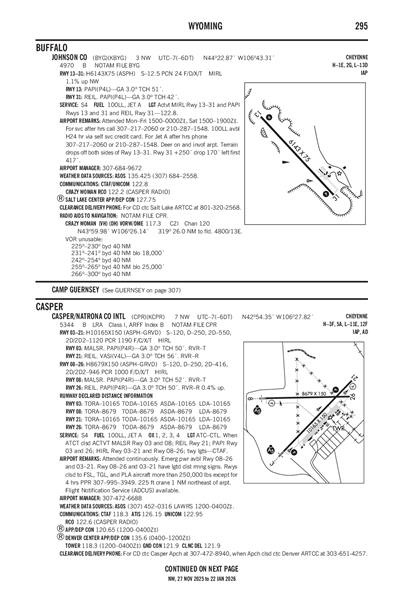

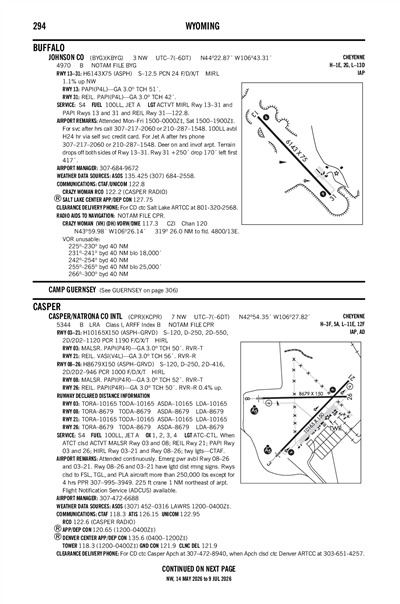

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSHR (25nm)
Fri, 5/17 11:21 PM MDT
Sat, 5/18 12:00 AM MDT - Sun, 5/19 12:00 AM MDT
VFR
12:00 AM MDT - 3:00 AM MDT
Overcast 6,000'
Scattered 3,000'
6sm
310° 12kts
VFR
3:00 AM MDT - 2:00 PM MDT
Sky Clear
6sm
310° 9kts
VFR
2:00 PM MDT - 12:00 AM MDT
Few 9,000'
6sm
VRB° 5kts
KSHR 180521Z 1806/1906 31012KT P6SM SCT030 OVC060
   FM180900 31009KT P6SM SKC
   FM182000 VRB05KT P6SM FEW090
KBYG
Domestic
4/24/242016Z !BYG 04/003 BYG OBST TOWER LGT (ASR 1218621) 440452.30N1063729.80W (18.5NM SSE BYG) 4879.6FT (259.8FT AGL) U/S 2404242016-2408222016
3/27/241541Z !BYG 03/002 BYG OBST TOWER LGT (ASR 1007607) 442047.90N1064330.40W (2.1NM S BYG) 5142.1FT (250.0FT AGL) U/S 2403271541-2406302359
No
MON-FRI 0800-1700
SAT 0800-1200
FOR SVC AFTER HRS CALL 307-217-2060 OR 210-287-1548.
JOHNSON COUNTY
76 NORTH MAIN
BUFFALO, WY 82834
Phone: 307-684-7555
BRUCE MCWHORTER
158 AIRPORT RD
BUFFALO, WY 82834
Phone: 307-684-9672
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
BYG
--
ACTVT MIRL RY 13/31 & PAPI RYS 13 & 31 AND REIL RY 31 - 122.8.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
20
1
0
1
0
0
Major
Major
None
None
None

Runway 13/31

6143 ft. x 75 ft.
ASPH
Good
NONE
MED
24 /F/D/X/T
12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 138°318°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 44° 23' 14"N 44° 22' 29"N
Longitude 106° 43' 47"W 106° 42' 50"W
Elevation 4,970' 4,905'
Threshold Crossing Height 51 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1TERRAIN DROPS OFF BOTH SIDES OF RY 13/31.
A110-3DEER ON AND INVOF ARPT.
A110-4RWY 31 +250' DROP 170'L FIRST 417'
A110-5FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
JOHNSON COUNTY (ICAO: KBYG, IATA: BYG) is a public airport located in BUFFALO, WY.
