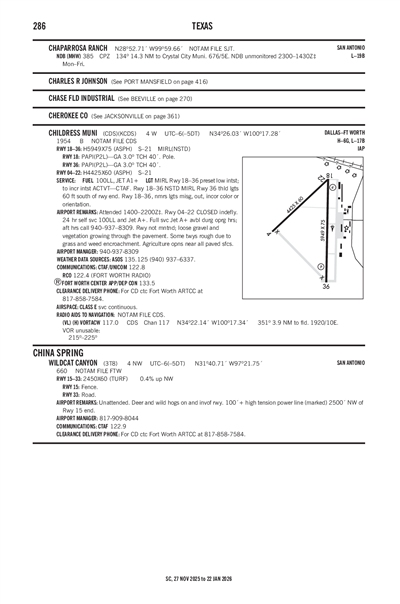

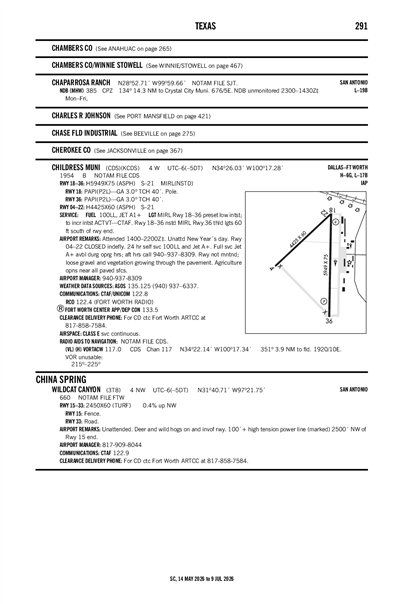

CHILDRESS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCDS
CHILDRESS MUNI
PublicPUB

4 miles W of CHILDRESS, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 26' 02"N 100° 17' 17"W
1954' MSL
2954' MSL
06E
Jet A-1+, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
5/16/24-6/13/24
KCDS VFR
9:53 PM CDT
Clear
10sm
71°F
56°F
29.77"Hg
170° 6kts
AO2 SLP059 T02170133 53012
KCDS 180253Z AUTO 17006KT 10SM CLR 22/13 A2977 RMK AO2 SLP059 T02170133 53012
List Your Business

KCDS FBOs, Flight Schools and Ground Support

Promote Listing
Boedeker Flying Service
Freq: 122.8
Phone: (940) 937-8309
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.55 4.55
Full Serve 5.55 4.55

KCDS Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KCDS Hotels

No hotels are listed for this airport.

KCDS Restaurants

No restaurants are listed for this airport.

KCDS Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
940-937-6337
 135.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCDS
Fri, 5/17 6:26 PM CDT
Fri, 5/17 7:00 PM CDT - Sat, 5/18 7:00 PM CDT
VFR
7:00 PM CDT - 7:00 PM CDT
Few 6,000'
6sm
170° 9kts
KCDS 172326Z 1800/1824 17009KT P6SM FEW060
KCDS
No NOTAM Available
No
0800-1600
CITY OF CHILDRESS
315 COMMERCE STREET
CHILDRESS, TX 79201
Phone: 940-937-3684
TIFFANY TULLY
15716 FM 164
CHILDRESS, TX 79201
Phone: 940-937-8309
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
CDS
--
MIRL RWY 18/36 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
13
1
0
1
0
2
None
None
None
None
Crop Dusting

Runway 04/22

4425 ft. x 60 ft.
ASPH
Poor
NONE


21,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 47°227°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 34° 25' 55"N 34° 26' 25"N
Longitude 100° 17' 46"W 100° 17' 08"W
Elevation 1,942' 1,949'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

5949 ft. x 75 ft.
ASPH
Good
NONE
MED

21,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 182°2°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 34° 26' 25"N 34° 25' 26"N
Longitude 100° 17' 08"W 100° 17' 10"W
Elevation 1,949' 1,954'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1SOME TWYS ROUGH DUE TO GRASS & WEED ENCROACHMENT.
A110-2AGRICULTURE OPNS NEAR ALL PAVED SFCS.
A110-3FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-4RWY 18/36, NMRS LGTS MISG, OUT, INCOR COLOR OR ORIENTATION.
CHILDRESS MUNI (ICAO: KCDS, IATA: CDS) is a public airport located in CHILDRESS, TX.
