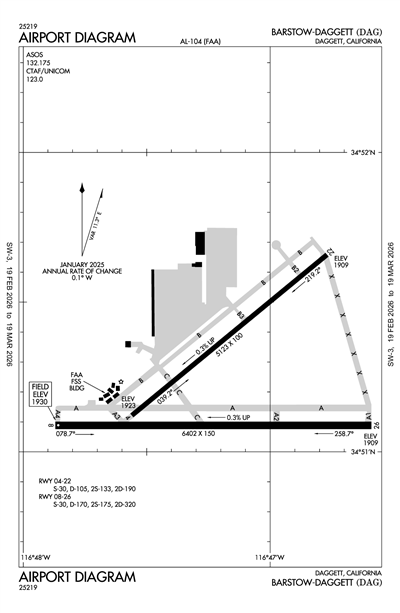

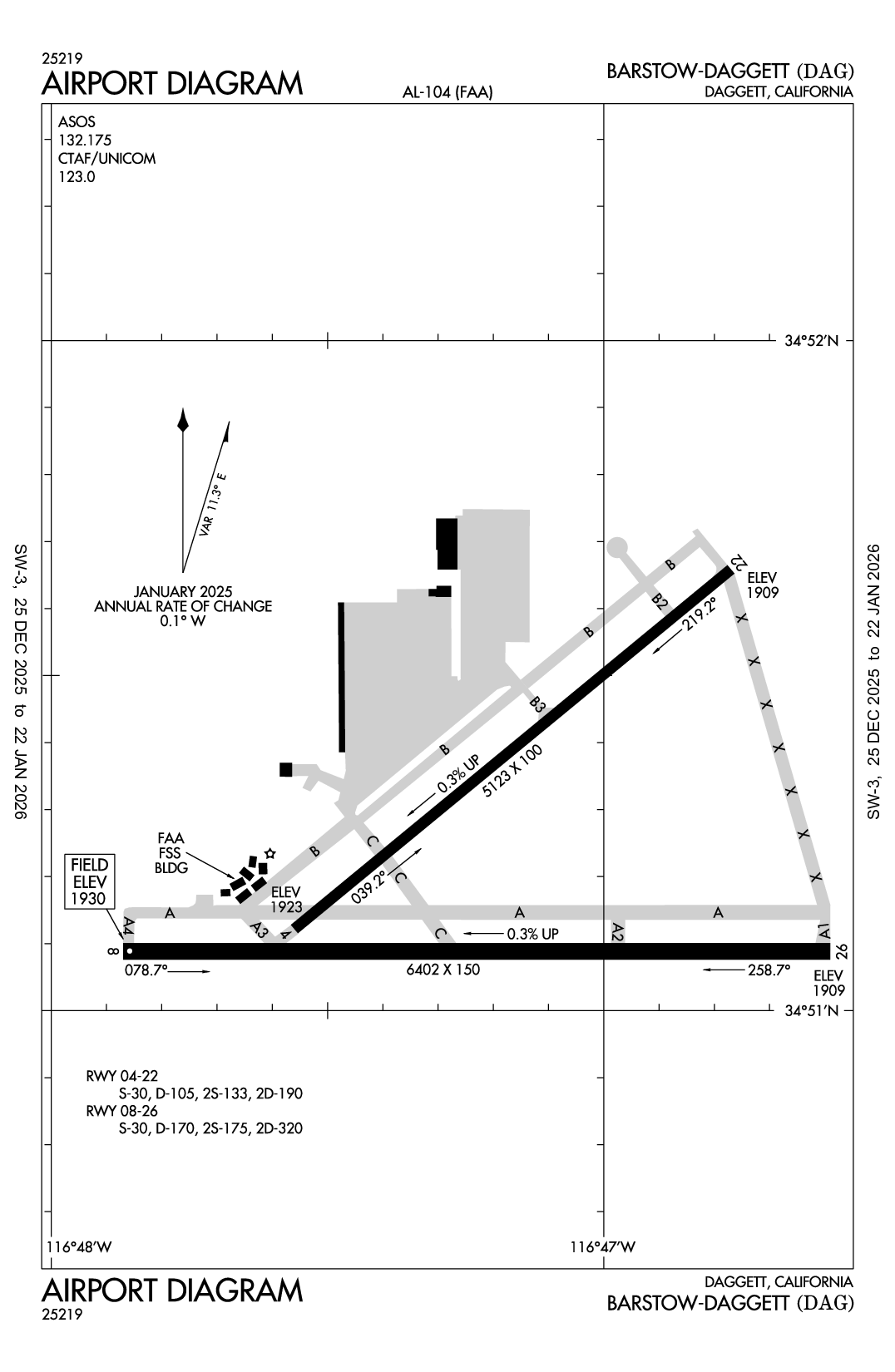

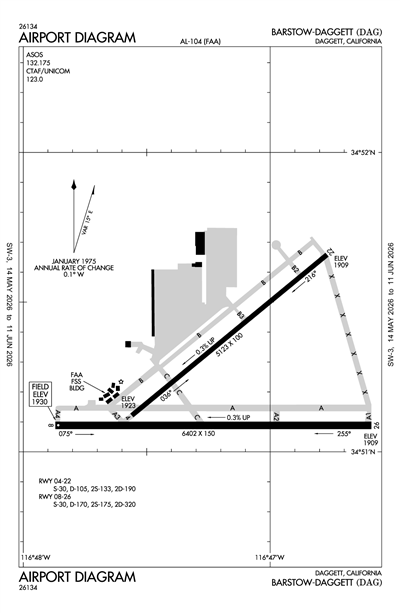

BARSTOW-DAGGETT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDAG
BARSTOW-DAGGETT
PublicPUB

4 miles E of DAGGETT, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 51' 13"N 116° 47' 12"W
1930' MSL
2930' MSL
15E
Jet A, 100LL
RIVERSIDE (RAL)
LOS ANGELES
LOS ANGELES (ZLA)
5/16/24-6/13/24
KBYS (26nm) VFR
11:55 PM PDT
Clear
10sm
74°F
41°F
N/A
Calm
AO2 SLPNO T02360050 $
KBYS 180655Z AUTO 00000KT 10SM CLR 24/05 M RMK AO2 SLPNO T02360050 $
List Your Business

KDAG FBOs, Flight Schools and Ground Support

Promote Listing
Daggett Aviation
Freq: 123.0
Phone: (760) 254-2542
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 4/27
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.00 6.00 6.00
Full Serve 6.25 6.25

KDAG Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KDAG Hotels

No hotels are listed for this airport.

KDAG Restaurants

No restaurants are listed for this airport.

KDAG Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
760-254-3630
 132.175

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDAG
Fri, 5/17 10:20 PM PDT
Fri, 5/17 11:00 PM PDT - Sat, 5/18 11:00 PM PDT
VFR
11:00 PM PDT - 2:00 AM PDT
Sky Clear
6sm
250° 16kts
Gusts 26kts
VFR
2:00 AM PDT - 9:00 AM PDT
Broken 20,000'
6sm
260° 12kts
Gusts 20kts
VFR
9:00 AM PDT - 4:00 PM PDT
Scattered 20,000'
6sm
270° 18kts
Gusts 28kts
VFR
4:00 PM PDT - 11:00 PM PDT
Scattered 20,000'
6sm
240° 22kts
Gusts 32kts
KDAG 180520Z 1806/1906 25016G26KT P6SM SKC
   FM180900 26012G20KT P6SM BKN200
   FM181600 27018G28KT P6SM SCT200
   FM182300 24022G32KT P6SM SCT200 AMD NOT SKED
KDAG
Domestic
5/20/241600Z !DAG 05/012 DAG COM REMOTE COM OUTLET 121.5 U/S 2405201600-2405202100
5/17/241257Z !DAG 05/014 DAG COM REMOTE COM OUTLET 122.2 U/S 2405171257-2405272000EST
5/13/242254Z !DAG 05/010 DAG COM REMOTE COM OUTLET 121.5 U/S 2405132254-2405312359EST
2/24/202212Z !DAG 02/018 DAG OBST WATER TOWER (ASN UNKNOWN) 345125N1164737W (.3NM SE DAG) 1927FT (75FT AGL) NOT LGTD 2002242212-PERM
FDC
6/21/231207Z !FDC 3/4062 DAG ODP BARSTOW-DAGGETT, DAGGETT, CA.
DAGGETT ONE DEPARTURE ...
ADD TAKEOFF OBSTACLE NOTES: RWY 4, TRANSMISSION LINES BEGINNING 1627FT FROM DER, 615FT LEFT OF CENTERLINE, UP TO 77FT AGL, 1963FT MSL (2021-AWP-6587/6588/6589/6590-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2306211207-2408211207EST
No
0630-1700
COUNTY OF SAN BERNARDINO
385 N ARROWHEAD AVE
SAN BERNARDINO, CA 92415
Phone: 909-387-8810
MAUREEN SNELGROVE
268 HOSPITALITY LANE, SUITE 302
SAN BERNARDINO, CA 92408
Phone: 909-387-8810
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
DAG
--
ACTVT MIRL RWY 4/22 & 8/26 - CTAF. PAPI RWY 08, 22, & 26 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
10
0
0
0
35
0
None
None
None
None
None

Runway 04/22

5123 ft. x 100 ft.
ASPH
Fair
NONE
MED

30,000lbs
105,000lbs
190,000lbs
--
  Runway 04 Runway 22
True Heading 51°231°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition FAIR GOOD
Latitude 34° 51' 07"N 34° 51' 40"N
Longitude 116° 47' 34"W 116° 46' 46"W
Elevation 1,923' 1,909'
Threshold Crossing Height -- 49 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 08/26

6402 ft. x 150 ft.
ASPH
Fair
NONE
MED

30,000lbs
170,000lbs
320,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR GOOD
Latitude 34° 51' 05"N 34° 51' 05"N
Longitude 116° 47' 52"W 116° 46' 35"W
Elevation 1,930' 1,909'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1E-W TWY PARALLEL TO RWY 08/26 WT BRG CPTY LIMITED TO S-12.
A110-4PAEW INVOF ARMY RAMP. EXTSV MILITARY HELICOPTER TRAFFIC INVOF ARPT.
A110-5FOR CD IF UNA TO CTC ON FSS FREQ, CTC LOS ANGELES ARTCC AT 661-575-2079.
BARSTOW-DAGGETT (ICAO: KDAG, IATA: DAG) is a public airport located in DAGGETT, CA.
