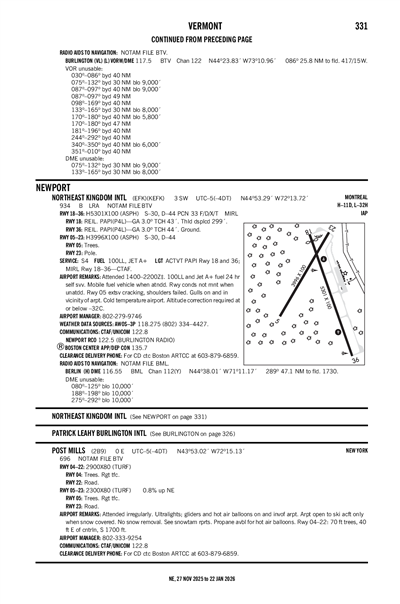

NORTHEAST KINGDOM INTL - Airport Diagram

KEFK

NORTHEAST KINGDOM INTL

PublicPUB

3 miles SW of NEWPORT, VT

View on Map

Status

Operational

Coordinates

44° 53' 17"N 72° 13' 43"W

Elevation

934' MSL

Pattern Alt

1934' MSL

Mag Variation

17W

Fuel

Jet A+, 100LL

FSS

BURLINGTON (BTV)

Sectional

MONTREAL

ARTCC

BOSTON (ZBW)

Data Effective

5/16/24-6/13/24

KEFK VFR

3:35 AM EDT RAW

Scattered 6,500'

Viz

10sm

Temp

53°F

Dew

52°F

Pres

30.03"Hg

Wind

Calm

RMK

AO2 T01190110

KEFK 180735Z AUTO 00000KT 10SM SCT065 12/11 A3003 RMK AO2 T01190110

List Your Business

KEFK FBOs, Flight Schools and Ground Support

Promote Listing

Lakeview Aviation

Freq: 122.8

Phone: (802) 334-5001

0 Reviews (Read | Sign In To Write)

Titan

As of 5/16	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve	6.25		6.20
Full Serve	6.50		6.20

KEFK Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KEFK Hotels

No hotels are listed for this airport.

KEFK Restaurants

No restaurants are listed for this airport.

KEFK Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3P

802-334-4427

118.275

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

RNAV (GPS) RWY 36

Terminal Area Forecast

KEFK

RAW

Reported

Sat, 5/18 1:26 AM EDT

Valid

Sat, 5/18 2:00 AM EDT - Sun, 5/19 2:00 AM EDT

VFR

2:00 AM EDT - 8:00 AM EDT

Broken 12,000'

Viz

6sm

Wind

Calm

VFR

8:00 AM EDT - 3:00 PM EDT

Showers in vicinity

Overcast 7,000'

Viz

6sm

Wind

Calm

VFR

3:00 PM EDT - 7:00 PM EDT

Broken 4,500'

Viz

6sm

Wind

130° 4kts

VFR

7:00 PM EDT - 10:00 PM EDT

Scattered 6,000'

Viz

6sm

Wind

130° 5kts

VFR

10:00 PM EDT - 2:00 AM EDT

Few 6,000'

Viz

6sm

Wind

150° 4kts

KEFK 180526Z 1806/1906 00000KT P6SM BKN120
   FM181200 00000KT P6SM VCSH OVC070
   FM181900 13004KT P6SM BKN045
   FM182300 13005KT P6SM SCT060
   FM190200 15004KT P6SM FEW060

KEFK

Domestic
4/18/241200Z	!BTV 04/235 EFK RWY 18 PAPI U/S 2404181200-2406012100
FDC
10/5/231445Z	!FDC 3/1122 EFK ODP NORTHEAST KINGDOM INTL, NEWPORT, VT. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4... ADD TAKEOFF OBSTACLE NOTE: RWY 5, TEMPORARY CONST EQUIP 600FT FROM DER, 980FT LEFT OF CENTERLINE, UP TO 126FT AGL/ 1004FT MSL (2023-ANE-3763 THRU 3767-OE). ADD TAKEOFF OBSTACLE NOTE: RWY 36, TEMPORARY CONST EQUIP 780FT FROM DER, 680FT RIGHT OF CENTERLINE, UP TO 42FT AGL/ 1034FT MSL (2023-ANE-3744 THRU 3758-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2310051445-2504051445EST

ATC Tower

Attendance

0900-1700

Owner

STATE OF VERMONT
219 N MAIN ST
BARRE, VT 05641
Phone: 802-279-2647

Manager

ROLLIN TEBBETTS
219 N MAIN ST
BARRE, VT 05641
Phone: 802-585-5586

FSS

BURLINGTON FSS (BTV)
Toll Free: 1-800-WX-BRIEF

NOTAM

BTV

Light Schedule

Lights

ACTVT PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental

Runway 05/23

Dimensions

3996 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

30,000lbs

Double Wheel

44,000lbs

Double Tandem

Dual Dbl Tand

	Runway 05	Runway 23
True Heading	30°	210°
Traffic Pattern
Markings	BSC	BSC
Markings Condition	FAIR	FAIR
Latitude	44° 53' 05"N	44° 53' 39"N
Longitude	72° 14' 05"W	72° 13' 38"W
Elevation	923'	926'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

Dimensions

5301 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

33 /F/D/X/T

Single Wheel

30,000lbs

Double Wheel

44,000lbs

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	160°	340°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	44° 53' 38"N	44° 52' 49"N
Longitude	72° 13' 49"W	72° 13' 24"W
Elevation	930'	934'
Threshold Crossing Height	43 ft. AGL	44 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	GULLS ON & INVOF ARPT.
A110-3	RWY CONDS MAY NOT BE MNT OR RPRTD WHEN ARPT IS UNATNDD.
A110-4	COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -32C.
A110-5	FOR CD CTC BOSTON ARTCC AT 603-879-6859.

NORTHEAST KINGDOM INTL (ICAO: KEFK, IATA: EFK) is a public airport located in NEWPORT, VT.
