EPHRATA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEPH
EPHRATA MUNI
PublicPUB

2 miles SE of EPHRATA, WA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 18' 29"N 119° 31' 01"W
1276' MSL
2276' MSL
16E
100LL
SEATTLE (SEA)
SEATTLE
SEATTLE (ZSE)
5/16/24-6/13/24
KEPH VFR
10:53 PM PDT
Clear
10sm
55°F
26°F
29.98"Hg
320° 14kts
Gusts 21kts
AO2 SLP150 T01281033 10194 20128 58001
KEPH 180553Z AUTO 32014G21KT 10SM CLR 13/M03 A2998 RMK AO2 SLP150 T01281033 10194 20128 58001
List Your Business

KEPH FBOs, Flight Schools and Ground Support

Promote Listing
Ephrata Municipal Airport
Freq: 122.8
Phone: (509) 754-3508
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/10
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.79
Full Serve 6.69 6.76

KEPH Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KEPH Hotels

No hotels are listed for this airport.

KEPH Restaurants

No restaurants are listed for this airport.

KEPH Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
509-754-3761
 135.775

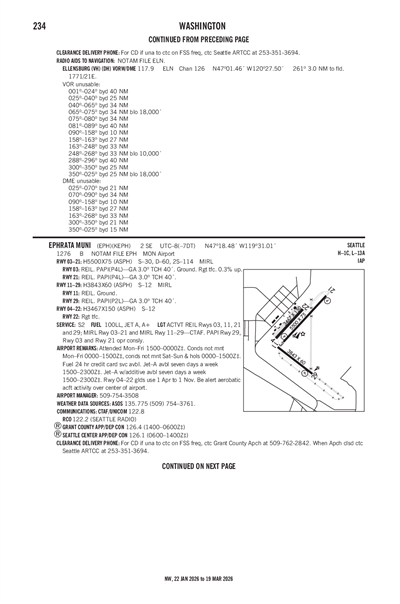

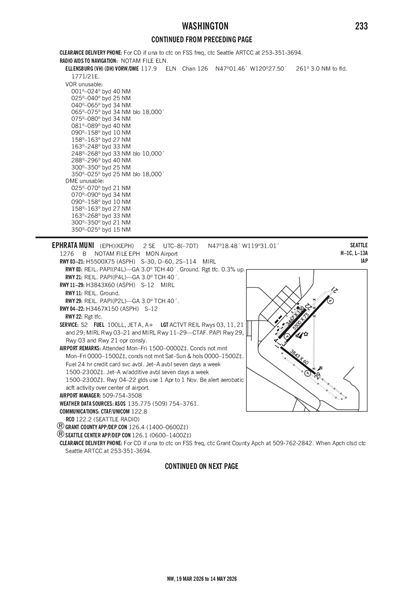

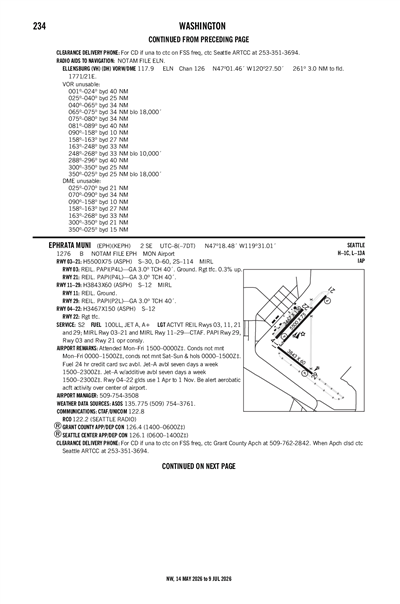

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMWH (11nm)
Fri, 5/17 10:20 PM PDT
Fri, 5/17 11:00 PM PDT - Sat, 5/18 11:00 PM PDT
VFR
11:00 PM PDT - 12:00 PM PDT
Broken 15,000'
6sm
320° 9kts
VFR
12:00 PM PDT - 2:00 PM PDT
Scattered 12,000'
6sm
240° 11kts
VFR
2:00 PM PDT - 9:00 PM PDT
Broken 15,000'
Scattered 10,000'
6sm
250° 12kts
Gusts 23kts
VFR
9:00 PM PDT - 11:00 PM PDT
Broken 20,000'
6sm
300° 11kts
KMWH 180520Z 1806/1906 32009KT P6SM BKN150
   FM181900 24011KT P6SM SCT120
   FM182100 25012G23KT P6SM SCT100 BKN150
   FM190400 30011KT P6SM BKN200
KEPH
Domestic
5/20/241213Z !EPH 05/006 EPH AIRSPACE UAS WI AN AREA DEFINED AS 0.2NM EITHER SIDE
OF A LINE FM 472554.50N1191606.90W (6.5NM W 5W1) TO
472526.70N1191654.20W (7.0NM WSW 5W1) TO 472526.80N1191736.90W
(7.5NM WSW 5W1) TO 472449.20N1191839.60W (8.2NM WSW 5W1) TO
472503.10N1191943.70W (9.0NM WSW 5W1) TO 472414.90N1192201.40W
(8.4NM NNE EPH) TO 472307.40N1192317.90W (7.0NM NNE EPH) TO
472206.80N1192241W (6.7NM NE EPH) TO 472116.70N1192310.80W (6.0NM NE
EPH) TO 472013.40N1192257.10W (5.8NM ENE EPH) TO
471918.40N1192150.80W (6.3NM ENE EPH) TO 471836.20N1192046.20W
(6.2NM NNW MWH) TO 471817.50N1192101.20W (5.9NM NNW MWH) TO
471737.10N1192048.50W (5.2NM NNW MWH) SFC-400FT AGL MON-FRI SR-SS
2405201213-2405250339
5/20/241213Z !EPH 05/005 EPH AIRSPACE UAS WI AN AREA DEFINED AS 0.2NM EITHER SIDE
OF A LINE FM 472554.50N1191606.90W (6.5NM W 5W1) TO
472526.70N1191654.20W (7.0NM WSW 5W1) TO 472526.80N1191736.90W
(7.5NM WSW 5W1) TO 472449.20N1191839.60W (8.2NM WSW 5W1) TO
472503.10N1191943.70W (9.0NM WSW 5W1) TO 472414.90N1192201.40W
(8.4NM NNE EPH) TO 472307.40N1192317.90W (7.0NM NNE EPH) TO
472206.80N1192241.00W (6.7NM NE EPH) TO 472116.70N1192310.80W (6.0NM NE
EPH) TO 472013.40N1192257.10W (5.8NM ENE EPH) TO
471918.40N1192150.80W (6.3NM ENE EPH) TO 471836.20N1192046.20W
(6.2NM NNW MWH) TO 471817.50N1192101.20W (5.9NM NNW MWH) TO
471737.10N1192048.50W (5.2NM NNW MWH) SFC-400FT AGL MON-FRI SR-SS
2405201213-2405250339
5/20/241213Z !EPH 05/003 EPH AIRSPACE UAS WI AN AREA DEFINED AS 1.2NM RADIUS OF
472614.60N1191512.90W (6.0NM W 5W1) SFC-400FT AGL MON-FRI SR-SS
2405201213-2405250339
5/19/241500Z !EPH 05/011 EPH RWY 03/21 CLSD TO TGL EXC PPR 509-750-8623 2405191500-2405260200
5/19/241500Z !EPH 05/010 EPH RWY 11 RIGHT TFC PATTERN DLY 1500-0200 2405191500-2405260200
5/19/241500Z !EPH 05/009 EPH RWY 21 RIGHT TFC PATTERN DLY 1500-0200 2405191500-2405260200
5/19/241500Z !EPH 05/008 EPH RWY 03 LEFT TFC PATTERN
DLY 1500-0200 2405191500-2405260200
5/19/241500Z !EPH 05/007 EPH AIRSPACE AREOBATIC ACFT WI AN AREA DEFINED AS 1NM RADIUS OF EPH SFC-5000FT AGL DLY 1500-0200 2405191500-2405260200
5/16/240721Z !EPH 05/002 EPH OBST TOWER LGT (ASR 1287741) 471921.90N1193158.40W (1.1NM NW EPH) 1419.0FT (103.0FT AGL) U/S 2405160721-2406300715
FDC
5/17/240741Z !FDC 4/5751 EPH IAP EPHRATA MUNI, EPHRATA, WA.
VOR RWY 21, AMDT 19A...
ALTERNATE MINIMUMS NA,
MWH VOR/DME UNMONITORED. 2405170741-2406150741EST
2/15/231433Z !FDC 3/6230 EPH ODP EPHRATA MUNI, EPHRATA, WA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TAKEOFF MINIMUMS: RWY 4, 22: NA - ENVIRONMENTAL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2302151433-2502171433EST
8/8/221950Z !FDC 2/6012 EPH IAP EPHRATA MUNI, EPHRATA, WA.
VOR RWY 21, AMDT 19A...
NOTE: CIRCLING NA TO RWYS 4 AND 22.
2208081950-2408081950EST
No
MON-FRI 0730-1600
PORT DIST NO 9 GRANT CO
PORT OF EPHRATA PO BOX 1089
EPHRATA, WA 98823
Phone: 509-754-3508
DAVID LANMAN
PO BOX 1089
EPHRATA, WA 98823
Phone: 509-754-3508
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
EPH
--
ACTVT REIL RWYS 3, 11, 21 & 29; MIRL RWY 03/21 & MIRL RWY 11/29 - CTAF. PAPI RWY 29, RWY 03 & RWY 21 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
16
0
0
0
0
0
Minor
Minor
None
None
Glider Service
Pilot Instruction
Glider Towing

Runway 03/21

5500 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
60,000lbs
--
--
  Runway 03 Runway 21
True Heading 43°223°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 18' 21"N 47° 19' 01"N
Longitude 119° 31' 19"W 119° 30' 25"W
Elevation 1,261' 1,276'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 04/22

3467 ft. x 150 ft.
ASPH
Fair
NONE


12,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 42°222°
Traffic Pattern Right
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 47° 18' 24"N 47° 18' 49"N
Longitude 119° 31' 29"W 119° 30' 55"W
Elevation 1,261' 1,262'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11/29

3843 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 128°308°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 47° 18' 17"N 47° 17' 53"N
Longitude 119° 31' 26"W 119° 30' 42"W
Elevation 1,261' 1,257'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-4BE ALERT AEROBATIC ACFT ACTIVITY OVER CENTER OF AIRPORT.
A110-5ULTRA LIGHT ACTIVITY INVOF ARPT.
A110-6(E81) REFLECTORS ON PORTIONS OF TWYS.
A110-7CONDITIONS NOT MONITORED MON-FRI 1600-0700, CONDITIONS NOT MONITORED SAT-SUN & HOLIDAYS
A110-8FOR CD IF UNA TO CTC ON FSS FREQ, CTC GRANT COUNTY APCH AT 509-762-2842. WHEN APCH CLSD CTC SEATTLE ARTCC AT 253-351-3694.
EPHRATA MUNI (ICAO: KEPH, IATA: EPH) is a public airport located in EPHRATA, WA.
