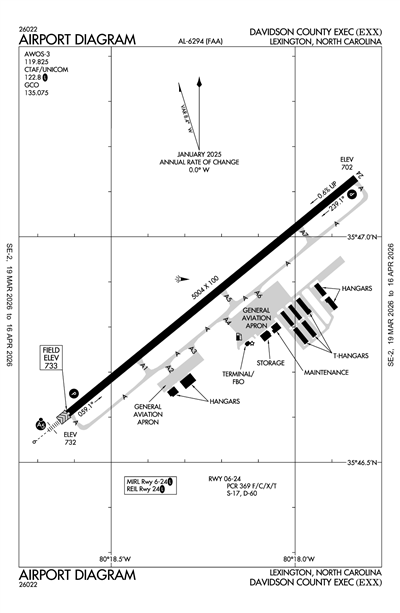

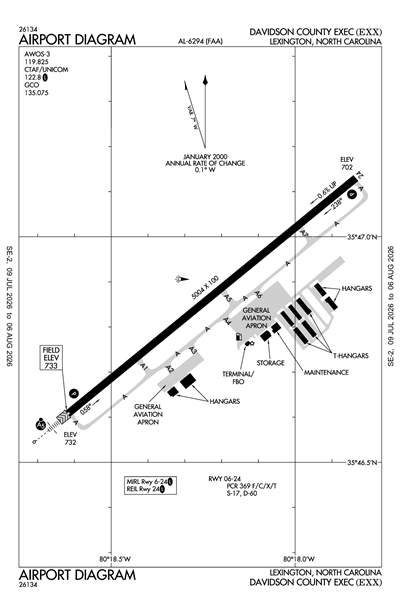

DAVIDSON COUNTY EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEXX
DAVIDSON COUNTY EXEC
PublicPUB

3 miles SW of LEXINGTON, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 46' 52"N 80° 18' 14"W
732' MSL
1732' MSL
07W
Jet A+, 100LL
RALEIGH (RDU)
CHARLOTTE
ATLANTA (ZTL)
5/16/24-6/13/24
KEXX VFR
1:45 AM EDT
Overcast 11,000'
Broken 3,900'
Scattered 2,200'
7sm
67°F
67°F
29.86"Hg
Calm
AO2 T01950195
KEXX 180545Z AUTO 00000KT 7SM SCT022 BKN039 OVC110 20/20 A2986 RMK AO2 T01950195
List Your Business

KEXX FBOs, Flight Schools and Ground Support

Promote Listing
Fly High Lexington
Freq: 122.8
Phone: (336) 956-7774
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.00
Full Serve 6.60 5.40

KEXX Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KEXX Hotels

No hotels are listed for this airport.

KEXX Restaurants

No restaurants are listed for this airport.

KEXX Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
336-956-2967
 119.825

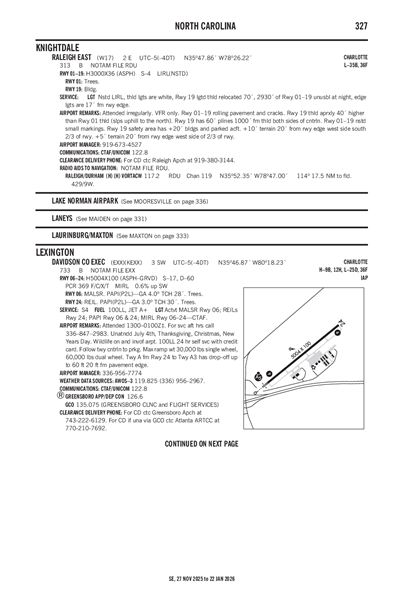

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KINT (22nm)
Sat, 5/18 1:20 AM EDT
Sat, 5/18 2:00 AM EDT - Sun, 5/19 2:00 AM EDT
VFR
2:00 AM EDT - 4:00 AM EDT
Mist
Overcast 3,500'
6sm
VRB° 5kts
IFR
4:00 AM EDT - 11:00 AM EDT
Mist
Overcast 500'
4sm
VRB° 5kts
MVFR
11:00 AM EDT - 3:00 PM EDT
Broken 2,000'
6sm
210° 5kts
VFR
3:00 PM EDT - 8:00 PM EDT
Thunderstorm in vicinity
Broken 9,000'
Broken 3,500'
6sm
190° 6kts
IFR
Temporary 4:00 PM EDT - 8:00 PM EDT
Light Thunderstorm and Rain and Mist
Broken 2,500'
2sm
Calm
MVFR
8:00 PM EDT - 2:00 AM EDT
Light Showers and Rain and Mist
Overcast 2,500'
6sm
040° 8kts
KINT 180520Z 1806/1906 VRB05KT 6SM BR OVC035
   FM180800 VRB05KT 4SM BR OVC005
   FM181500 21005KT P6SM BKN020
   FM181900 19006KT P6SM VCTS BKN035CB BKN090
   TEMPO 1820/1824 2SM -TSRA BR BKN025CB
   FM190000 04008KT 6SM -SHRA BR OVC025
KEXX
Domestic
5/18/240125Z !EXX 05/010 EXX OBST TOWER LGT (ASR 1006905) 354943.50N0801337.20W (4.8NM NE EXX) 1123.0FT (412.1FT AGL) U/S 2405180125-2408150400
5/17/241240Z !EXX 05/009 EXX OBST TOWER LGT (ASR 1046096) 354941.00N0801444.70W (4.0NM NE EXX) 1062.7FT (263.8FT AGL) U/S 2405171240-2409141240
5/15/241906Z !EXX 05/008 EXX RWY 24 PAPI U/S 2405151906-2411152111EST
5/6/241404Z !EXX 05/003 EXX RWY 06 PAPI U/S 2405061404-2405312359
4/25/240503Z !EXX 04/003 EXX OBST TOWER LGT (ASR 1001693) 354514.00N0801141.00W (5.5NM ESE EXX) 1133.9FT (269.0FT AGL) U/S 2404250503-2405250001
FDC
9/8/221440Z !FDC 2/4002 EXX IAP DAVIDSON COUNTY, LEXINGTON, NC.
RNAV (GPS) RWY 24, ORIG-B...
LPV DA NA ALL CATS. LNAV/VNAV DA NA ALL CATS
TAA STRAIGHT-IN 148/30 CW 328/30 (NOPT) TO 148/10 CW 328/10 MINIMUM ALTITUDE 4600.
2209081440-2409201438EST
8/29/222153Z !FDC 2/8614 EXX IAP DAVIDSON COUNTY, LEXINGTON, NC.
ILS OR LOC RWY 6, AMDT 1D...
ILS DA 991/HAT 258 ALL CATS. ILS ALL CATS VISIBILITY 3/4 SM..
2208292153-2408292153EST
8/29/221918Z !FDC 2/8509 EXX IAP DAVIDSON COUNTY, LEXINGTON, NC.
RNAV (GPS) RWY 6, ORIG-B...
LPV DA 991/HAT 258 ALL CATS. LNAV/VNAV DA 1031/HAT 298 ALL CATS. LNAV MDA 1140/HAT 407 ALL CATS..
2208291918-2408291918EST
No
0800-2000
FOR SVC AFT HRS CALL 336-847-2983. UNATNDD JULY 4TH, THANKSGIVING, CHRISTMAS, NEW YEARS DAY.
DAVIDSON COUNTY ARPT AUTH
1673 AVIATION WAY
LEXINGTON, NC 27292
Phone: (336) 472-0462
KAREL VAN DER LINDEN
1673 AVIATION WAY
LEXINGTON, NC 27292
Phone: 336-956-7774
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
EXX
--
ACTVT MALSR RWY 06; REILS RWY 24; PAPI RWY 06 & 24; MIRL RWY 06/24 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
56
10
5
2
0
0
Major
Major
None
None
Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 06/24

5004 ft. x 100 ft.
ASPH
Excellent
NONE
MED

17,000lbs
60,000lbs
--
--
  Runway 06 Runway 24
True Heading 51°231°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition FAIR FAIR
Latitude 35° 46' 36"N 35° 47' 08"N
Longitude 80° 18' 37"W 80° 17' 50"W
Elevation 732' 702'
Threshold Crossing Height 28 ft. AGL 30 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-10WILDLIFE ON & INVOF ARPT.
A110-11TWY A FM RWY 24 TO TWY A3 HAS DROP-OFF UP TO 60 FT 20 FT FM PAVEMENT EDGE.
A110-12FOR CD CTC GREENSBORO APCH AT 743-222-6129. FOR CD IF UNA VIA GCO CTC ATLANTA ARTCC AT 770-210-7692.
A110-7GCO AVBL ON FREQ 135.075 THRU GSO CD & FLT SVCS.
A110-8MAX RAMP WT 30000 LBS SINGLE WHEEL, 60000 LBS DUAL WHEEL.
A110-9FOLLOW TWY CNTRLN TO PRKG.
DAVIDSON COUNTY EXEC (ICAO: KEXX, IATA: EXX) is a public airport located in LEXINGTON, NC.
