iFlightPlanner



...

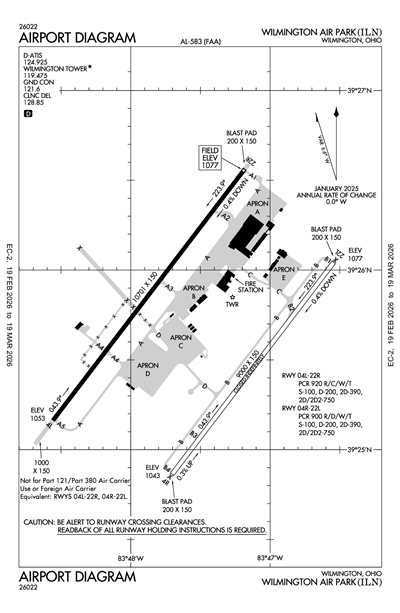

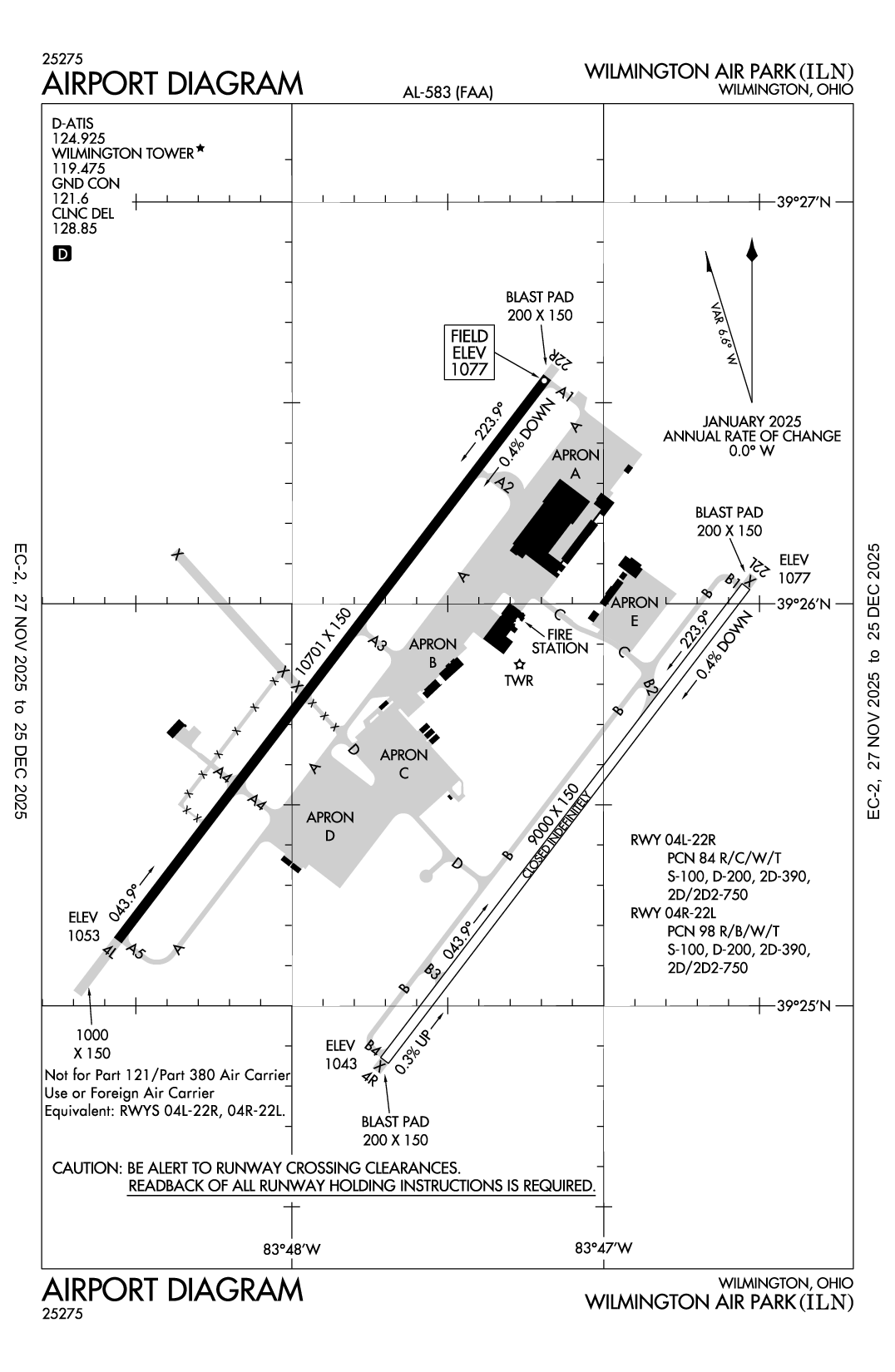

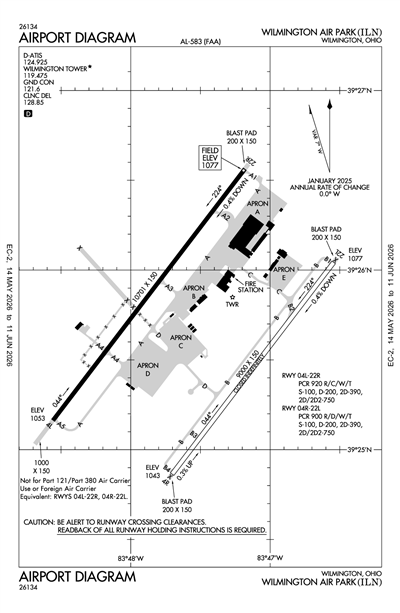

WILMINGTON AIR PARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KILN
WILMINGTON AIR PARK
PublicPUB

2 miles SE of WILMINGTON, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 25' 41"N 83° 47' 32"W
1077' MSL
2077' MSL
07W
Jet A
DAYTON (DAY)
CINCINNATI
INDIANAPOLIS (ZID)
5/16/24-6/13/24
KILN LIFR
3:29 AM EDT
Fog
Clear
0.25sm
59°F
58°F
29.86"Hg
190° 3kts
AO2 T01500144
KILN 180729Z AUTO 19003KT M1/4SM FG CLR 15/14 A2986 RMK AO2 T01500144
List Your Business

KILN FBOs, Flight Schools and Ground Support

Promote Listing
LGSTX Services
Phone: (937) 528-9891
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/26
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 5.71

KILN Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KILN Hotels

No hotels are listed for this airport.

KILN Restaurants

No restaurants are listed for this airport.

KILN Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

D-ATIS
 124.925

Clearance Delivery

CD/P
 128.85

Ground

GND/P
 121.6

Tower

LCL/P
 119.475

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KILN
Sat, 5/18 2:30 AM EDT
Sat, 5/18 3:00 AM EDT - Sun, 5/19 2:00 AM EDT
LIFR
3:00 AM EDT - 9:00 AM EDT
Fog
Obscured
0.25sm
Calm
LIFR
9:00 AM EDT - 10:00 AM EDT
Mist
Broken 300'
3sm
Calm
MVFR
10:00 AM EDT - 12:00 PM EDT
Mist
Broken 2,500'
6sm
Calm
VFR
12:00 PM EDT - 9:00 PM EDT
Scattered 5,000'
6sm
070° 3kts
VFR
9:00 PM EDT - 2:00 AM EDT
Sky Clear
6sm
VRB° 3kts
KILN 180630Z 1807/1906 00000KT 1/4SM FG VV002
   FM181300 00000KT 3SM BR BKN003
   FM181400 00000KT 6SM BR BKN025
   FM181600 07003KT P6SM SCT050
   FM190100 VRB03KT P6SM SKC
KILN
Domestic
5/11/242130Z !ILN 05/019 ILN OBST TOWER LGT (ASR 1222110) 392048.00N0835316.00W (6.6NM SW ILN) 1220.5FT (222.1FT AGL) U/S 2405112130-2409082130
10/2/232143Z !ILN 10/004 ILN RWY 04R ALS U/S 2310022143-2410022000EST
10/2/232109Z !ILN 10/003 ILN NAV ILS RWY 22L U/S 2310022109-2410022000EST
7/31/232028Z !ILN 07/045 ILN NAV ILS RWY 04R U/S 2307312028-2410022000EST
7/31/232026Z !ILN 07/044 ILN NAV ILS RWY 22L U/S 2307312026-2410022000EST
7/29/230008Z !ILN 07/040 ILN NAV ILS RWY 22L U/S 2307290008-2407312000EST
FDC
5/16/240901Z !FDC 4/3754 ILN IAP WILMINGTON AIR PARK, WILMINGTON, OH.
ILS RWY 22R (SA CAT I), AMDT 6B ...
ILS RWY 22R (CAT II - III), AMDT 6B ...
PROCEDURE NA EXC FOR RDO ALTIMETER TOLERANT ACFT AND ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVE 2023-10-02 AND 5G C-BAND DOMESTIC NOTICES. 2405160901-2605161922EST
3/21/241253Z !FDC 4/9771 ILN IAP WILMINGTON AIR PARK,
WILMINGTON, OH.
ILS RWY 22R (SA CAT I), AMDT 6B ...
ILS RWY 22R (CAT II & III), AMDT 6B ...
DISREGARD NOTE: PROCEDURE NA WHEN CONTROL TOWER CLOSED.
2403211253-2603211253EST
9/21/231849Z !FDC 3/3247 ILN ODP WILMINGTON AIR PARK, WILMINGTON, OH.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
RWY 22R, FENCE 296 FT FROM DER, 552 FT RIGHT OF CENTERLINE, 1063 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2309211849-2509191849EST
Yes
ALL
CLINTON COUNTY PORT AUTHORITY
1113 AIRPORT RD
WILMINGTON, OH 45177-8904
Phone: 937-536-1776
JEREMY HEARD
145 HUNTER DR
WILMINGTON, OH 45177-9550
Phone: 937-366-2114
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
ILN
--
PAPI RWY 04L & 22R OPR CONSLY SS-SR. ALL RWY 04R/22L LGTS OTS INDEFLY.
N/A
Yes - Lighted
No
Yes
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
None

Runway 04L/22R

10701 ft. x 150 ft.
CONC
Fair
GRVD
HIGH
84 /R/C/W/T
100,000lbs
200,000lbs
390,000lbs
750,000lbs
  Runway 04L Runway 22R
True Heading 37°217°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 25' 10"N 39° 26' 34"N
Longitude 83° 48' 33"W 83° 47' 11"W
Elevation 1,053' 1,077'
Threshold Crossing Height 62 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 04R/22L

9000 ft. x 150 ft.
CONC
Fair
GRVD
HIGH
98 /R/B/W/T
100,000lbs
200,000lbs
390,000lbs
750,000lbs
  Runway 04R Runway 22L
True Heading 37°217°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 24' 52"N 39° 26' 03"N
Longitude 83° 47' 42"W 83° 46' 33"W
Elevation 1,042' 1,076'
Threshold Crossing Height 71 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-24 HR PPR FOR ALL TSNT ACFT DURG OPRG HRS & AFT HRS - CALL 866-931-2337.
A110-4FOR CD CTC COLUMBUS APCH AT 614-338-8537.
WILMINGTON AIR PARK (ICAO: KILN, IATA: ILN) is a public airport located in WILMINGTON, OH.
