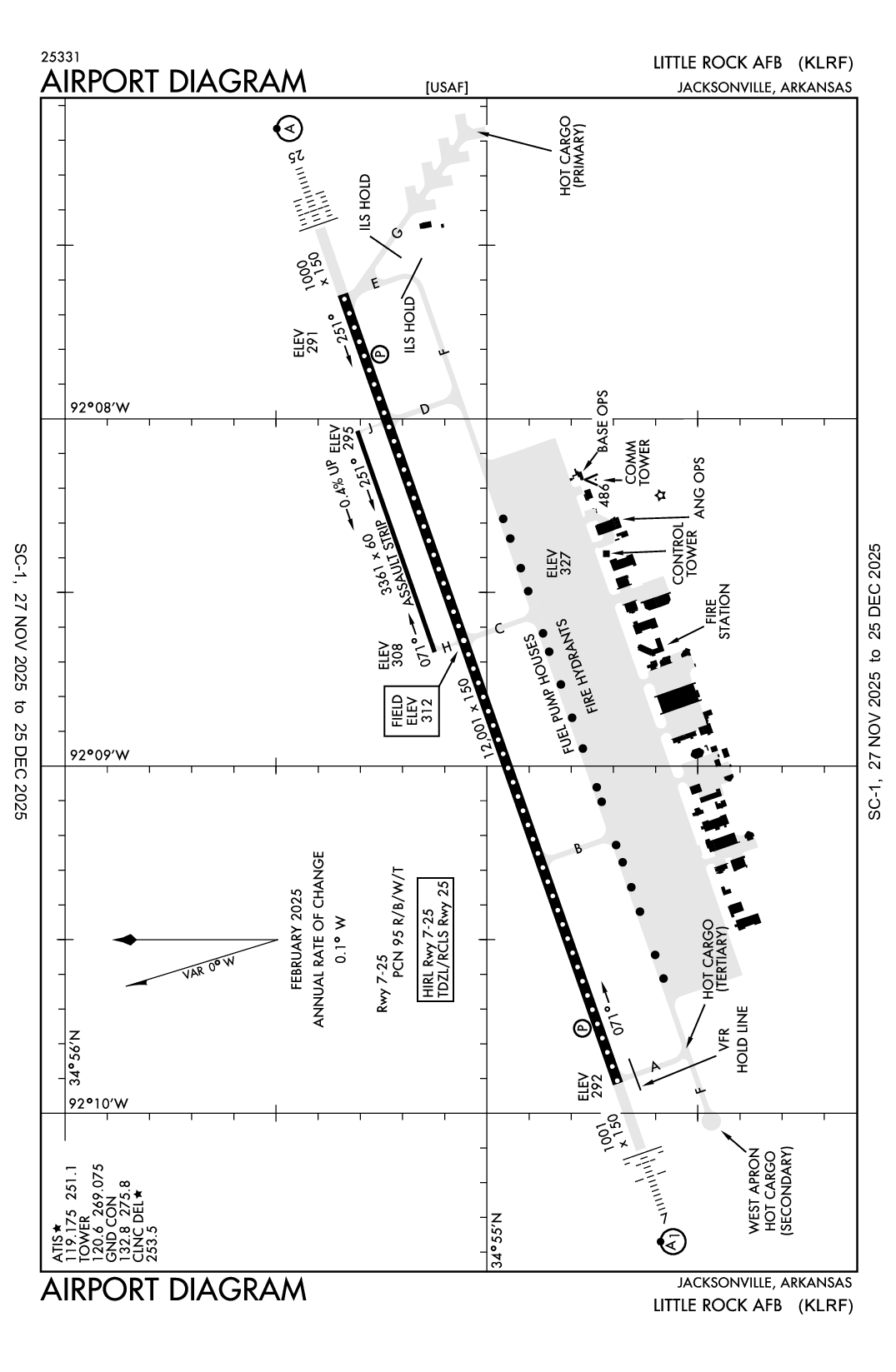

LITTLE ROCK AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLRF
LITTLE ROCK AFB
PrivatePVT

1 miles SE of JACKSONVILLE, AR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 55' 03"N 92° 08' 42"W
312' MSL
1312' MSL
01W
None Listed
JONESBORO (JBR)
MEMPHIS
MEMPHIS (ZME)
5/16/24-6/13/24
KLRF VFR
11:55 PM CDT
Scattered 6,000'
Few 3,900'
9sm
68°F
64°F
29.76"Hg
Calm
AO2 SLP078 T01990177 $
KLRF 180455Z AUTO 00000KT 9SM FEW039 SCT060 20/18 A2976 RMK AO2 SLP078 T01990177 $
List Your Business

KLRF FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KLRF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLRF Hotels

No hotels are listed for this airport.

KLRF Restaurants

No restaurants are listed for this airport.

KLRF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
Hours: 1200-0500Z++ MON-FRI; 1500-2300Z++ SAT-SUN EXC HOL
 119.175

Ground

GND/P
 132.8

Tower

LCL/P
 120.6

Other

ANG OPS
HAWG OPS
 138.6

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLRF
Fri, 5/17 6:00 PM CDT
Fri, 5/17 6:00 PM CDT - Sun, 5/19 12:00 AM CDT
VFR
6:00 PM CDT - 7:00 PM CDT
Thunderstorm in vicinity
Broken 10,000'
Few 5,000'
6sm
29.68"Hg
210° 6kts
VFR
Becoming 7:00 PM CDT - 2:00 AM CDT
Scattered 5,000'
6sm
29.73"Hg
VRB° 6kts
MVFR
Becoming 2:00 AM CDT - 8:00 AM CDT
Mist
Broken 5,000'
3.73sm
29.76"Hg
VRB° 4kts
VFR
Becoming 8:00 AM CDT - 12:00 AM CDT
Mist
Scattered 8,000'
Few 5,000'
6sm
29.82"Hg
270° 6kts
TAF KLRF 172300Z 1723/1905 21006KT 9999 VCTS FEW050CB BKN100 QNH2967INS
   BECMG 1800/1801 VRB06KT 9999 NSW SCT050 QNH2972INS
   BECMG 1807/1808 VRB04KT 6000 BR BKN050 QNH2976INS
   BECMG 1813/1814 27006KT 9999 FEW050 SCT080 QNH2983INS TX28/1723Z TN19/1807Z LIMITED METWATCH 1723 TIL 1807
KLRF
Military
5/20/241835Z BE ADVISED: MONDAY 20 MAY 1335L - 1435L DUE TO ONGOING CEREMONY ON THE WESTERN PORTION OF THE RAMP FROM PARKING ROWS ALPHA-ECHO, THE FOLLOWING NOISE REDUCTION PROCEDURES ARE AS FOLLOWS: AIRCRAFT LANDING FOR MAXIMUM EFFORT LANDINGS MUST BE ABLE TO CLEAR BY TWY CHARLIE, THEN TAXI VIA TWY FOXTROT, DELTA FOR SUBSEQUENT RWY 25 DEPARTURES. AIRCRAFT TERMINATING IN THE ABOVE WINDOW WILL EXIT THE RUNWAY AT TWY CHARLIE (BACK-TAXI RWY 25 IF REQUIRED) AND HOLD POSITION AT BIG BIRD UNTIL THE QUIET HOURS ARE TERMINATED. PARKING RAMP ALPHA ROW TO PAPA ROW: NO AIRCRAFT ENGINES, APU'S, GTC'S OR VEHICLE NOISE (TO INCLUDE R-11'S, TOWS, OR ANY ENGINE ABOVE A NORMAL CAR NOISE). PARKING RAMP ALPHA ROW TO HOTEL ROW AND FLIGHT LINE ROAD: NO VEHICLE TRAFFIC FROM 1345-1420 THAT EMITS LOUDER NOISE THAN NORMAL CAR NOISE.
5/17/242026Z M0324/24 NOTAMC M0323/24
5/17/241954Z M0322/24 NOTAMC M0321/24
5/17/241633Z M0320/24 NOTAMC M0318/24
5/17/241633Z M0319/24 NOTAMC M0315/24
5/17/240640Z M0317/24 NOTAMC M0316/24
5/16/242304Z M0313/24 NOTAMC M0312/24
5/14/240148Z AERODROME STUB 7 ON X-MAS TREE CLOSED FOR 189 FUSELAGE BREAKDOWN
5/13/241227Z AERODROME ILS RWY 25 (CAT II) AVAILABLE.
5/7/240332Z MAIN PARKING RAMP : IN-GROUND LARGE METAL SCREW LOCATED APPROXIMATELY 100FT FROM TAXIWAY LEAD-IN-LINE ON SPOT P4
5/1/240435Z AERODROME TACAN SYSTEM UNMONITORED.
4/30/241839Z AERODROME ASSAULT ZONE RWY 071/251 LENGTH IS 3369 FT BY 60 FT WIDE.
4/28/240326Z AERODROME CAUTION BALL PARK LIGHT POLES DO NOT HAVE OBSTRUCTION LIGHTS
4/18/241850Z AERODROME 150 FT CRANE LOCATED 1/2 MILE SOUTH OF RUNWAY AT BLDG 618.
4/10/241458Z AERODROME CAUTION TAXIWAY FOXTROT CLOSED EAST OF TAXIWAY DELTA TO 75 FEET FROM THE INSTRUMENT HOLD LINE ON TAXIWAY ECHO. TAXIWAY ECHO AND GOLF ACCESSIBLE VIA THE RUNWAY.
4/2/241415Z AERODROME CAUTION: MOWING OPERATIONS ONGOING THROUGHOUT AIRFIELD. CONTACT AIRFIELD MANAGEMENT AT 501-987-6123 FOR LOCATION.
3/30/241900Z AERODROME AIRFIELD FIRE FIGHTING (ARFF) AND RESCUE CAPABILITIES IS DOWNGRADED TO YELLOW-REDUCED LEVEL OF SERVICE USAF CAT 3 (FOR C130) DUE TO PERSONNEL AND VEHICLE SHORTAGES. ALL AIRCRAFT MUST CONTACT AIRFIELD MANAGEMENT FOR INFORMATION AND GUIDANCE FOR AIRCRAFT SPECIFIC ARFF STATUS.
3/12/241501Z DOD PROCEDURAL NOTAM: ILS RWY 25 CAT (II) ORIG: LANDING MINIMA: RA 94. THRU 18 APR 2024.
Yes
ALL
ARPT NORMALLY CLSD FED HOL FR 0300Z++ THRU 1300Z++ SUCCEEDING DAY.
USAF, MAC
LITTLE ROCK AFB
JACKSONVILLE, AR 72076
CHIEF OF AFLD MANAGEMENT
LITTLE ROCK AFB
JACKSONVILLE, AR 72076
Phone: 501-987-3103
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
LRF
Sunset to Sunrise
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
3
0
None
None
None
None
Cargo Handling

Runway 07/25

12007 ft. x 150 ft.
CONC
Good
NONE
HIGH
38 /R/D/W/T
--
--
--
--
  Runway 07 Runway 25
True Heading 71°251°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 54' 41"N 34° 55' 20"N
Longitude 92° 09' 56"W 92° 07' 39"W
Elevation 292' 291'
Threshold Crossing Height 50 ft. AGL 56 ft. AGL
Visual Glide Path Angle 2.83° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 071/251

3499 ft. x 60 ft.

CONC
NONE


--
--
--
--
  Runway 071 Runway 251
True Heading 71°251°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 34° 55' 06"N 34° 55' 18"N
Longitude 92° 08' 43"W 92° 08' 03"W
Elevation 305' 290'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RSTD: PPR EXCP AIREVAC & ARMED FORCES COURIER.
A110-11RSTD: OFFL BUS ONLY 1700-2100Z++ WKD EXC AIREVAC AND ARMED FORCES CARRIER. OBTAIN PPR 72 HRS PRIOR TO ARRIVAL. CALL DSN 731-6123, PPR IS VALID +/- 30 MIN OF PROPOSED ETA.
A110-12CAUTION: HI POTENTIAL FOR HYDROPLANING ON RWY 07-25 DUR PERIODS OF WET WX.
A110-15CAUTION: NUMEROUS UNLGTD OBST LCTD PRIM SFC.
A110-16CAUTION: NSTD RWY MRK- ASSAULT STRIP MRK (3500' X 60') PAINTED ON RWY 25.
A110-18MISC: ALL TRANSIENT ACFT CTC COMD POST 20 MIN PRIOR TO ARR.
A110-2CAUTION: EXTV TURBO-PROP TRNG 1300-0600Z++ MON-FRI.
A110-21SERVICE-LGT: SFL INTS UNCTL MAY BE TURNED OFF O/R.
A110-23JASU: 5(A/M 32A-86).
A110-24FUEL: A-MIN POL CAPABILITY 2200-0600Z++ MON-FRI, EXP 2-4 HR DELAY DUR LCL FLYING.
A110-25FLUID: SP PRESAIR LHOX LOX.
A110-26OIL: O-133-148-156.
A110-27SERVICE-TRAN ALERT: SVC AVBL 1300-0100Z++ MON-FRI, NO WEEKEND SUPPORT. AFTER HRS SUPPORT FOR HIGHER HQ MSNS ONLY.
A110-32CAUTION: RWY 25 CNTRLN MARKINGS OBSCURED BY RUBBER DEPOSITS.
A110-34SERVICE-LGT: NSTD INFRA-RED LGT CO-LCTD WITH RWY 07, 25 AND 249 EDGE LGT AND ONE NSTD INFRA-RED STROBE LCTD END OF RWY 07 AND 249 OVRN. INFRA-RED STROBE LCTD END OF RWY 25 CO-LCTD WITH RWY END LGT. THESE LGT ARE VIS ONLY THRU NGT NVD.
A110-38RSTD: DEGRADED FIREFIGHTING CAPABILITY FOR B-2, C-5, VC-25, E-4, KC-10, MD-11, 747 AND 777 ACFT - COORD 48H PRIOR TO ARR FOR PPR AND SVC. CONFIRM RESCUE AND FIRE FIGHTING AVBL PRIOR LDG OR TKOF.
A110-39MISC: BACKUP WX OBSN VIEW LTD, RSTD FR 060 TO 280 BY FLIGHTLINE FAC AND TREES. ATC PERS IAW COOPERATIVE WX WATCH WILL ALERT WX PERS ON ANY UNREPORTED WX COND THAT COULD AFCT FLT SAFETY.
A110-4RSTD: DEP ACFT REMAIN AT OR BLW 1400' TIL DEP END OF RWY. FTR ACFT UNABLE TO CTC DEP TIL AIRBORNE.
A110-40SERVICE-LGT: RWY 07 NSTD ALSF-1 (MISSING LAST CNTRLN BARRETTE PRIOR TO THLD).
A110-41MISC: LTD AIRCREW TRANSPORTATION WEEKENDS. TO ENSURE AIRCREW TRANSPORTATION AVBL UPON ARRIVAL, CTC AFLD MANAGEMENT AT LEAST 20 MIN PRIOR TO LDG.
A110-42RSTD: USE OF ALERT APRON (X-MAS TREE) STUB 1 RQR PRIOR COORD WITH AFLD MANAGEMENT.
A110-44CAUTION: AFLD LGT INTMT BTN SS/SR DUE TO LCL NGT VISION TRNG, NON-PARTICIPATING ACFT CTC TWR PRIOR TO ENTERING CLASS D AIRSPACE AND TO INCREASE INTS.
A110-46SERVICE-LGT: RWY 25 ILS AND PAPI GS NOT COINCIDENTAL.
A110-47RSTD: B52 ACFT LDG PROH.
A110-48MISC: NO COMSEC AVBL FOR TRAN ISSUE. NO CLASSIFIED MATERIAL STOR AT AM OPS, STOR AVBL AT COMD POST.
A110-49MISC: ARFF-CAT 3, WITH 14 PERS, 4880--5000 GAL OF CAPABILITY, CTC AMOP 731-6123 FOR UPDATED ARFF STATUS.
A110-5CAUTION: PHASE II IN EFF APR-MAY & SEP-NOV.
A110-50MISC: AN/FMQ-19 AUTOMATED OBSERVATION SYS IN USE; AUGMENTED BY HUMAN OBSN WHEN NEC DUR AFLD HRS.
A110-54MISC: AERODROME FOR NVG OPS TRAN ACFT SHOULD RCV BRIEFING FR 19 OSS TACTICS AT DNS 731-7013 OR 19OSS.OSKTACTICS@US.AF.MIL.
A110-55FOR CD WHEN UNA VIA FREQ CTC LITTLE ROCK APCH 501-379-2908 OR LITTLE ROCK ATCT 501-379-2911.
A110-6RSTD: NO PRACTICE APCH OR LDG DUR LCL FLYING.
A110-7NS ABTMT - DEP HVY ACFT CLIMB RWY HDG TO 1500' AGL PRIOR TO TURNING ON CRS.
A110-8CAUTION: SIGNIFICANT INCREASE IN BIRD ACT APR-MAY, SEP-NOV.
A110-9CAUTION: DEER HAZ.
LITTLE ROCK AFB (ICAO: KLRF, IATA: LRF) is a private airport located in JACKSONVILLE, AR.
