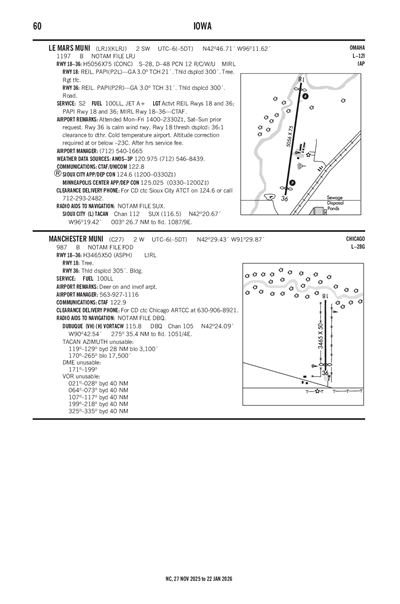

LE MARS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLRJ
LE MARS MUNI
PublicPUB

2 miles SW of LE MARS, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 46' 43"N 96° 11' 37"W
1197' MSL
2197' MSL
03E
Jet A+, 100LL
FORT DODGE (FOD)
OMAHA
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KLRJ VFR
12:35 AM CDT
Clear
10sm
72°F
52°F
29.57"Hg
180° 18kts
AO2
KLRJ 180535Z AUTO 18018KT 10SM CLR 22/11 A2957 RMK AO2
List Your Business

KLRJ FBOs, Flight Schools and Ground Support

Promote Listing
Ultra Flight
Freq: 122.8
Phone: (712) 540-1665
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.08
Full Serve 6.18 5.52

KLRJ Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLRJ Hotels

No hotels are listed for this airport.

KLRJ Restaurants

No restaurants are listed for this airport.

KLRJ Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
712-546-8439
 120.975

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSUX (25nm)
Sat, 5/18 12:20 AM CDT
Sat, 5/18 1:00 AM CDT - Sun, 5/19 1:00 AM CDT
VFR
1:00 AM CDT - 8:00 AM CDT
Sky Clear
6sm
170° 13kts
Gusts 22kts
Shear 200° 45kts @ 2000'
VFR
8:00 AM CDT - 9:00 AM CDT
Scattered 15,000'
6sm
240° 13kts
Gusts 23kts
VFR
9:00 AM CDT - 11:00 AM CDT
Scattered 16,000'
6sm
300° 16kts
Gusts 26kts
VFR
11:00 AM CDT - 6:00 PM CDT
Few 25,000'
6sm
320° 18kts
Gusts 24kts
VFR
6:00 PM CDT - 11:00 PM CDT
Sky Clear
6sm
320° 11kts
Gusts 16kts
VFR
11:00 PM CDT - 1:00 AM CDT
Sky Clear
6sm
VRB° 3kts
KSUX 180520Z 1806/1906 17013G22KT P6SM SKC WS020/20045KT
   FM181300 24013G23KT P6SM SCT150
   FM181400 30016G26KT P6SM SCT160
   FM181600 32018G24KT P6SM FEW250
   FM182300 32011G16KT P6SM SKC
   FM190400 VRB03KT P6SM SKC
KLRJ
Domestic
5/16/241149Z !LRJ 05/005 LRJ OBST TOWER LGT (ASR 1245439) 424609.80N0961040.50W (0.9NM SE LRJ) 1429.1FT (125.0FT AGL) U/S 2405161149-2405301300
5/16/240337Z !LRJ 05/004 LRJ OBST TOWER LGT (ASN 2019-ACE-6894-OE) 423531N0955638W (15.7NM SE LRJ) 1680FT (333FT AGL) U/S 2405160337-2405312300
5/7/240435Z !LRJ 05/002 LRJ OBST TOWER LGT (ASR 1017736) 424309.30N0960814.40W (4.3NM SE LRJ) 1722.1FT (348.1FT AGL) U/S 2405070435-2407312359
4/17/241831Z !LRJ 04/003 LRJ SVC AUTOMATED WX BCST SYSTEM T/DP U/S 2404171831-2405312359
4/9/241705Z !LRJ 04/001 LRJ OBST TOWER LGT (ASR 1057963) 423512.00N0961319.00W (11.6NM S LRJ) 3320.9FT (1987.9FT AGL) U/S 2404091705-2407102359
FDC
10/27/231315Z !FDC 3/2752 LRJ ODP LE MARS MUNI, LE MARS, IA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
ADD TAKEOFF OBSTACLE NOTE: RWY 18, TEMPORARY CRANE 3145FT FROM DER, 29FT RIGHT OF CENTERLINE, 94FT AGL/ 1296FT MSL (2023-ACE-6140-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2310271315-2406071315EST
10/27/231315Z !FDC 3/2745 LRJ IAP LE MARS MUNI, LE MARS, IA.
RNAV (GPS) RWY 36, AMDT 1D...
LPV DA 1550/HAT 353 ALL CATS. TEMPORARY CRANE 1296 MSL 3446FT S OF RWY 36 (2023-ACE-6140-OE).
2310271315-2406071315EST
6/27/221212Z !FDC 2/4422 LRJ ODP LE MARS MUNI, LE MARS, IA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
NOTE: RWY 18, BUILDINGS BEGINNING 375 FT FROM DER, 409 FT LEFT OF CENTERLINE, UP TO 26 FT AGL/1232 FT MSL.
(2022-ACE-2959 THROUGH 2962 AND 4885-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2206271212-2406271209EST
No
MON-FRI 0800-1730
SAT- SUN PRIOR REQUEST
CITY OF LE MARS
22 2ND ST SE
LE MARS, IA 51031
Phone: 712-546-7018
TOM MULLALLY
1621 AIRPORT DRIVE
LE MARS, IA 51031
Phone: (712) 540-1665
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
LRJ
--
ACTVT REIL RWYS 18 & 36; PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
14
0
2
0
0
0
Minor
Minor
None
None
Aircraft Sales

Runway 18/36

5056 ft. x 75 ft.
CONC
Good
NONE
MED
12 /R/C/W/U
28,000lbs
48,000lbs
--
--
  Runway 18 Runway 36
True Heading 188°8°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 42° 47' 08"N 42° 46' 18"N
Longitude 96° 11' 32"W 96° 11' 42"W
Elevation 1,194' 1,193'
Threshold Crossing Height 21 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1AFT HRS SVC FEE.
A110-2RY 36 IS CALM WIND RY.
A110-3FOR CD CTC SIOUX CITY ATCT ON 124.6 OR CALL 712-293-2482.
A110-4COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -24C.
LE MARS MUNI (ICAO: KLRJ, IATA: LRJ) is a public airport located in LE MARS, IA.
