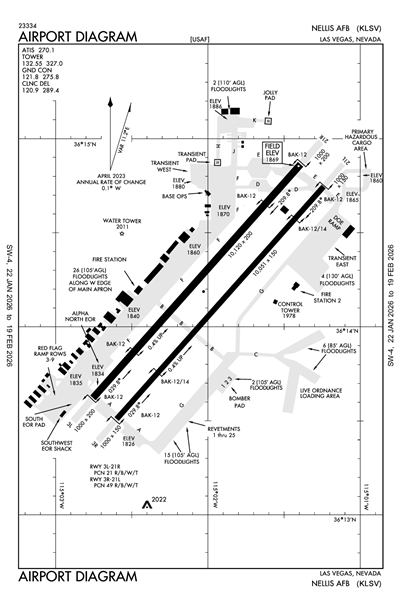

NELLIS AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLSV
NELLIS AFB
PrivatePVT

7 miles NE of LAS VEGAS, NV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 14' 10"N 115° 02' 03"W
1869' MSL
2869' MSL
12E
Jet A+, CILI
RENO (RNO)
LAS VEGAS
LOS ANGELES (ZLA)
5/16/24-6/13/24
KLSV VFR
10:55 PM PDT
Clear
10sm
89°F
17°F
29.70"Hg
190° 11kts
AO2 SLP030 T03171084 10373 20317 52020 $
KLSV 180555Z AUTO 19011KT 10SM CLR 32/M08 A2970 RMK AO2 SLP030 T03171084 10373 20317 52020 $
List Your Business

KLSV FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KLSV Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLSV Hotels

No hotels are listed for this airport.

KLSV Restaurants

No restaurants are listed for this airport.

KLSV Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Approach

APCH/P
 118.125

Departure

DEP/P
 135.1

Clearance Delivery

CD/P
 120.9

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 132.55

Other

CLASS B
NORTH
 124.95
PTD
 139.3

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLSV
Fri, 5/17 6:52 PM PDT
Fri, 5/17 6:00 PM PDT - Sat, 5/18 10:00 PM PDT
VFR
6:00 PM PDT - 11:00 PM PDT
Few 15,000'
6sm
29.65"Hg
210° 12kts
Gusts 20kts
Light Turbulence: up to 9,000'
VFR
Temporary 6:00 PM PDT - 9:00 PM PDT
No Clouds
N/A
130° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: up to 9,000'
VFR
Becoming 11:00 PM PDT - 1:00 PM PDT
Few 20,000'
6sm
29.76"Hg
160° 9kts
VFR
Becoming 1:00 PM PDT - 10:00 PM PDT
Scattered 25,000'
6sm
29.70"Hg
200° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: up to 9,000'
TAF AMD KLSV 180152Z 1801/1905 21012G20KT 9999 FEW150 510009 QNH2965INS
   TEMPO 1801/1804 13015G25KT 520009
   BECMG 1806/1807 16009KT 9999 FEW200 QNH2975INS
   BECMG 1820/1821 20015G25KT 9999 SCT250 520009 QNH2969INS TX37/1822Z TN23/1813Z
KLSV
Military
5/18/241555Z QUIET HOURS WILL BE IN EFFECT 18 MAY 2024 FROM 0855L-1015L. THIS EVENT WILL TAKE PLACE AT THE WING HEADQUARTERS COMPLEX (BLDG 7/11). QUIET HOUR RESTRCTIONS ARE AS FOLLOWS: NO TAKEOFFS. NO LOW APPROACHES; STRAIGHT IN APPROACHES TO A FULL STOP ARE AUTHORIZED (21L/3R PREFERRED). LANDING AIRCRAFT WILL NOT USE THRUST REVERSERS. LANDING AIRCRAFT WILL USE IDLE POWER TO ROLL OUT. IF AIRCRAFT CANNOT AVOID THE 1/2 MILE BUBBLE, THEY WILL BE DIRECTED TO HOLD IN EOR UNTIL THE END OF THE QUIET HOURS AT 1000L. AIRCRAFT ANTICIPATED TO LAND INSIDE THE QUIET HOUR WINDOW WILL LAND WITH ENOUGH FUEL TO HOLD IN EOR UNTIL THE QUIET HOURS TERMINATE. NO ENGINE TEST RUNS. NO AIRCRAFT MAY START ENGINES UNLESS THEY ARE OUTSIDE OF 1/2 MILE OF THE EVENT. AIRCRAFT MAY TAXI TO THE EOR FOR ARMING IF AVOIDING THE EVENT BY 1/2 MILE OR GREATER AND WILL REMAIN THERE UNTIL THE END OF THE QUIET HOURS. MILITARY AND CIVILLIAN HEAVY EQUIPMENT OPERATIONS WILL CEASE WITHIN 1/2 MILE OF THE CEREMONY FOR THE DURATION OF THE QUIET HOURS.
5/18/240001Z AERODROME AIRFIELD OPERATING HOURS FOR 18 MAY - 27 MAY 2024. SATURDAY 18 MAY: 0600-2230L (1300-0530Z). SUNDAY 19 MAY OPEN: 0600L (1300Z) - MONDAY 20 MAY 2200L (0500Z). TUESDAY 21 MAY 0600-2330L (1300-0630Z). WEDNESDAY 22 MAY 0600-2350L (1300-0650Z). THURSDAY 23 MAY 0600-2200L (1300-0500Z) FRIDAY 24 MAY - SUNDAY 26 MAY CLOSED. MONDAY 27 MAY 1100-1500L (1800-2200Z)
5/15/241200Z AERODROME OBST CRANE 361557N/1150349W (2.4NM NW APCH END RWY 21L) 2118 FT MSL (130 FT AGL)
5/13/242210Z AERODROME AIRFIELD OPERATING HOURS FOR 13 MAY - 19 MAY 2024. MONDAY 13 MAY: 0600-2230L (1300-0530Z). TUESDAY 14 MAY: 0600 (1300Z) - FRIDAY 17 MAY: 2200L (0500Z). SATURDAY 18 MAY 0600-1400L (1300-2100Z) - SUNDAY 19 MAY OPEN: 0600L (1300Z) .
5/11/241449Z UNMANNED AIRCRAFT OPERATIONS IN PROGRESS 361628N/1150017W (1.7NM N APCH END RWY 21R) .5NM RADIUS SFC-3042 FT MSL (1200 FT AGL) 14 MAY 24 0500-0515Z 15 MAY 24 0330-1000Z 16 MAY 24 0630-1300Z 17 MAY 24 0500-0515Z 17 MAY 24 2200-18 MAY24 1400Z 18 MAY 24 2200-19 MAY24 1400Z 19 MAY 24 2200-20 MAY24 1400Z
5/10/241658Z AERODROME PARKING SPOTS 1 ON AIRCRAFT PARKING ROWS 23 AND 24 CLOSED DUE TO CONSTRUCTION. PERSONNEL AND EQUIPMENT PRESENT. CONSTRUCTION AREA DELINEATED BY LOW PROFILE BARRICADES.
5/10/241654Z AERODROME ROW 39 CLOSED DUE TO CONSTRUCTION. PERSONNEL AND EQUIPMENT PRESENT. CONSTRUCTION AREA DELINEATED BY LOW PROFILE BARRICADES.
4/26/240746Z RWY 03L/21R SOUTH BAK-12 MOON MARKER ON EAST SIDE NOT ILLUMINATED
4/23/241652Z LOLA SOUTH CAUTION: LOW PROFILE BARRICADES LOCATED NEAR SPOTS 11 AND 10 APRON BOUNDARY.
3/5/242345Z NON-STANDARD TEMPORARY TAXILANE CENTERLINE MARKING, DENOTED BY A DASHED YELLOW LINE THAT IS NON-RETROREFLECTIVE, IS LOCATED BEHIND T-EAST SPOTS 5/6. TEMPORARY MARKING IS SITUATED 105 FEET FROM THE APRON BOUNDARY AND HAS BEEN IMPLEMENTED TO ENSURE APPROPRIATE WINGTIP CLEARANCE FOR B-52 AIRCRAFT.
3/4/241600Z !KLSV V0016/24 LSV AERODROME STANDARD INSTRUMENT DEPARTURE (SID) CHANGED DREAM SEVEN DEPARTURE, RWY 3L/R (AMDT 6, 25JAN24): BLD VORTAC U/S. EXPECT RADAR VECTORS ABOVE THE MVA FOR IFR RWY 3L/R DREAM DEPARTURES. 2403041600-2406070001
2/28/242256Z !KLSV M0260/24 LSV AERODROME OFFICIAL BUSINESS ONLY 2402282256-2405272359
Yes
ALL
USAF
NELLIS AFB
LAS VEGAS, NV 89110
CHIEF OF AFLD MANAGEMENT
NELLIS AFB
LAS VEGAS, NV 89110
Phone: 702-652-1110
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
LSV
--
RWY 03R & 21L ALSF-1 APCH LGTS NTE STEP 3 INTST.
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
5
0
Major
Major
None
High & Low Pressure
Cargo Handling

Runway 03L/21R

10120 ft. x 200 ft.
CONC
Good
NONE
HIGH
21 /R/B/W/T
--
--
--
--
  Runway 03L Runway 21R
True Heading 41°221°
Traffic Pattern Right Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 13' 36"N 36° 14' 51"N
Longitude 115° 02' 48"W 115° 01' 27"W
Elevation 1,834' 1,869'
Threshold Crossing Height 52 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 03R/21L

10051 ft. x 150 ft.
CONC
Good
NONE
HIGH
49 /R/B/W/T
--
--
--
--
  Runway 03R Runway 21L
True Heading 41°221°
Traffic Pattern Right Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 13' 30"N 36° 14' 44"N
Longitude 115° 02' 39"W 115° 01' 18"W
Elevation 1,826' 1,865'
Threshold Crossing Height 53 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway H1

100 ft. x 100 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading 75°255°
Traffic Pattern
Markings NSTD
Markings Condition GOOD
Latitude 36° 15' 05"N N/A
Longitude 115° 01' 38"W N/A
Elevation 1,882' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-16SERVICE- LGT: RWY THR LGTS GATED.
A110-18JASU: NO STARTER UNIT OR CAPABILITY FOR F4B, F4J; NO STARTER PROBE FOR USN ACFT; 2(MA-1A).
A110-20FLUID: W-EXP 2-3 HR DELAY; SP PRESAIR LHOX LOX.
A110-21OIL: O-123-128-132-133-148-156 SOAP.
A110-30RSTD: BIRD WATCH COND MOD; OPS RSTD; TKOF OR LDG PMSN ONLY WHEN DEP & ARR AVOID BIRD ACT; LCL IFR/VFR TFC PAT NA. BIRD WATCH COND SVR; TKOF OR LDG NA WO OG/CC APVL.
A110-31CTN: STEEPLY RISING TRRN COMMENCING 2.7 NM EAST OF RWY 03R-21L CNTRLN UP TO 3359 MSL. HIGH POTENTIAL FOR HYDROPLANING ON BOTH RWYS DUR WET CONDS. ACFT TAXG ON TWY D BTN TWY F AND RWY 21R USE CTN, 4 FT 8 INCH HI DSTC RMNG SIGN LCTD 125 FT NORTH OF TWY D CNTRLN. HVY ACFT ENG RUNS PMTD ON RWY; REQ MUST BE SKED THRU AIRFIELD MGMT OPS DSN 68204600. DUE TO FOD PROBLEM, 4 ENG ACFT WILL TAXI WITH OUTBOARD ENGS AT IDLE PWR OR SHTDN IF PSBL. JOLLY AND TSNT HELIPADS MISG MANDATORY HOLD POS SIGNS. RWY CONDS NOT RPRTD.
A110-32TFC PAT: DEP CLIMB ABV 3000 FT NA UNTIL DER.
A110-33NOISE ABATEMENT: QUIET HRS IN EFCT 0630-1400Z++.
A110-38RSTD: SUN & HOL EXP ARR FM N; DEP FM N WINDS PERM; TFC PAT TWDS E.
A110-41MISC: NO CLASSIFIED MTRL STORAGE AVBL AT AM OPS; CLASSIFIED MUST BE STORED IN NELLIS AFB COMMAND POST. TSNT ACFT SHALL COMMUNICATE WITH NELLIS ATC ON UHF TO MAX EXTENT PSBL DUE TO HVY CONCENTRATION OF ACFT IN THE VFR PAT. RSRS WILL BE APPLIED TO BASE ASGND/DEPLOYED ACFT.
A110-42MISC: WX OBS VIEW OF AER 03R/L RSTD 190-330 DEG BY FLIGHTLINE BLDGS & FAC & AT NGT DUE TO RAMP LGT.
A110-44MISC: WX SUPPORT H24 - DSN 682-4744, C702-652-4744; MSN SUPPORT WX PER WING & EXER SKED TYPICALLY 1300++ MON THRU 0530++ FRI CLSD WKND & HOL; TSNT WX AFT HR VIA DAVIS MONTHAN 25OWS - D228-6598/6599, C520-228-6598/6599.
A110-46HOT CARGO PAD UNLIT; RSTD TO DAYLIGHT/VFR OPS.
A110-48A-GEAR: ALL BAK-12B EXTN & IN RAISED POSN, RQR 30 MIN PN FOR REMOVAL.
A110-50SVC-TSNT ALERT: AVBL MON-FRI 1600Z-0400Z++, NO QUICK TURN FRI-SUN. NO TSNT ACFT CAN ARR/DEP DURG ACC QUIET HRS (0630-1400Z++). NO MIL FLEET SVC AVBL. LTD TSNT SVC AVBL. TSNT ALERT CONTRACT BACKSHOP MAINT SUPPORT MAY RQR REIMBURSEMENT AND COORD WITH CONTRACT OFFICER. DUE TO LARGE NR OF TSNT AND EXER ACFT EXP DELAYS WITH TRAN ALERT.
A110-58RSTD: FORWARD FIRING MUNITIONS IN REVETMENTS 12, 13 & 25 NA.
A110-59CTN: INCREASED DURG BASH PHASE II APR-MAY & AUG-OCT.
A110-70SERVICE-A-GEAR: RWY 03R-21L BAK-14 OPS: BOTH BAK-14 APCH END AND DEP END WILL BE IN LOWERED POS. AVBL UPON REQ FOR EMER USE ONLY. SLOW TO 20 KTS OR LESS PRIOR TO DEP END CABLE & TAXI TO FAR EDGE OF COLD SIDE OF RWY; TAXI BTN RWY EDGE & OUTERMOST BAK-14 BUMPER.
A110-73CTN: TWY A EAST TACAN CK POINT SIGN NSTD.
A110-75SERVICE-LGT: TWY EDGE LGTS ADJ TO MAIN APN PRKG ROWS 1 & 2 MISG.
A110-76RSTD: ALL TSNT ACFT MUST OBTAIN PPR PRIOR TO ARR. REFER TO NELLIS NOTAMS TO ID AVBL AIRFIELD SVCS WINDOW. PPR MAY BE ISSUED UP TO 7 DAYS PRIOR TO, BUT NLT 48 HRS PRIOR TO SKED ARR. PPR FOR ALL EXER ACFT AND ACFT WITH WINGSPANS OF 132.6 FT OR LRGR CTC NELLIS SUPPORT CENTER DSN 682-5250/5353 (MON-FRI 0730-1630L). PPR FOR NON-EXERCISE ACFT SMALLER THAN 132.6 FT CTC AM OPS DSN 682-4600, C702-652-4601. RON REQ GOOD FOR ONE NGT ONLY, DEPENDENT UPON RAMP SPACE. TRAN FTR, NON EXER ACFT, PRKG LMTD TO ROWS 45-46. ACFT MUST ADHERE TO PPR ARR BLOCK +/- 30 MINS OF SKED LDG. MULT APCH NA DURG RF/LFE OR AFT OFFL SS UNLESS APVD BY 57 WG SOF. ACFT PTCPG IN NELLIS SPONSORED EXERS/LARGE FORCE EXERS RQR LCL SPONSORING UNIT. THE LCL SPONSORING UNIT WILL COORD MAINT, PRKG, AND SVCS. PL-2 ACFT MUST BRING OWN SCTY PSNL AND DETAIL FOR ALL LARGE FORCE EXERS. FOR CSTMS AND AG, CTC NELLIS SUPPORT CNTR FOR ACFT WITH WIGNSPANS OF 132.6 FT OR LRGR AT DSN 682-5250 OR CTC BASE OPS FOR ALL OTHER ACFT AT DSN 682-4601 WITH 24 HR PN. SUN AND HOL TFC EXPC ARR FM NORTH, DEP ACFT NORTH WINDS PMTD WITH TFC PAT TWD EAST (SUNRISE MT). PROGRESSIVE TAXI AVBL. ACFT WITH DV CODE 7 OR HYR CTC PTD WHEN 100 NM OUT. ALL INBD PAX/CARGO AND DV ACFT MUST CTC COMMAND POST (RAYMOND 22) ON 381.300 NLT 30 MINS PRIOR TO LDG. B-52 OPS LTD TO 380K LB.
A110-77COMMUNICATIONS-SOF: REMARKS: (CALL BULLSEYE SOF); LCL EMERG FREQ 343.725.
NELLIS AFB (ICAO: KLSV, IATA: LSV) is a private airport located in LAS VEGAS, NV.
