iFlightPlanner



...

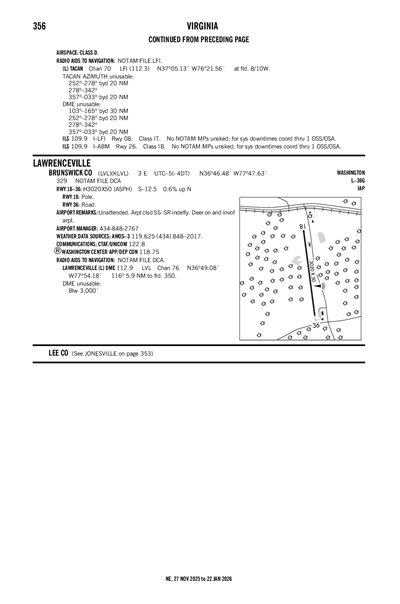

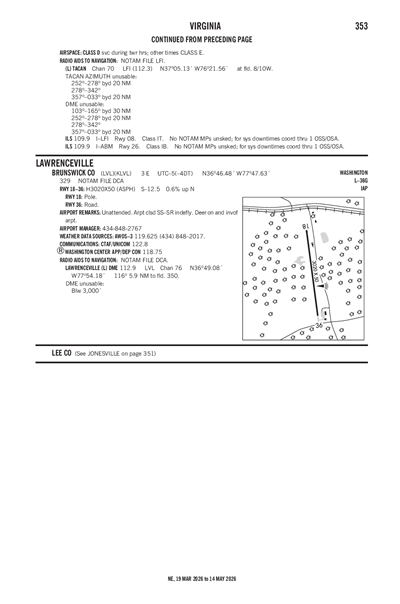

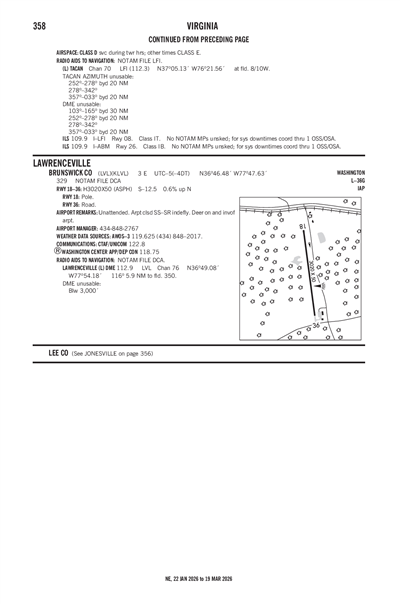

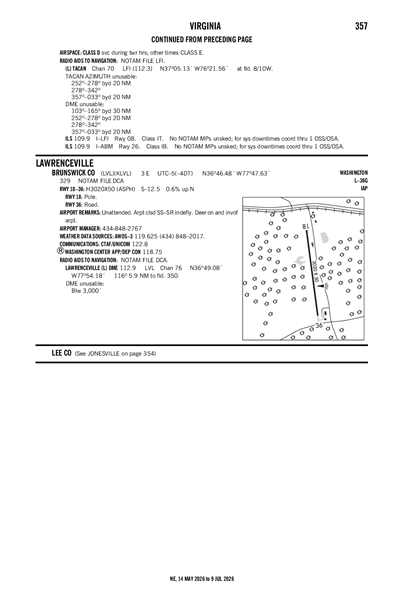

BRUNSWICK COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLVL
BRUNSWICK COUNTY
PublicPUB

3 miles E of LAWRENCEVILLE, VA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 46' 29"N 77° 47' 38"W
329' MSL
1329' MSL
08W
None Listed
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
5/16/24-6/13/24
KLVL MVFR
3:15 AM EDT
Overcast 1,600'
N/A
63°F
61°F
29.91"Hg
100° 4kts
AO1 P0001 T01710161
KLVL 180715Z AUTO 10004KT OVC016 17/16 A2991 RMK AO1 P0001 T01710161
List Your Business

KLVL FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KLVL Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLVL Hotels

No hotels are listed for this airport.

KLVL Restaurants

No restaurants are listed for this airport.

KLVL Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
434-848-2017
 119.625

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KRIC (50nm)
Sat, 5/18 2:47 AM EDT
Sat, 5/18 3:00 AM EDT - Sun, 5/19 2:00 AM EDT
MVFR
3:00 AM EDT - 6:00 AM EDT
Showers in vicinity
Overcast 10,000'
Broken 3,000'
6sm
100° 5kts
IFR
Temporary 3:00 AM EDT - 6:00 AM EDT
Broken 600'
N/A
Calm
IFR
6:00 AM EDT - 10:00 AM EDT
Showers and Rain and Mist
Overcast 600'
4sm
110° 6kts
IFR
10:00 AM EDT - 2:00 PM EDT
Showers and Rain and Mist
Overcast 600'
3sm
110° 8kts
IFR
2:00 PM EDT - 2:00 AM EDT
Light Drizzle and Mist
Overcast 600'
4sm
090° 7kts
KRIC 180647Z 1807/1906 10005KT P6SM VCSH BKN030 OVC100
   TEMPO 1807/1810 BKN006
   FM181000 11006KT 4SM SHRA BR OVC006
   FM181400 11008KT 3SM SHRA BR OVC006
   FM181800 09007KT 4SM -DZ BR OVC006
KLVL
Domestic
5/1/241411Z !DCA 05/008 LVL RWY 18/36 OBST WITHIN 50FT OF RWY CL EITHER SIDE 2405011411-2408032359
4/18/242041Z !DCA 04/386 LVL RWY 18 53FT N WIP BRUSH CUTTING 2404182041-2405312359
3/28/242118Z !DCA 03/479 LVL OBST TOWER LGT (ASR 1040481) 364523.00N0773945.00W (6.4NM E LVL) 628.9FT (347.1FT AGL) U/S 2403282118-2409302359
3/28/242117Z !DCA 03/478 LVL OBST TOWER LGT (ASR 1206340) 364604.50N0774337.90W (3.2NM E LVL) 690.0FT (430.1FT AGL) U/S 2403282117-2409302359
1/30/241938Z !DCA 01/649 LVL OBST TOWER LGT (ASR 1229601) 365740.80N0774245.60W (12.0NM NNE LVL) 632.9FT (349.1FT AGL) U/S 2401301938-2407312359
12/31/231414Z !DCA 12/390 LVL OBST TOWER LGT (ASR 1232884) 365024.90N0775516.80W (7.2NM WNW LVL) 606.6FT (299.9FT AGL) U/S 2312311414-2406302359
12/29/232051Z !DCA 12/381 LVL OBST TOWER LGT (ASR 1211071) 365202.50N0775329.90W (7.2NM NW LVL) 873.0FT (493.1FT AGL) U/S 2312292051-2406302359
11/29/232009Z !DCA 11/518 LVL OBST TOWER LGT (ASR 1233486) 365234.00N0774929.60W (6.3NM NNW LVL) 575.8FT (274.9FT AGL) U/S 2311292009-2405312359
No
UNATNDD
COUNTY OF BRUNSWICK
PO BOX 399
LAWRENCEVILLE, VA 23868
Phone: 434-848-3107
ANDREW SYKES
77 AIRPORT DR
LAWRENCEVILLE, VA 23868
Phone: 434-848-2767
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
DCA
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 18/36

3020 ft. x 50 ft.
ASPH
Fair
NONE


12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 172°352°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 36° 46' 43"N 36° 46' 14"N
Longitude 77° 47' 40"W 77° 47' 35"W
Elevation 329' 311'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1DEER ON & INVOF ARPT.
A110-2ARPT CLSD SS-SR INDEFLY.
BRUNSWICK COUNTY (ICAO: KLVL, IATA: LVL) is a public airport located in LAWRENCEVILLE, VA.
