LAWRENCEVILLE-VINCENNES INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLWV
LAWRENCEVILLE-VINCENNES INTL
PublicPUB

3 miles NE of LAWRENCEVILLE, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 45' 51"N 87° 36' 20"W
430' MSL
1430' MSL
01W
Jet A, 100LL
SAINT LOUIS (STL)
ST LOUIS
INDIANAPOLIS (ZID)
5/16/24-6/13/24
KLWV VFR
12:53 AM CDT
Clear
10sm
65°F
63°F
29.84"Hg
110° 3kts
AO2 SLP100 T01830172 10233 20183 402500178 53004
KLWV 180553Z AUTO 11003KT 10SM CLR 18/17 A2984 RMK AO2 SLP100 T01830172 10233 20183 402500178 53004
List Your Business

KLWV FBOs, Flight Schools and Ground Support

Promote Listing
Mid-American Air Center
Freq: 122.8
Phone: (618) 943-5733
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.20 6.00

KLWV Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLWV Hotels

No hotels are listed for this airport.

KLWV Restaurants

No restaurants are listed for this airport.

KLWV Other Airport-Related Businesses

USA Aero Refinishing
Phone: (618) 943-2261
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
618-943-5252
 118.0

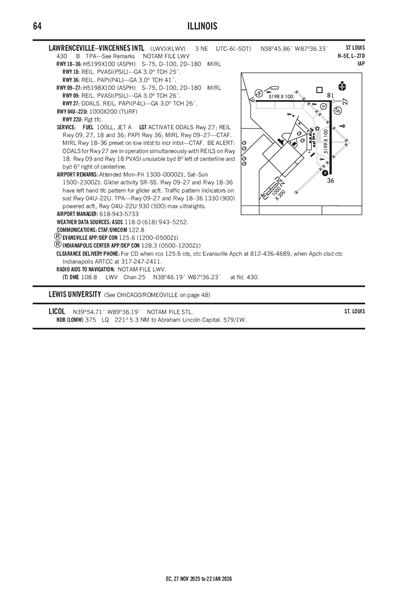

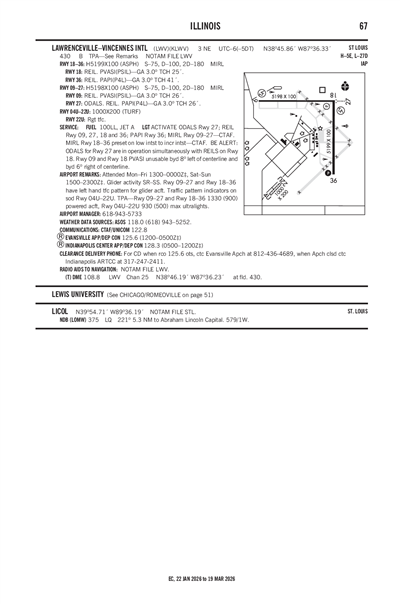

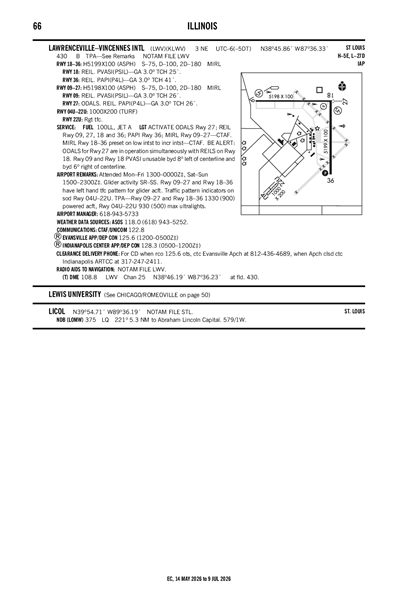

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHUF (43nm)
Sat, 5/18 1:24 AM EDT
Sat, 5/18 2:00 AM EDT - Sun, 5/19 2:00 AM EDT
VFR
2:00 AM EDT - 5:00 AM EDT
Mist
Scattered 25,000'
6sm
140° 3kts
MVFR
5:00 AM EDT - 11:00 AM EDT
Mist
Scattered 300'
3sm
Calm
IFR
Temporary 5:00 AM EDT - 9:00 AM EDT
Mist
No Clouds
1sm
Calm
VFR
11:00 AM EDT - 2:00 PM EDT
Scattered 2,400'
6sm
170° 3kts
VFR
2:00 PM EDT - 2:00 AM EDT
Scattered 4,000'
6sm
160° 5kts
KHUF 180524Z 1806/1906 14003KT 6SM BR SCT250
   FM180900 00000KT 3SM BR SCT003
   TEMPO 1809/1813 1SM BR
   FM181500 17003KT P6SM SCT024
   FM181800 16005KT P6SM SCT040
KLWV
Domestic
5/17/241235Z !LWV 05/004 LWV OBST TOWER LGT (ASR 1035073) 384148.30N0872626.70W (8.7NM ESE LWV) 910.1FT (371.1FT AGL) U/S 2405171235-2409141235
4/28/240924Z !LWV 04/011 LWV OBST TOWER LGT (ASR 1277234) 384258.20N0874315.90W (6.2NM WSW LWV) 772.0FT (319.9FT AGL) U/S 2404280924-2407270400
4/25/240901Z !LWV 04/010 LWV OBST TOWER LGT (ASR 1009536) 384321.00N0873915.00W (3.4NM SW LWV) 792.0FT (336.3FT AGL) U/S 2404250901-2405272359
1/24/232008Z !LWV 01/010 LWV RWY 27 ALS U/S 2301242008-PERM
FDC
5/18/231219Z !FDC 3/8218 LWV IAP LAWRENCEVILLE-VINCENNES INTL, LAWRENCEVILLE, IL.
RNAV (GPS) RWY 36, AMDT 1C...
RWY 36 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
2305181219-2505181219EST
5/18/231154Z !FDC 3/8197 LWV IAP LAWRENCEVILLE-VINCENNES INTL, LAWRENCEVILLE, IL.
RNAV (GPS) RWY 27, AMDT 1C...
RWY 27 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
CHANGE NOTE TO READ: INOP TABLE DOES NOT APPLY TO LPV ALL CATS AND LNAV CATS C AND D.
2305181154-2505181153EST
No
MON-FRI 0700-1800
SAT-SUN 0900-1700
BI-STATE AUTHORITY
13608 HANGAR RD
LAWRENCEVILLE, IL 62439
Phone: 618-943-5733
KURTIS SCHWARTZ
13608 HANGAR RD
LAWRENCEVILLE, IL 62439
Phone: 618-943-5733
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
LWV
--
ACTVT ODALS RWY 27; REIL RWY 9, 27, 18 & 36; PAPI RWY 36; MIRL RWY 09/27 - CTAF. MIRL RWY 18/36 PRESET ON LOW INTST TO INCR INTST - CTAF.
N/A
Yes - Lighted
N/A
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
33
2
1
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04U/22U

1000 ft. x 200 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 04U Runway 22U
True Heading Not ListedNot Listed
Traffic Pattern Left Right
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09/27

5198 ft. x 100 ft.
ASPH
Good
NONE
MED

75,000lbs
100,000lbs
180,000lbs
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 46' 04"N 38° 46' 04"N
Longitude 87° 37' 09"W 87° 36' 03"W
Elevation 426' 430'
Threshold Crossing Height 26 ft. AGL 26 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator PSIL P4L
Approach Lights ODALS
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 18/36

5199 ft. x 100 ft.
ASPH
Good
NONE
MED

75,000lbs
100,000lbs
180,000lbs
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 38° 46' 05"N 38° 45' 13"N
Longitude 87° 36' 04"W 87° 36' 03"W
Elevation 429' 425'
Threshold Crossing Height 25 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator PSIL P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1GLIDER ACTVTY SR-SS. RYS 09/27 & 18/36 HAVE LEFT HAND TFC PATTERN FOR GLIDER ACFT.
A110-4BE ALERT; ODALS FOR RY 27 ARE IN OPERATION SIMULTANEOUSLY WITH REILS ON RY 18.
A110-5FOR CD WHEN RCO 125.6 OTS, CTC EVANSVILLE APCH AT 812-436-4689, WHEN APCH CLSD CTC INDIANAPOLIS ARTCC AT 317-247-2411.
LAWRENCEVILLE-VINCENNES INTL (ICAO: KLWV, IATA: LWV) is a public airport located in LAWRENCEVILLE, IL.
