JAMES G WHITING MEML FLD - Airport Diagram

KMEY

JAMES G WHITING MEML FLD

PublicPUB

1 miles N of MAPLETON, IA

View on Map

Status

Operational

Coordinates

42° 10' 42"N 95° 47' 37"W

Elevation

1116' MSL

Pattern Alt

2116' MSL

Mag Variation

05E

Fuel

100

FSS

FORT DODGE (FOD)

Sectional

OMAHA

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

5/16/24-6/13/24

KDNS (22nm) VFR

1:15 AM CDT RAW

Clear

Viz

10sm

Temp

68°F

Dew

57°F

Pres

29.68"Hg

Wind

170° 13kts

Gusts 19kts

RMK

AO2

KDNS 180615Z AUTO 17013G19KT 10SM CLR 20/14 A2968 RMK AO2

List Your Business

KMEY FBOs, Flight Schools and Ground Support

Promote Listing

Whiting Memorial Field

Freq: 122.8

Phone: (712) 881-2764

0 Reviews (Read | Sign In To Write)

Independent

As of 5/14	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve	7.21
Full Serve

KMEY Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMEY Hotels

No hotels are listed for this airport.

KMEY Restaurants

No restaurants are listed for this airport.

KMEY Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 122.8 CTAF 122.8

No communication frequencies available for this airport.

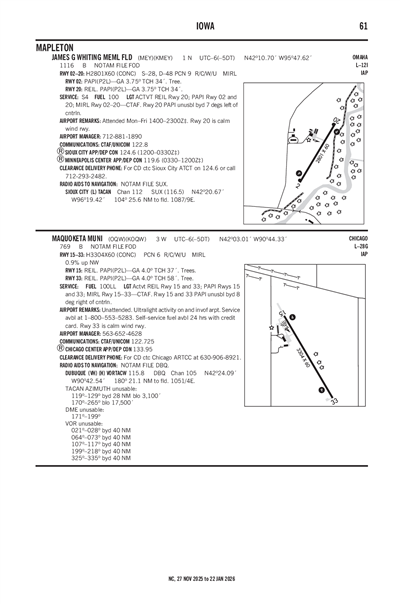

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KSUX (29nm)

RAW

Reported

Sat, 5/18 12:20 AM CDT

Valid

Sat, 5/18 1:00 AM CDT - Sun, 5/19 1:00 AM CDT

VFR

1:00 AM CDT - 8:00 AM CDT

Sky Clear

Viz

6sm

Wind

170° 13kts

Gusts 22kts

Shear 200° 45kts @ 2000'

VFR

8:00 AM CDT - 9:00 AM CDT

Scattered 15,000'

Viz

6sm

Wind

240° 13kts

Gusts 23kts

VFR

9:00 AM CDT - 11:00 AM CDT

Scattered 16,000'

Viz

6sm

Wind

300° 16kts

Gusts 26kts

VFR

11:00 AM CDT - 6:00 PM CDT

Few 25,000'

Viz

6sm

Wind

320° 18kts

Gusts 24kts

VFR

6:00 PM CDT - 11:00 PM CDT

Sky Clear

Viz

6sm

Wind

320° 11kts

Gusts 16kts

VFR

11:00 PM CDT - 1:00 AM CDT

Sky Clear

Viz

6sm

Wind

VRB° 3kts

KSUX 180520Z 1806/1906 17013G22KT P6SM SKC WS020/20045KT
   FM181300 24013G23KT P6SM SCT150
   FM181400 30016G26KT P6SM SCT160
   FM181600 32018G24KT P6SM FEW250
   FM182300 32011G16KT P6SM SKC
   FM190400 VRB03KT P6SM SKC

KMEY

Domestic
5/15/240540Z	!FOD 05/098 MEY OBST TOWER LGT (ASR 1245122) 422826.30N0954834.60W (17.8NM N MEY) 1713.3FT (349.1FT AGL) U/S 2405150540-2405300440
5/10/241814Z	!FOD 05/072 MEY OBST TOWER LGT (ASN 2023-ACE-6971-OE) 415850N0954639W (11.9NM S MEY) 1393FT (259FT AGL) U/S 2405101814-2406232359
5/7/240451Z	!FOD 05/048 MEY OBST TOWER LGT (ASR 1263734) 421406.90N0954341.30W (4.5NM NE MEY) 1487.2FT (326.1FT AGL) U/S 2405070451-2405220351
4/28/241744Z	!FOD 04/188 MEY OBST TOWER LGT (ASR 1031567) 420522.90N0954548.20W (5.5NM SSE MEY) 1906.2FT (455.1FT AGL) U/S 2404281744-2407280400
4/21/241137Z	!FOD 04/132 MEY OBST TOWER LGT (ASR 1023678) 420214.10N0955304.70W (9.4NM SSW MEY) 1653.2FT (283.1FT AGL) U/S 2404211137-2405242359

ATC Tower

Attendance

MON-FRI 0800-1700

Owner

CITY OF MAPLETON
513 MAIN
MAPLETON, IA 51034
Phone: 712-881-1351

Manager

KARLA UHL
513 MAIN STREET
MAPLETON, IA 51034
Phone: 712-881-1890

FSS

FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF

NOTAM

FOD

Light Schedule

Lights

ACTVT REIL RWY 20; PAPI RWY 02 & 20; MIRL RWY 02/20 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 02/20

Dimensions

2801 ft. x 60 ft.

Surface Type

CONC

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

9 /R/C/W/U

Single Wheel

28,000lbs

Double Wheel

48,000lbs

Double Tandem

Dual Dbl Tand

	Runway 02	Runway 20
True Heading	24°	204°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	42° 10' 29"N	42° 10' 55"N
Longitude	95° 47' 45"W	95° 47' 29"W
Elevation	1,116'	1,116'
Threshold Crossing Height	34 ft. AGL	34 ft. AGL
Visual Glide Path Angle	3.75°	3.75°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	No	Yes

A110-1	RY 20 IS CALM WIND RY.
A110-2	FOR CD CTC SIOUX CITY ATCT ON 124.6 OR CALL 712-293-2482.
A110-3	RWY 20 PAPI UNUSBL BYD 7 DEGS LEFT OF CNTRLN.

JAMES G WHITING MEML FLD (ICAO: KMEY, IATA: MEY) is a public airport located in MAPLETON, IA.
